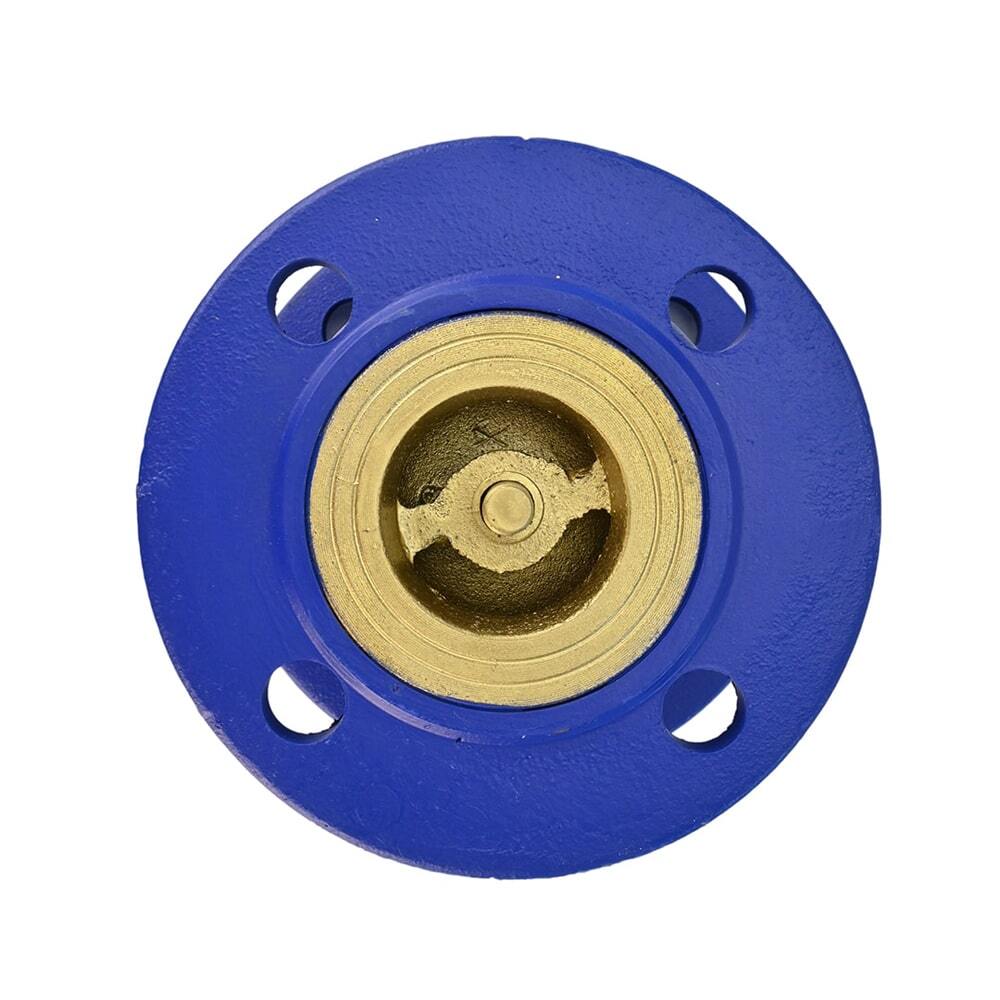

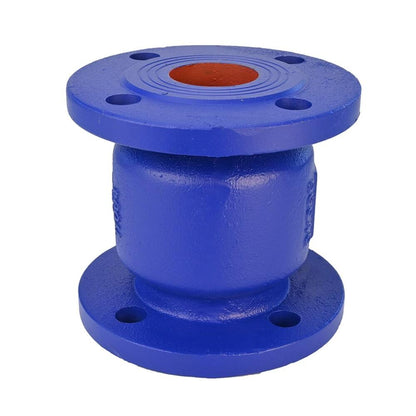

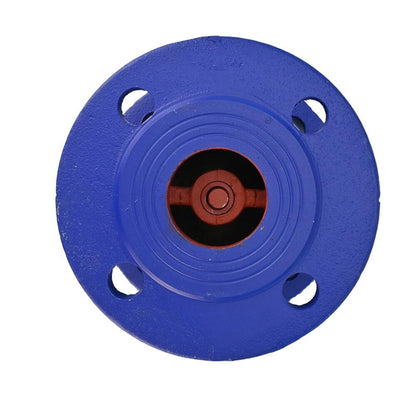

Spring check valve DNOVA 402A 16 bar body material - cast iron GGG50, flanged

From $22.85 USD
From $22.85 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Spring check valves are designed to prevent changes in the direction of flow of the working medium in the pipeline in the opposite direction. Operating principle: blocking the reverse flow of the medium is done by pressing the soft seal of the valve shutter to its seat under the action of a spring and the pressure of the reverse flow. The valve is opened by a pressure difference in the flow of the medium in the desired direction, while the valve shutter moves, compressing the spring.





Weight and dimensional parameters of check valves DNOVA 402A 16 bar body material - cast iron GGG50, flanged

DN L D D1 D2 b - f Z - Ød Weight, kg
50 150 165 125 100 19 - 3 4 – Ø19 6.4
65 170 185 145 120 19 - 3 4 – Ø19 8.8
80 180 200 160 135 19 - 3 8 – Ø19 11.9
100 190 220 180 155 21 - 3 8 – Ø19 15.4
125 200 250 210 185 22 - 3 8 – Ø19 22.2
150 210 285 240 210 22 - 3 8 – Ø23 31.6

Sketch overall and installation dimensions of check valves DNOVA 402A 16 bar body material - cast iron GGG50, flanged





Materials of check valve parts DNOVA 402A 16 bar body material - cast iron GGG50, flanged

№ Name Material
1 Case cast iron GGG40
2 Disk cast iron GGG40
3 Sealing NBR
4 Stem cast iron GGG40
5 Gasket NBR
6 Spring steel SS304
7 Guide bushing PTFE

Check valves detail DNOVA 402A 16 bar body material - cast iron GGG50, flanged

Specifications

Country of origin
China
Body material
Cast iron GGG50/EN-GJS-500-7
Maximum allowable temperature
80 °C
Connection type
Flanged
Operating environment
Water, Air, Oil Products
Applications
Water Supply
Nominal pressure
16 bar
Type of seal
NBR
Check valve type
Spring
