How it works
Normally closed solenoid valve
Direct-acting solenoid inset
The number that matters
Nominal pressure
7bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Liquid Medium
- Gaseous Medium
- Water Supply
- Chemical Industry
- Oil And Gas Industry
- Industry
- Irrigation
In a normally closed solenoid valve, the closed position is maintained if no control voltage is applied to the solenoid coil. When voltage is applied to the coil, the normally closed valve opens and allows the medium flow to pass through. When the control voltage is switched off, the valve closes automatically and cuts off the flow of medium in the pipeline. Solenoid valves are used in automobiles, special equipment, water supply systems and auto irrigation and heating systems. They are also widely used in industry to regulate and control the transportation of a variety of liquids and gases.

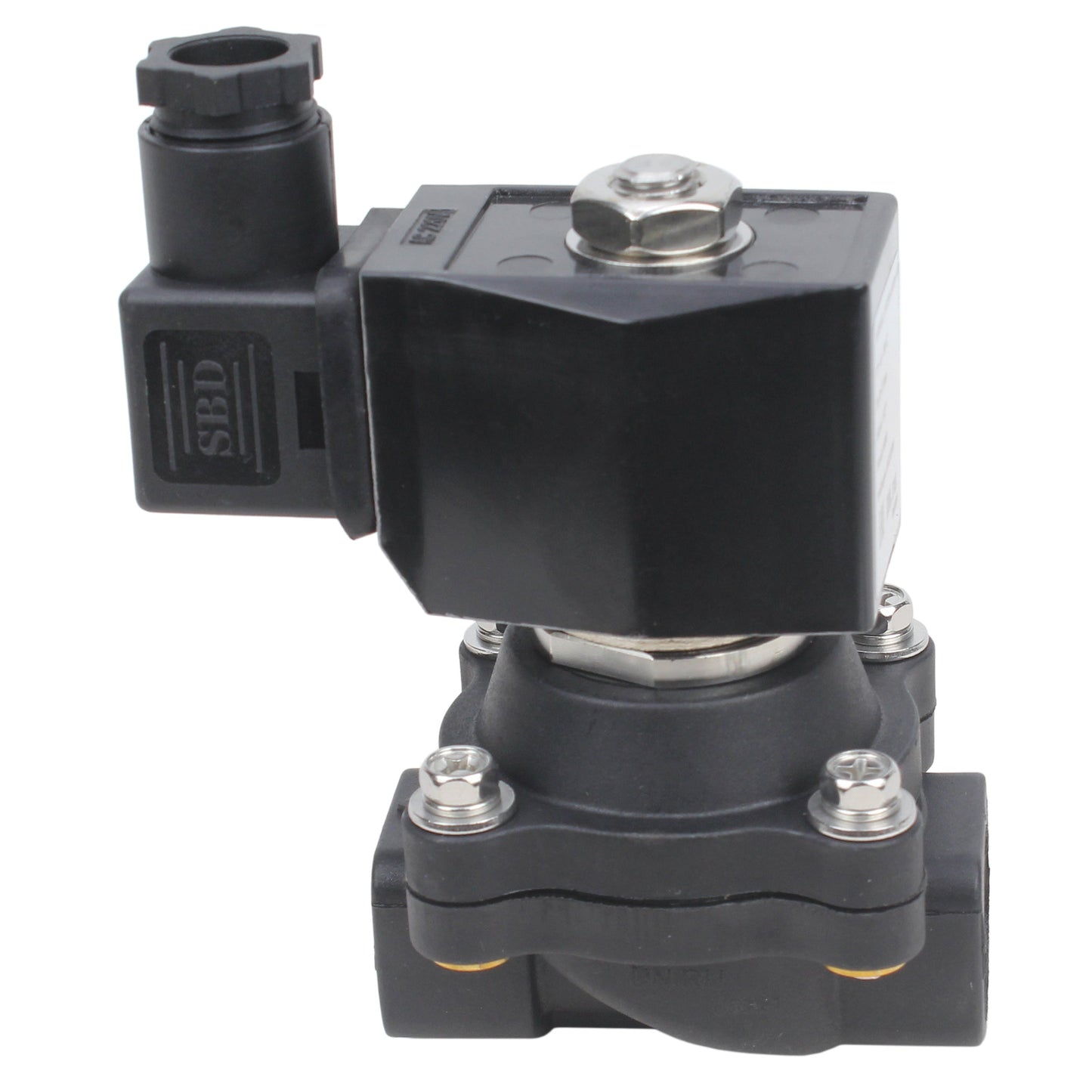

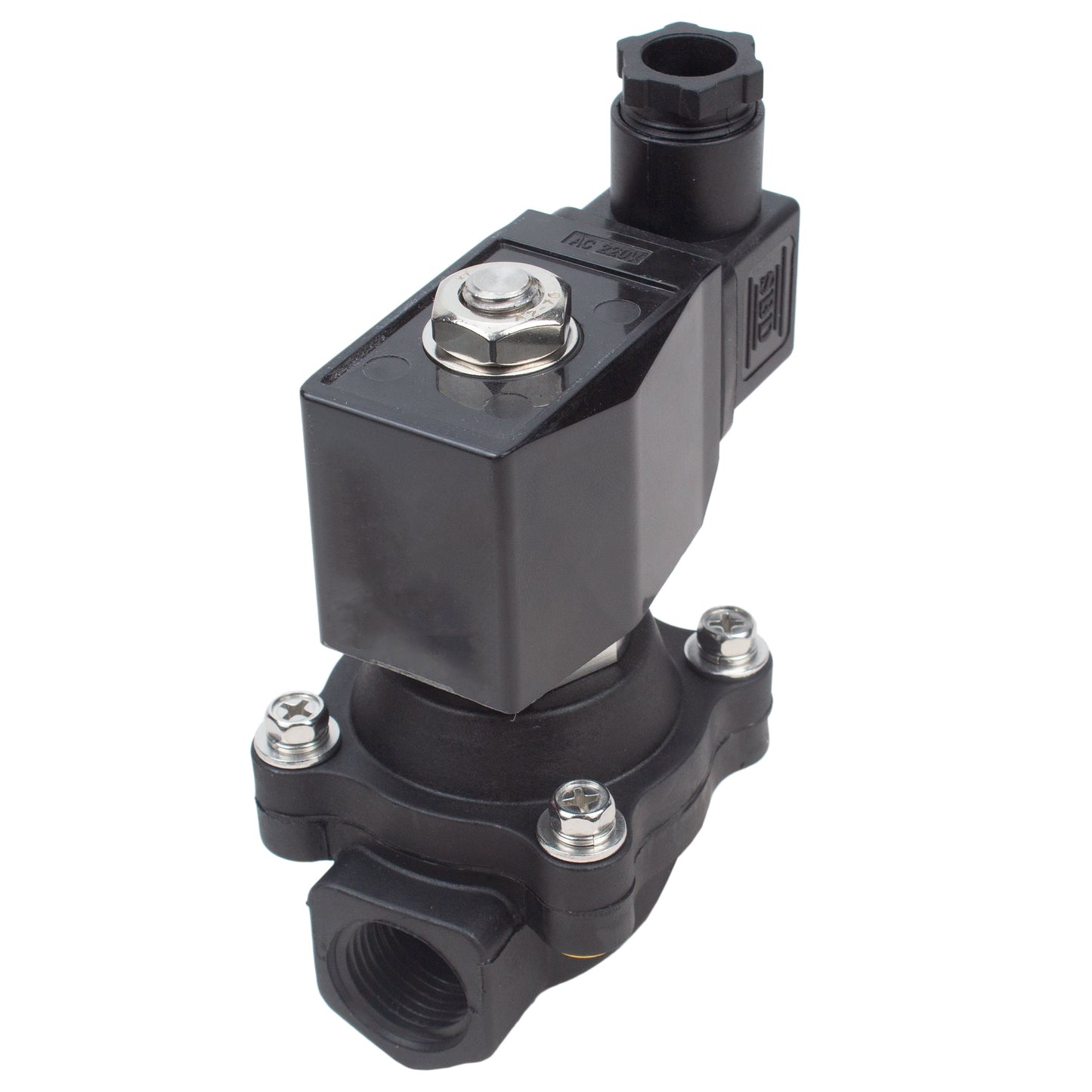

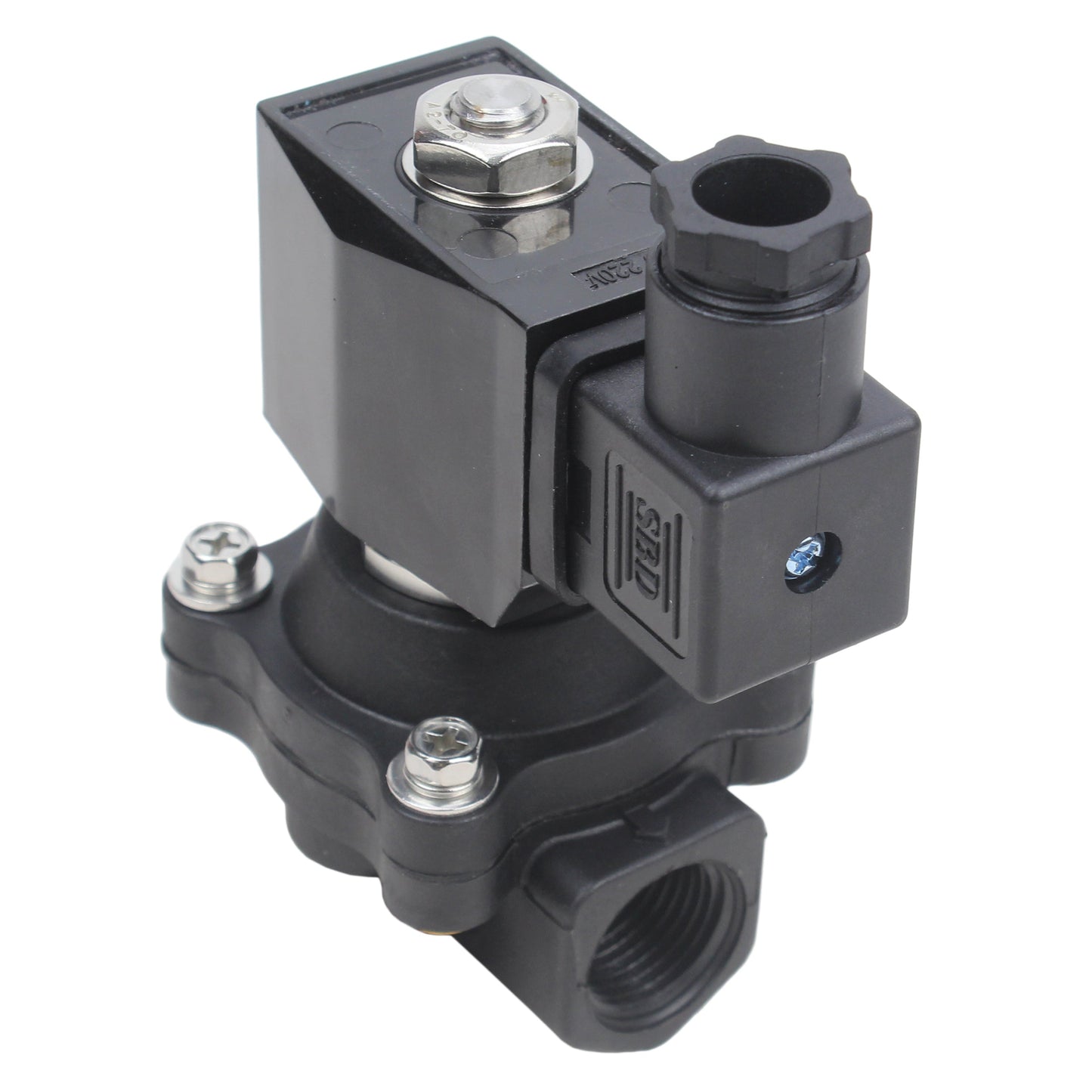

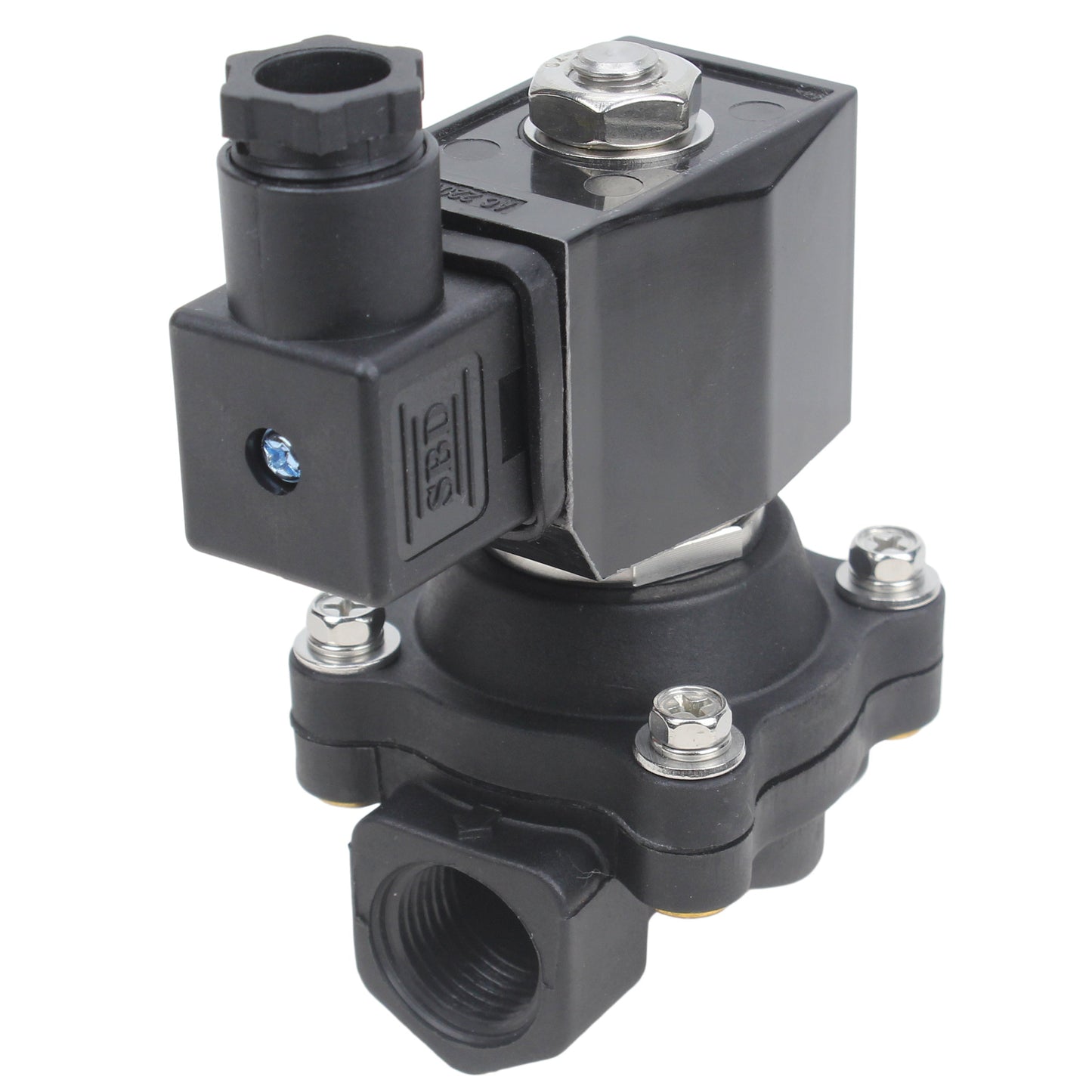

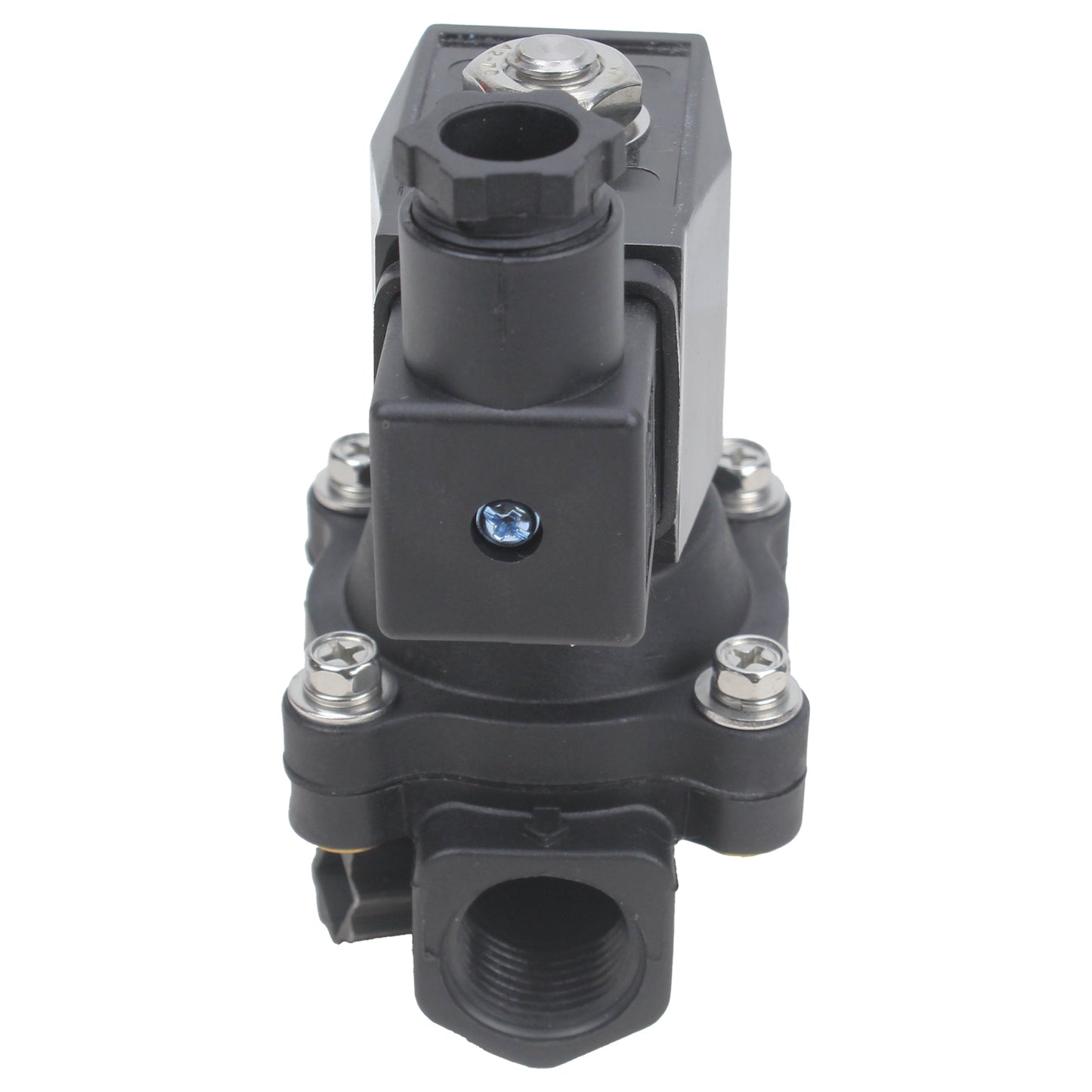

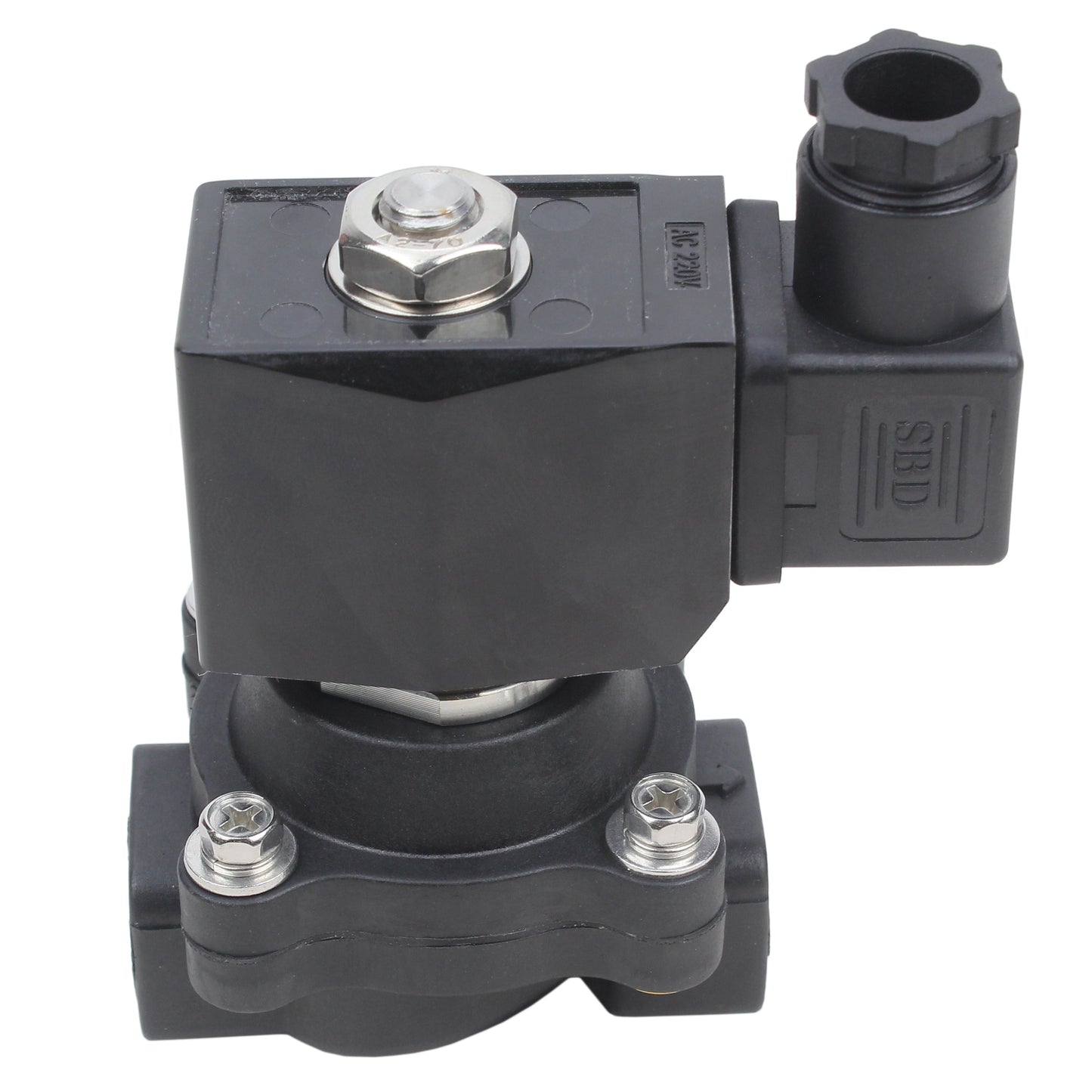

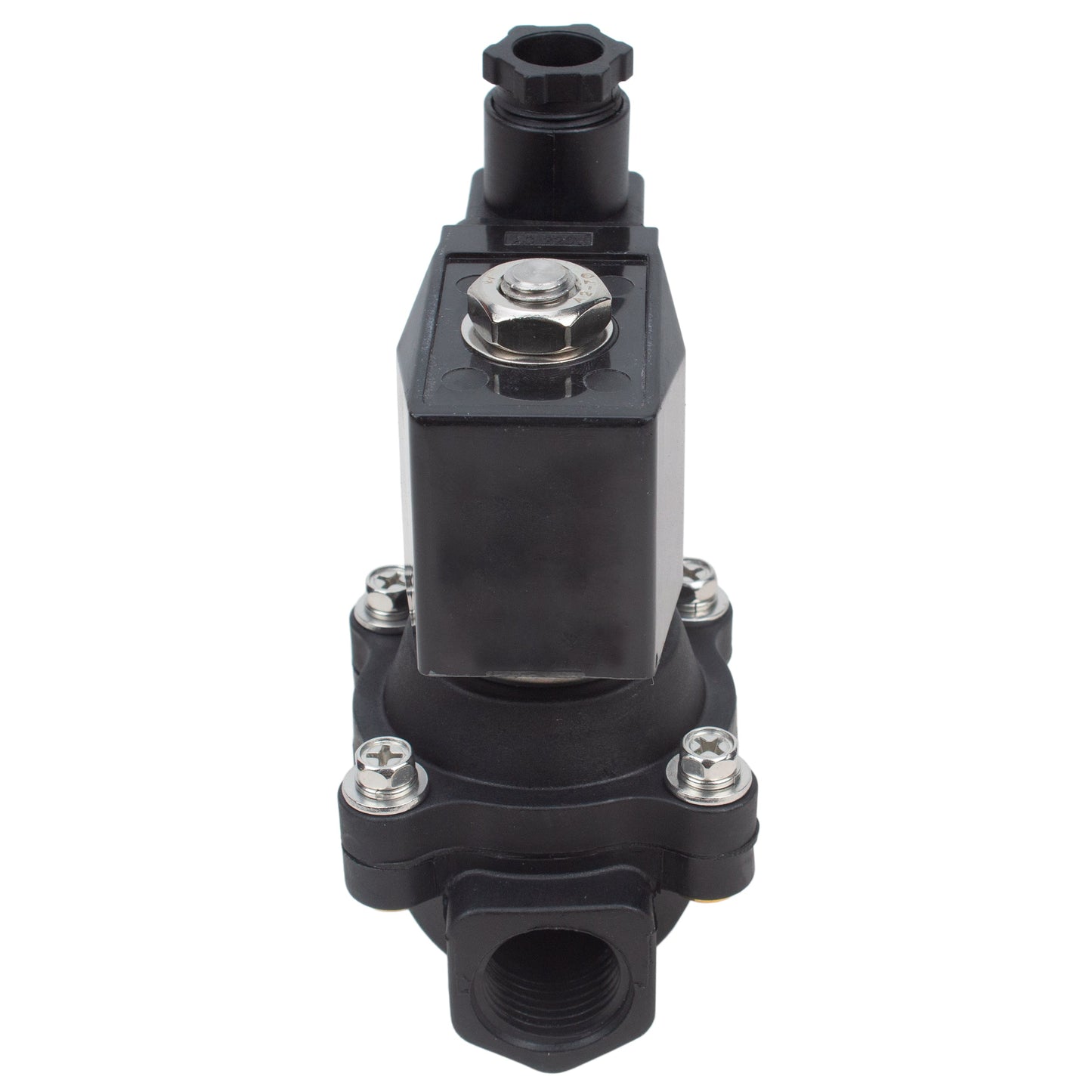

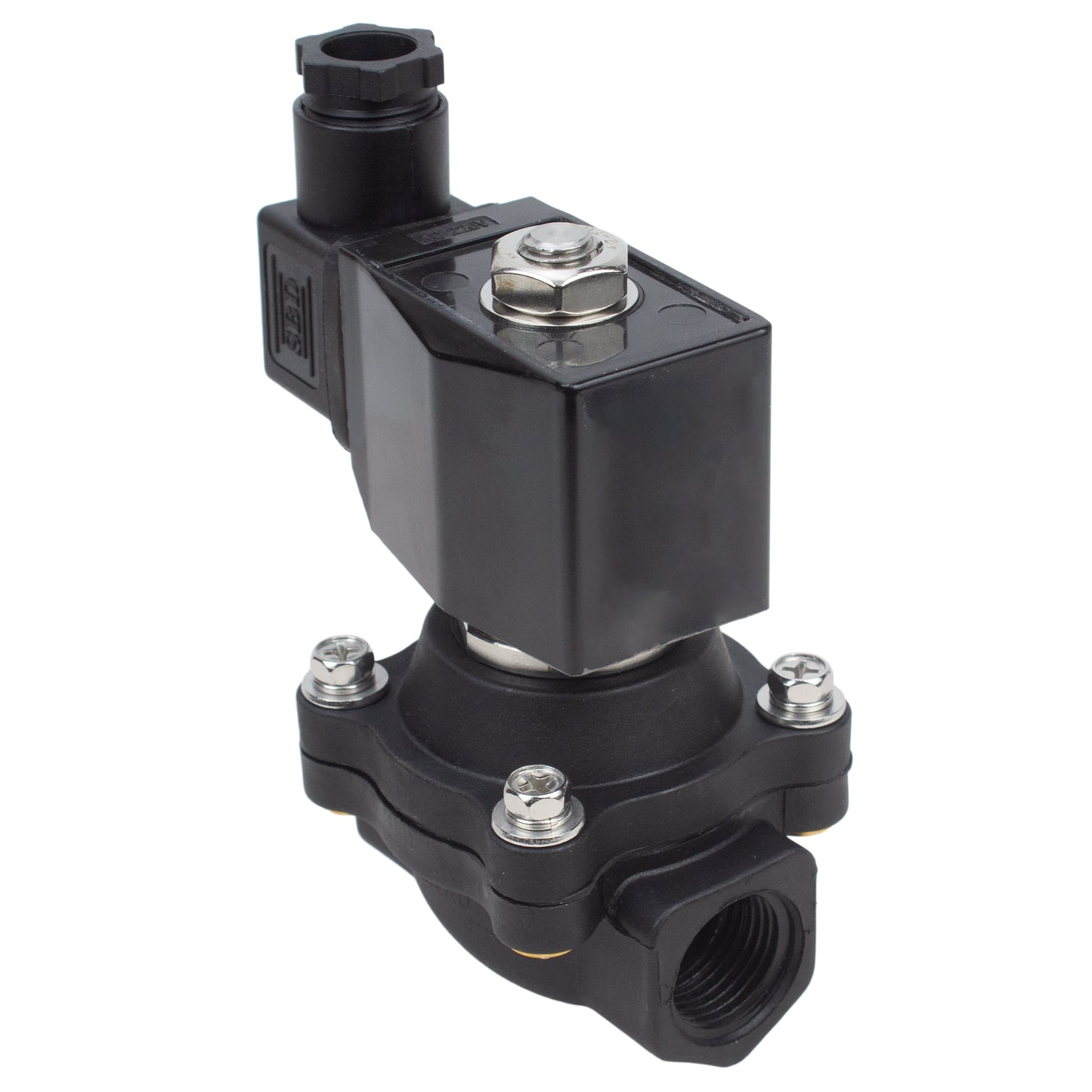

General technical specifications DNOVA VS541-NT-NC-24VAC solenoid valves, body material - Plastic, seal - NBR, normally closed, coil - 24 VAC:
| № | Name | Value |
| 1 | Working medium temperature, °C | -5 to + 80 |
| 2 | Working medium | water, air, oil |
| 3 | Operating principle | direct-acting |
| 4 | Device type | normally closed |
| 5 | Connection to pipeline | threaded |
| 7 | Coil power supply, V | 24 AC |
| 8 | Housing material | plastic |
| 9 | Seal | NBR |
| 10 | Working medium viscosity | <20CST |
Dimensions and dimensions DNOVA VS541-NT-NC-24VAC solenoid valves, body material - Plastic, seal - NBR, normally closed, coil - 24 V AC:
| DN | C, mm | A, mm | B, mm | Weight, kg |
| 15 | 107 | 76 | 68 | 0,5 |
| 20 | 111 | 80 | 68 | 0,5 |
| 25 | 117 | 107 | 82 | 0,6 |
| 32 | 160 | 140 | 112 | 1,2 |
| 40 | 170 | 140 | 112 | 1,3 |
| 50 | 190 | 159 | 130 | 1,5 |
Dimensional sketch of solenoid valves VS541-NT-NC-24VAC, body material - Plastic, seal - NBR, normally closed, coil - 24 VAC
- Body material
- Plastic
- Connection type
- Threaded
- Operating environment
- Water, Liquid Medium, and Gaseous Medium
- Applications
- Water Supply, Chemical Industry, Oil And Gas Industry, Industry, Irrigation, Wastewater systems, and Utilities And Heating Networks
- Nominal pressure
- 7 bar
- Type of seal
- NBR
- Solenoid valve type
- normally closed
- Solenoid valve working principles
- Direct action
- Supply voltage
- 24 V
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
