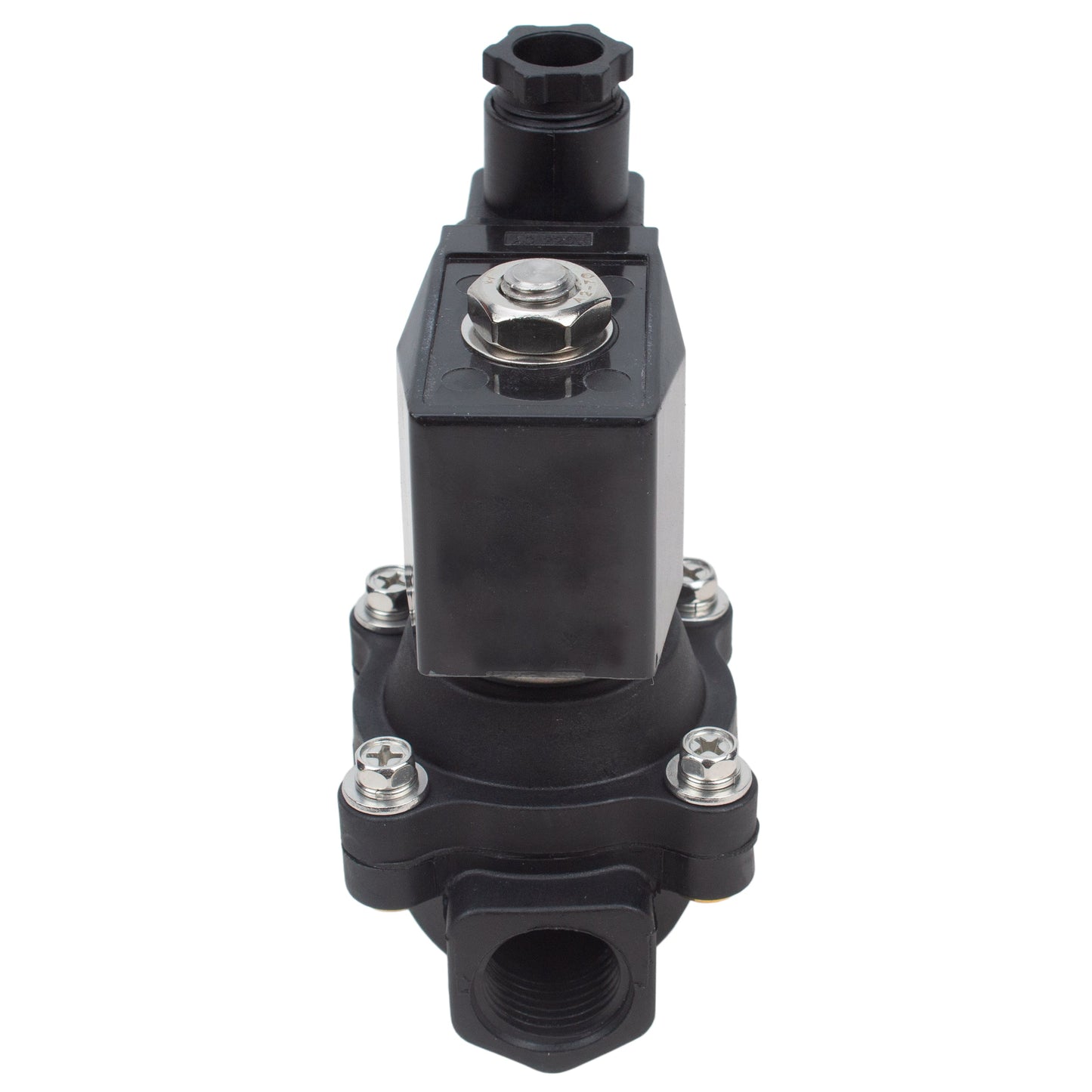

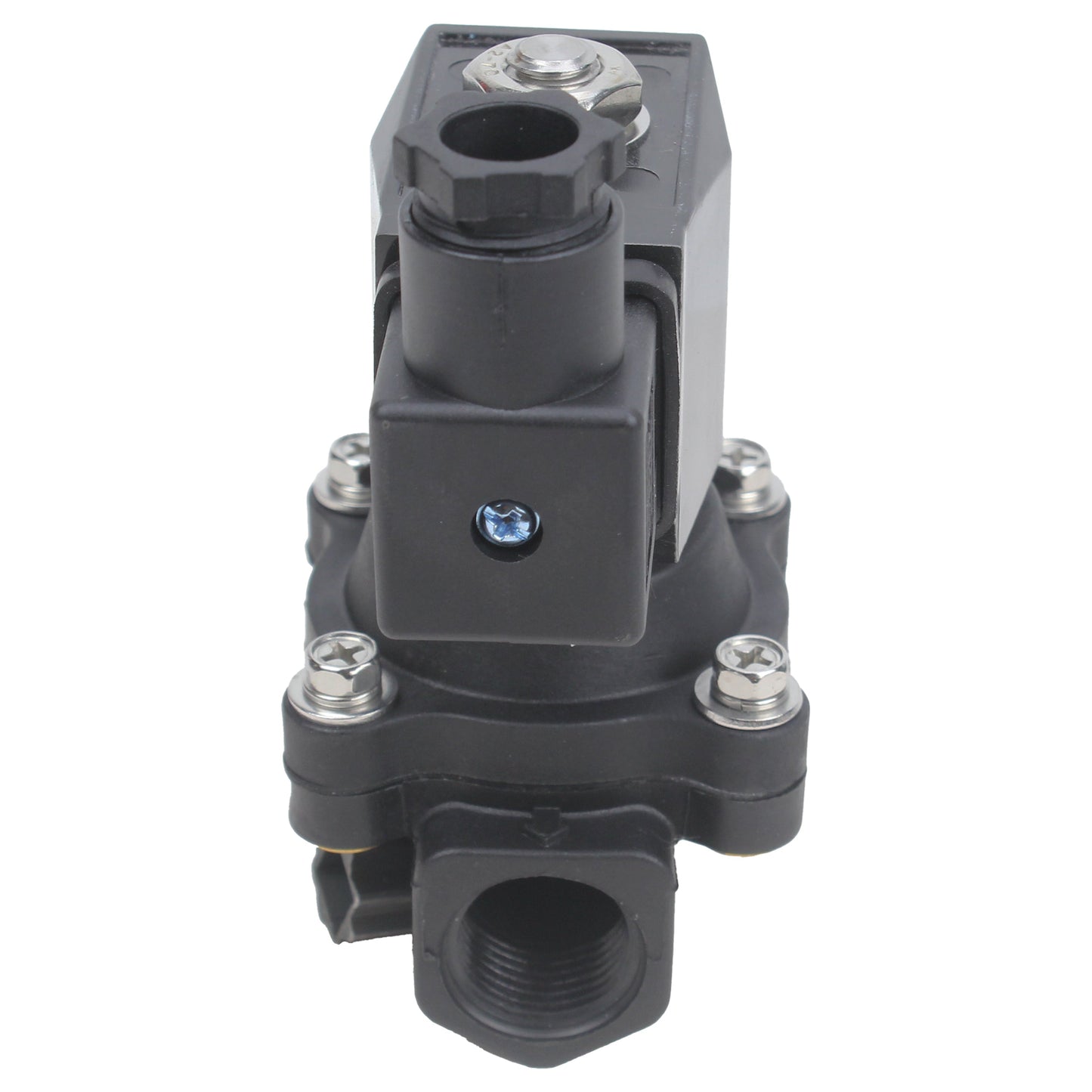

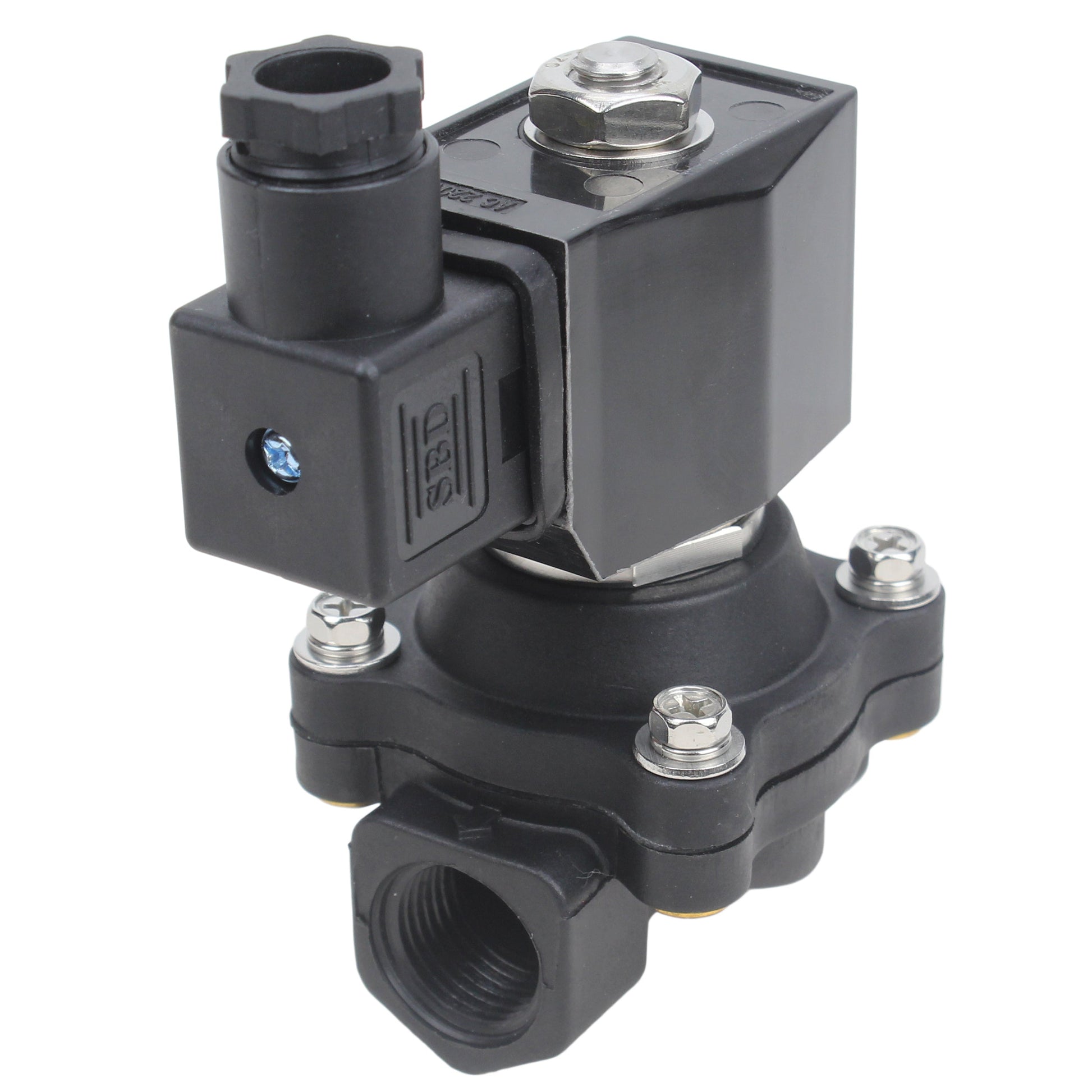

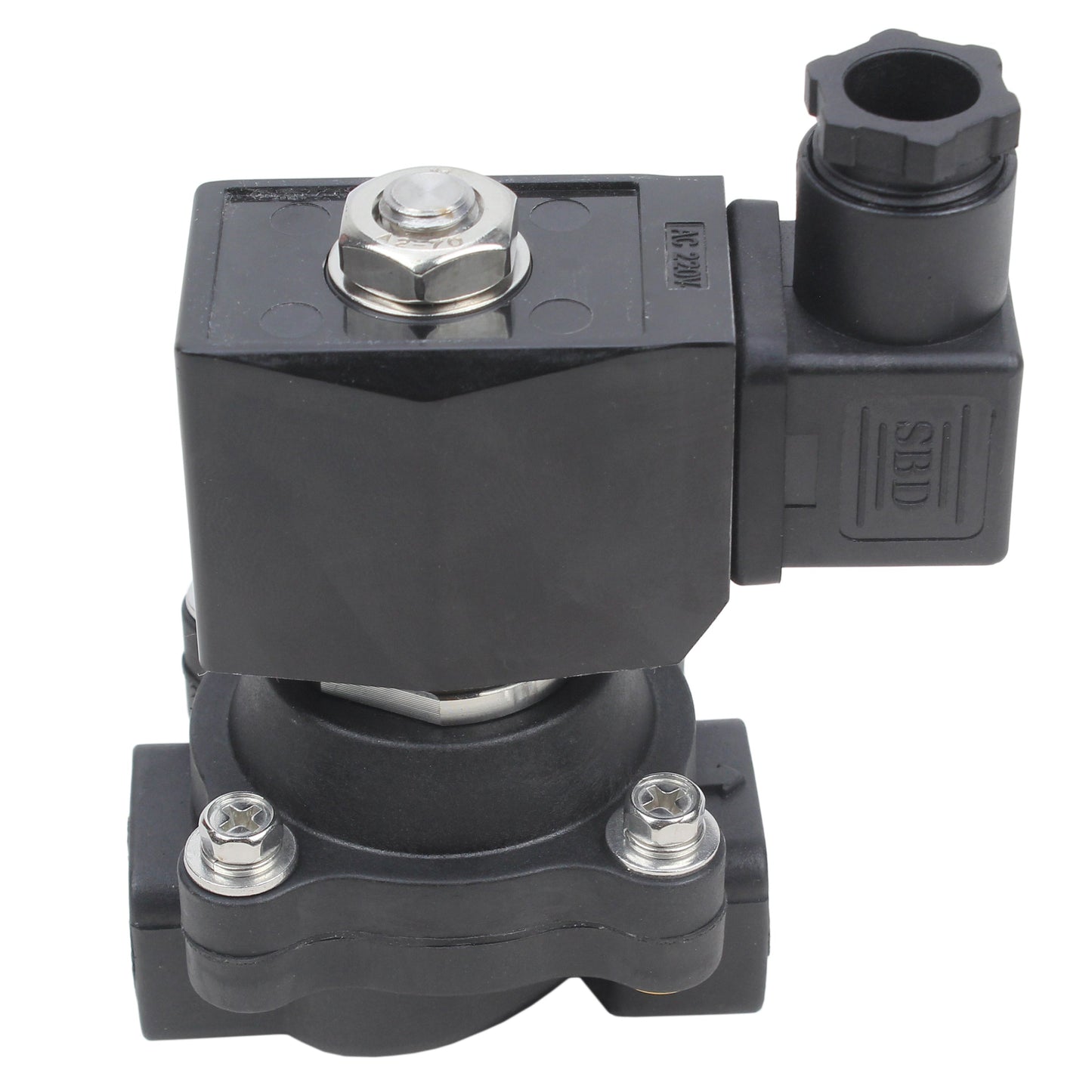

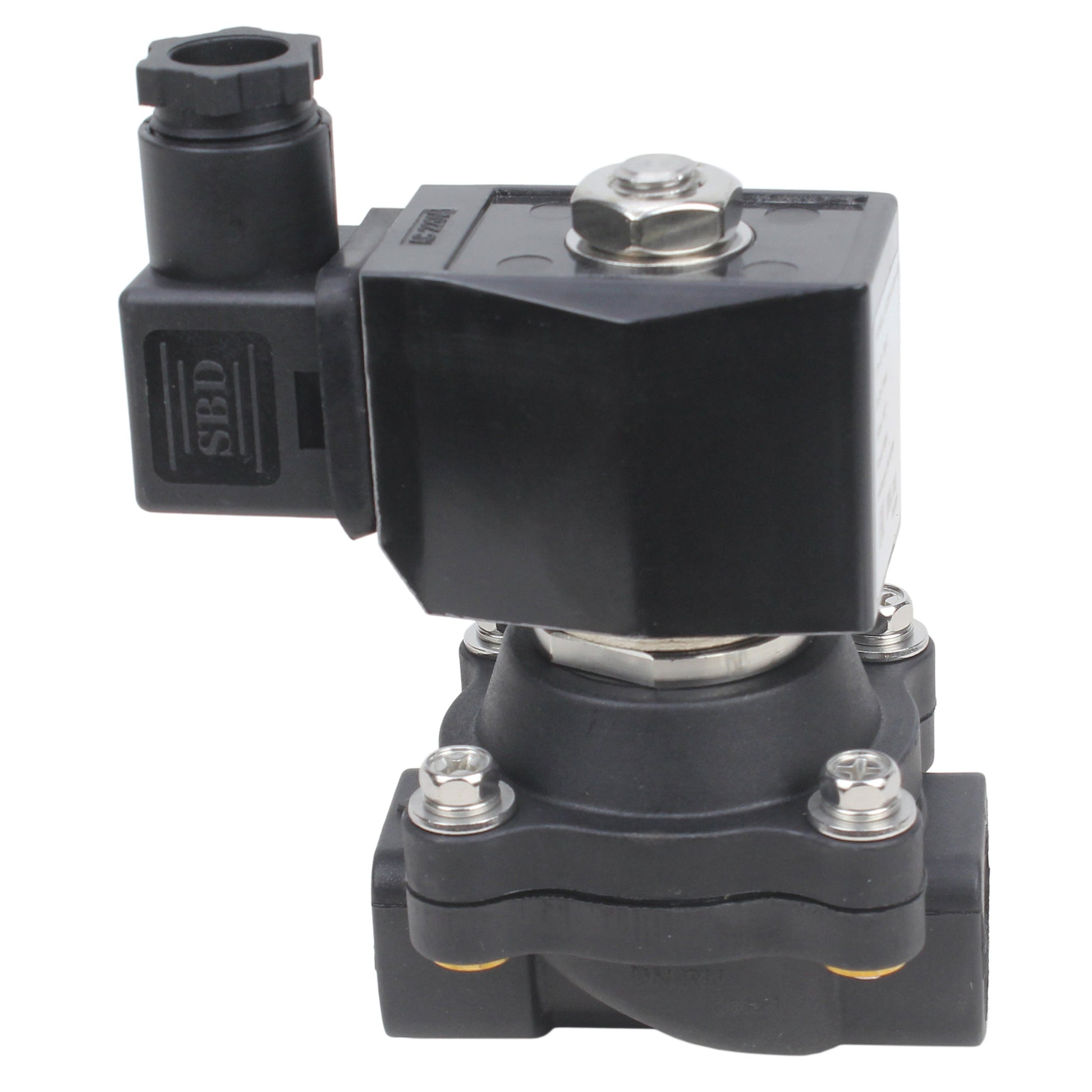

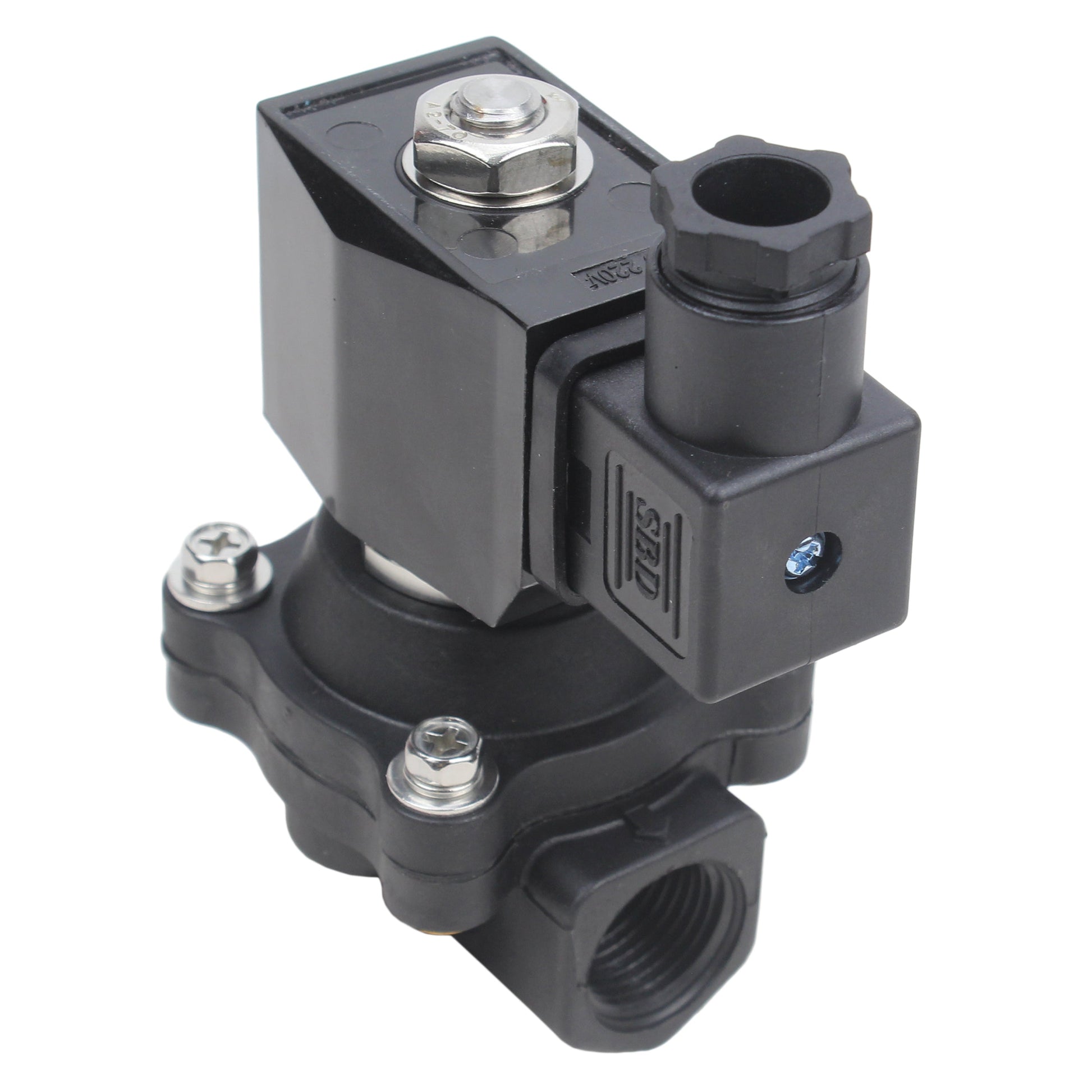

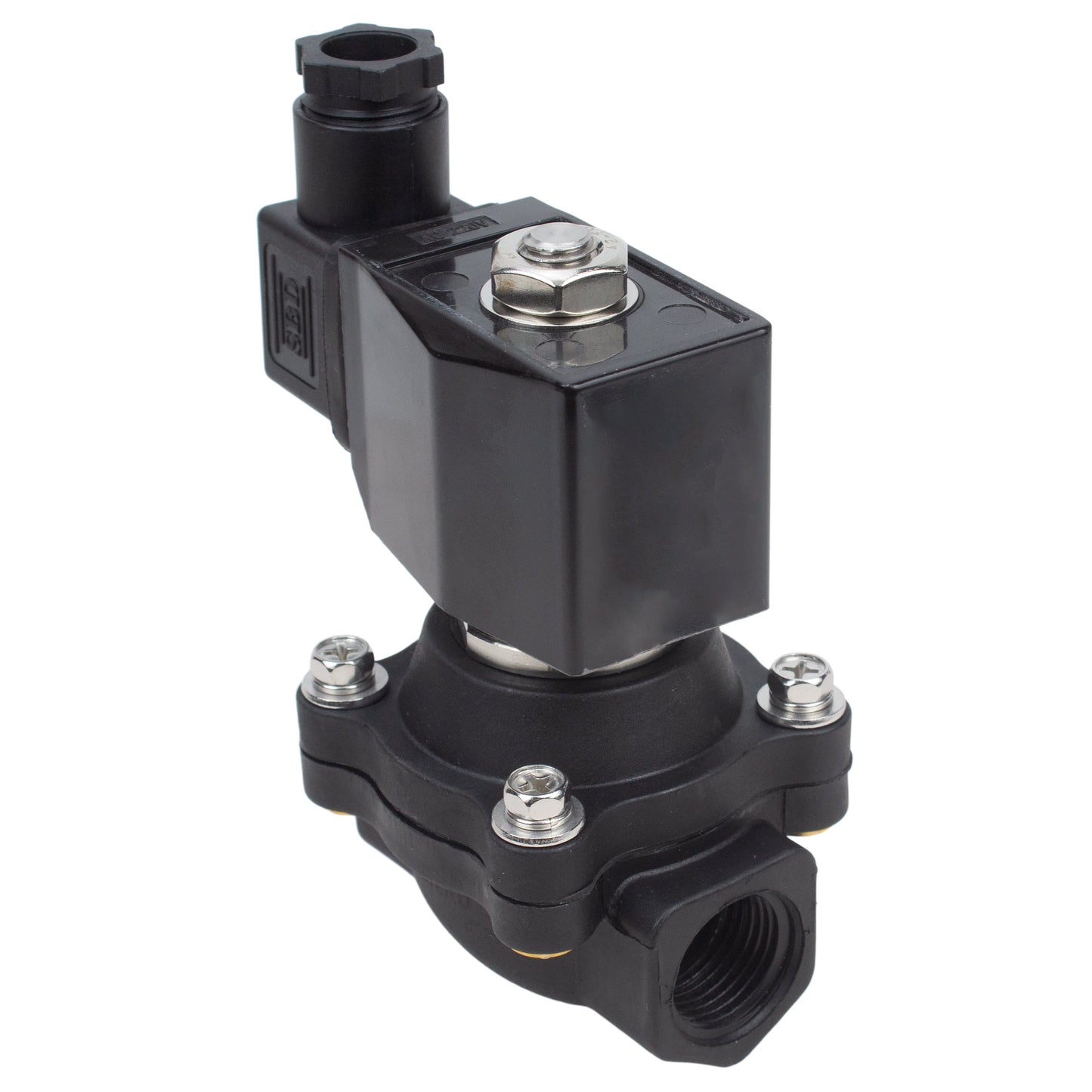

Solenoid valve DNOVA VS541-ET-NC-24VAC, body material - Plastic, seal - EPDM, normally closed, coil - 24 VAC

From $13.88 USD
From $13.88 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

In a normally closed solenoid valve, the closed position is maintained if no control voltage is applied to the solenoid coil. When voltage is applied to the coil, the normally closed valve opens and allows the medium flow to pass through. When the control voltage is switched off, the valve closes automatically and cuts off the flow of medium in the pipeline. Solenoid valves are used in automobiles, special equipment, water supply systems and auto irrigation and heating systems. They are also widely used in industry to regulate and control the transportation of a variety of liquids and gases.





General technical specifications DNOVA VS541-ET-NC-24VAC solenoid valves, body material - Plastic, seal - EPDM, normally closed, coil - 24 VAC:

№ Name Value
1 Working medium temperature, ⁰C -5 to + 90
2 Working medium water, air, oil
3 Operating principle direct-acting
4 Device type normally closed
5 Connection to pipeline threaded
7 Coil power supply, V 24 AC
8 Housing material plastic
9 Seal EPDM
10 Working medium viscosity <20CST









Dimensions and dimensions DNOVA VS541-ET-NC-24VAC Solenoid Valves, body material - Plastic, seal - EPDM, normally closed, coil - 24 VAC:

DN C, mm A, mm B, mm Weight, kg
15 107 76 68 0,5
20 111 80 68 0,5
25 117 107 82 0,6
32 160 140 112 1,2
40 170 140 112 1,3
50 190 159 130 1,5

Dimensional sketch of solenoid valves VS541-ET-NC-24VAC, body material - Plastic, seal - EPDM, normally closed, coil - 24 VAC

Specifications

Country of origin
China
Body material
Plastic
Connection type
Threaded
Operating environment
Water, Liquid Medium, Gaseous Medium
Applications
Water Supply, Chemical Industry, Industry, Irrigation, Wastewater Systems, Utilities And Heating Networks
Nominal pressure
7 bar
Type of seal
EPDM
Solenoid valve type
normally closed
Solenoid valve working principles
Direct action
Supply voltage
24 V
