Description

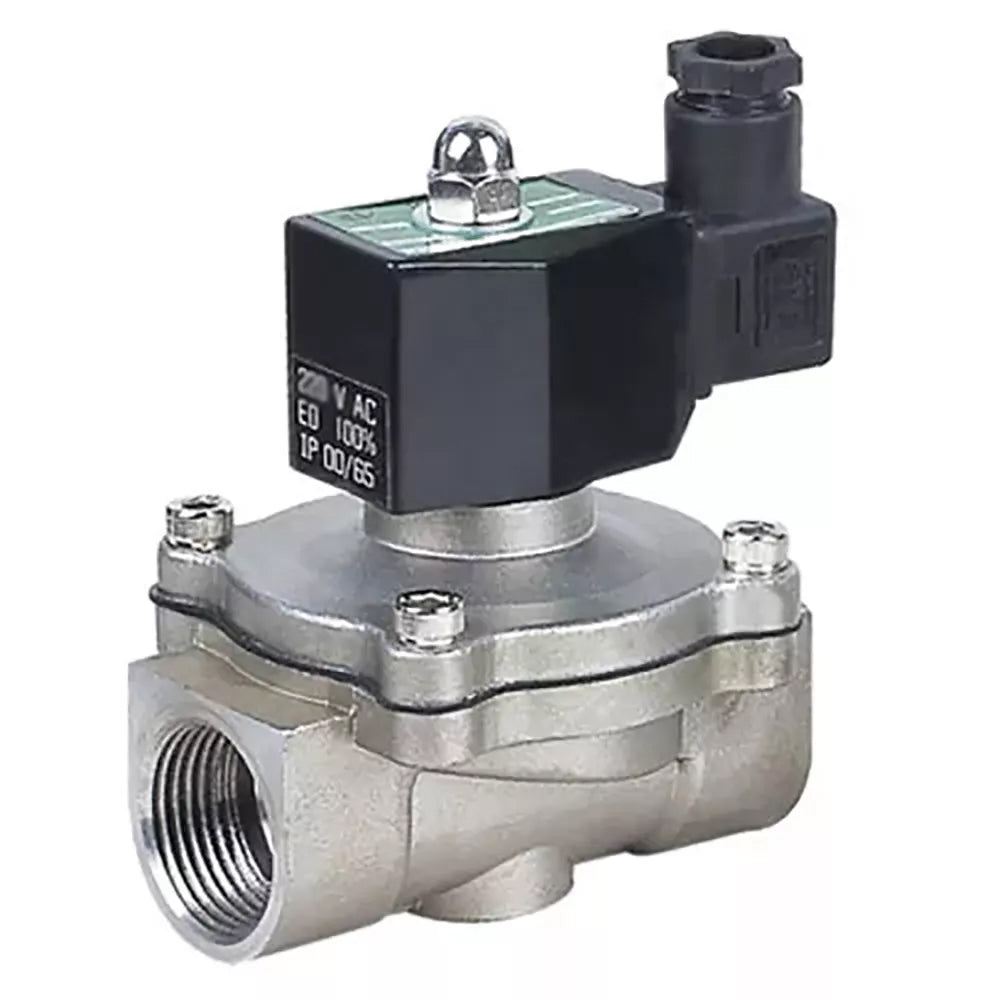

A normally open solenoid valve is a valve that is open to the flow of medium through it when no voltage is applied to its induction coil. When voltage is applied to the coil, this type of solenoid valve closes and remains closed as long as voltage is applied to the coil. Solenoid valves are used in automobiles, specialty vehicles, water pipes and auto irrigation and heating systems. They are also widely used in industry to regulate and control the transportation of a variety of liquids and gases.
Main technical data and characteristics
| Parameter | Value |
|---|---|
| Nominal diameter, DN | 6–50 |
| Nominal pressure, bar | 10 |
| Operating pressure, bar | 0–7 |
| Working medium | Air, light oil, water |
| Medium temperature, °C | NBR: from -5 to +80; VITON: from -10 to +150; EPDM: from -5 to +90 |
| Ambient temperature, °C | from -5 to +80 |
| Seal material | NBR, VITON, EPDM |
| Connection | Threaded |
| Body material | Brass or stainless steel AISI 304 |
| Valve type | Direct-acting |
| Coil supply voltage, V | 220VAC – AC 220V; 24VDC – DC 24V; 24VAC – AC 24V |
| Valve configuration | Normally closed / normally open |
| Coil shape | Cubic |
| Kinematic viscosity of medium | <20 CST |
| Average service life (cycles) | 600,000 (with non-aggressive medium and moderate pressure/temperature) |
Dimensions and dimensions of DNOVA VS331-ET-NO-24VAC solenoid valves, body material - Stainless steel AISI 304, seal - EPDM, normally open, coil - 24 VAC:
| DN | B, mm | C, mm | D, mm | Weight, kg |
| 6 | 30 | 75 | 40.5 | 0,3 |
| 8 | 30 | 75 | 40.5 | 0,29 |
| 10 | 57 | 110 | 66 | 0,62 |
| 15 | 57 | 110 | 66 | 0,62 |
| 20 | 57 | 115 | 70 | 0,62 |
| 25 | 73 | 122 | 99 | 1 |
| 32 | 90.5 | 167 | 124 | 1,8 |
| 40 | 90.5 | 167 | 124 | 2 |
| 50 | 124 | 186 | 164 | 2,8 |
Dimensional sketch VS331-ET-NO-24VAC, body material - Stainless steel AISI 304, seal - EPDM, normally open, coil - 24 VAC
