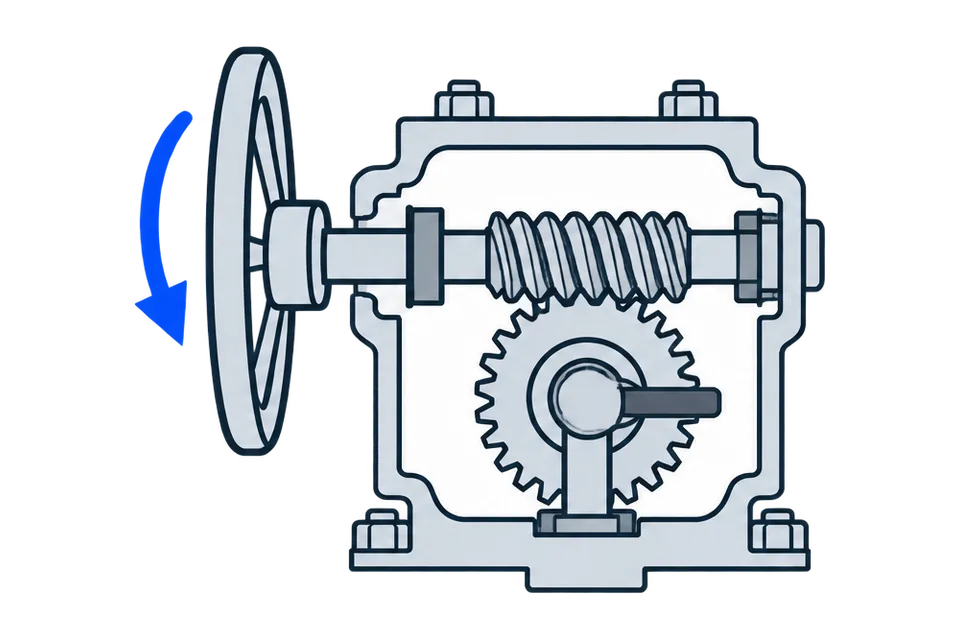

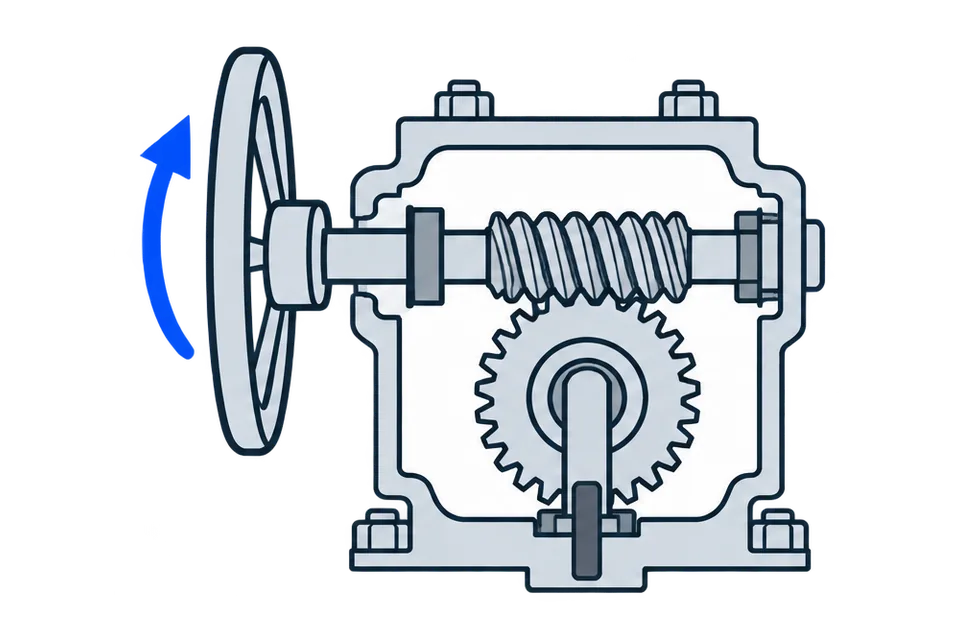

How it works
Manual quarter-turn gearbox
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
A quarter-turn gearbox is a mechanical device designed to provide a 90-degree rotation (or a quarter turn) to an input shaft, converting rotary motion into a different angular direction. These gearboxes are commonly used in various industrial applications, such as valve automation, where a quarter-turn motion is required to control the flow of fluids or gases. They are essential components in systems where precise and controlled rotational movement is necessary. Quarter-turn gearboxes come in different types, such as worm gear, bevel gear, or spur gear configurations, each suited for specific applications based on their design and efficiency requirements.
Overall and mounting dimensions of the gearbox DNOVA HGB
Gearbox sketch DNOVA HGB, body material - aluminium alloy
| Model | HGB-1 | HGB-2 | HGB-3 | HGB-4 |
| D2, mm | 81 | 92 | 125 | 140 |
| D3, mm | 50/70 | 70 (89) |
70/102/125 | 102/140 (125) |
| Threaded holes | 4-M6/4-M8 | 4-M8 | 4-M8/4-M10/ 4-M12 |
4-M12/4-M16 |
| d1, mm | 35 | 42 | 55 | 70 |
| Hand wheel diameter, mm | 120 | 160 | 250 | 300 |
| A | 165 | 185 | 250 | 300 |
| B | 127 | 142 | 190 | 220 |
| C | 84 | 102 | 140 | 164 |
| D | 66 | 79 | 112 | 120 |
| E | 12 | 12 | 16 | 20 |
| F | 47 | 52 | 68 | 71 |
| H | 73 | 78 | 108 | 111 |
| Weight, kg | 1.3 | 1.85 | 3.9 | 6.8 |
Materials gearboxes DNOVA HGB
Specification sketch gearboxes DNOVA HGB, body material - aluminium alloy
| № | Name | Material |
| 1 | Transparent indicator cover | PC Pllycarton resin |
| 2 | Screw | steel 304 |
| 3 | Screw | steel 304 |
| 4 | Cover | aluminum ADC 12 |
| 5 | Worm gearbox | cast iron QT450 |
| 6 | Adjustment screw | steel 304 |
| 7 | Rack | steel 45 |
| 8 | Case | acrylonitrile butadiene rubber |
| 9 | bushing | PZ2175 based on ketones |
| 10 | Bearing | alloy steel |
| 11 | Body | aluminum ADC 12 |
| 12 | Bearing | alloy steel |
| 13 | Gland | rubber |
| 14 | Washer | steel 304 |
| 15 | Screw | steel 304 |
| 16 | Axis | steel 45 |
| 17 | Limit switch | - |
| 18 | O-ring | acrylonitrile butadiene rubber |
- Body material
- Aluminium alloy
- Maximum allowable temperature
- 120 °C
- Connection type
- Flanged
- Nominal pressure
- 16 bar
- Type of seal
- PTFE
- Torque
- 1200 Nm
- Shaft shape square
- 27x27 mm
- ISO - flange type
- F10,F12
- Country of origin
- China
