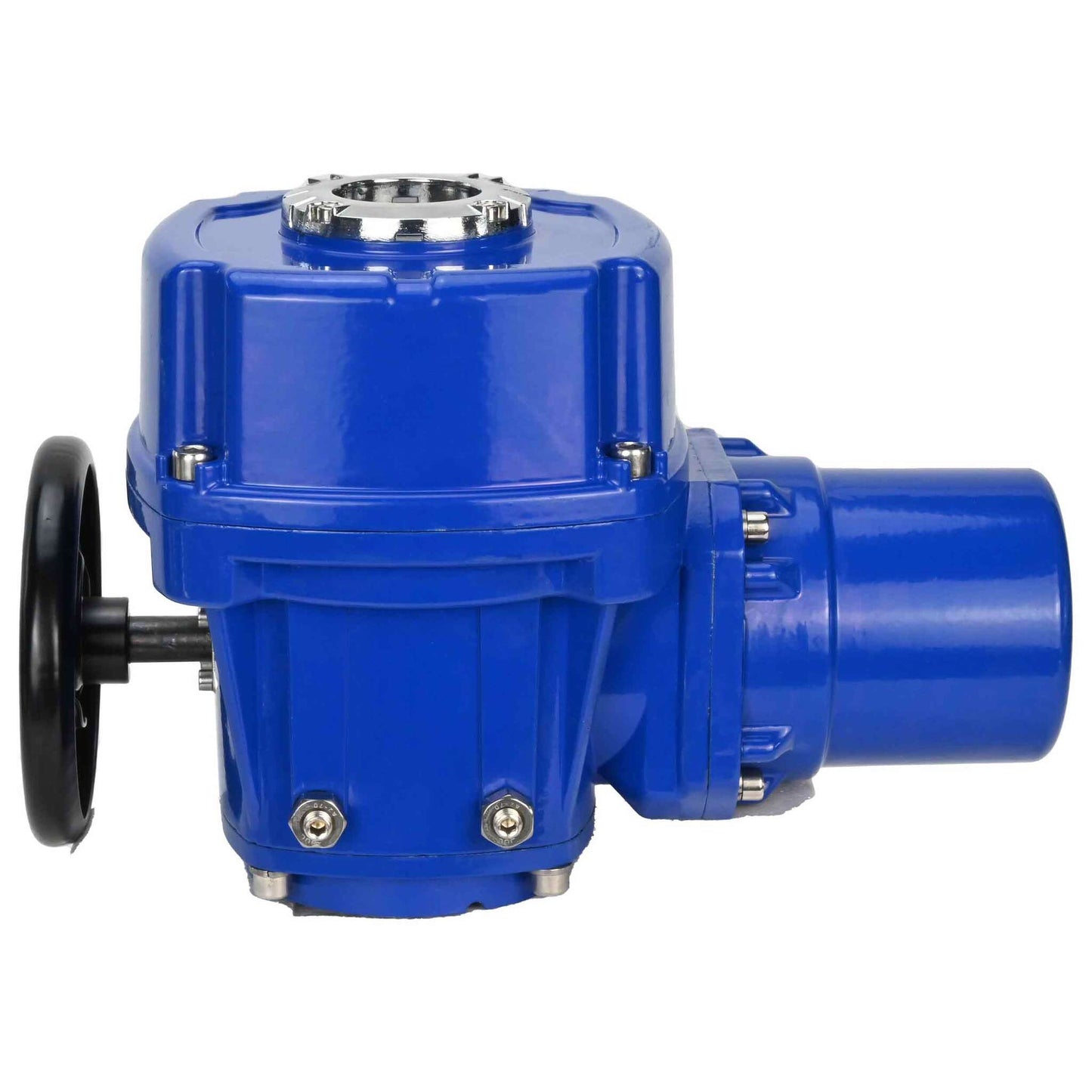

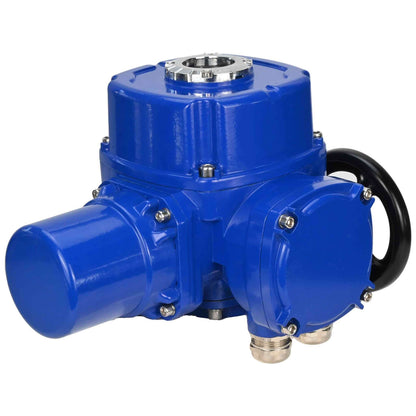

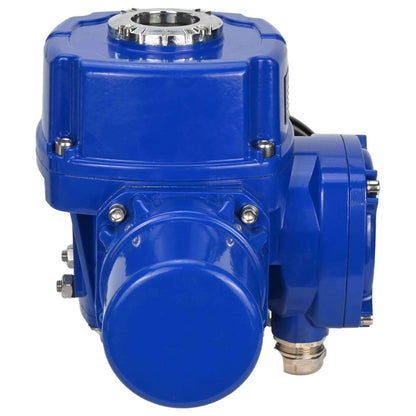

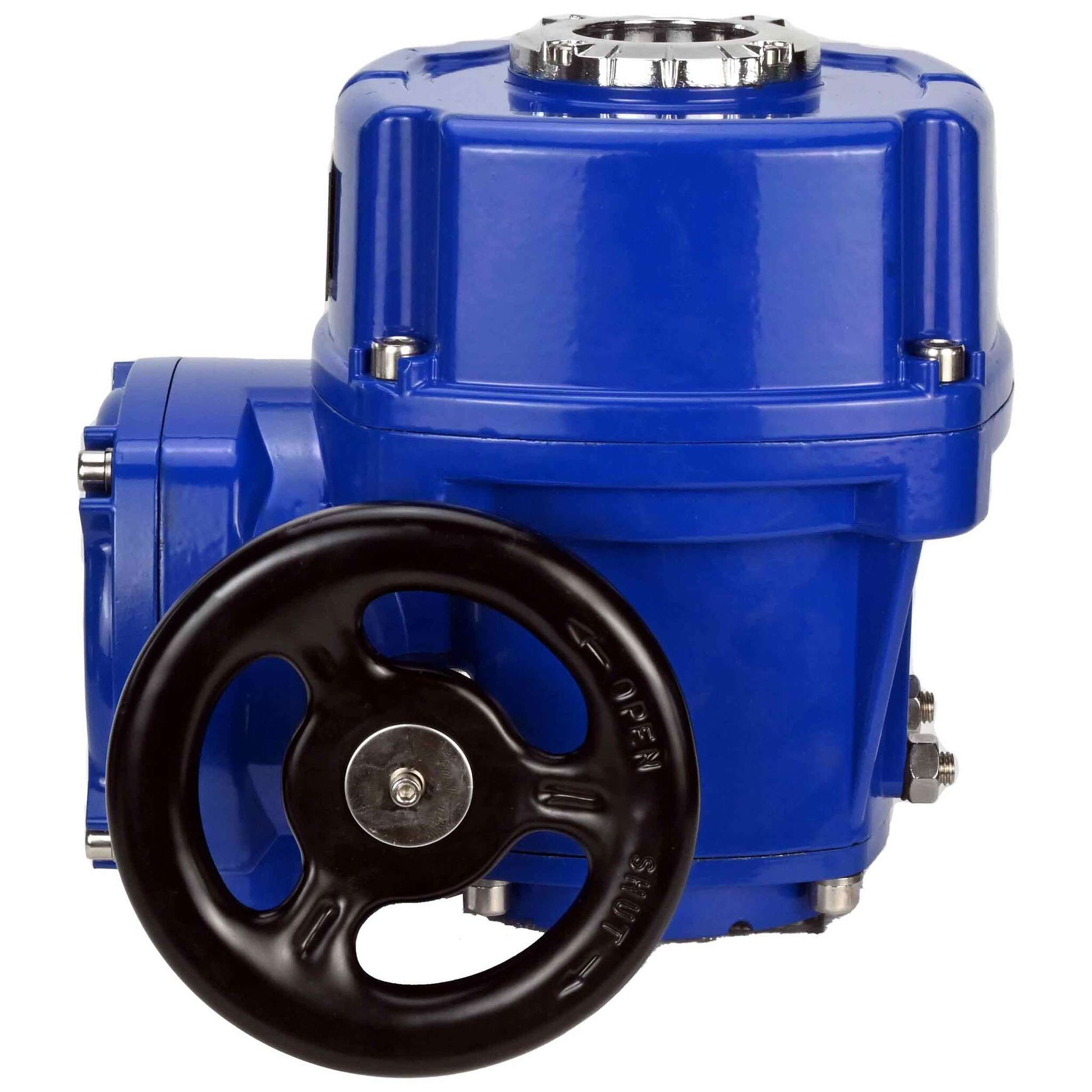

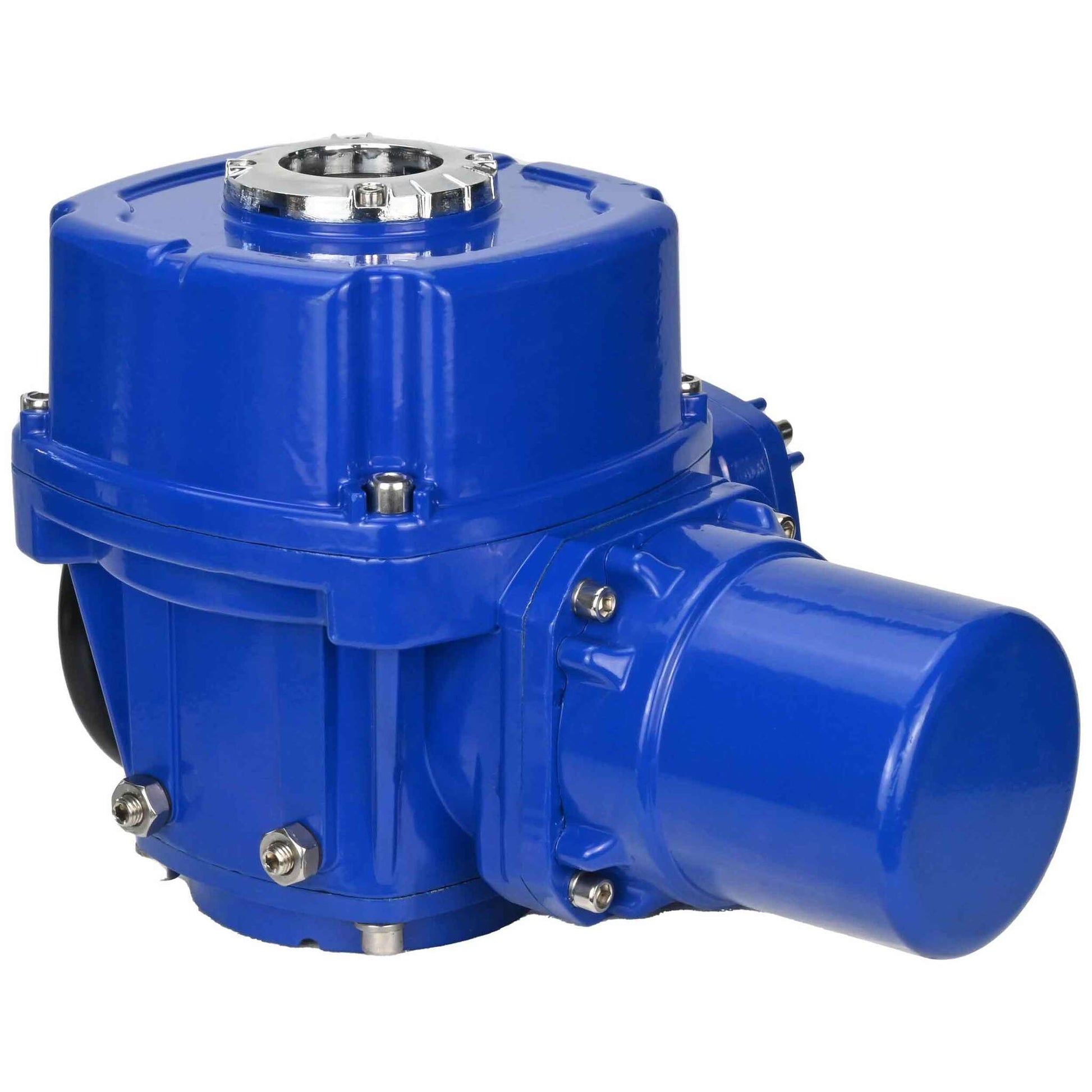

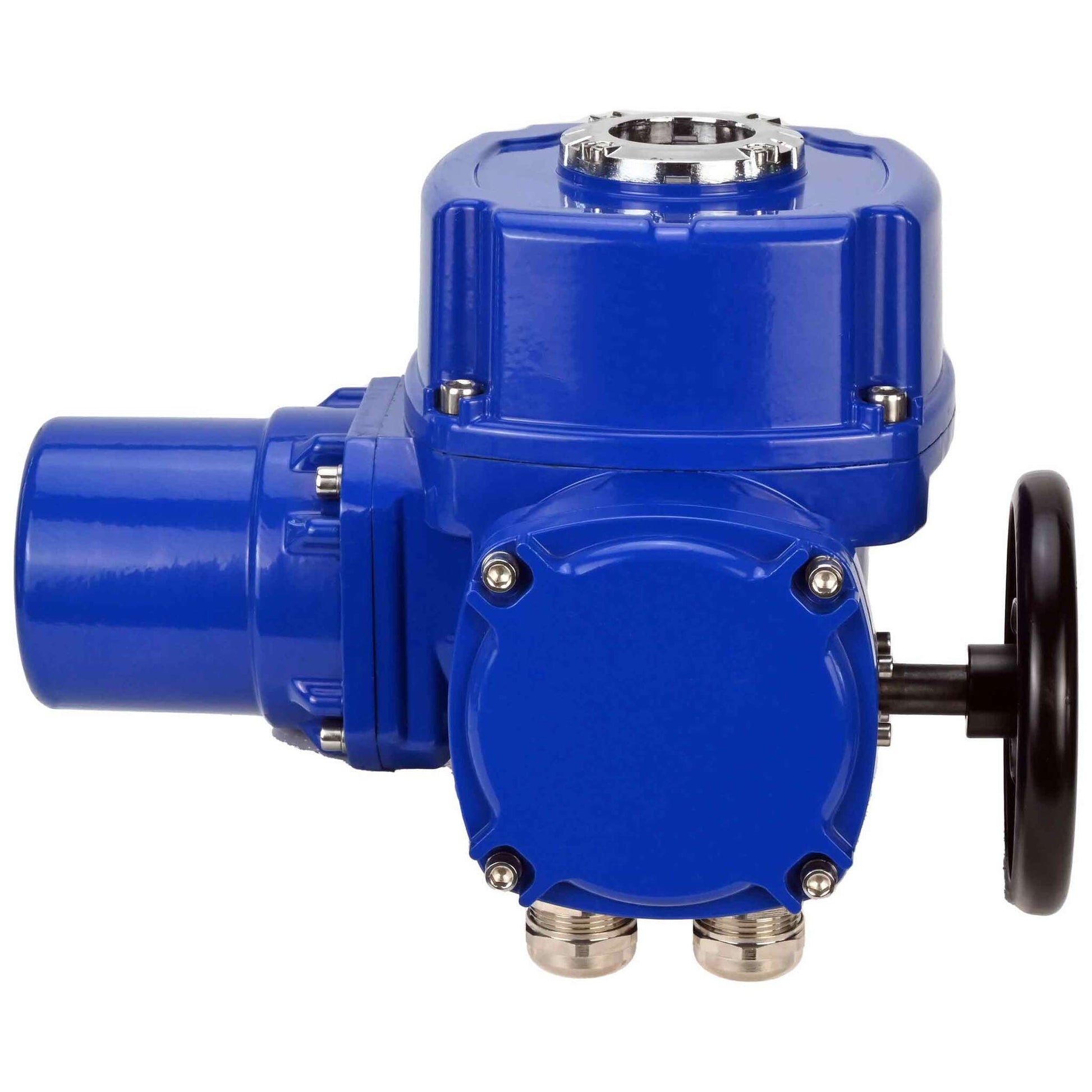

Quarter-turn electric actuator DNOVA QT-W(M)EX-005-500 explosion-proof with torque coupling and steering wheel 380V

From $128.76 USD
From $128.76 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Quarter-turn electric actuator DNOVA QT-W(M)EX-005-500 explosion-proof with torque coupling and steering wheel 380V is designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off valve. They are used in various sectors of the national economy: in the gas, oil, metallurgical, food industries, housing and communal services, etc.





Overall installation dimensions of actuators DNOVA QT-W(M)EX-005-500 explosion-proof with torque coupling and steering wheel 380V

Model H
 H1
 H2
 D
 L
 L1
 L2
 L3
QT-W (M)-005/
010/015		 281 170 77 Ø 120 215 310 170 121
QT-W (M)-020/
030/040		 276 197 99 Ø 180 270 350 191 160
QT-W (M)-060/
120/180		 300 240 112 Ø 250 311 410 252 186
QT-W (M)-300/
500		 360 260 165 Ø 250 325 430 272 186



Model Stem size, square, mm ISO 5211
QT-W (M)-005/010/015 17x17 F05/F07
QT-W (M)-020/030/040 22x22 F07/F10
QT-W (M)-060/120 27x27 F10/F12
QT-W (M)-180 27x27 F12/F16
QT-W (M)-300/500 36x36 F14/F16

Sketch of actuators DNOVA QT-W(M)EX-005-500 explosion-proof with torque coupling and steering wheel 380V





Technical characteristics of actuators DNOVA QT-W(M)EX-005-500 explosion-proof with torque coupling and steering wheel 380V

Model Torque,
Nm		 Cycle time,
sec		 Voltage, V Power, W Rated current, A Gear ratio Weight
QT-W (M)-005 50 30 220/
380		 25 0,35 70:1 7,6
QT-W (M)-010 100 30 220/
380		 30 0,48 70:1 7,8
QT-W (M)-015 150 30 220/
380		 40 0,55 70:1 8
QT-W (M)-020 200 30 220/
380		 50 0,65 95:1 12,7
QT-W (M)-030 300 30 220/
380		 60 0,75 95:1 12,8
QT-W (M)-040 400 30 220/
380		 90 0,95 95:1 13
QT-W (M)-060 600 30 220/
380		 120 1,1 89:1 21,2
QT-W (M)-120 1200 30 220/
380		 180 1,3 89:1 23,2
QT-W (M)-180 1800 30 220/
380		 250 1,5 89:1 23,5
QT-W (M)-300 3000 60 220/
380		 370 1,6 348:1 37,5
QT-W (M)-500 5000 60 220/
380		 550 1,7 348:1 38

Wiring diagram for actuators DNOVA QT-W(M)EX-005-500 explosion-proof with torque coupling and steering wheel 380V

Specifications

Country of origin
China
Actuator cycle time
30s
Explosion-proof
Yes
Thermal protection
No
Type of electric actuator
Quarter-turn
Feedback sensor
Limit switches
Control signal
ON/OFF
Shaft shape square
17х17 mm
ISO - flange type
F05,F07
Rated current consumption
0.35 A
Power consumption
25 W
Supply voltage
380 V

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
