Description

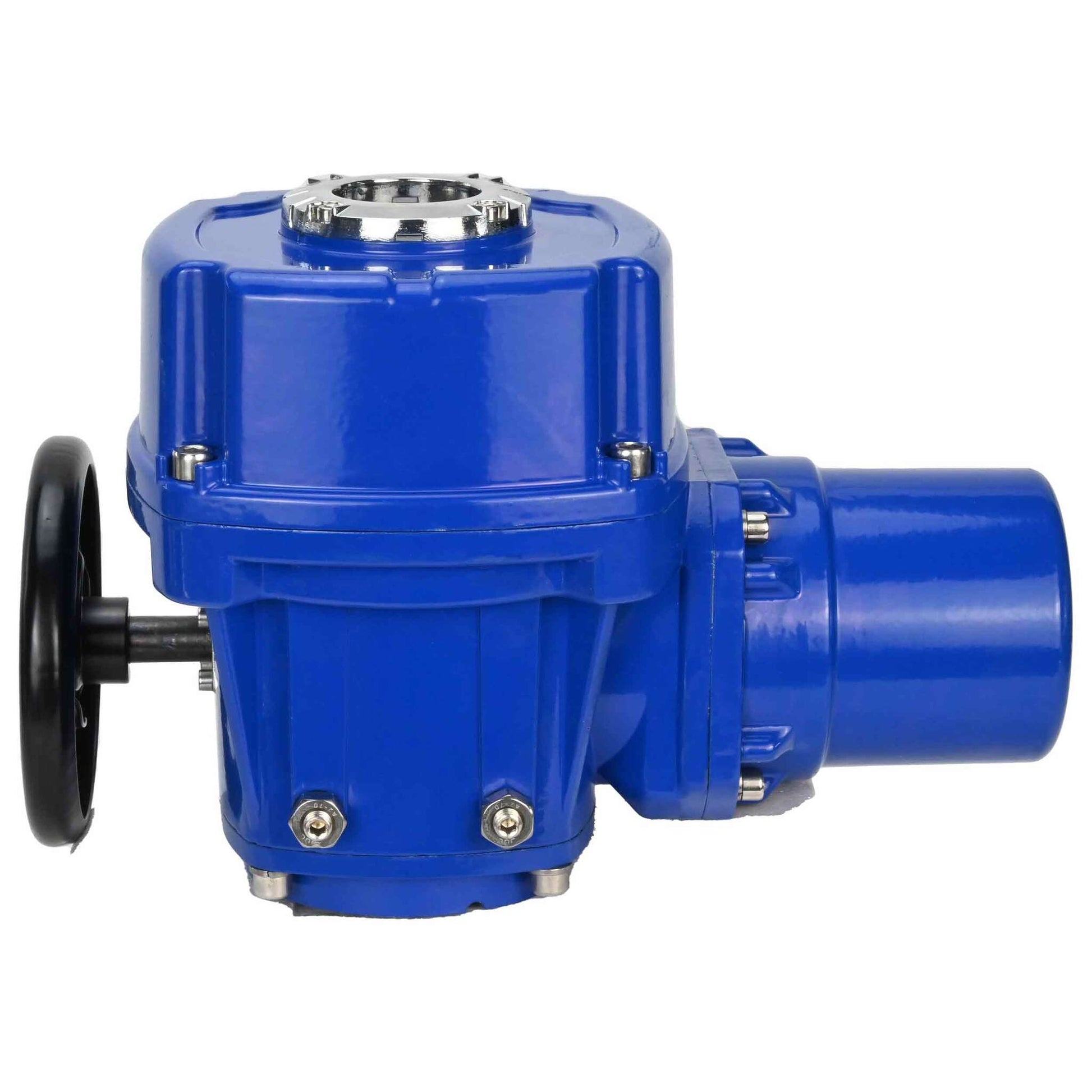

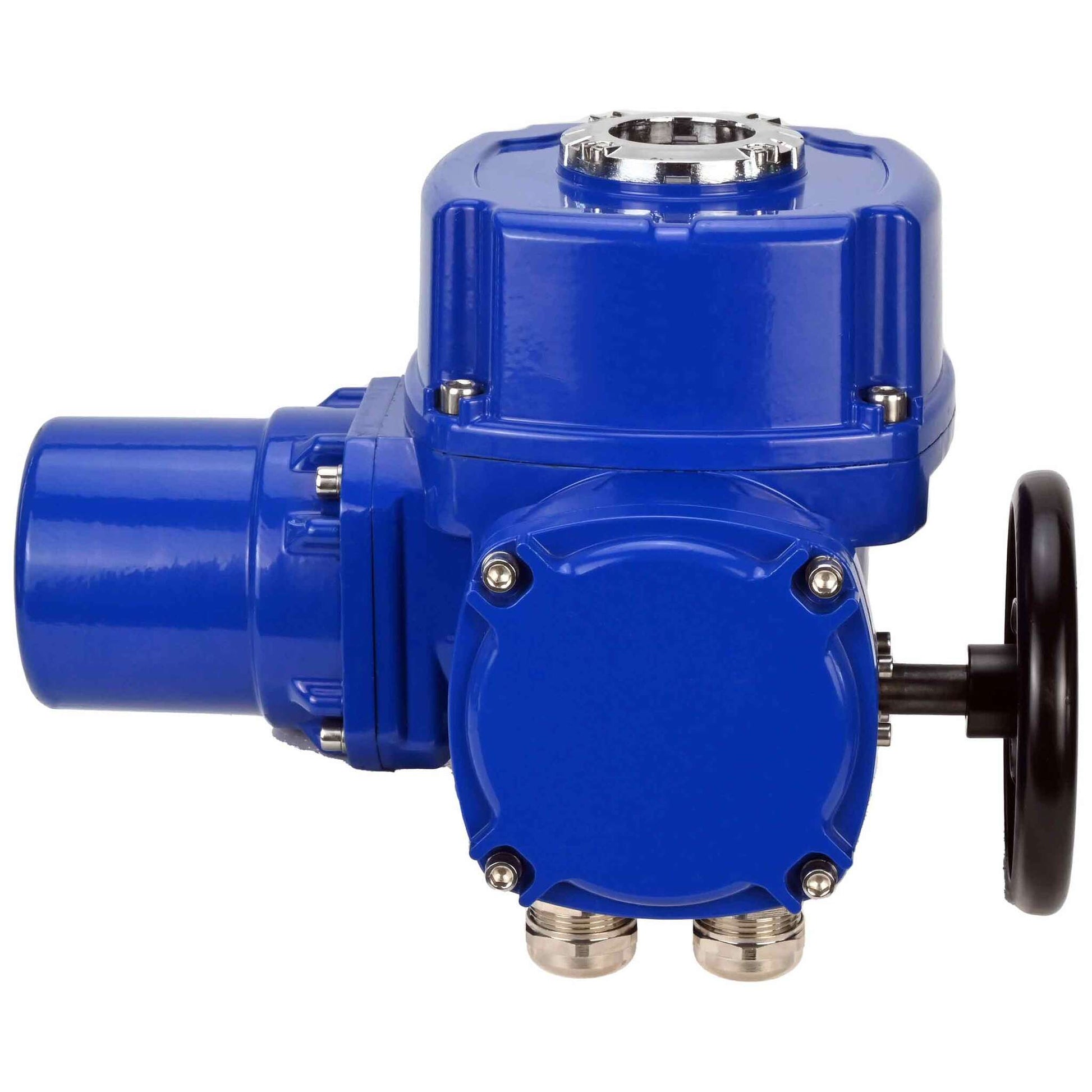

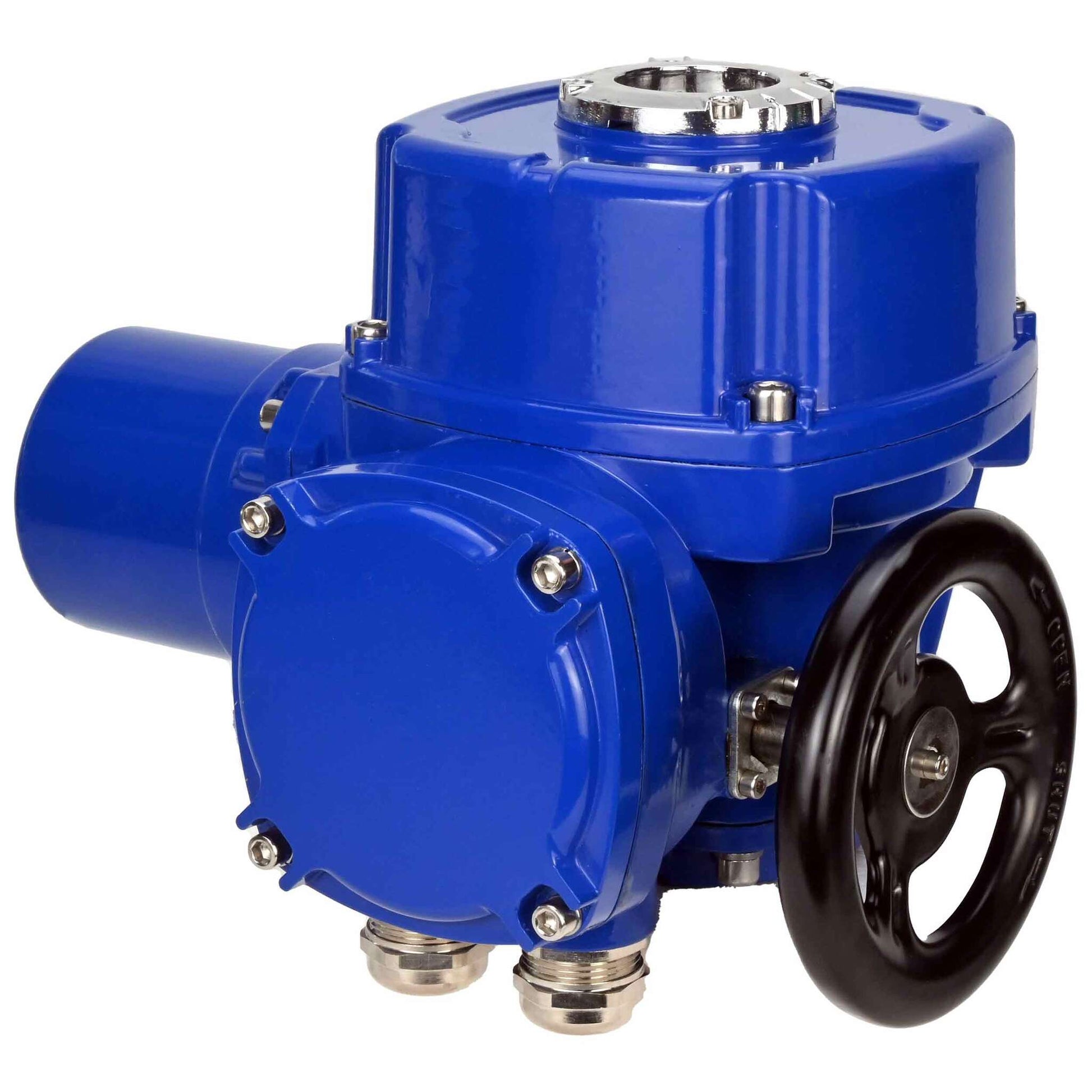

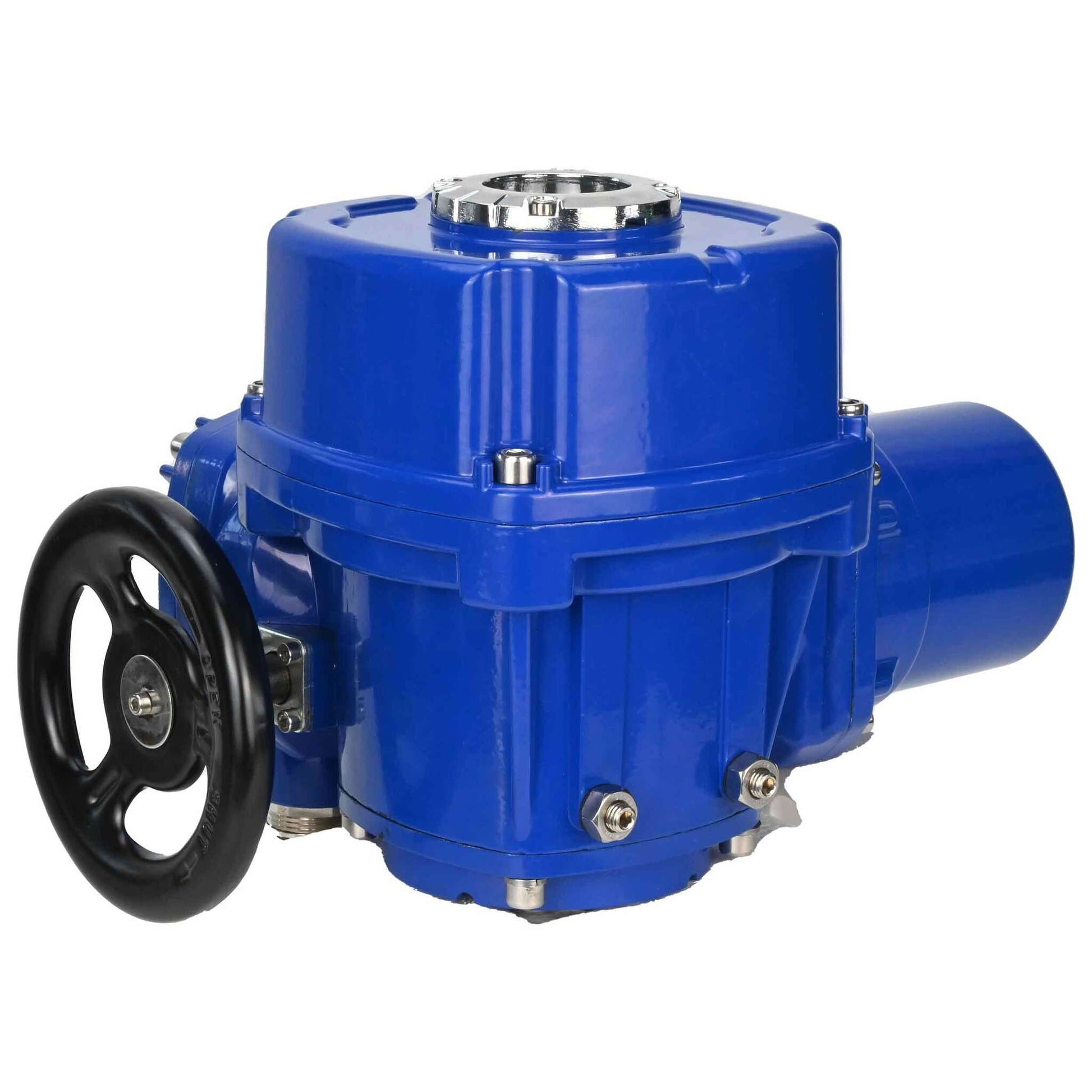

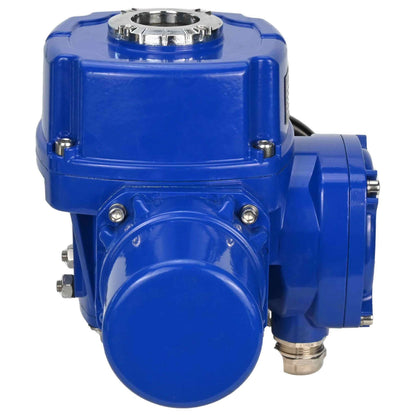

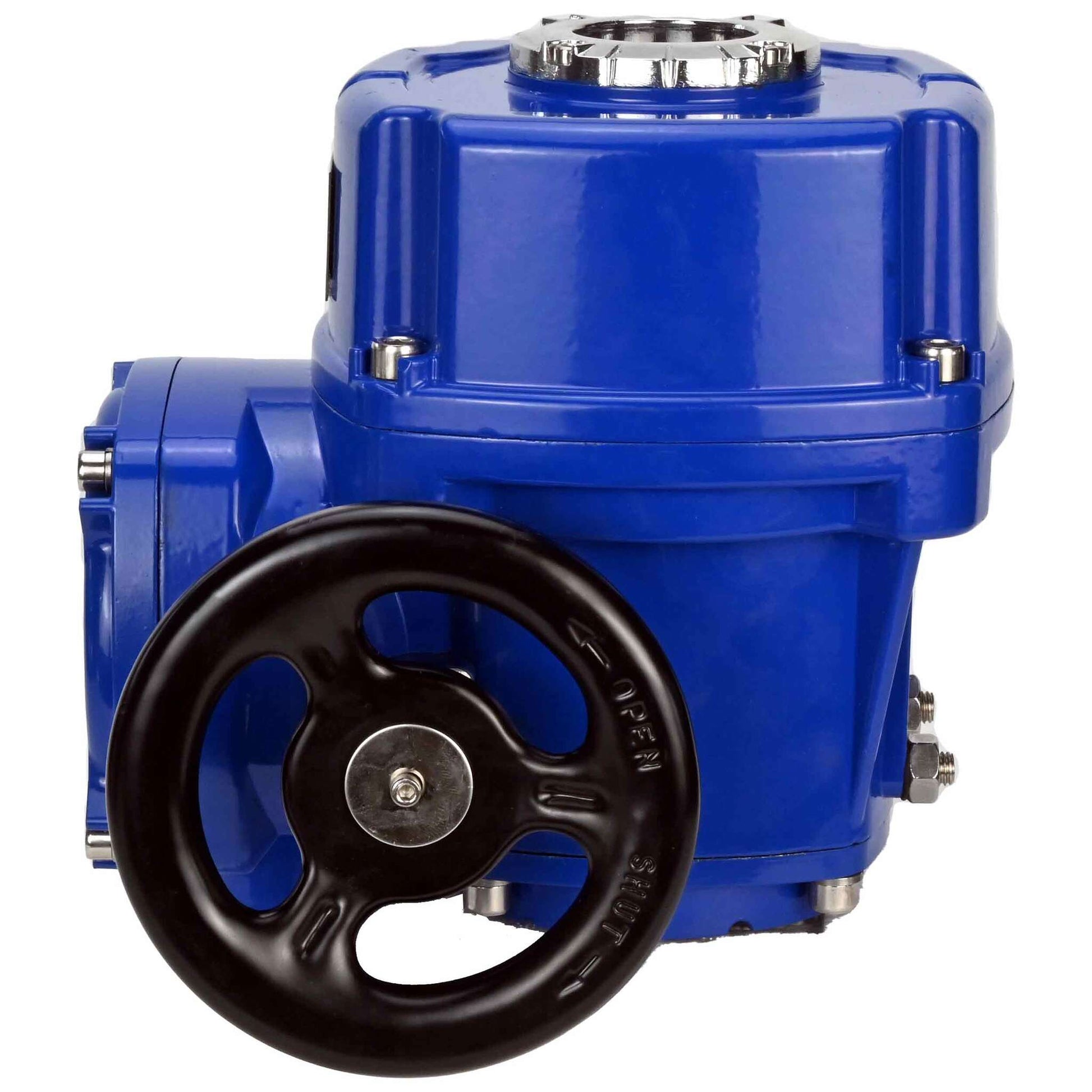

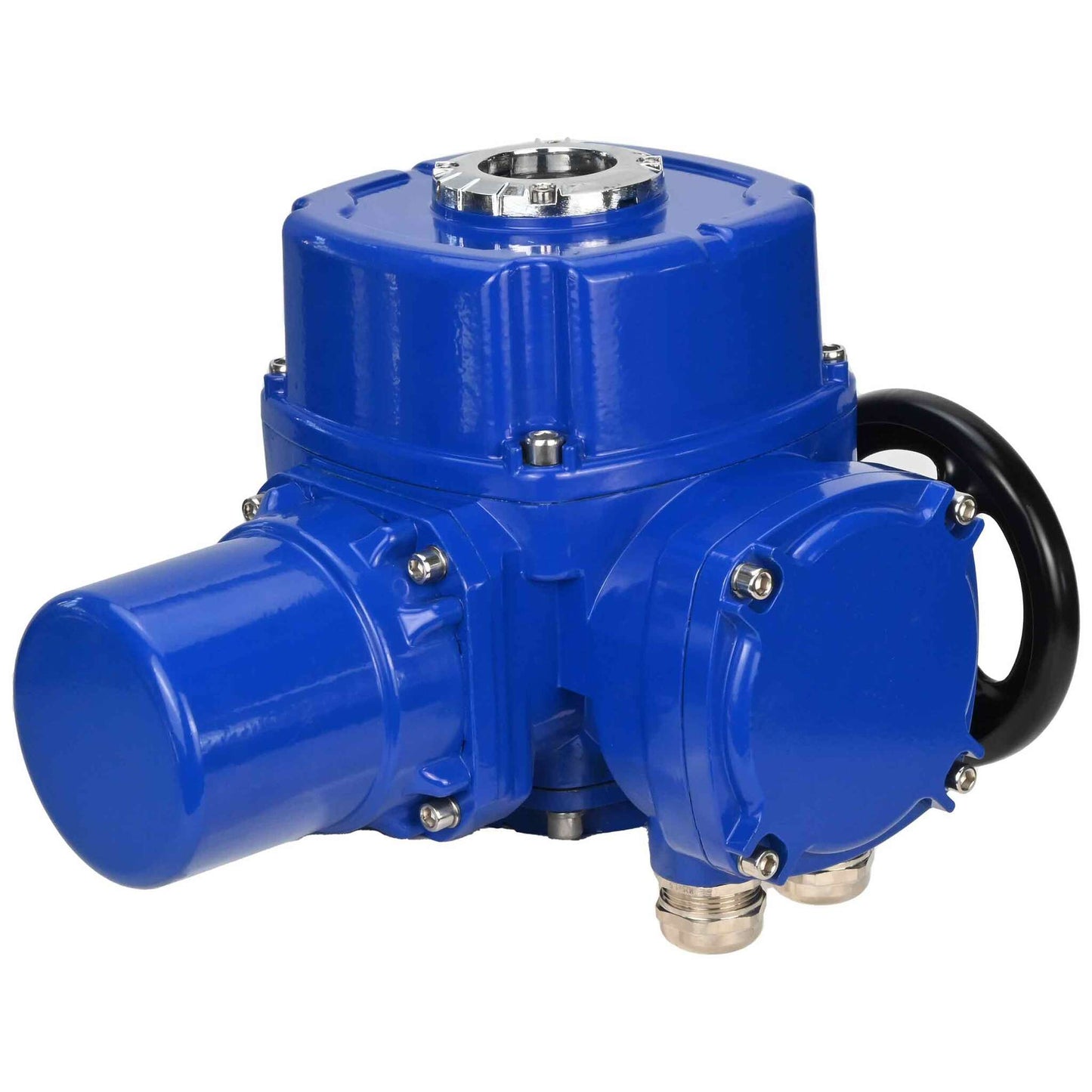

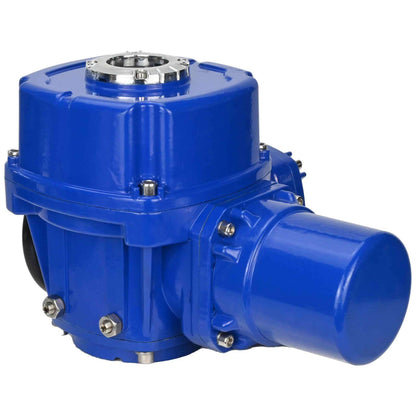

Quarter-turn electric actuator DNOVA QT-W(M)-005-500 with torque coupling and steering wheel 220V is designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off valve. They are used in various sectors of the national economy: in the gas, oil, metallurgical, food industries, housing and communal services, etc.
Overall installation dimensions of actuators DNOVA QT-W(M)-005-500 with torque coupling and steering wheel 110/220V
| Model |
H |
H1 |
H2 |
D |
L |
L1 |
L2 |
L3 |
| QT-W (M)-005/ 010/015 |
281 | 170 | 77 | Ø 120 | 215 | 310 | 170 | 121 |
| QT-W (M)-020/ 030/040 |
276 | 197 | 99 | Ø 180 | 270 | 350 | 191 | 160 |
| QT-W (M)-060/ 120/180 |
300 | 240 | 112 | Ø 250 | 311 | 410 | 252 | 186 |
| QT-W (M)-300/ 500 |
360 | 260 | 165 | Ø 250 | 325 | 430 | 272 | 186 |
| Model | Stem size, square, mm | ISO 5211 |
| QT-W (M)-005/010/015 | 17x17 | F05/F07 |
| QT-W (M)-020/030/040 | 22x22 | F07/F10 |
| QT-W (M)-060/120 | 27x27 | F10/F12 |
| QT-W (M)-180 | 27x27 | F12/F16 |
| QT-W (M)-300/500 | 36x36 | F14/F16 |
Sketch of actuators DNOVA QT-W(M)-005-500 with torque coupling and steering wheel 110/220V
Technical characteristics of actuators DNOVA QT-W(M)-005-500 with torque coupling and steering wheel 110/220V
| Model | Torque, Nm |
Cycle time, sec |
Voltage, V | Power, W | Rated current, A | Gear ratio | Weight |
| QT-W (M)-005 | 50 | 30 | 220/ 380 |
25 | 0,35 | 70:1 | 7,6 |
| QT-W (M)-010 | 100 | 30 | 220/ 380 |
30 | 0,48 | 70:1 | 7,8 |
| QT-W (M)-015 | 150 | 30 | 220/ 380 |
40 | 0,55 | 70:1 | 8 |
| QT-W (M)-020 | 200 | 30 | 220/ 380 |
50 | 0,65 | 95:1 | 12,7 |
| QT-W (M)-030 | 300 | 30 | 220/ 380 |
60 | 0,75 | 95:1 | 12,8 |
| QT-W (M)-040 | 400 | 30 | 220/ 380 |
90 | 0,95 | 95:1 | 13 |
| QT-W (M)-060 | 600 | 30 | 220/ 380 |
120 | 1,1 | 89:1 | 21,2 |
| QT-W (M)-120 | 1200 | 30 | 220/ 380 |
180 | 1,3 | 89:1 | 23,2 |
| QT-W (M)-180 | 1800 | 30 | 220/ 380 |
250 | 1,5 | 89:1 | 23,5 |
| QT-W (M)-300 | 3000 | 60 | 220/ 380 |
370 | 1,6 | 348:1 | 37,5 |
| QT-W (M)-500 | 5000 | 60 | 220/ 380 |
550 | 1,7 | 348:1 | 38 |
Wiring diagram for actuators DNOVA QT-W(M)-005-500 with torque coupling and steering wheel 110/220V
