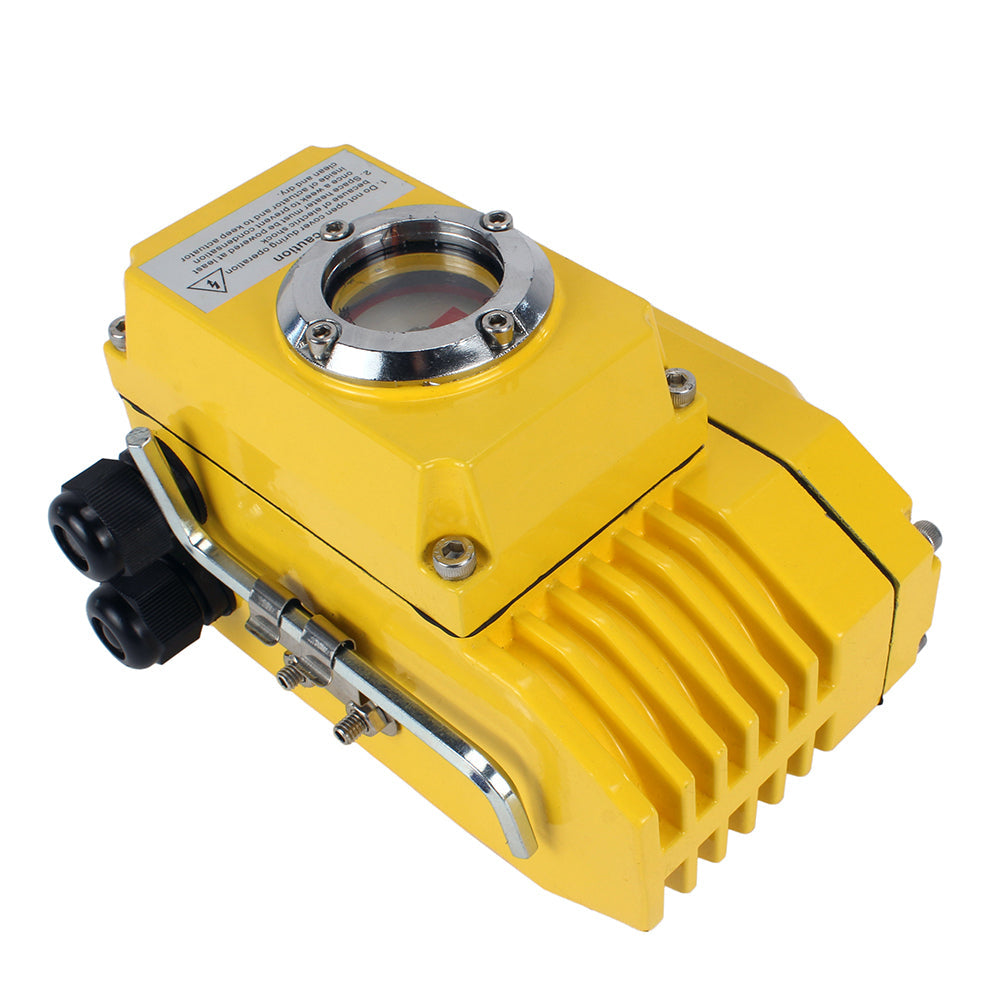

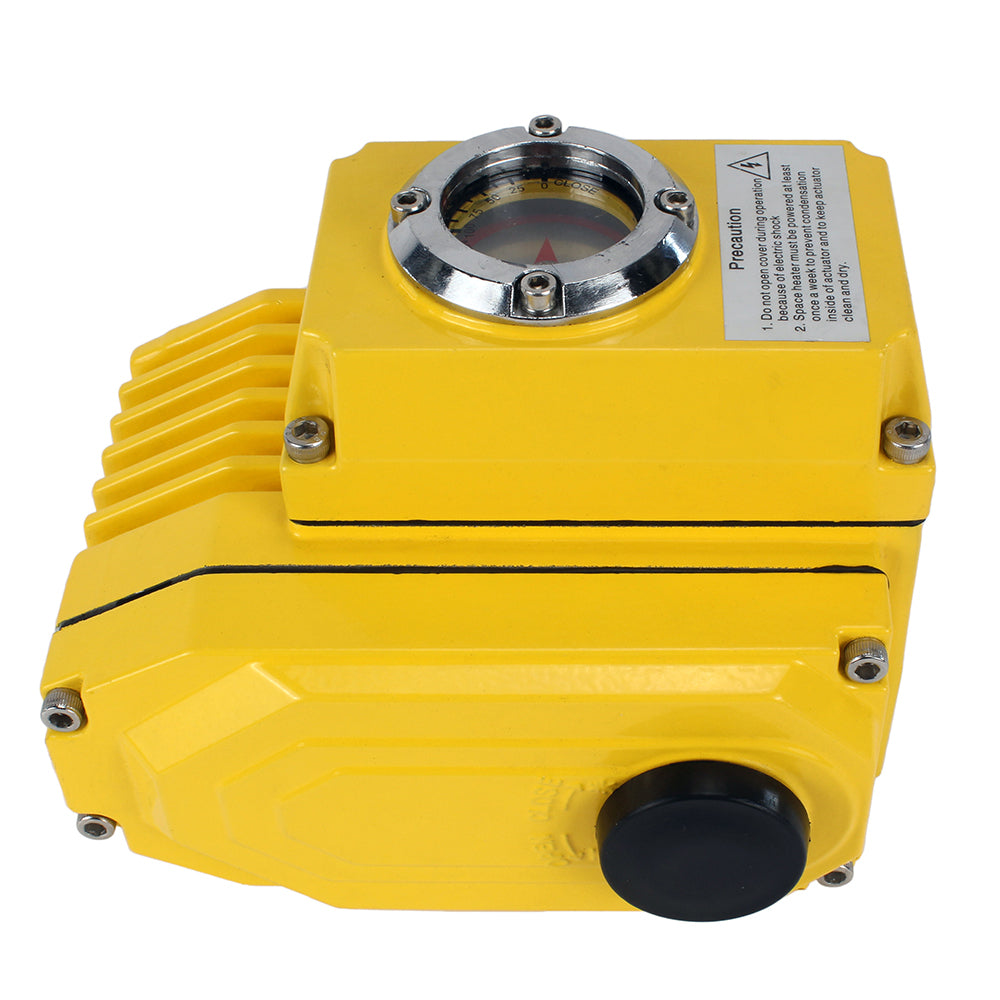

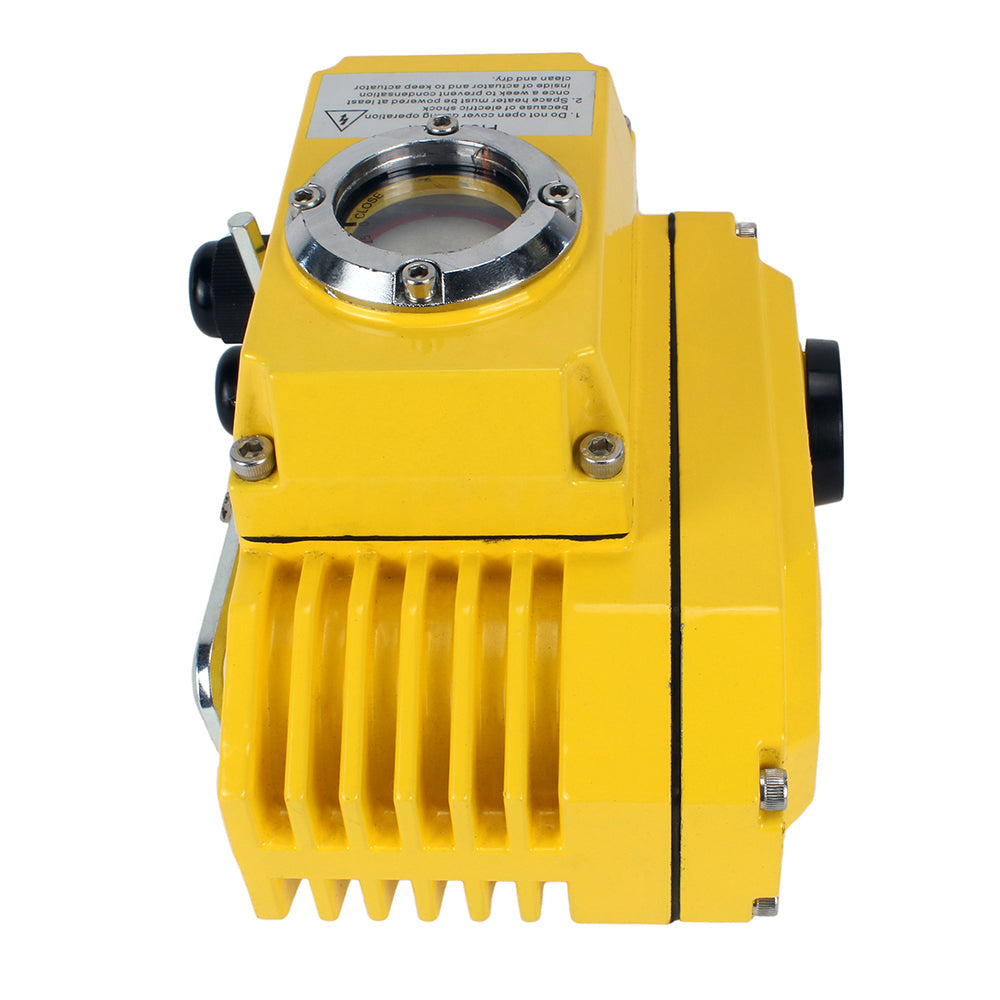

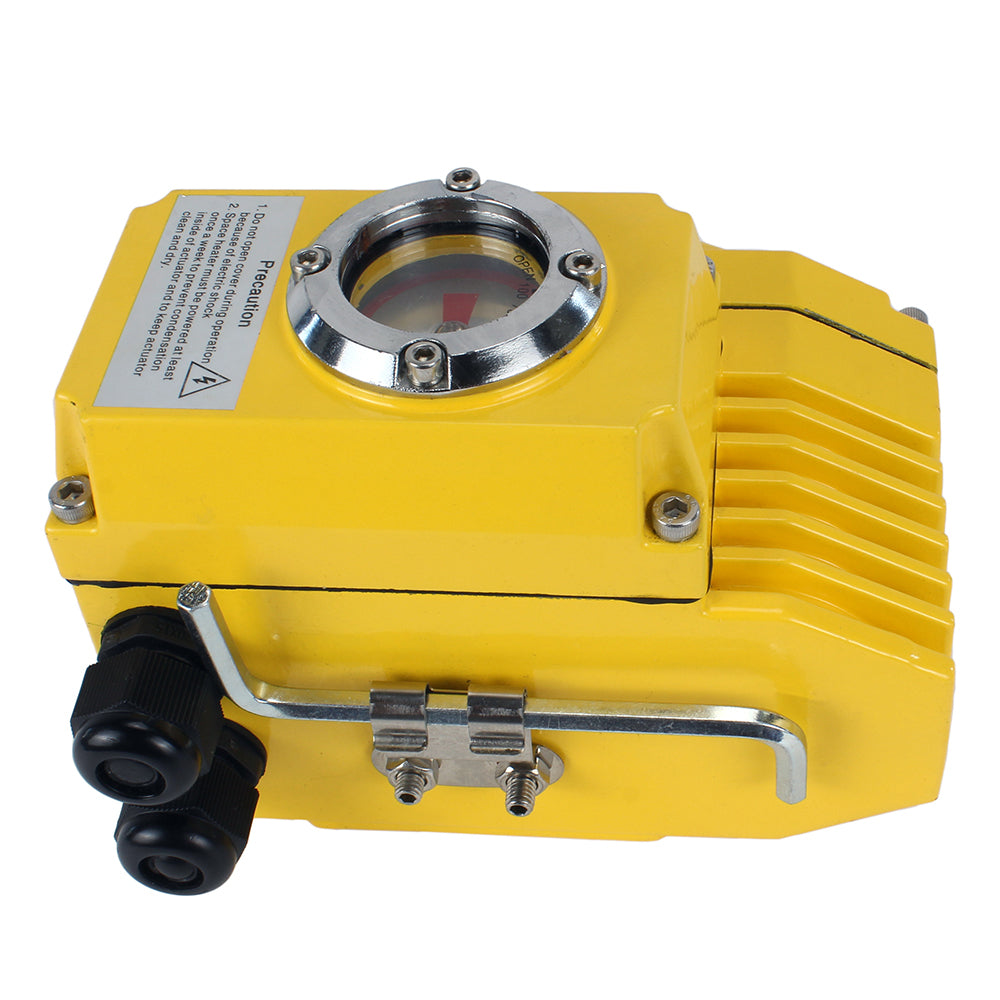

Quarter-turn electric actuator DNOVA QT 005-060 24V

From $31.16 USD
From $31.16 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Quarter-turn electric actuator DNOVA 005-060 24V is designed for remote and local control of valves. It is widely used in the gas, oil, metallurgical and food industries, housing and communal services, etc. with ambient temperature from -4…+158°F. The housing has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. Mounting dimensions comply with the international standard ISO05211 / DIN3337. The electric drive is equipped with a squirrel-cage induction motor, automatic position locking of the electric drive, mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed for operation in intermittent duty S2. Actuator stroke 90° with adjustment range ±10°. Restriction of the course of the electric drive - trailer switches. Power is supplied by a constant voltage of 24 V.





 Overall and installation dimensions of the actuator DNOVA 005-060 24V

Model L H A
QT-003 140 118 109
QT-005 166 122 118
QT-008 200 128 133
QT-010 200 128 133
QT-015 200 128 133
QT-020 269 155 174
QT-030 269 155 174
QT-040 269 155 174
QT-060 269 155 174
QT-080 268 212 164
QT-100 309 178 200
QT-200 309 178 200

Dimensional sketch of the actuator DNOVA 005-060 24V





Drive design DNOVA 005-060 24V

№ Part name
1 output shaft
2 cable lock
3 mechanical stop
4 hand wrench
5 body
6 cover
7 viewing window
8 dust protection

Drive detail sketch DNOVA 005-060 24V

Specifications

Country of origin
China
Actuator cycle time
30s
Explosion-proof
No
Thermal protection
No
Type of electric actuator
Quarter-turn
Feedback sensor
Limit switches
Control signal
ON/OFF
Shaft shape rod
13 mm
Shaft shape square
14х14 mm
ISO - flange type
F05,F07
Rated current consumption
0.5 A
Power consumption
10 W
Supply voltage
24 V

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
30 NmD300-04947
30 NmD300-04947
$31.16/ea		 $0.00
$31.16/ea $0.00
50 NmD300-04911
50 NmD300-04911
$38.98/ea		 $0.00
$38.98/ea $0.00
80 NmD300-04914
80 NmD300-04914
$42.41/ea		 $0.00
$42.41/ea $0.00
100 NmD300-04919
100 NmD300-04919
$49.90/ea		 $0.00
$49.90/ea $0.00
150 NmD300-04923
150 NmD300-04923
$50.84/ea		 $0.00
$50.84/ea $0.00
200 NmD300-04927
200 NmD300-04927
$79.21/ea		 $0.00
$79.21/ea $0.00
600 NmD300-04936
600 NmD300-04936
$84.18/ea		 $0.00
$84.18/ea $0.00
