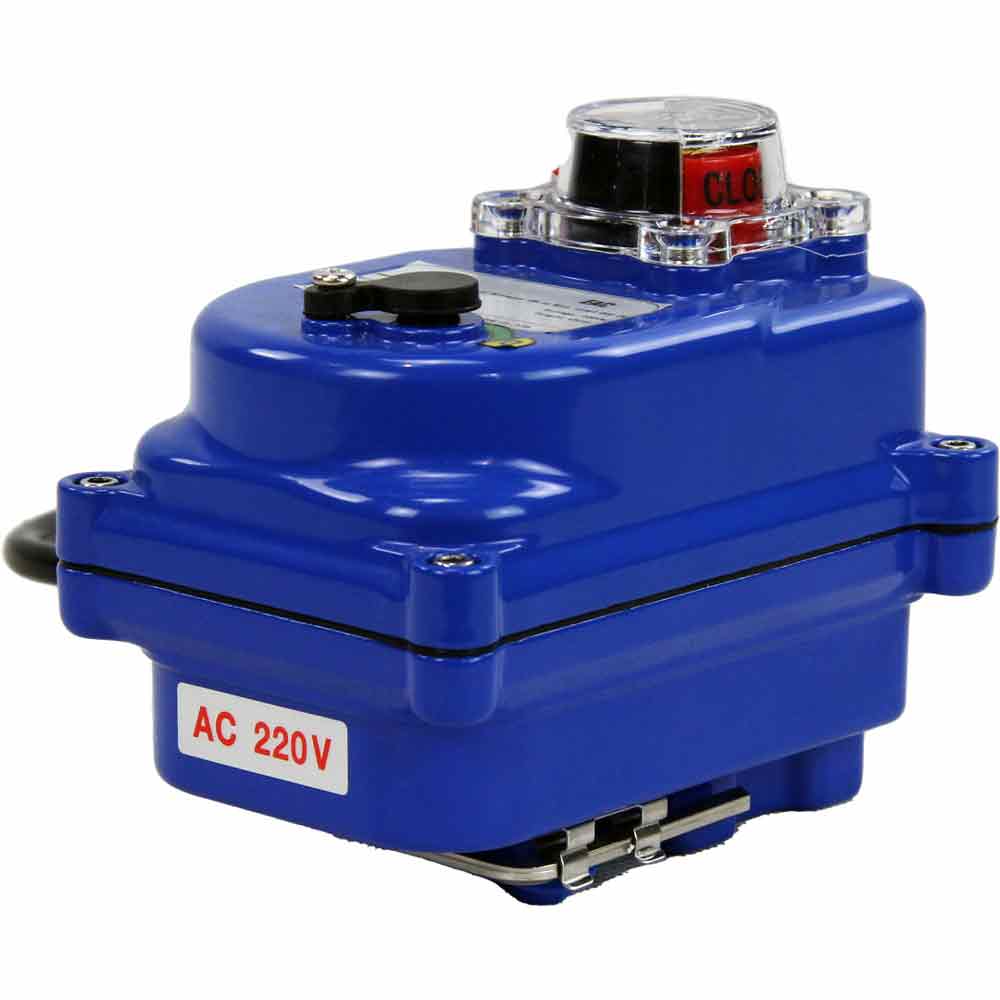

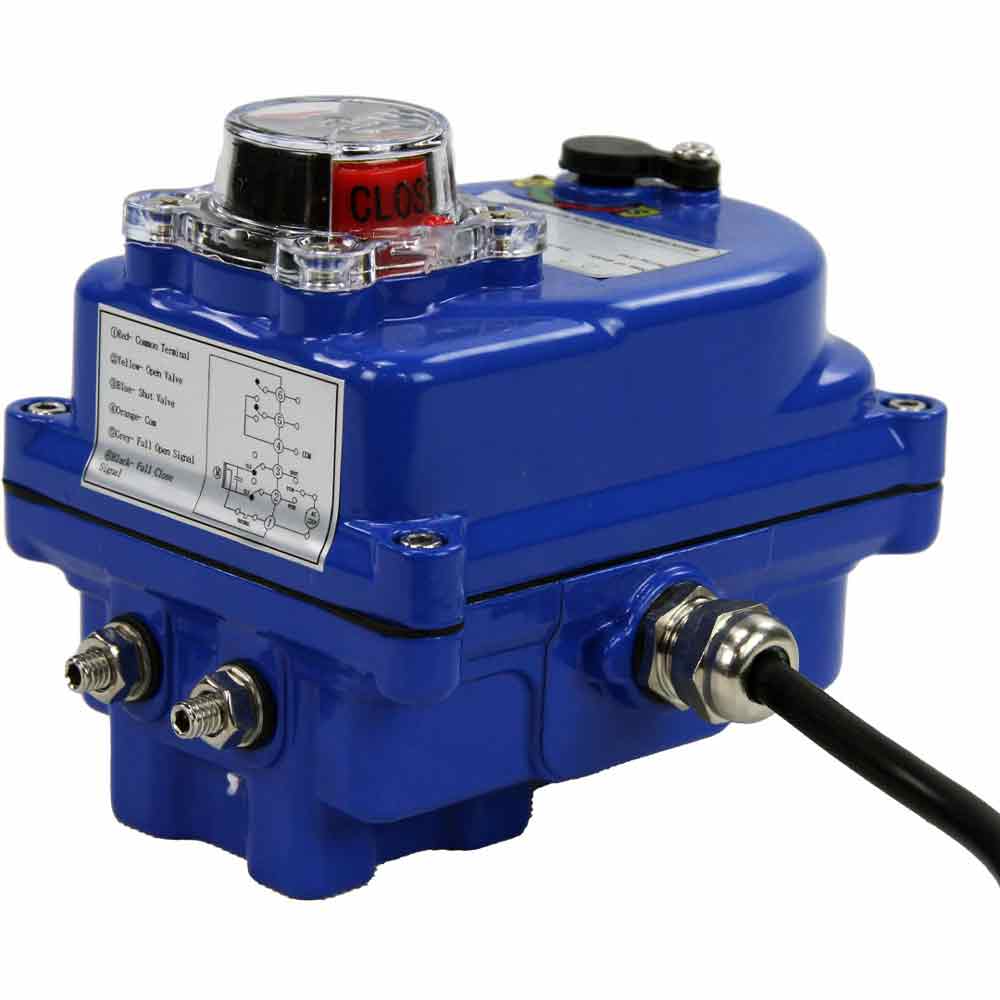

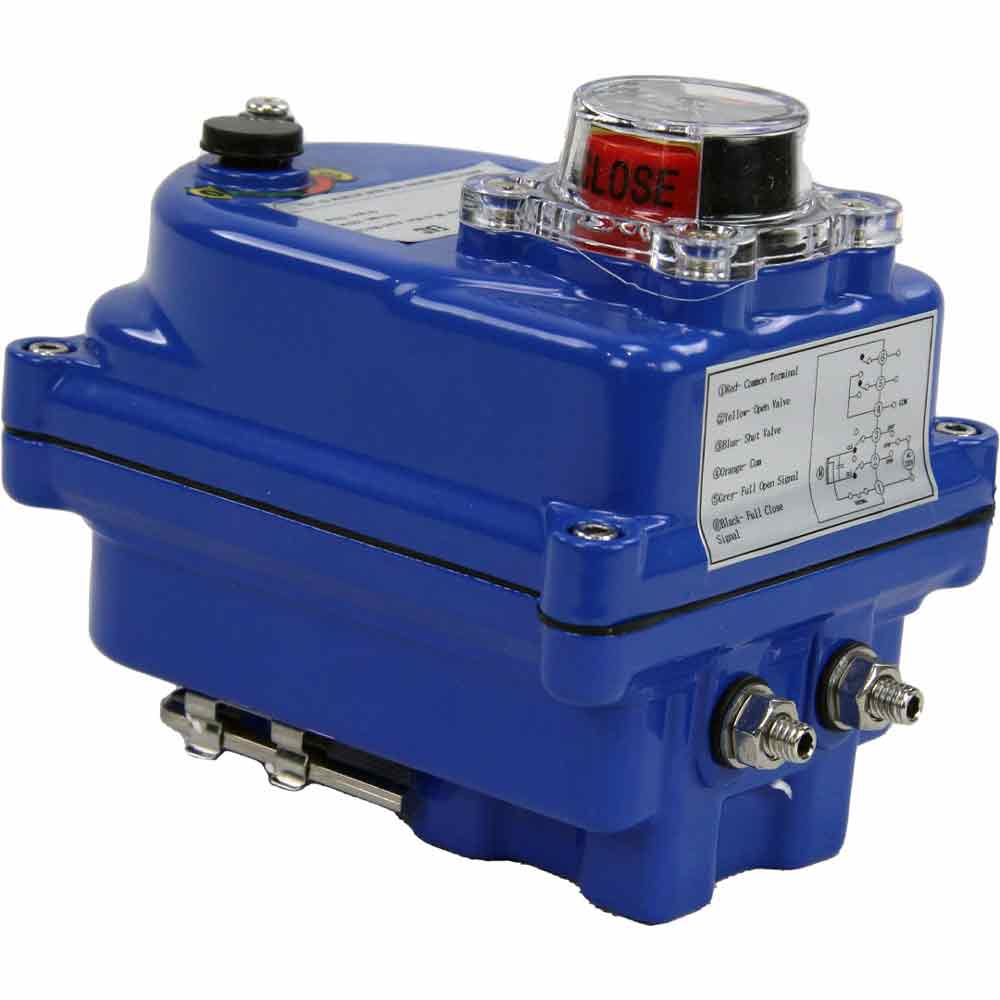

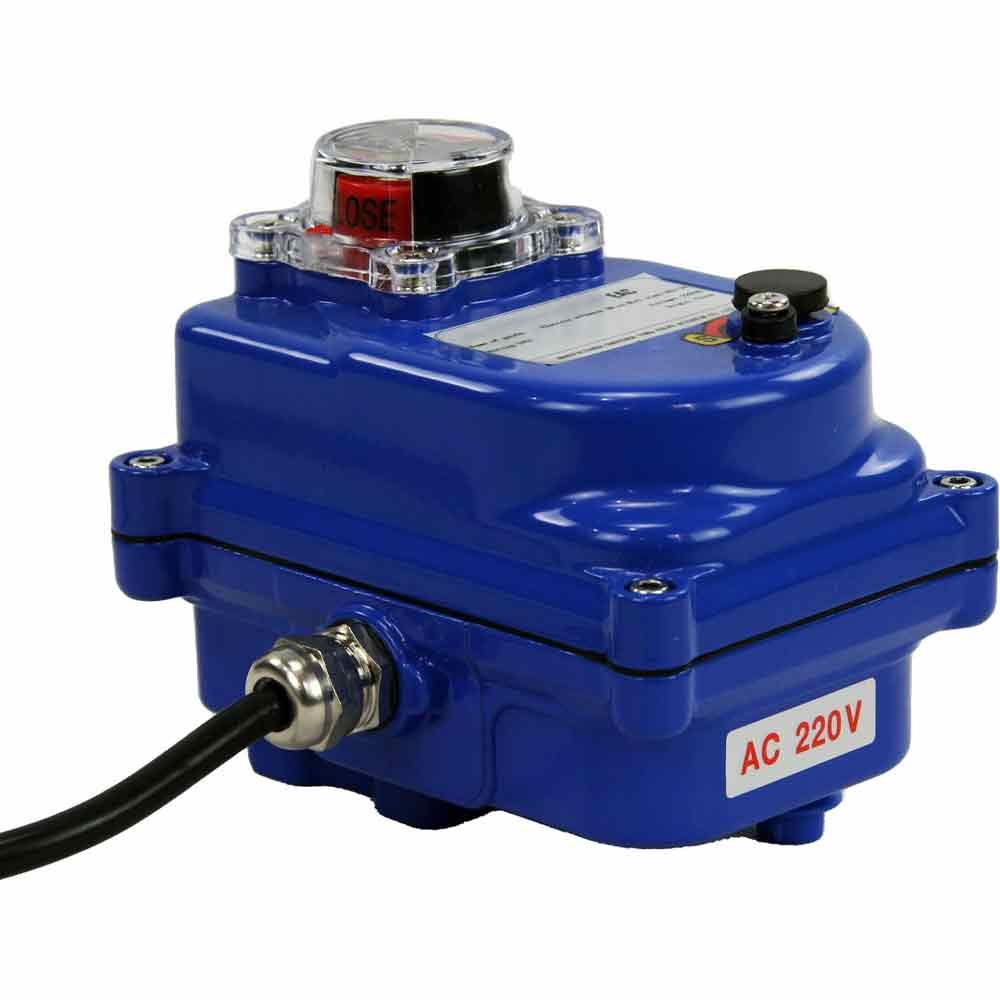

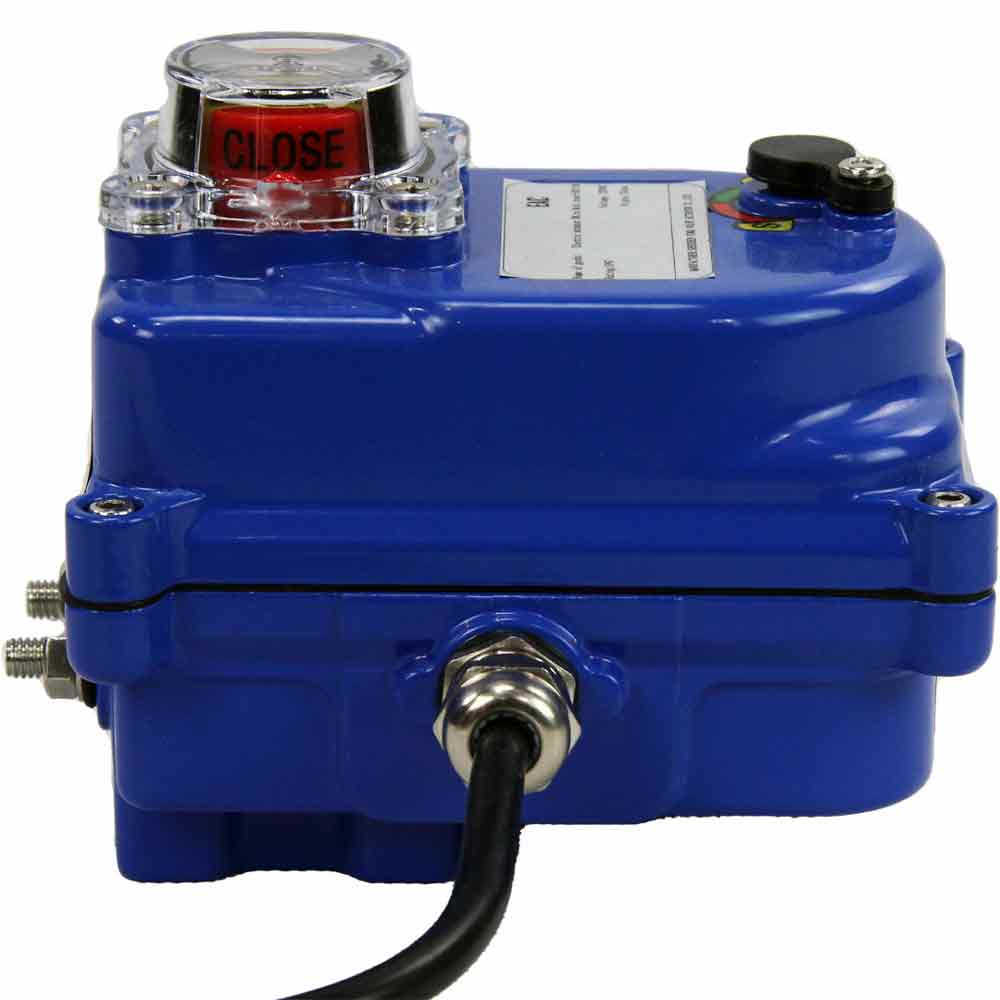

Quarter-turn electric actuator DNOVA QT BLUE 003 220V

From $24.51 USD
From $24.51 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Quarter-turn electric actuator DNOVA BLUE 003 220V is designed for remote and local control of shut-off valves. Widely used in the gas, oil, metallurgical and food industries, housing and communal services, etc. , including in heating systems and hot/cold water supply. The use of electric drives for shut-off valves makes it possible to automate processes and facilitate control over equipment. Installation dimensions comply with international standard ISO 05211 / DIN3337.





 Overall and installation dimensions of the actuator DNOVA BLUE 003 220V

L A B C D E F H MxM
121 79,93 20,16 25 35 25 35 110,2 11x11

Dimensional sketch of the actuator DNOVA BLUE 003 220V

Specifications

Country of origin
China
Actuator cycle time
25s
Explosion-proof
No
Thermal protection
Yes
Type of electric actuator
Quarter-turn
Feedback sensor
Limit switches
Control signal
ON/OFF
Shaft shape square
11х11 mm
ISO - flange type
F03,F05
Rated current consumption
0.1 A
Power consumption
25 W
Supply voltage
220 V

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
