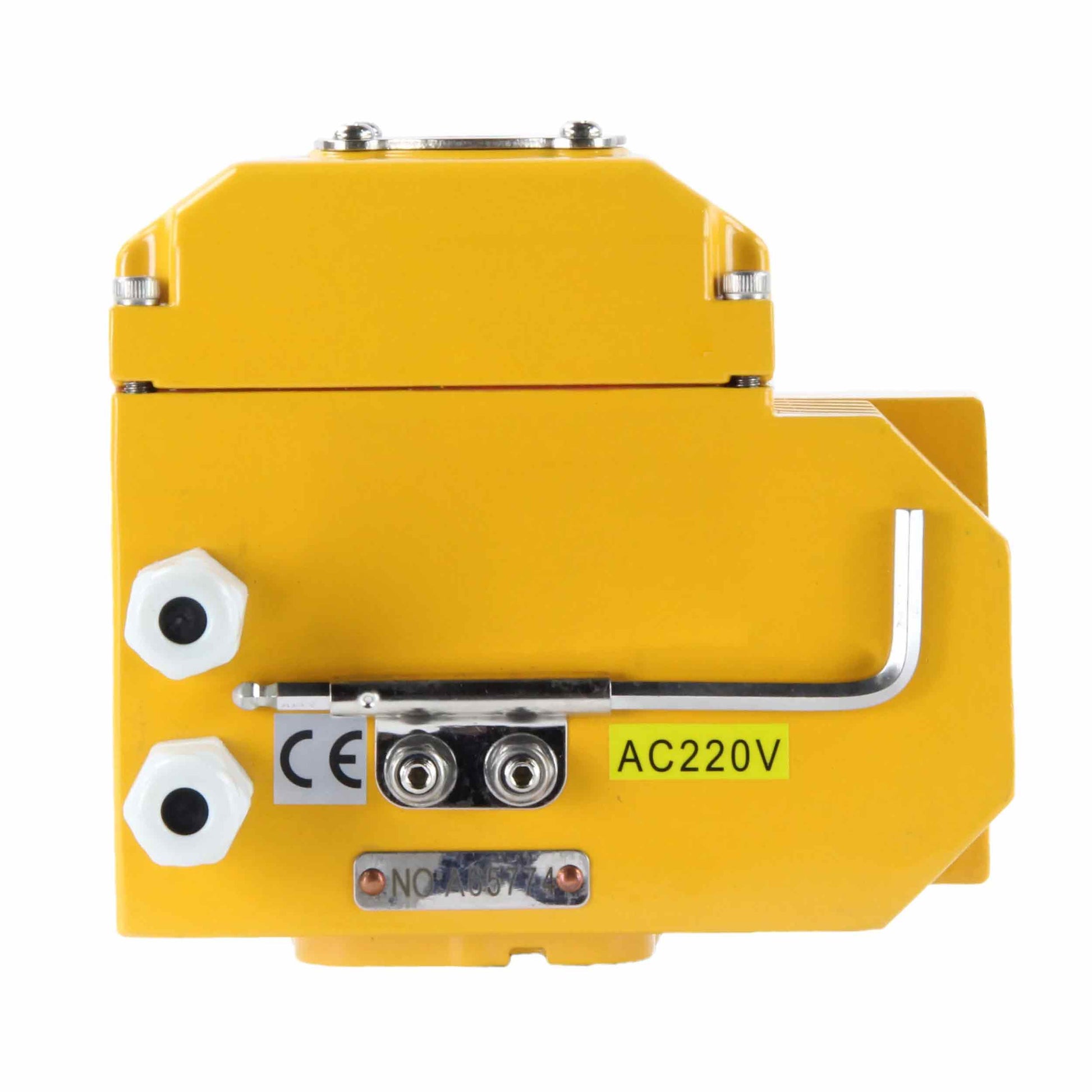

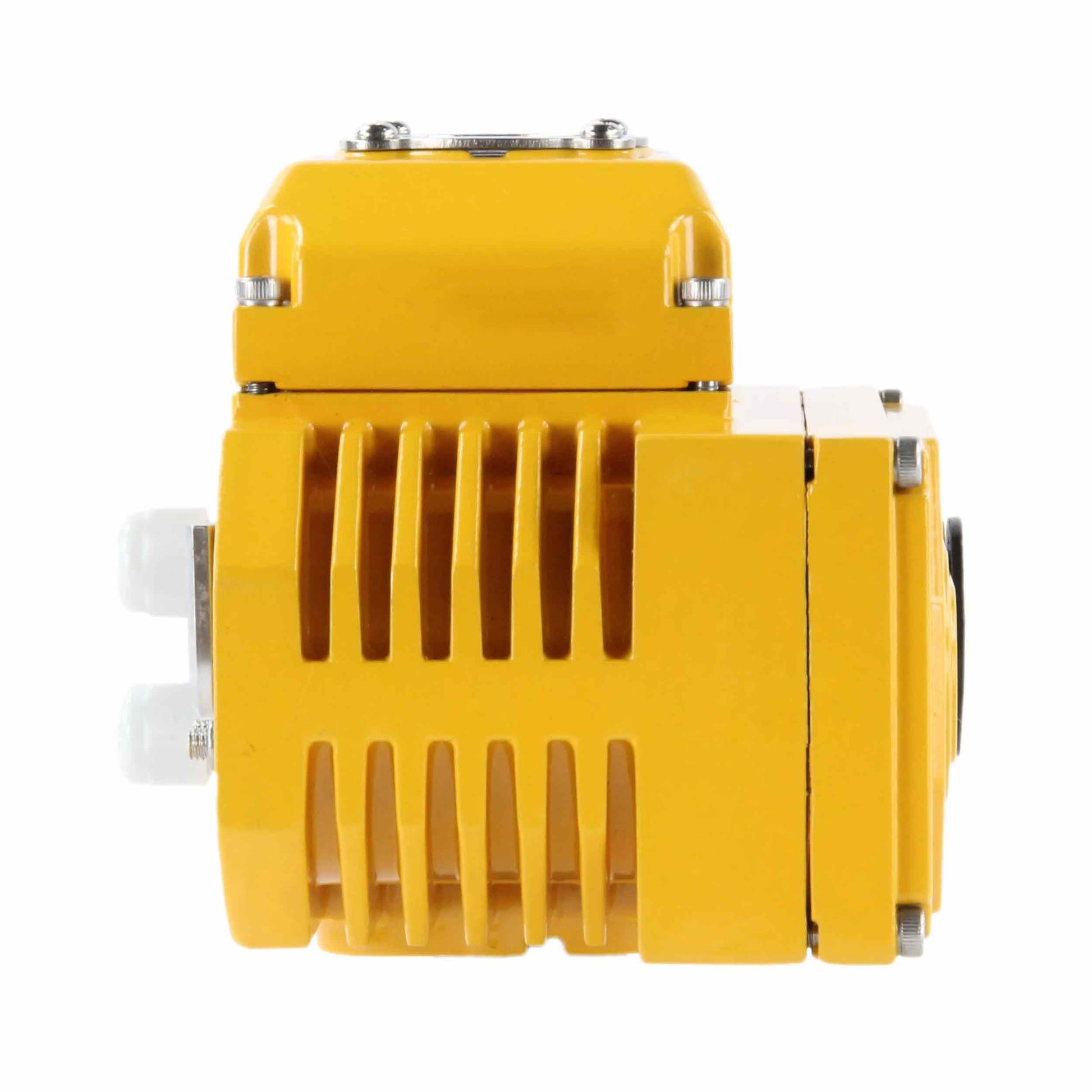

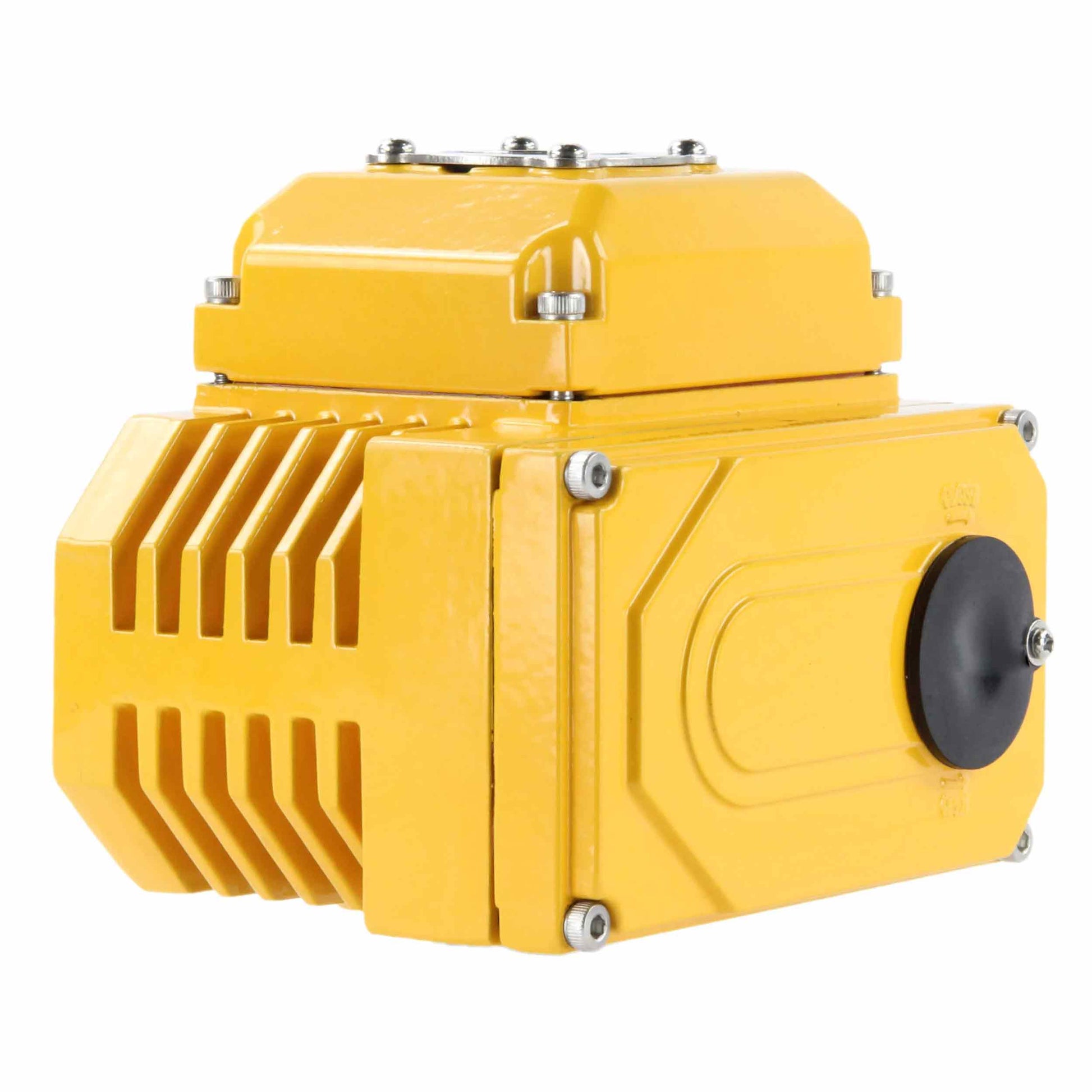

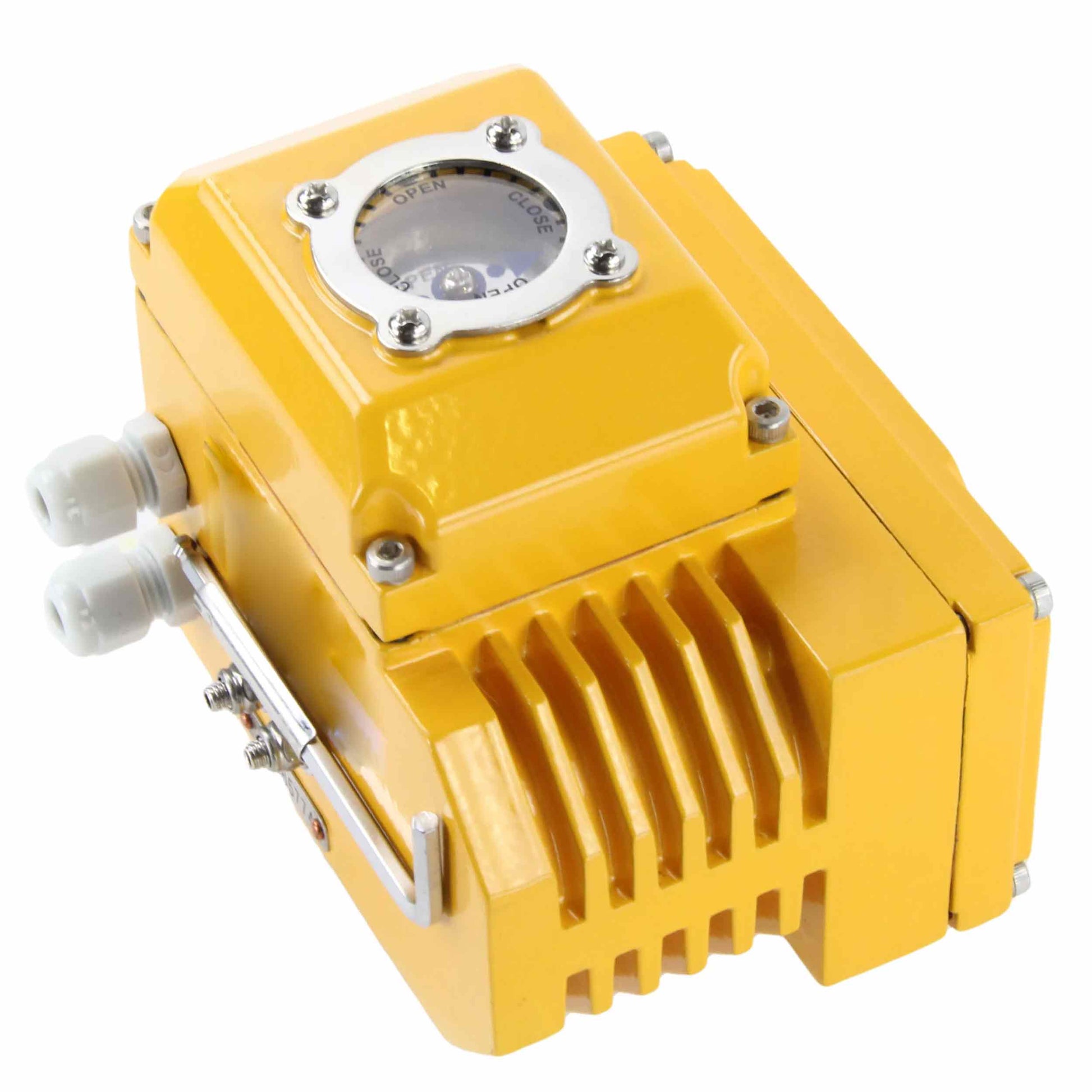

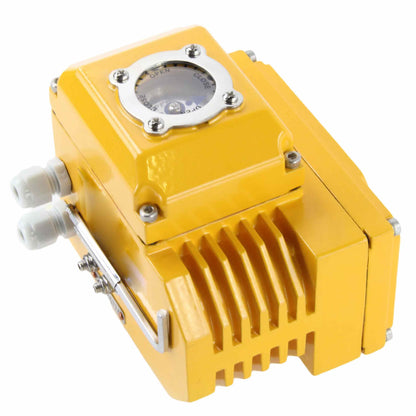

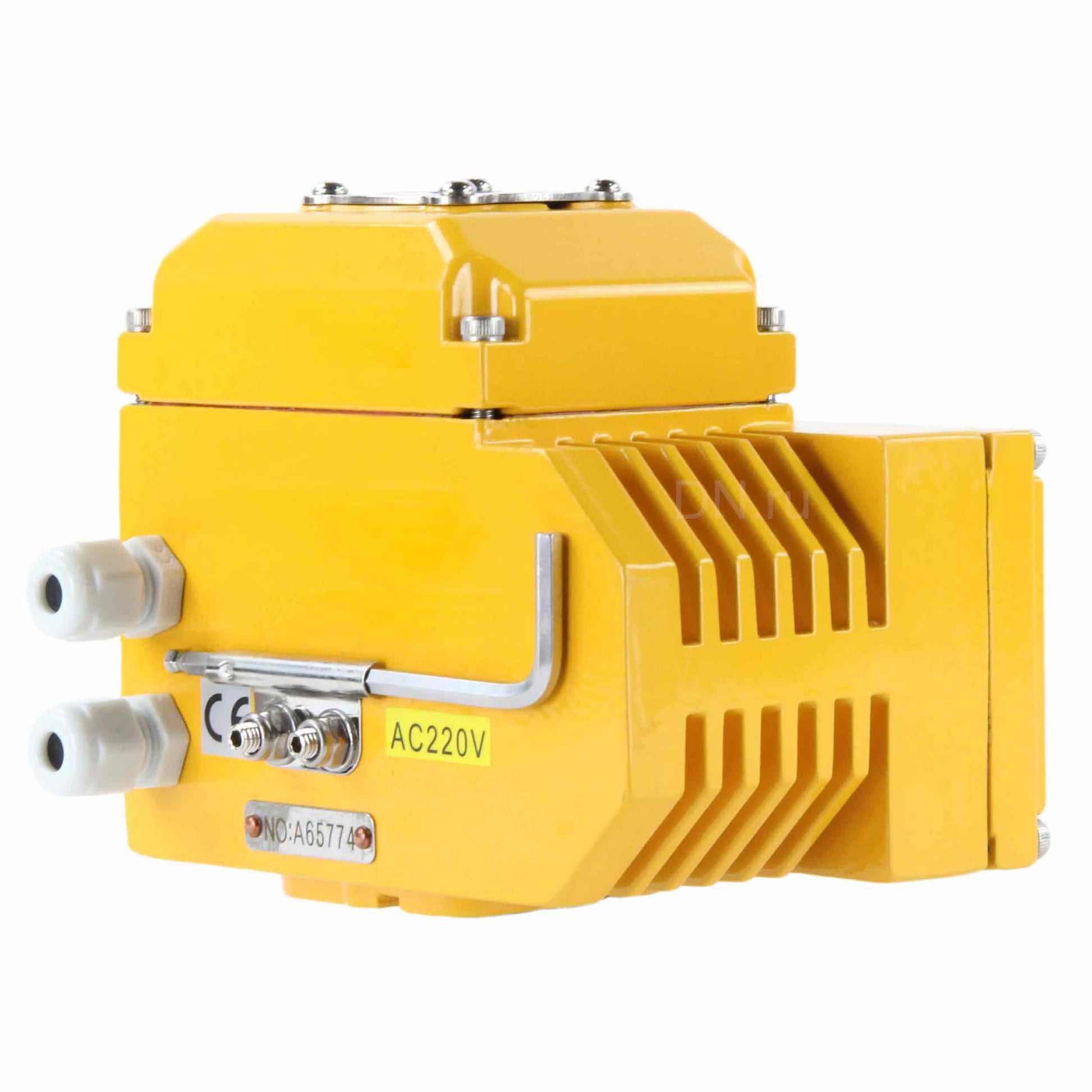

Quarter-turn electric actuator DNOVA QT 003-060 220V

From $31.16 USD
From $31.16 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Quarter-turn electric actuator DNOVA 003-060 220V is designed for remote and local control of shut-off valves. It is widely used in the gas, oil, metallurgical and food industries, in housing and communal services, etc. with an ambient temperature of -4 °....+158°F. The housing is equipped with a heater (7-10W 220 V) and has the following degrees of protection: IP67, NEMA 4 and 6, anti-corrosion coating. The installation dimensions comply with the international standard ISO 05211 / DIN3337. The electric drive is equipped with an asynchronous motor with a short-circuited rotor, automatic locking of the position of the electric drive, a mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed for operation in the repeatedly short-term S2 mode. The stroke of the electric drive is 90° with an adjustment range of ± 10°. Limiting the stroke of the electric drive - limit switches. Cable connection 2 x M18. The power supply is carried out with an alternating voltage of 220 V with a frequency of 50 Hz.





Drive dimensions DNOVA QT 003-060 220V

Model L H A
30 140 118 109
50 166 122 118
80 200 128 133
100 200 128 133
150 200 128 133
200 269 155 174
300 269 155 174
400 269 155 174
600 269 155 174
800 268 212 164
1000 309 178 200
2000 309 178 200

Drive sketch DNOVA QT 003-060 220V



Drive design DNOVA QT 003-060 220V:

№ Part name
1 output shaft
2 cable lock
3 mechanical stop
4 hand wrench
5 body
6 cover
7 viewing window
8 dust protection

Drive detail sketch DNOVA QT 003-060 220V

Specifications

Country of origin
China
Actuator cycle time
10s
Explosion-proof
No
Thermal protection
No
Type of electric actuator
Quarter-turn
Feedback sensor
Limit switches
Control signal
ON/OFF
Shaft shape rod
13 mm
Shaft shape square
9х9 mm
ISO - flange type
F03,F05
Rated current consumption
0.15 A
Power consumption
8 W
Supply voltage
220 V

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
30 NmD300-04905
30 NmD300-04905
$31.16/ea		 $0.00
$31.16/ea $0.00
50 NmD300-04907
50 NmD300-04907
$37.32/ea		 $0.00
$37.32/ea $0.00
80 NmD300-04912
80 NmD300-04912
$47.19/ea		 $0.00
$47.19/ea $0.00
100 NmD300-04915
100 NmD300-04915
$54.28/ea		 $0.00
$54.28/ea $0.00
150 NmD300-04920
150 NmD300-04920
$55.14/ea		 $0.00
$55.14/ea $0.00
200 NmD300-04925
200 NmD300-04925
$80.74/ea		 $0.00
$80.74/ea $0.00
300 NmD300-04928
300 NmD300-04928
$83.32/ea		 $0.00
$83.32/ea $0.00
400 NmD300-04931
400 NmD300-04931
$84.54/ea		 $0.00
$84.54/ea $0.00
600 NmD300-04935
600 NmD300-04935
$85.21/ea		 $0.00
$85.21/ea $0.00
800 NmD300-04938
800 NmD300-04938
$131.03/ea		 $0.00
$131.03/ea $0.00
