How it works
Multi-turn handwheel
Two-way globe valve
The number that matters
Nominal pressure
40bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Heat Supply System
- Water Supply System
- Compressed Air Pipelines
- Steam Plants
- Industrial Pipelines
Pressure sealed stop valve DNOVA is designed for installation as a shut-off device on pipelines. Operating principle: When the flywheel rotates clockwise or counterclockwise, the rotational motion is transmitted to the spindle, and the spool attached to it closes or opens the passage hole in the housing. WARNING: The use of shut-off valves as control valves is prohibited.

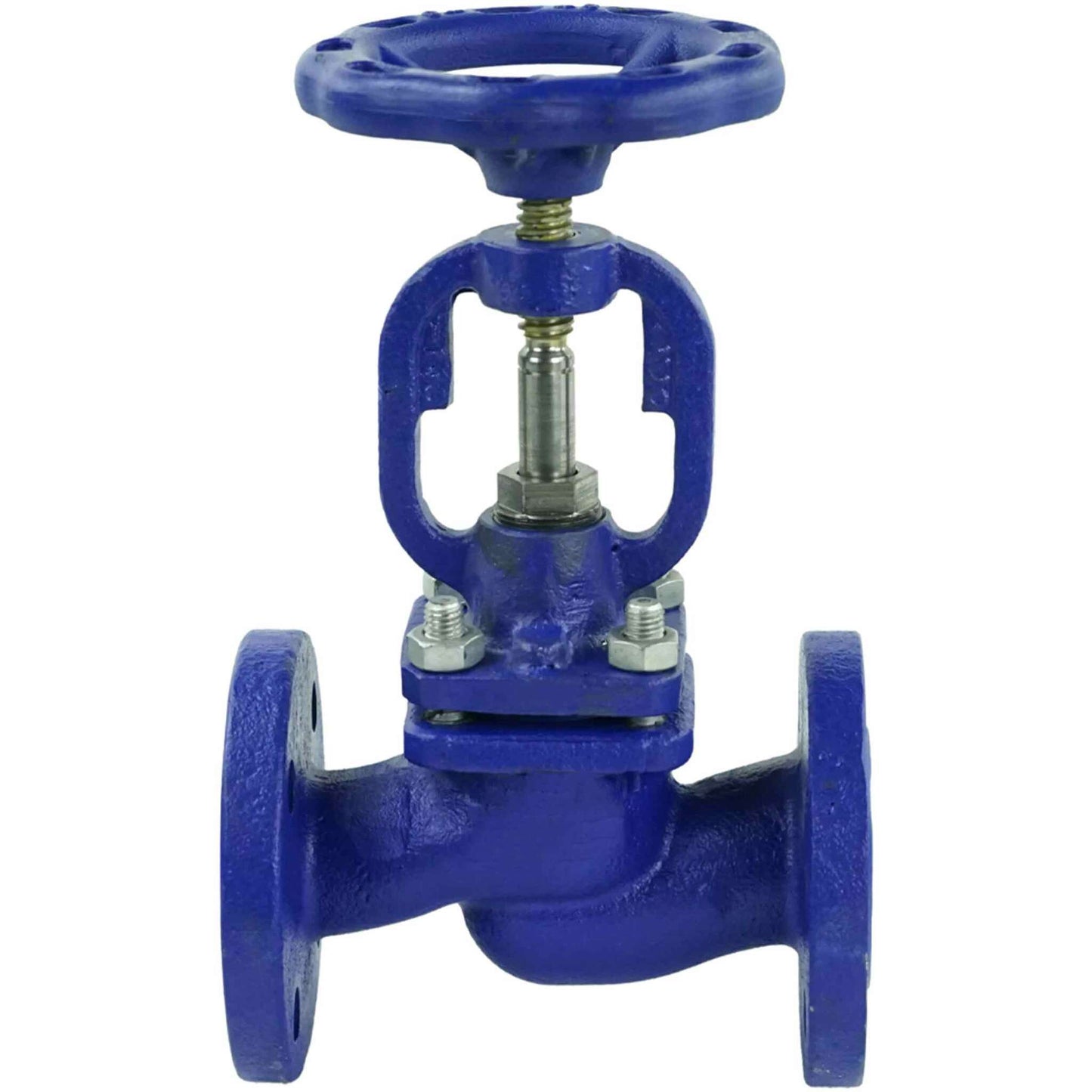

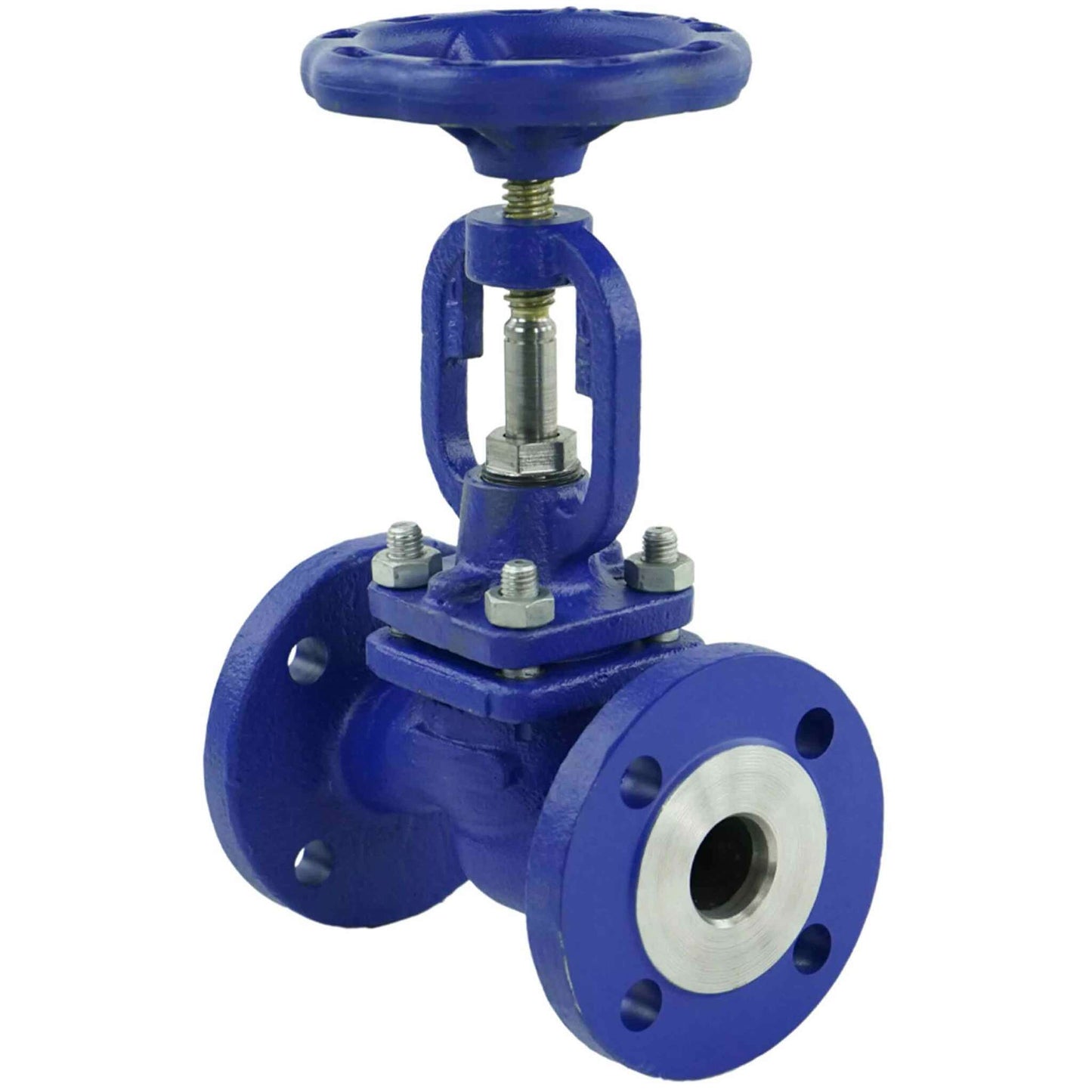

Overall and installation dimensions of gland shut-off valves DNOVA VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
| Model |
d |
L |
D2 |
D1 |
D |
C |
f |
n |
d1 |
Weight, kg |
| DN15 | 15 | 130 | 45 | 65 | 95 | 16 | 2 | 4 | 14 | 3.7 |
| DN20 | 20 | 150 | 58 | 75 | 105 | 16 | 2 | 4 | 14 | 4.5 |
| DN25 | 25 | 160 | 65 | 85 | 115 | 18 | 2 | 4 | 14 | 5.5 |
| DN32 | 32 | 180 | 78 | 100 | 140 | 18 | 2 | 4 | 18 | 7.5 |
| DN40 | 40 | 200 | 88 | 110 | 150 | 18 | 3 | 4 | 18 | 13.5 |
| DN50 | 50 | 230 | 102 | 125 | 165 | 18 | 3 | 4 | 18 | 15 |
| DN65 | 65 | 290 | 122 | 145 | 185 | 22 | 3 | 8 | 18 | 24 |
| DN80 | 76 | 310 | 138 | 160 | 200 | 24 | 3 | 8 | 18 | 30 |
| DN100 | 100 | 350 | 162 | 190 | 235 | 24 | 3 | 8 | 22 | 44 |
Dimensional sketch of gland shut-off valves DNOVA VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
Materials of gland shut-off valves DNOVA VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
| № | Name | Material |
| 1 | Case | steel GS-C25 |
| 2 | Face seal | steel WCB+13Cr |
| 3 | Disk | steel X10Cr13 |
| 4 | Stem | steel 13Cr |
| 5 | Gasket | steel SS304+graphite |
| 6 | Back seal | steel WCB+13Cr |
| 7 | Hairpin | steel A193 B7 |
| 8 | Nut | steel A194 2H |
| 9 | padding | graphite |
| 10 | Gland flange | steel WCB |
| 11 | Fasteners | C.S |
| 12 | Eye bolt | steel A193 B7 |
| 13 | Nut | steel A194 2H |
| 14 | Cover | steel WCB |
| 15 | Rod nut | aluminum bronze |
| 16 | Fasteners | C.S |
| 17 | Helm | KTN330-08 |
| 18 | Lock nut | steel A194 2H |
Material sketch of gland shut-off valves DNOVA VS2130M-F-S PSI580, flanged, body material - steel GS-C25, seal - PTFE, steering wheel
- Body material
- Steel GS-C25
- Connection type
- Flanged
- Operating environment
- Water, Air, and Oil Products
- Applications
- Heat Supply System, Water Supply System, Compressed Air Pipelines, Steam Plants, and Industrial Pipelines
- Nominal pressure
- 40 bar
- Type of seal
- Metal
- Stop valve type
- Pressure sealed
- Country of origin
- China
