Description

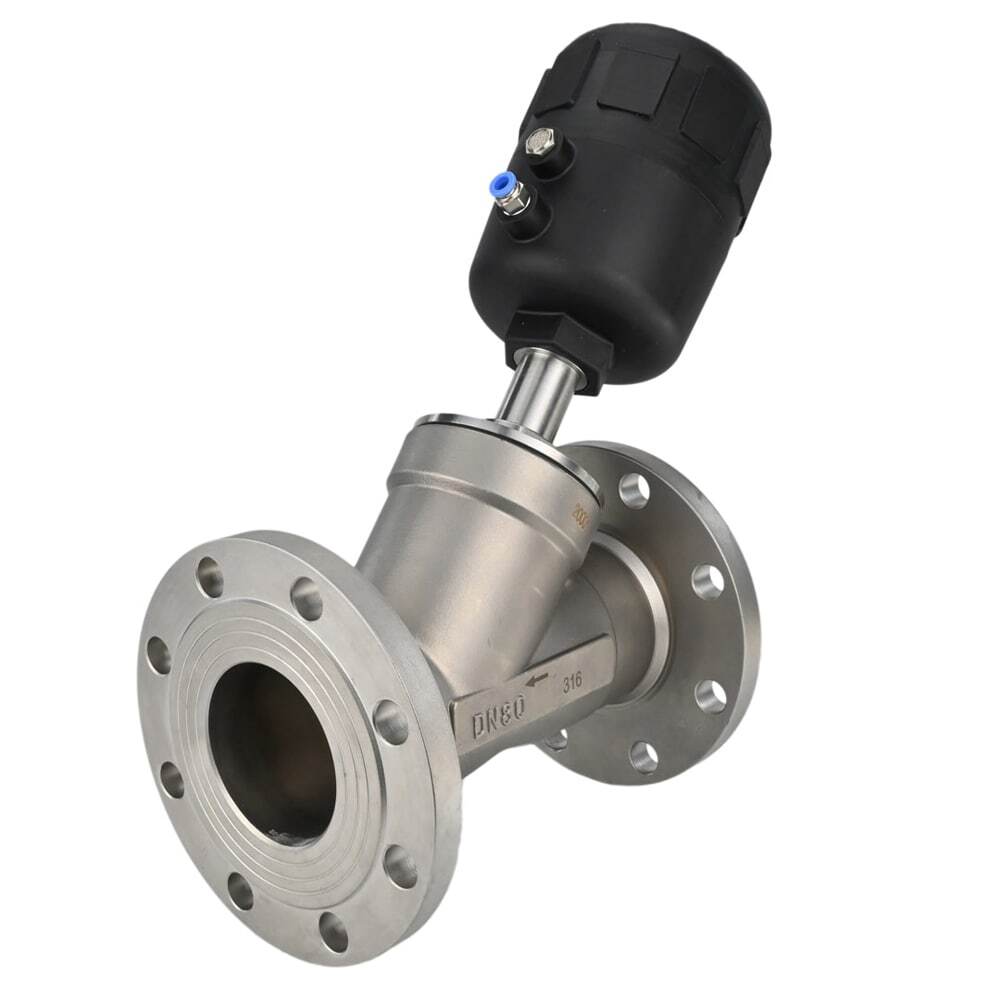

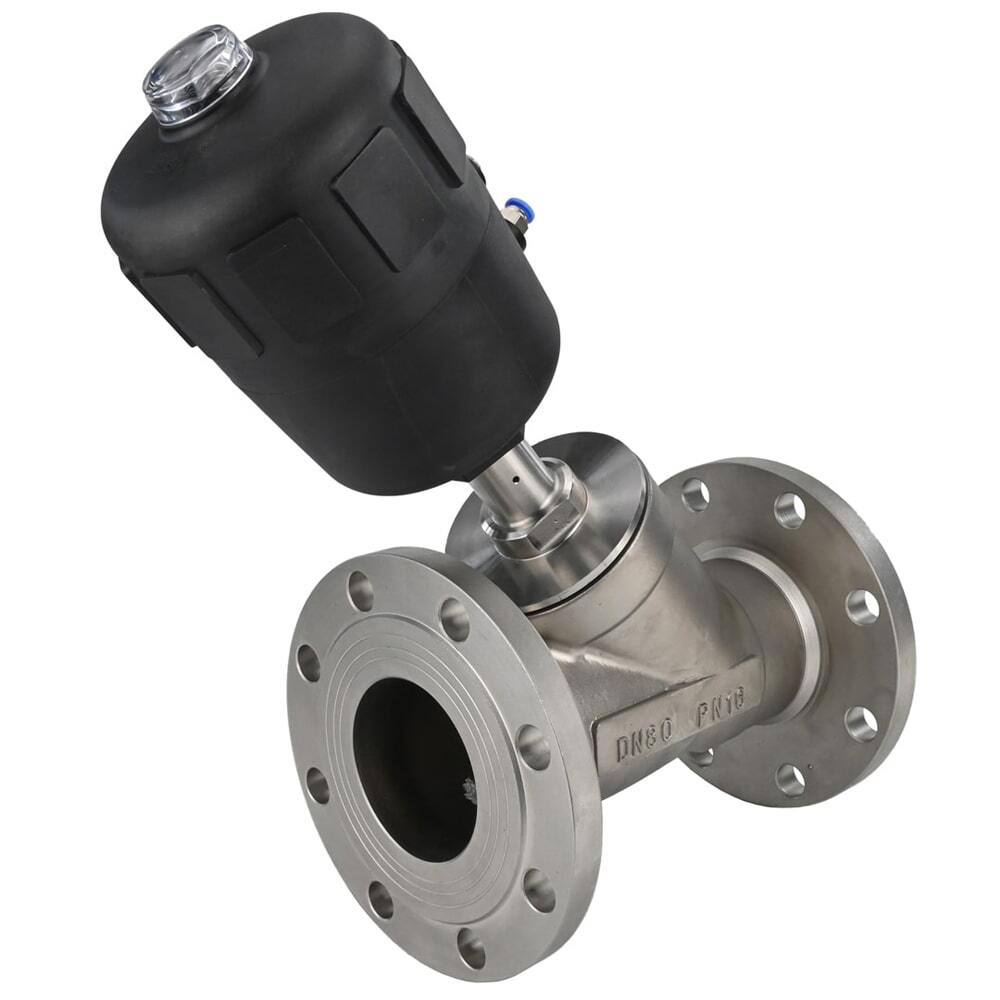

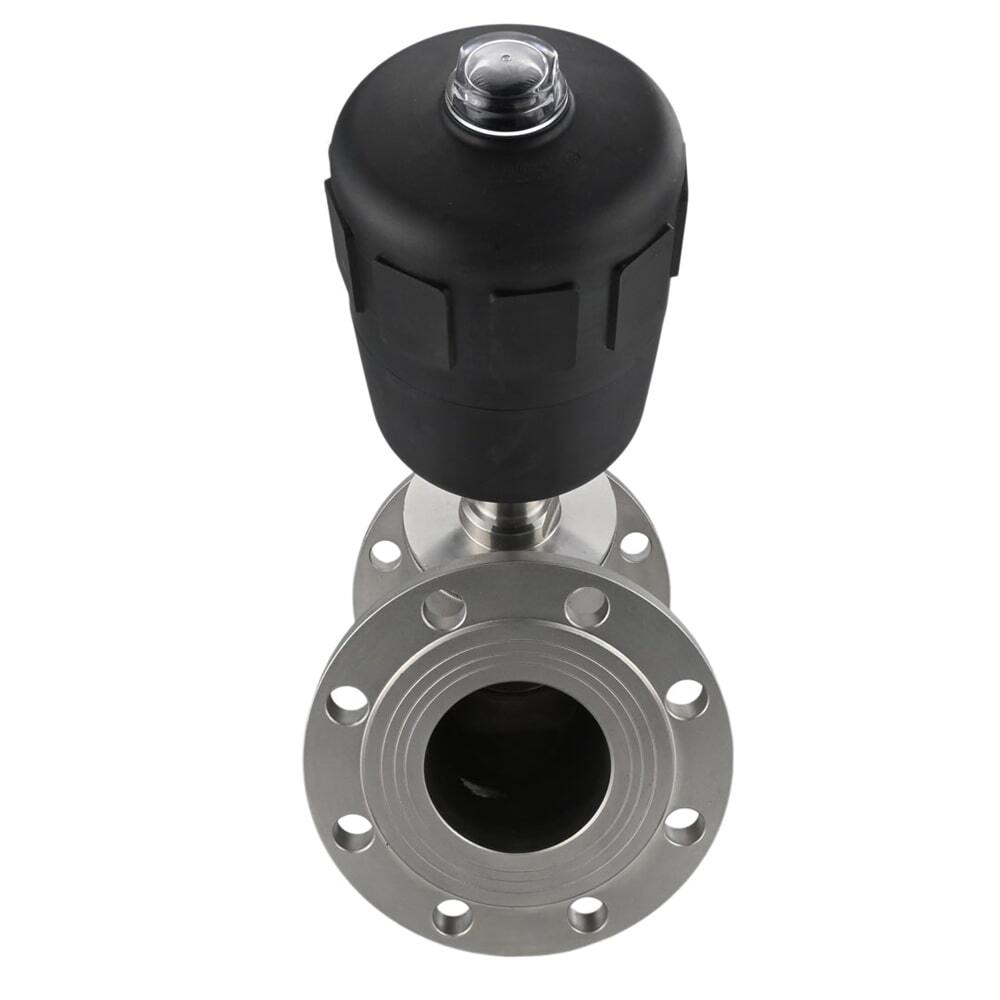

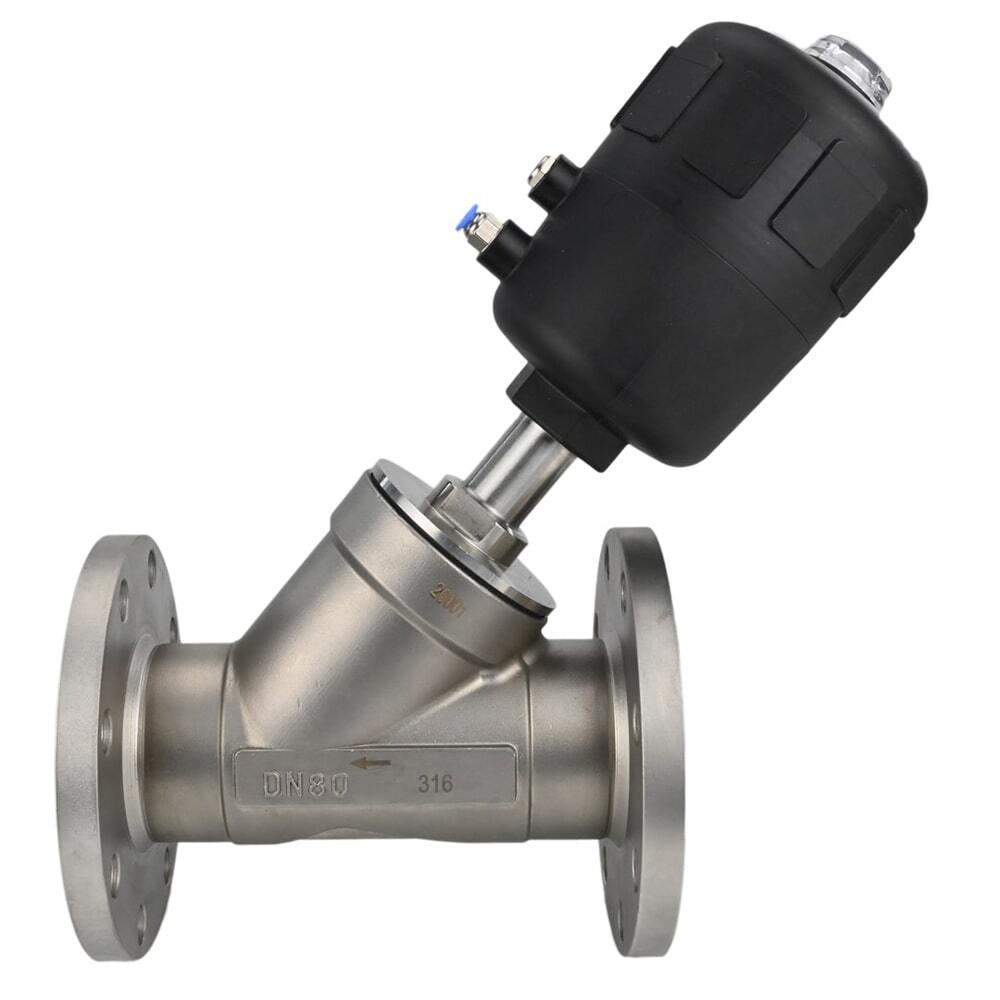

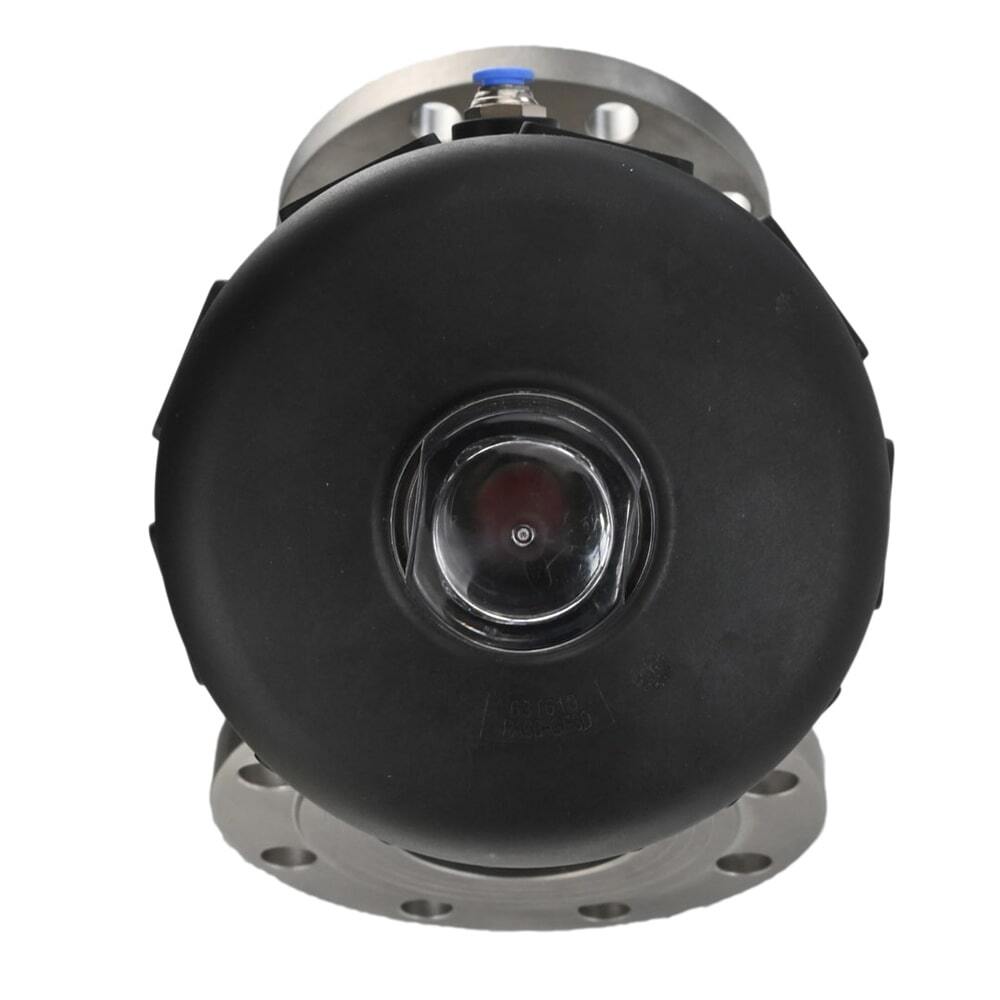

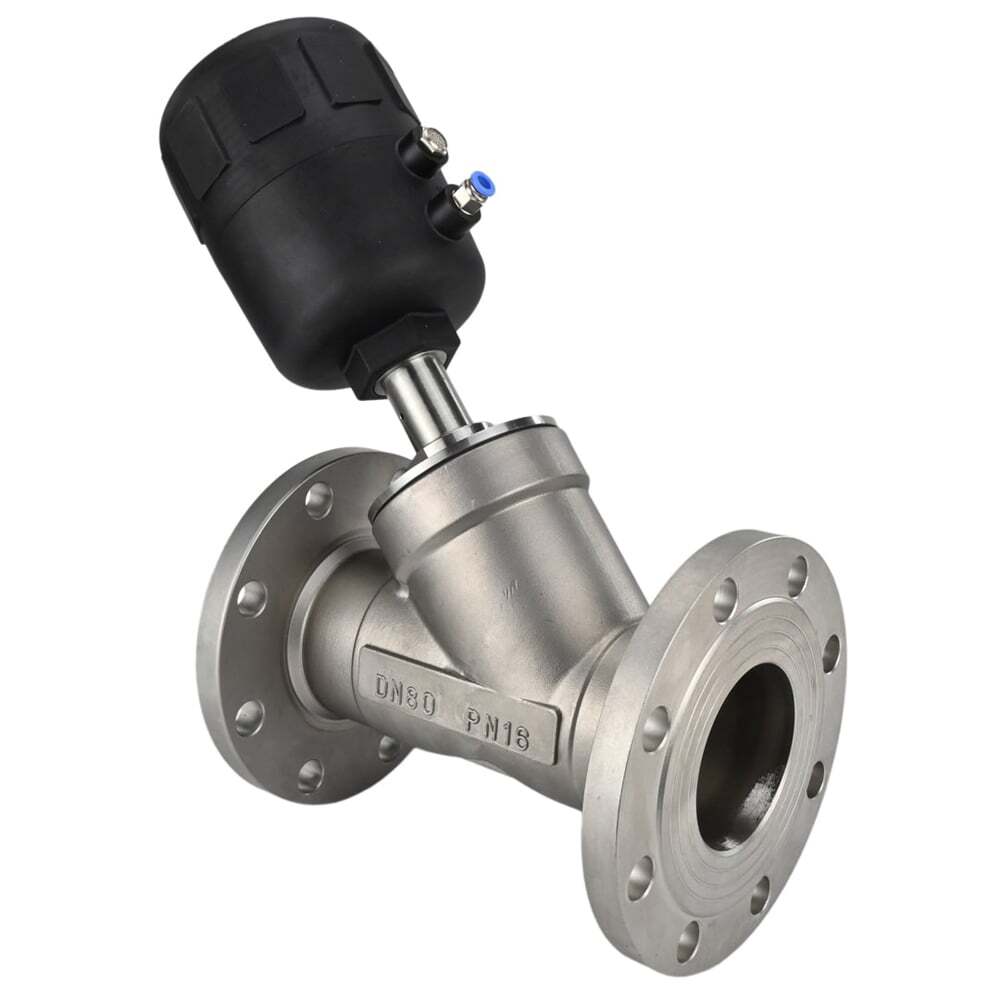

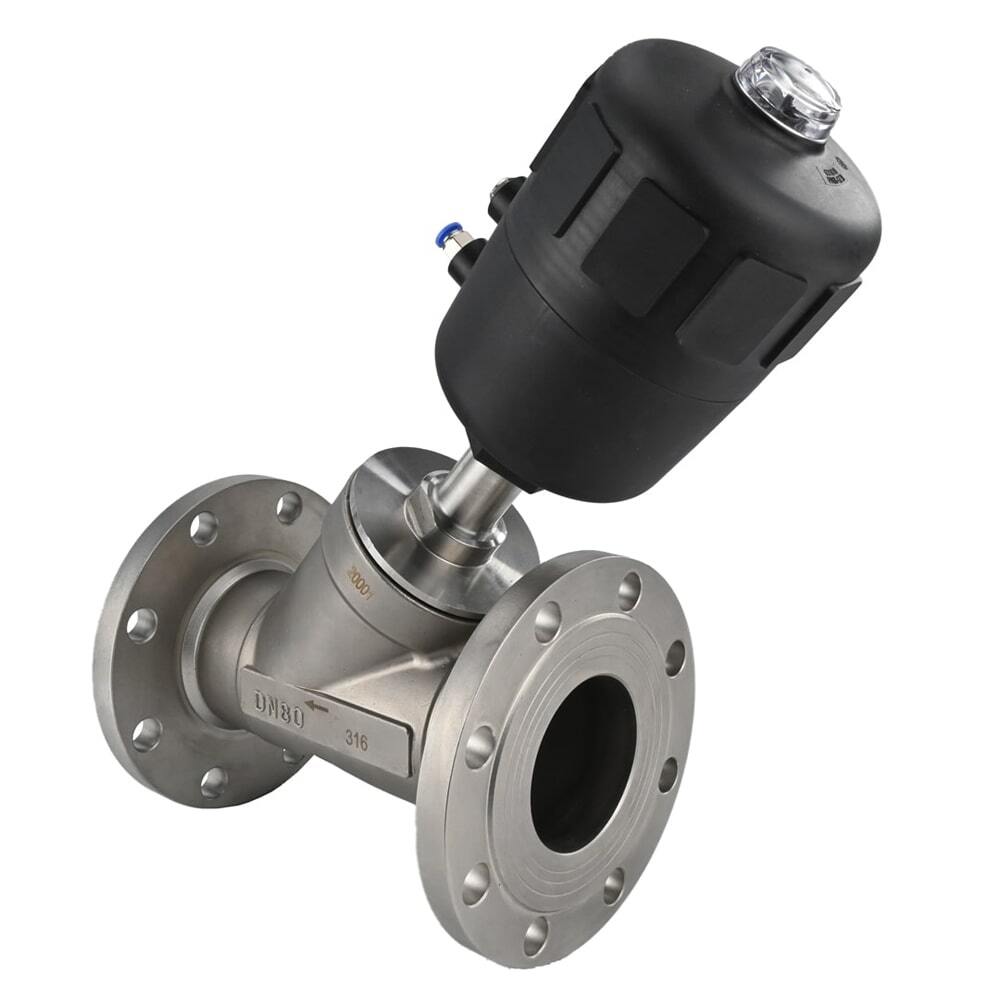

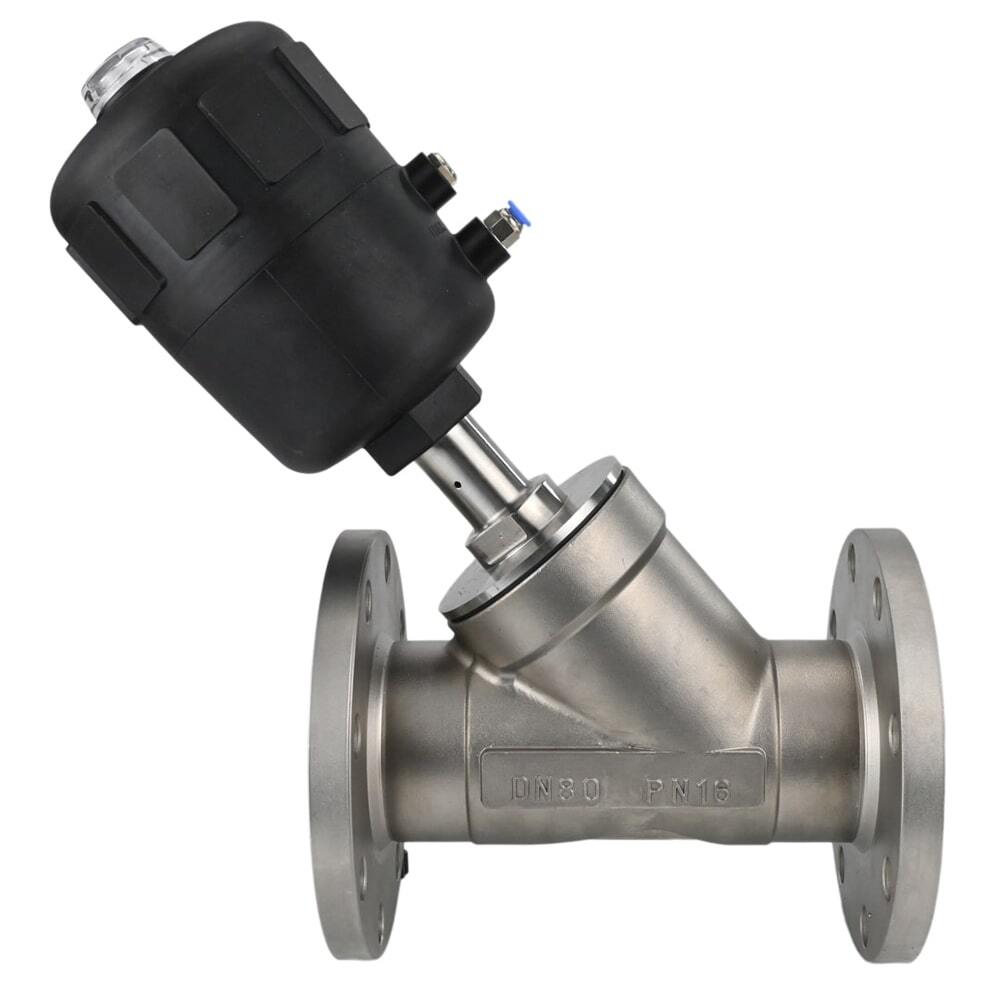

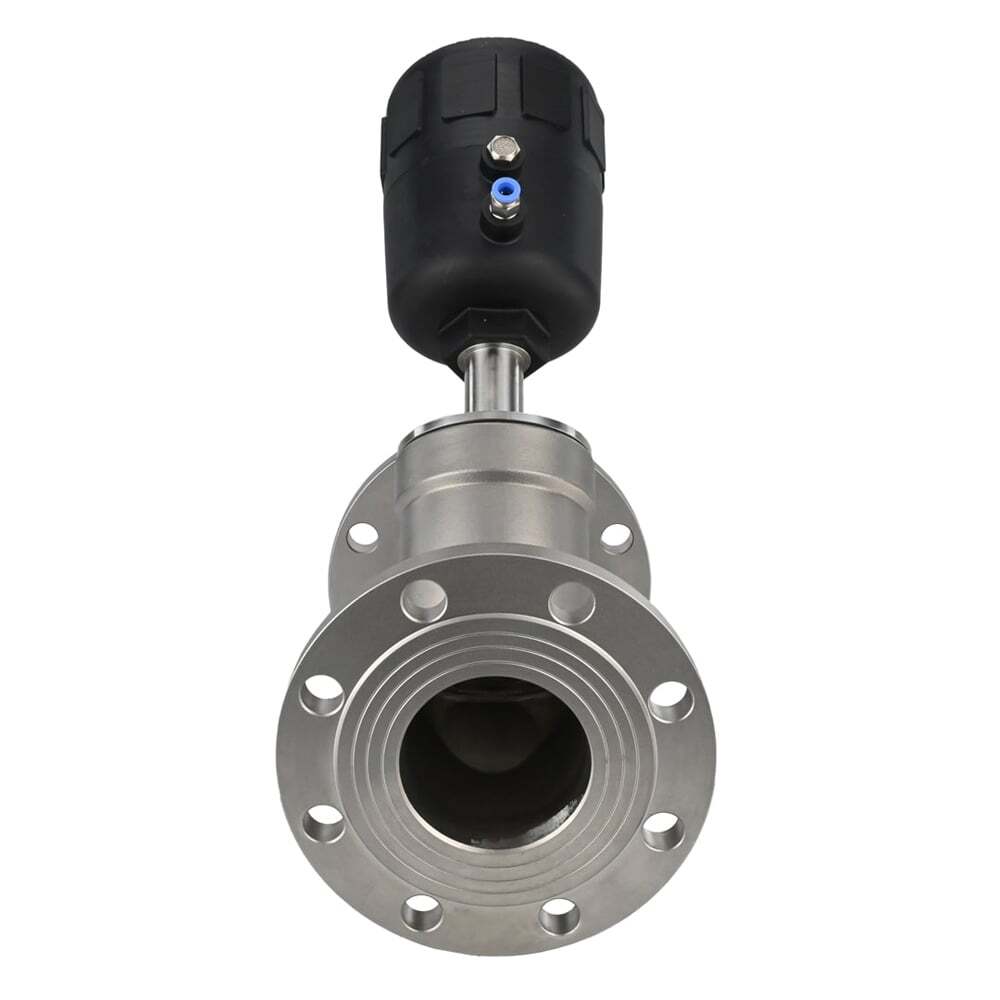

Pneumatic valves DNOVA are designed to regulate or block the flow of the working medium in the pipeline. Principle of operation: the valve is triggered by the pressure of compressed air supplied to the pneumatic actuator, and the return to the starting position is due to the force of elastic deformation of the spring, which contracts when the valve is triggered.
Overall and installation dimensions of pneumatic shut-off valves DNOVA VS324PV-F-1PNC PSI232, body material - stainless steel CF8M, flanged, Y-shaped
| DN | L | D | D1 | D2 | A | H | b | B | N | K | Weight, kg |
| 15 | 120 | 95 | 65 | 40 | 182 | 154 | 14 | 64 | 4 | G 1/4″ | 2.8 |
| 20 | 130 | 105 | 75 | 50 | 185 | 155 | 14 | 64 | 4 | G 1/4″ | 3.0 |
| 25 | 140 | 115 | 85 | 60 | 212 | 186 | 14 | 80 | 4 | G 1/4″ | 4.1 |
| 32 | 150 | 135 | 100 | 70 | 242 | 210 | 16 | 100 | 4 | G 1/4″ | 5.2 |
| 40 | 180 | 145 | 110 | 80 | 260 | 212 | 16 | 100 | 4 | G 1/4″ | 5.8 |
| 50 | 195 | 160 | 125 | 92 | 314 | 286 | 16 | 126 | 4 | G 1/4″ | 8.1 |
| 65 | 230 | 185 | 145 | 115 | 355 | 303 | 18 | 126 | 4 | G 1/4″ | 10.8 |
| 80 | 250 | 195 | 160 | 130 | 390 | 335 | 18 | 156 | 8 | G 1/4″ | 18.3 |
| 100 | 280 | 215 | 180 | 150 | 410 | 355 | 18 | 156 | 8 | G 1/4″ | 28.2 |
Sketch of pneumatic shut-off valves DNOVA VS324PV-F-1PNC PSI232, body material - stainless steel CF8M, flanged, Y-shaped
Materials of parts of pneumatic shut-off valves DNOVA VS324PV-F-1PNC PSI232, body material - stainless steel CF8M, flanged, Y-shaped
| № | Name | Material |
| 1 | Case | steel CF8M |
| 2 | Plunger | steel CF8M |
| 3 | Plunger seal | PTFE |
| 4, 5 | Stem seal | PTFE |
| 6 | Valve cover | steel CF8M |
| 7 | Stem | steel CF8M |
| 8 | Indicator cover | plastic |
| 9 | Drive housing | plastic |
| 10 | Spring | steel 60Si2MnA |
| 11 | piston | aluminum alloy AD31 |
| 12 | Piston O-ring seal | VITON |
| 13 | Sealing | NBR |
| 14 | Spring | steel 60Si2MnA |
| 15 | Stem seal | VITON |
Material sketch of pneumatic shut-off valves DNOVA VS324PV-F-1PNC PSI232, body material - stainless steel CF8M, flanged, Y-shaped
