Description

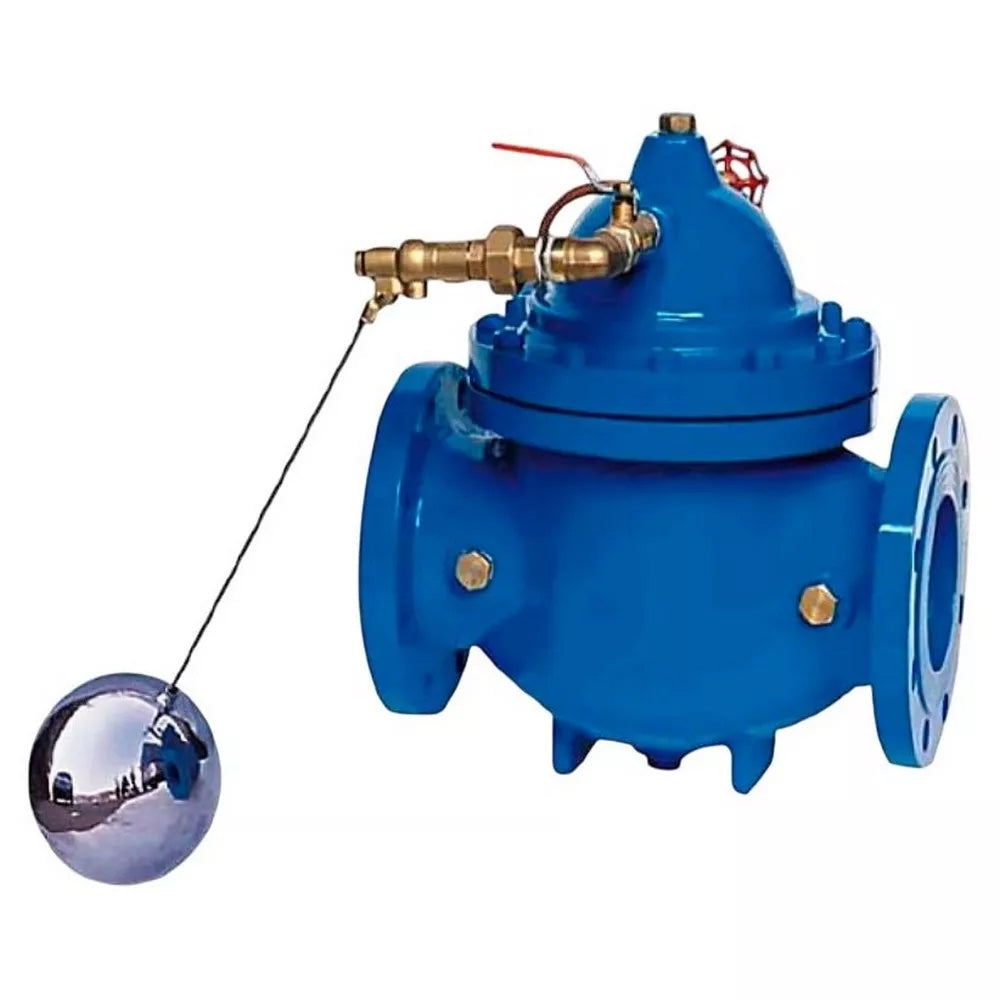

Membrane float level regulator of pilot type is designed for automatic maintece of set liquid level in vessel equipment. It is used for filling tanks and maintaining liquid level in the tank.
Overall and installation dimensions of pilot type float regulators PVF8-1331RR-F, body material - cast iron GGG40, disk material - stainless steel AISI 304, seal - natural rubber, flanged:
| Model | L, mm | H, mm | D, mm | D1, mm | n–Ød, mm |
| DN50 | 215 | 265 | 165 | 125 | 4–18 |
| DN65 | 215 | 310 | 185 | 145 | 4–18 |
| DN80 | 250 | 350 | 200 | 160 | 8–18 |
| DN150 | 360 | 570 | 285 | 240 | 8–22 |
| DN250 | 622 | 730 | 405 | 355 | 12–26 |
| DN300 | 698 | 760 | 460 | 410 | 12–26 |
Materials DNOVA VSO3434M-FS 40 bar gland stop valves, body material - carbon steel, disk material - carbon steel, seal - metal, flanged:
| № | Part name | Material |
| 1 | Body | cast iron GGG40 |
| 2 | Cover | cast iron GGG40 |
| 3 | Disk | stainless steel 304 |
| 4 | Diaphragm | natural rubber reinforced |
| 5 | Stem | stainless steel 304 |
| 6 | Spring | stainless steel 304 |
| 7 | Seat | stainless steel 304 |
| 8 | Diaphragm clamping plate | stainless steel 304 |
| 9 | Diaphragm clamping plate with O-ring | stainless steel 304 |
| 10 | O-ring | natural rubber |
