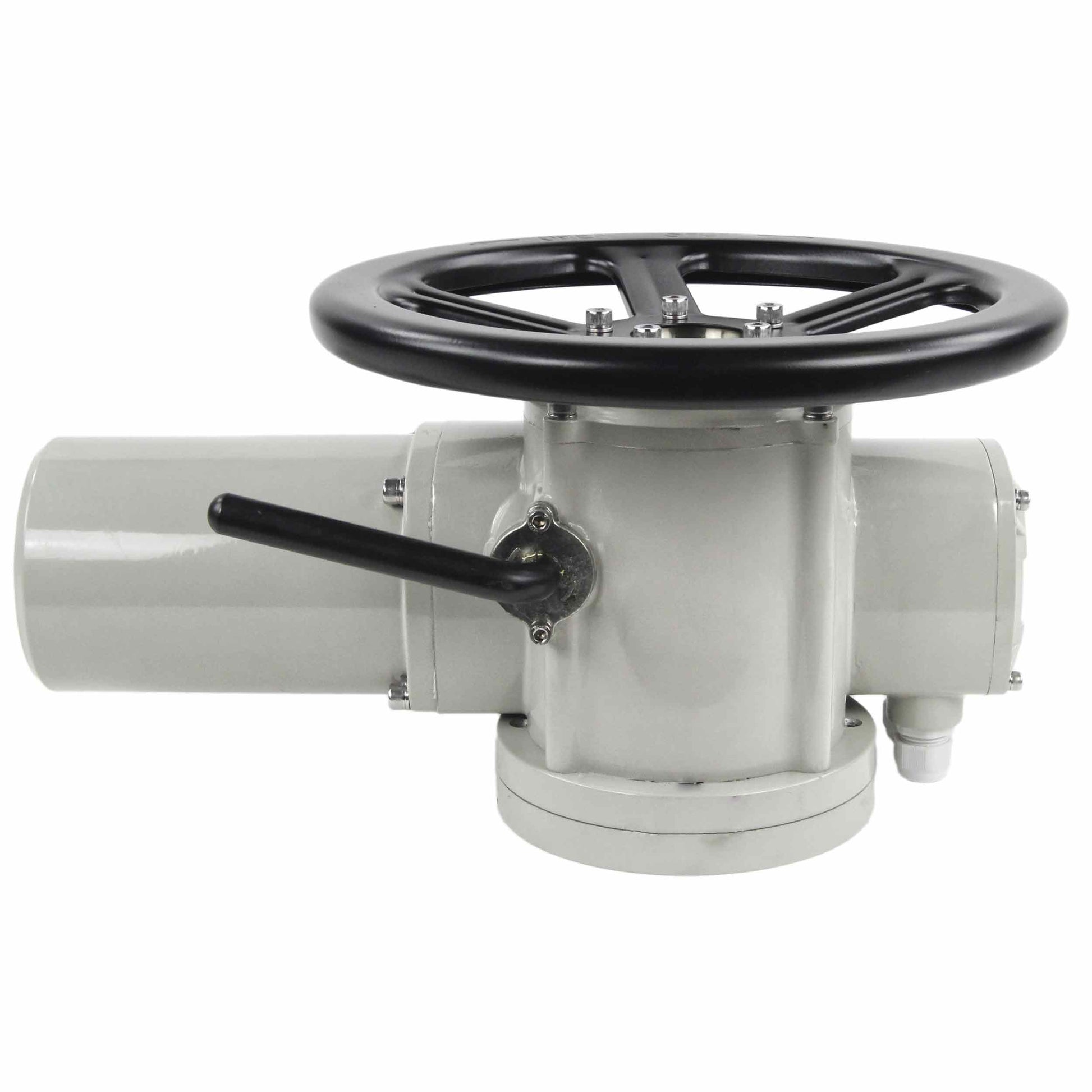

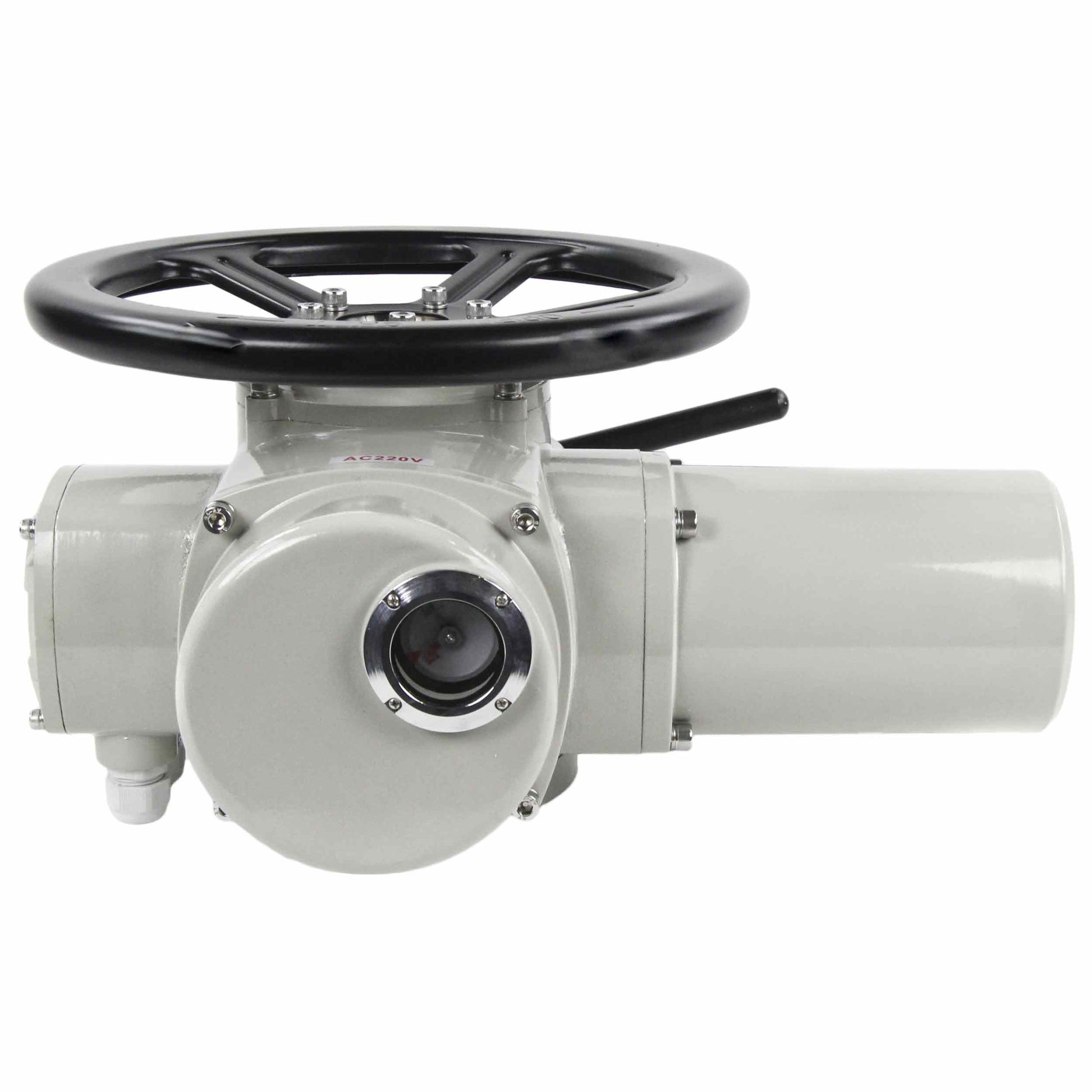

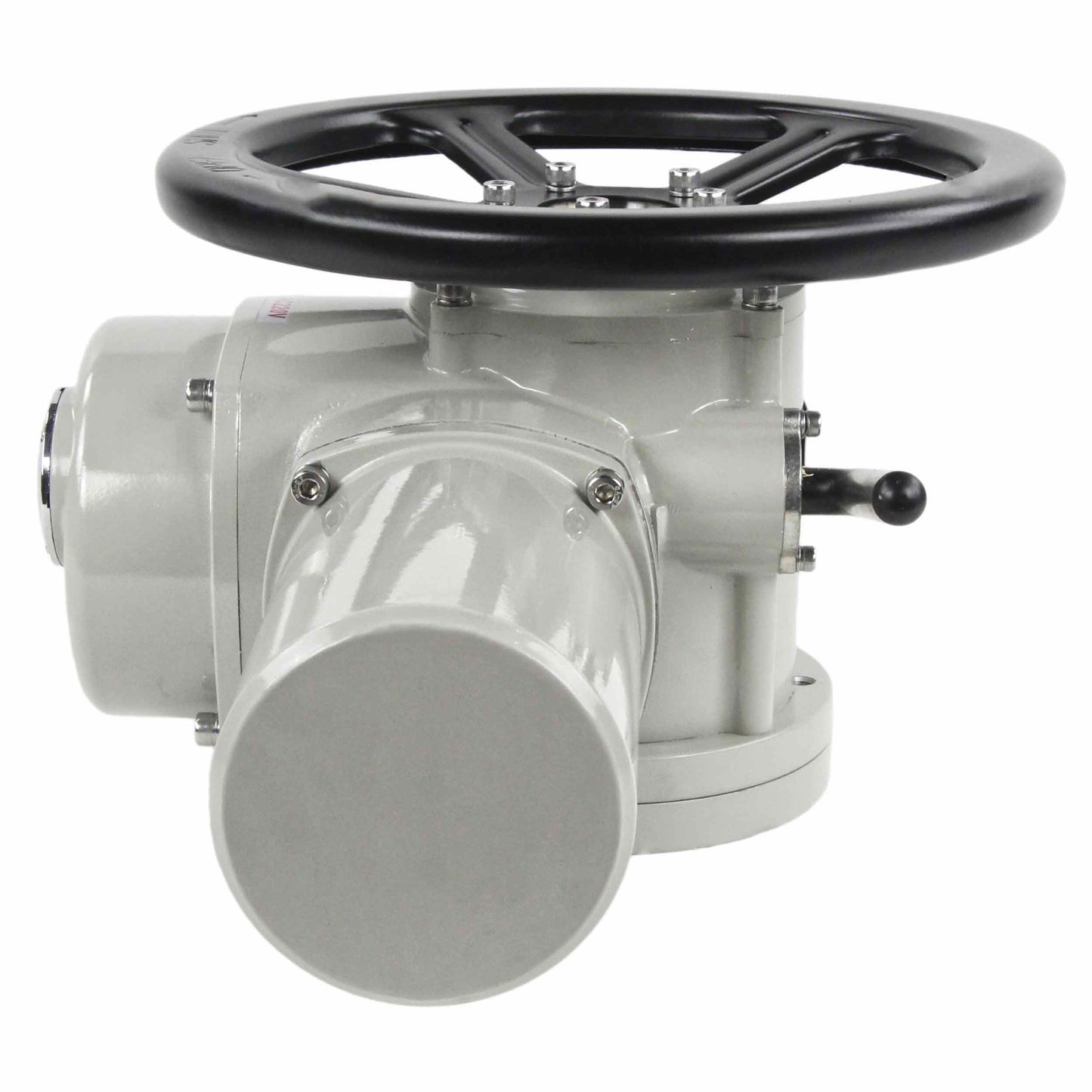

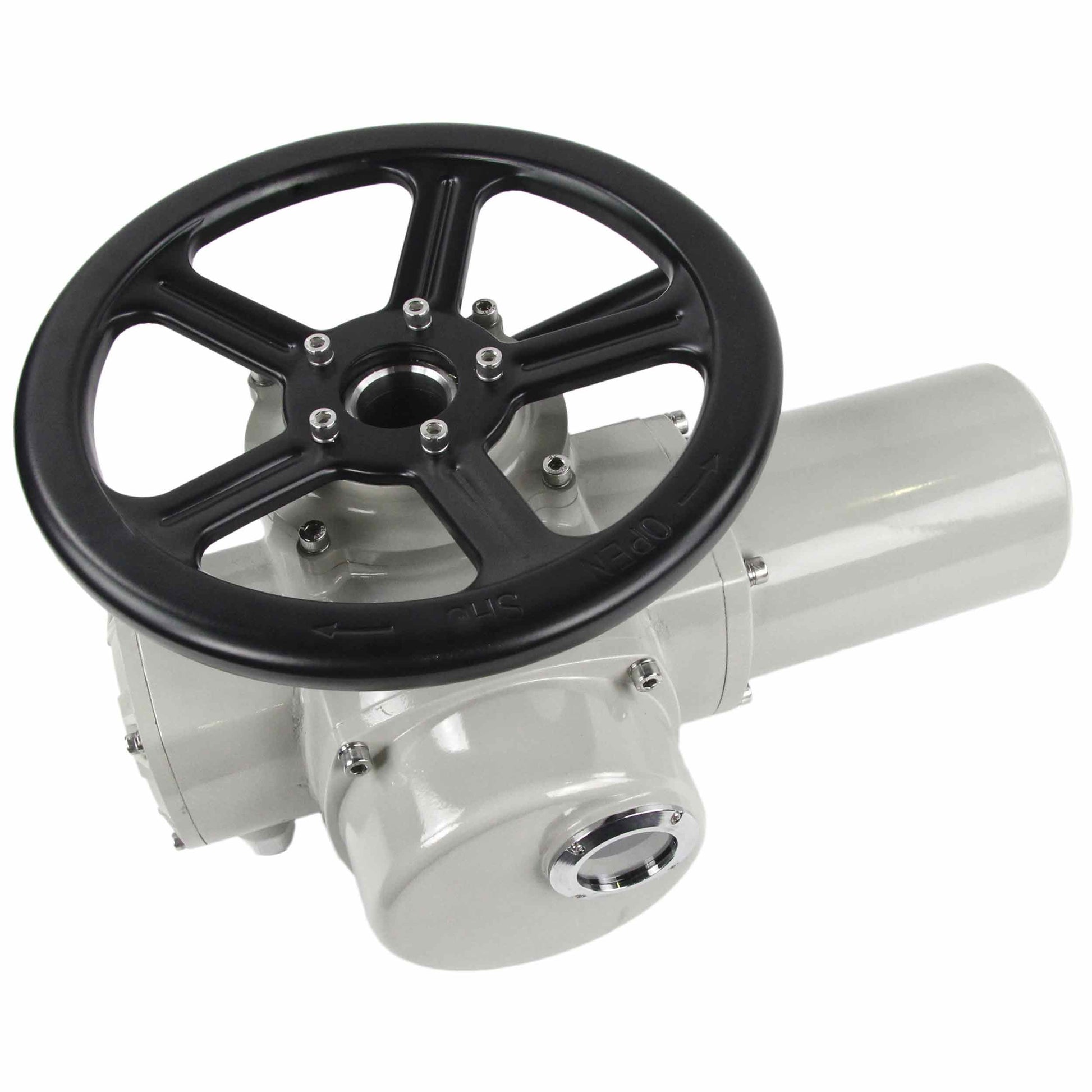

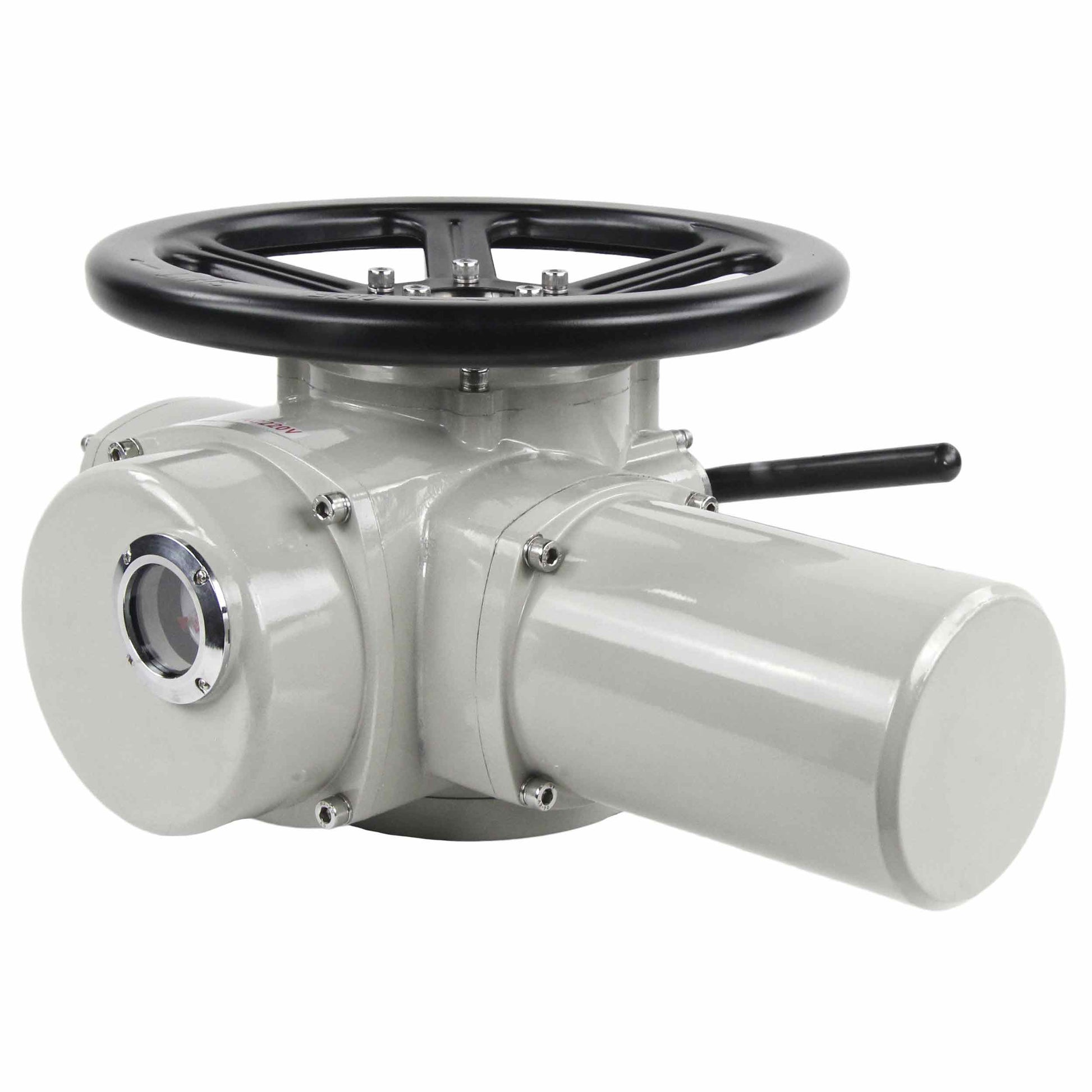

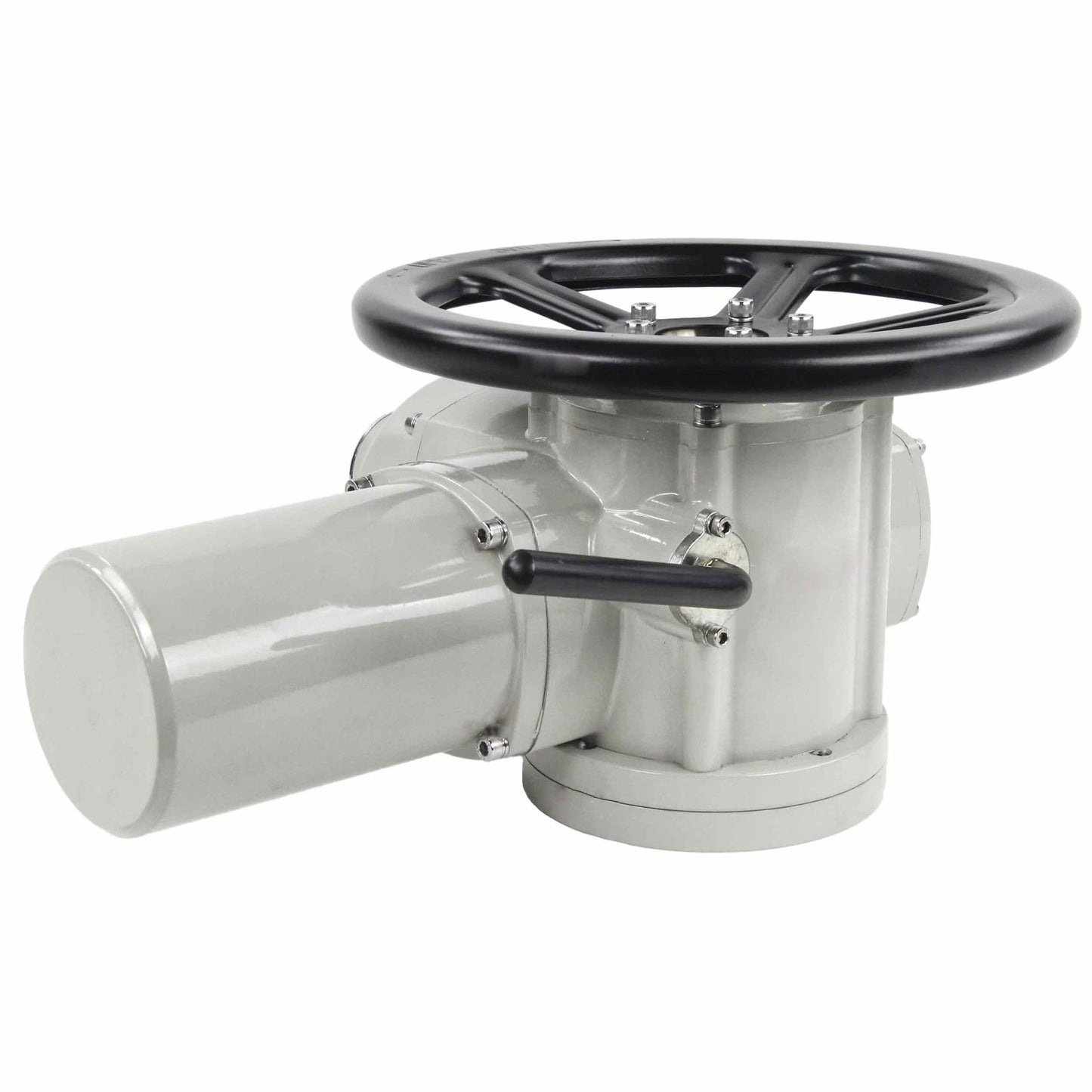

Multi-turn electric actuator DNOVA MTG 200-600 380 V

From $307.46 USD
From $307.46 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Multi-turn electric actuator DNOVA MTG 200-600 380 V is designed to control industrial pipe fittings, for example, cast iron and steel gate valves, gate valves, etc. These electric drives allow the use of valves at civil and industrial facilities in automatic control systems for heat and water supply. The electric drives are applicable in the repeated short-term mode S2 according with a turn-on duration (PV) of 15%. The electric drive is powered by AC 380 V 50 Hz.





Overall and installation dimensions of the actuator DNOVA MTG 200-600 380 V

Model H H1 L L1
20 248 90 435 278
30 248 90 435 278
45 325 116 640 410
60 325 116 640 410

Dimensional sketch of the actuator DNOVA MTG 200-600 380 V

Specifications

Country of origin
China
Explosion-proof
No
Thermal protection
Yes
Type of electric actuator
Multi-turn
Feedback sensor
Limit switches, potentiometer
Control signal
ON/OFF
Shaft shape rod
36 mm
Shaft shape square
27х27 mm
ISO - flange type
F16,F25
Rated current consumption
4 A
Power consumption
1100 W
Supply voltage
380 V

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
200 NmD300-04892
200 NmD300-04892
$307.46/ea		 $0.00
$307.46/ea $0.00
300 NmD300-04894
300 NmD300-04894
$335.41/ea		 $0.00
$335.41/ea $0.00
450 NmD300-04896
450 NmD300-04896
$480.89/ea		 $0.00
$480.89/ea $0.00
600 NmD300-04898
600 NmD300-04898
$375.45/ea		 $0.00
$375.45/ea $0.00
