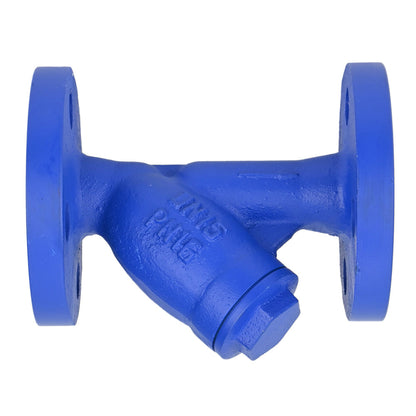

Mesh strainer DNOVA FM1131PPL-F PN16 body material - cast iron, flanged

From $5.45 USD
From $5.45 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Mesh strainer refers to a type of strainer that uses a mesh or net-like structure to trap particles, allowing the passage of fluids or gases through the openings in the mesh. These strainers are commonly used in various applications to separate and strainer out impurities or particles from liquids or gases. Mesh strainers can be made from different materials such as stainless steel, nylon, or other metals and polymers, and they are widely used in industries like water treatment, air filtration, and industrial processes.





 Overall dimensions of the strainer DNOVA FM1131PPL-F PN16

Overall dimensions of the strainer DNOVA FM1131PPL-F PN16 body material - cast iron, flanged

DN L, mm D, mm D1, mm D2, mm b - f, mm Z - Ød, mm Weight, kg
15 130±2 95 65 46 14 – 2 4 – Ø14 1,88
20 150±2 105 75 56 16 – 2 4 – Ø14 2,56
25 160±2 115 85 65 16 – 2 4 – Ø14 3,28
32 180±2 140 100 76 18 – 2 4 – Ø19 5,05
40 200±2 150 110 84 18 – 2 4 – Ø19 5,87



Materials of mesh filter parts DNOVA FM1131PPL-F PN16 body material - cast iron, flanged

Material sketch of mesh filter parts DNOVA FM1131PPL-F PN16 body material - cast iron, flanged

№ Part name Material
1 Body gray cast iron GG25
2 Filter cover cast iron HT200
3 Grid SS304 steel
4 Sealing PPL

Specifications

Country of origin
China
Body material
Cast iron GG25/EN-GJL-250
Maximum allowable temperature
120 °C
Connection type
Flanged
Operating environment
Water, Air, Liquid Medium
Applications
Heating Systems, Irrigation Systems, Ventilation Systems
Nominal pressure
16 bar
Type of seal
PPL
Filter element material
Stainless steel AISI 304/1.4301

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
