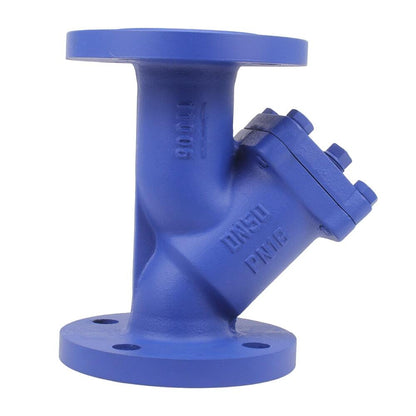

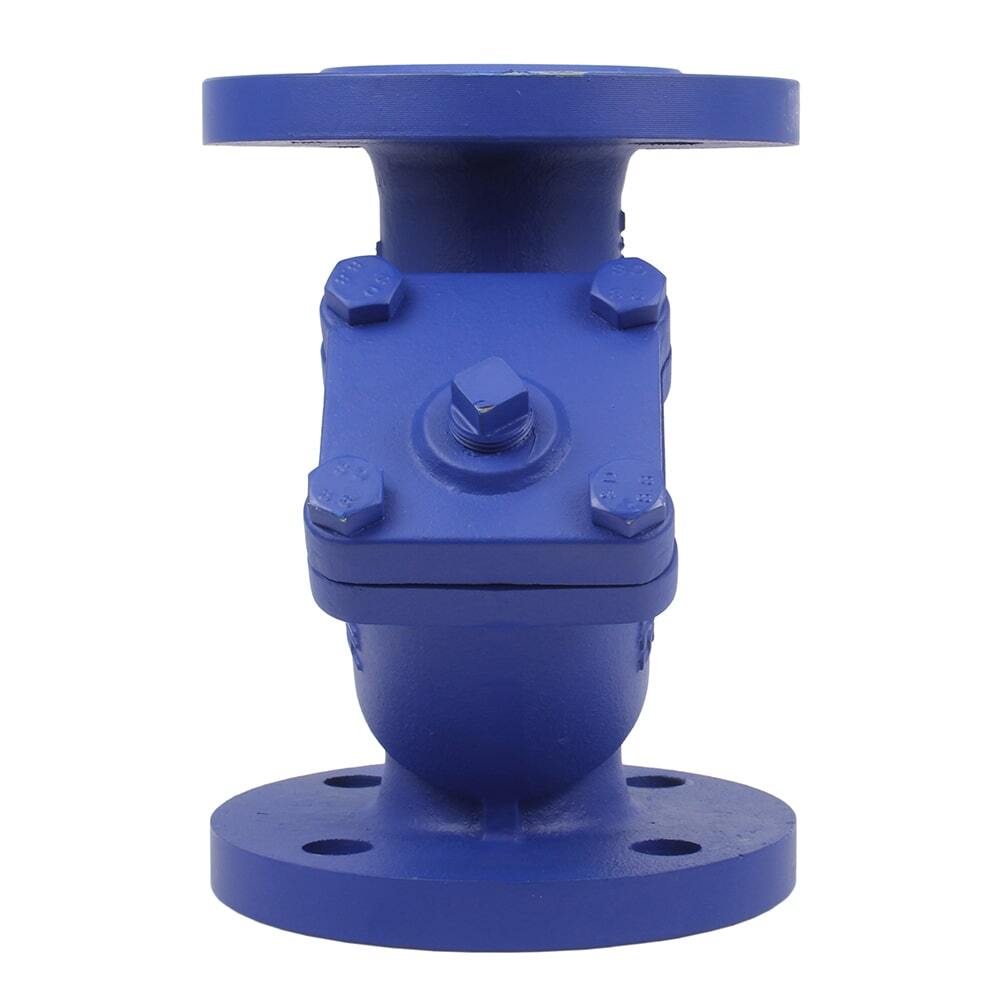

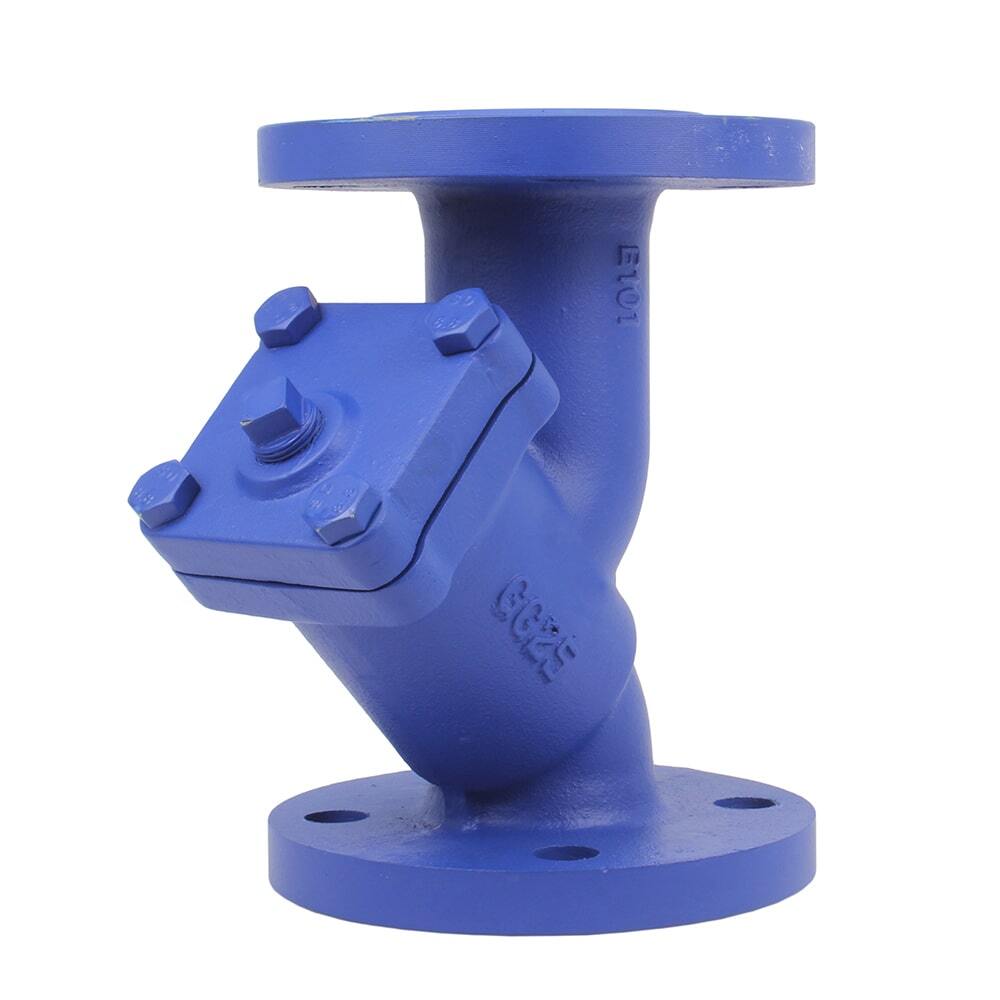

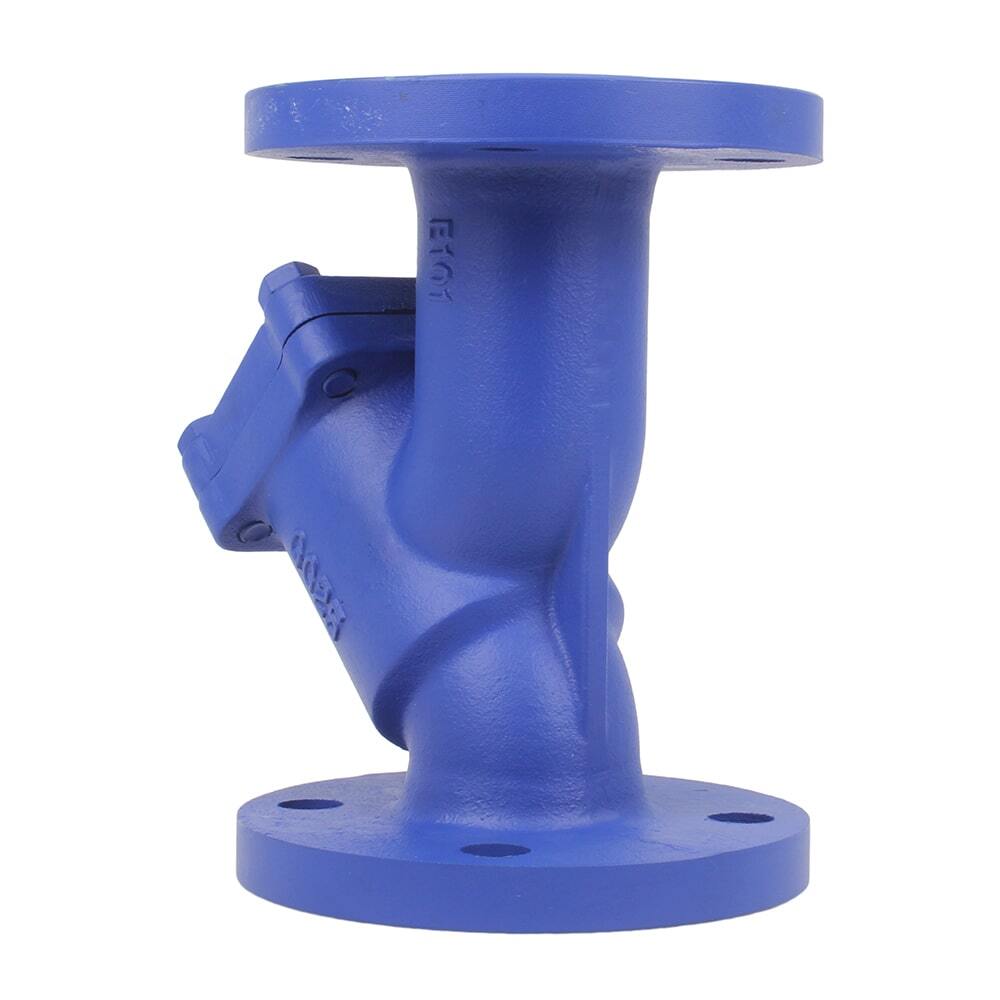

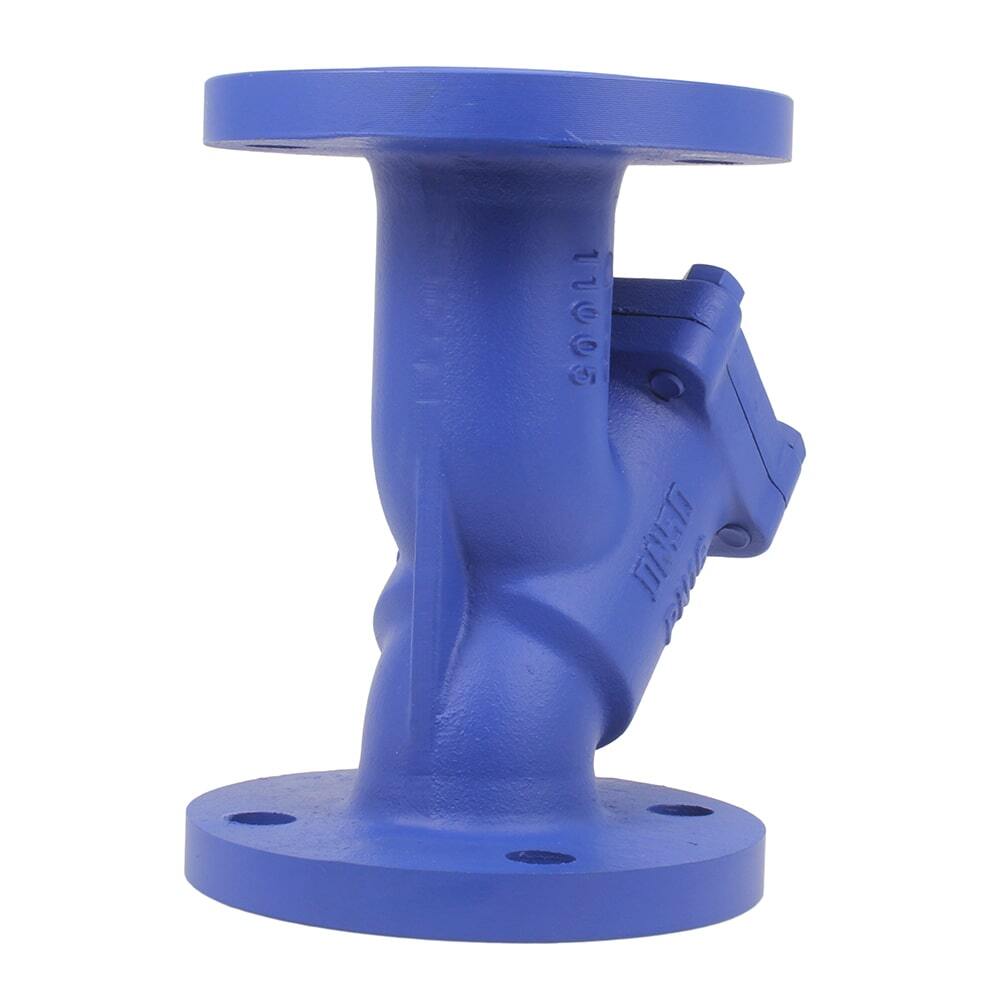

Mesh strainer DNOVA FM1131MG-F PN16 body material - cast iron, flanged

From $21.80 USD
From $21.80 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Mesh strainer refers to a type of strainer that uses a mesh or net-like structure to trap particles, allowing the passage of fluids or gases through the openings in the mesh. These strainers are commonly used in various applications to separate and strainer out impurities or particles from liquids or gases. Mesh strainers can be made from different materials such as stainless steel, nylon, or other metals and polymers, and they are widely used in industries like water treatment, air filtration, and industrial processes.


Overall dimensions of the strainer DNOVA FM1131MG-F PN16

Overall dimensions of the strainer DNOVA FM1131MG-F PN16 body material - cast iron, flanged

DN L, mm D, mm D1, mm D2, mm b - f, mm Z - Ød, mm Weight, kg
50 230±2 165 125 99 20 – 3 4 – Ø19 8,97
65 290±2 185 145 118 20 – 3 4 – Ø19 13,025
80 310±2 200 160 132 22 – 3 8 – Ø19 16,716
100 350±2 220 180 156 24 – 3 8 – Ø19 24,9
125 400±2 250 210 184 26 – 3 8 – Ø19 39,2
150 480±2 285 240 211 26 – 3 8 – Ø23 54,925
200 600±2 340 295 266 30 – 3 12 – Ø23 92
250 730±2 405 355 319 32 – 3 12 – Ø28 144
300 850±2 460 410 370 32 – 3 12 – Ø28 196



Materials of mesh filter parts DNOVA FM1131MG-F PN16 body material - cast iron, flanged

Material sketch of mesh filter parts DNOVA FM1131MG-F PN16 body material - cast iron, flanged

№ Part name Material
1 Body gray cast iron GG25
2 Filter cover gray cast iron GG25
3 Grid SS304 steel
4 Sealing SS316 steel + graphite
5 Drain plug -

Specifications

Country of origin
China
Body material
Cast iron GG25/EN-GJL-250
Maximum allowable temperature
300 °C
Connection type
Flanged
Operating environment
Water, Air, Liquid Medium
Applications
Heating Systems, Irrigation Systems, Ventilation Systems
Nominal pressure
16 bar
Type of seal
Stainless steel AISI 316/1.4401
Filter element material
Stainless steel AISI 304/1.4301
