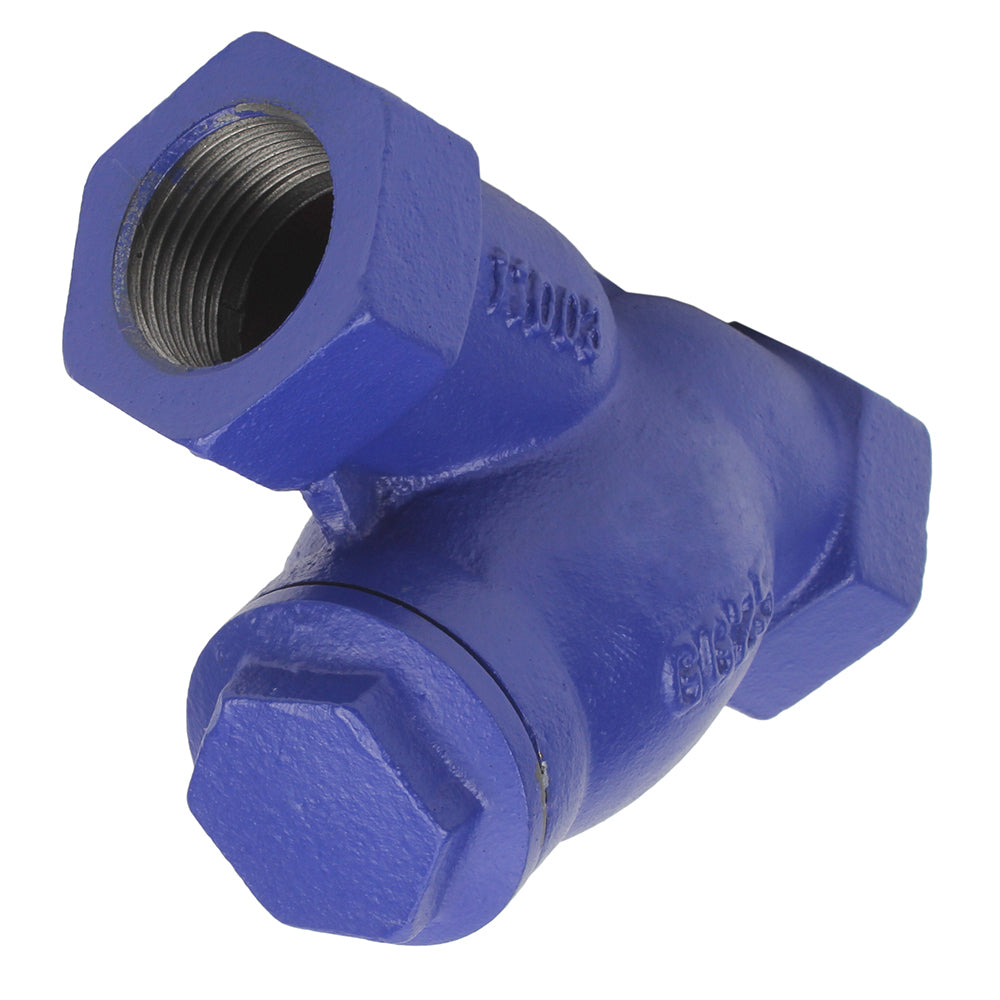

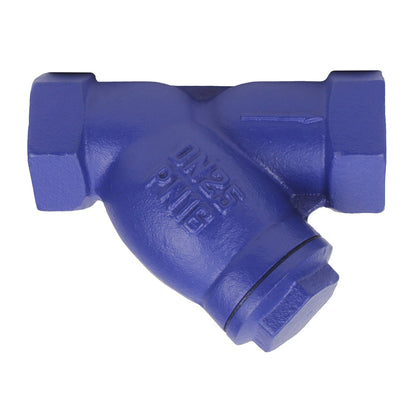

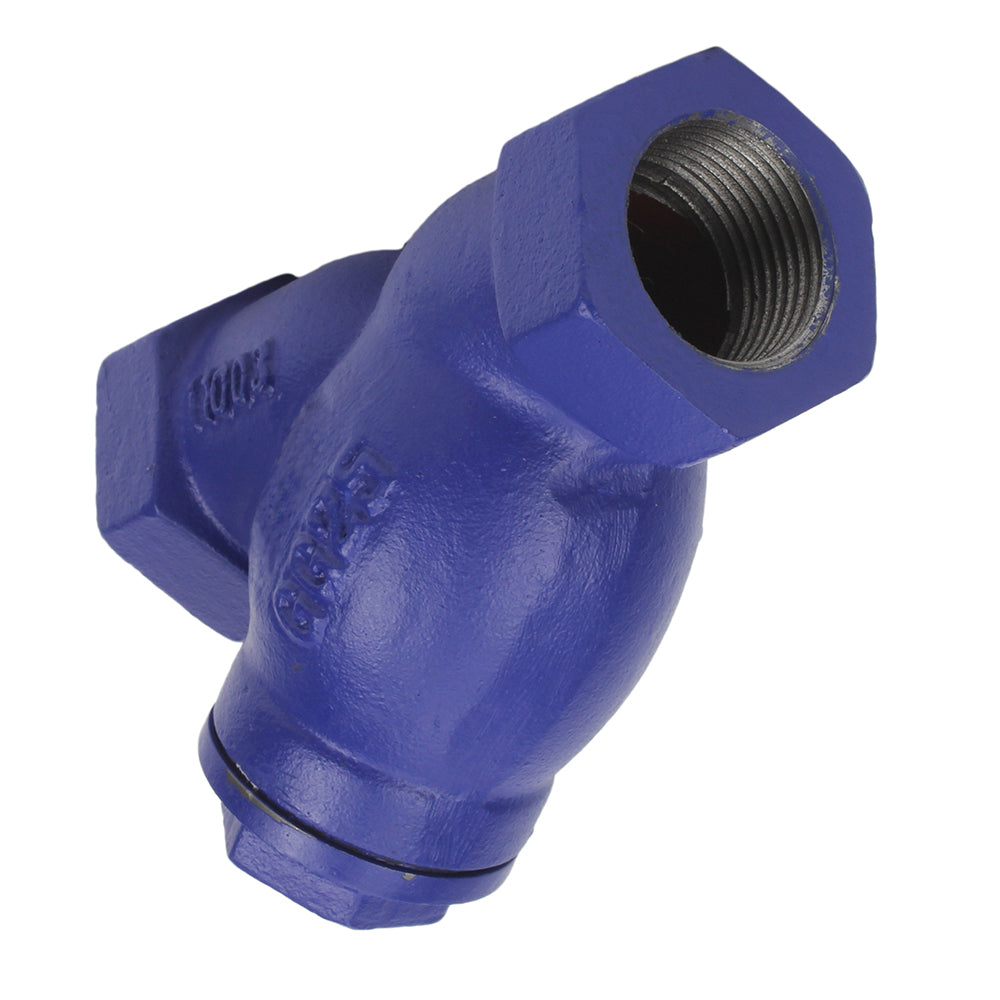

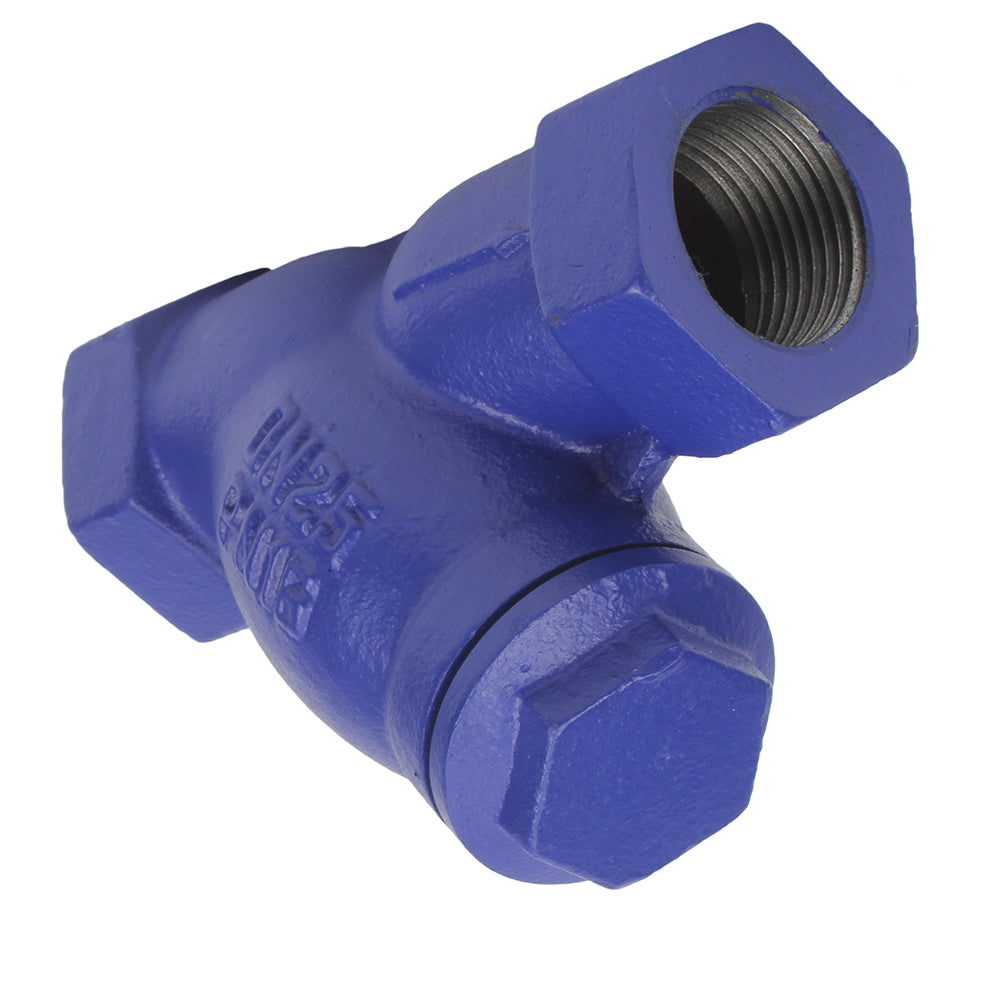

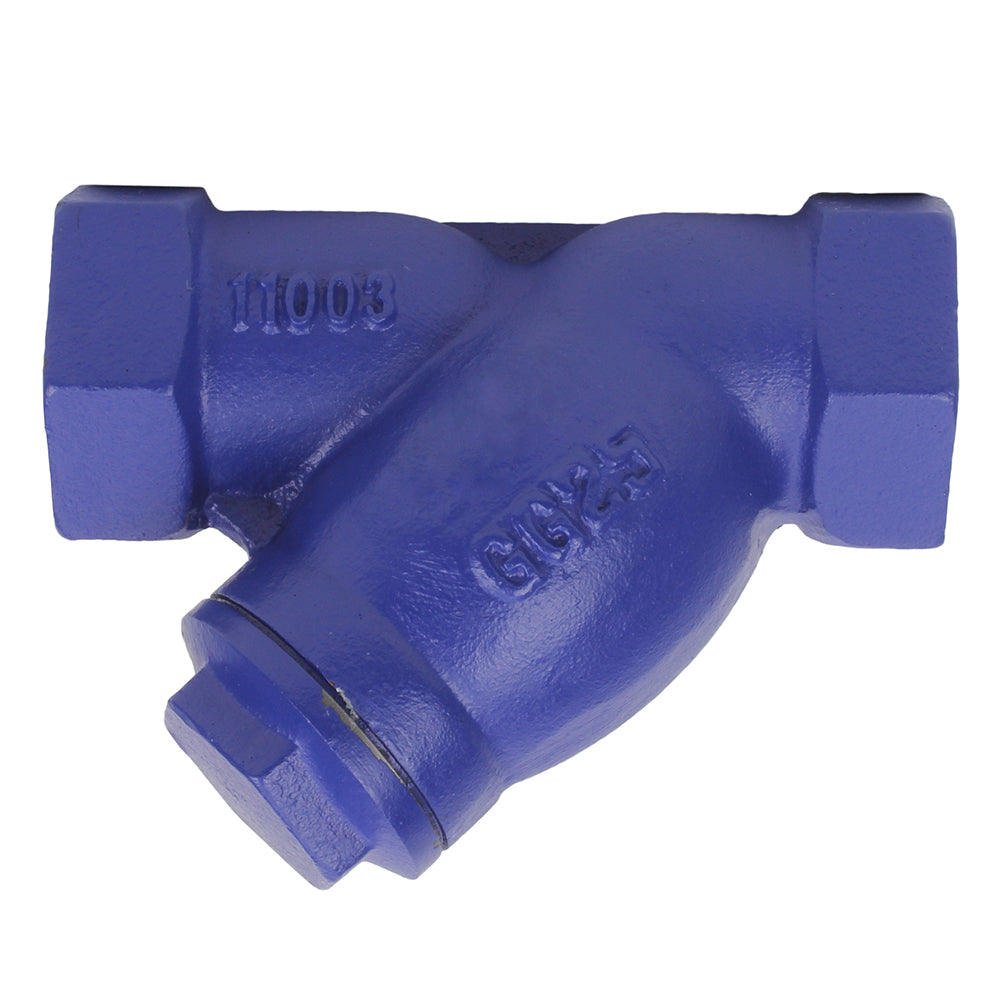

Mesh strainer DNOVA 823Рђ PN16 threaded, body material - cast iron GGG25, filter element material - stainless steel AISI 304, seal - PPL

From $2.68 USD
From $2.68 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Mesh strainer refers to a type of strainer that uses a mesh or net-like structure to trap particles, allowing the passage of fluids or gases through the openings in the mesh. These strainers are commonly used in various applications to separate and strainer out impurities or particles from liquids or gases. Mesh strainers can be made from different materials such as stainless steel, nylon, or other metals and polymers, and they are widely used in industries like water treatment, air filtration, and industrial processes.


Overall dimensions of the strainer DNOVA 823A PN16 threadedВ

Overall dimensions of the strainer DNOVA 823A PN16 threaded, body material - cast iron GGG25, filter element material - stainless steel AISI 304, seal - PPL

DN 15 20 25 32 40 50
D 30 36 46 55 62 76
L 85 100 120 140 160 205
H 66 66 75 77 90 98
H1 81 84 98 105 121 136
A* 25 25 31 31 41 41
B, mm 16 18 18 19 19 21
G** 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
Weight, kg 0,56 0,71 1,15 1,56 2,4 3,62

* filter cover size under the key
** cylindrical BSP pipe thread (BSPP)



Materials of mesh filter parts DNOVA 823A PN16 threaded - cast iron, flangedВ

Material sketch of mesh filter parts DNOVA 823A PN16 threaded, body material - cast iron GGG25, filter element material - stainless steel AISI 304, seal - PPL

в„– Part name Material
1 Body GGG25
2 Filter cover GGG25
3 Grid SS304 steel
4 Filter cover gasket PPL

Specifications

Country of origin
China
Body material
Cast iron GG25/EN-GJL-250
Maximum allowable temperature
200 В°C
Connection type
Threaded NPT/BSP
Operating environment
Water, Air, Liquid Medium
Applications
Heating Systems, Irrigation Systems, Ventilation Systems
Nominal pressure
16 bar
Type of seal
PPL
Filter element material
Stainless steel AISI 304/1.4301
