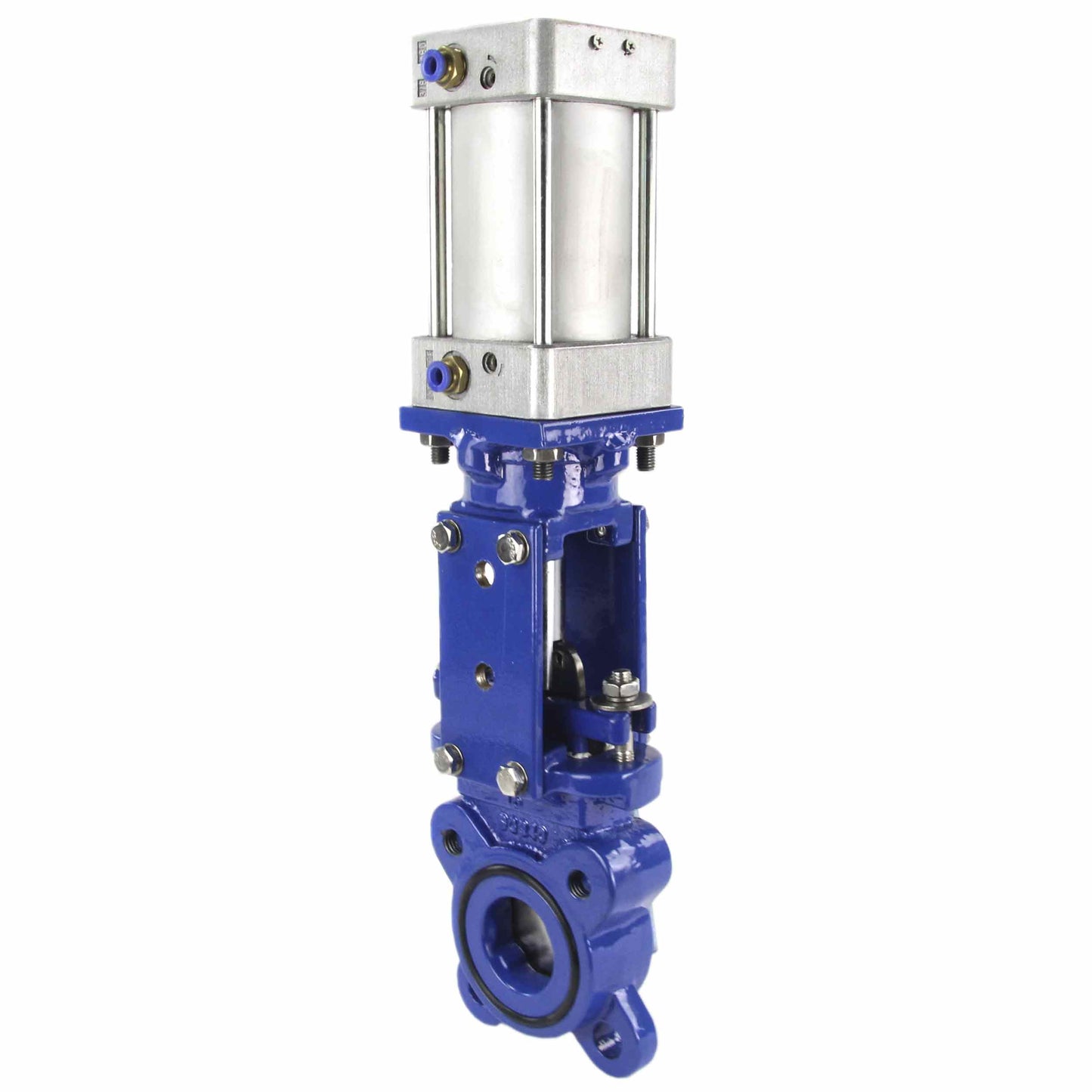

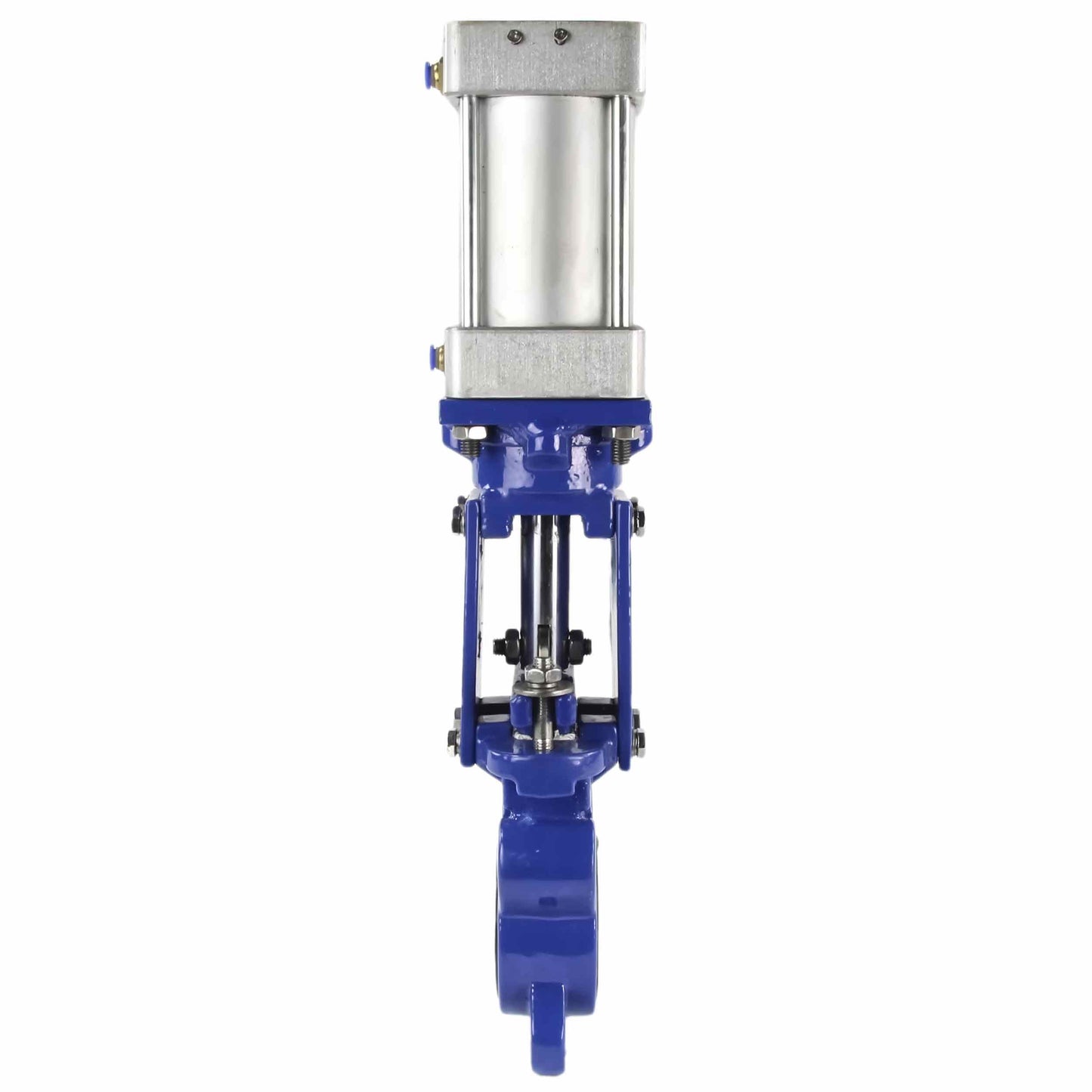

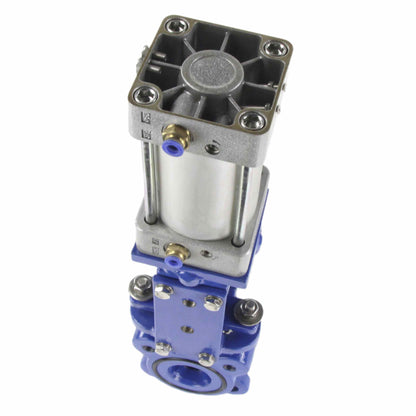

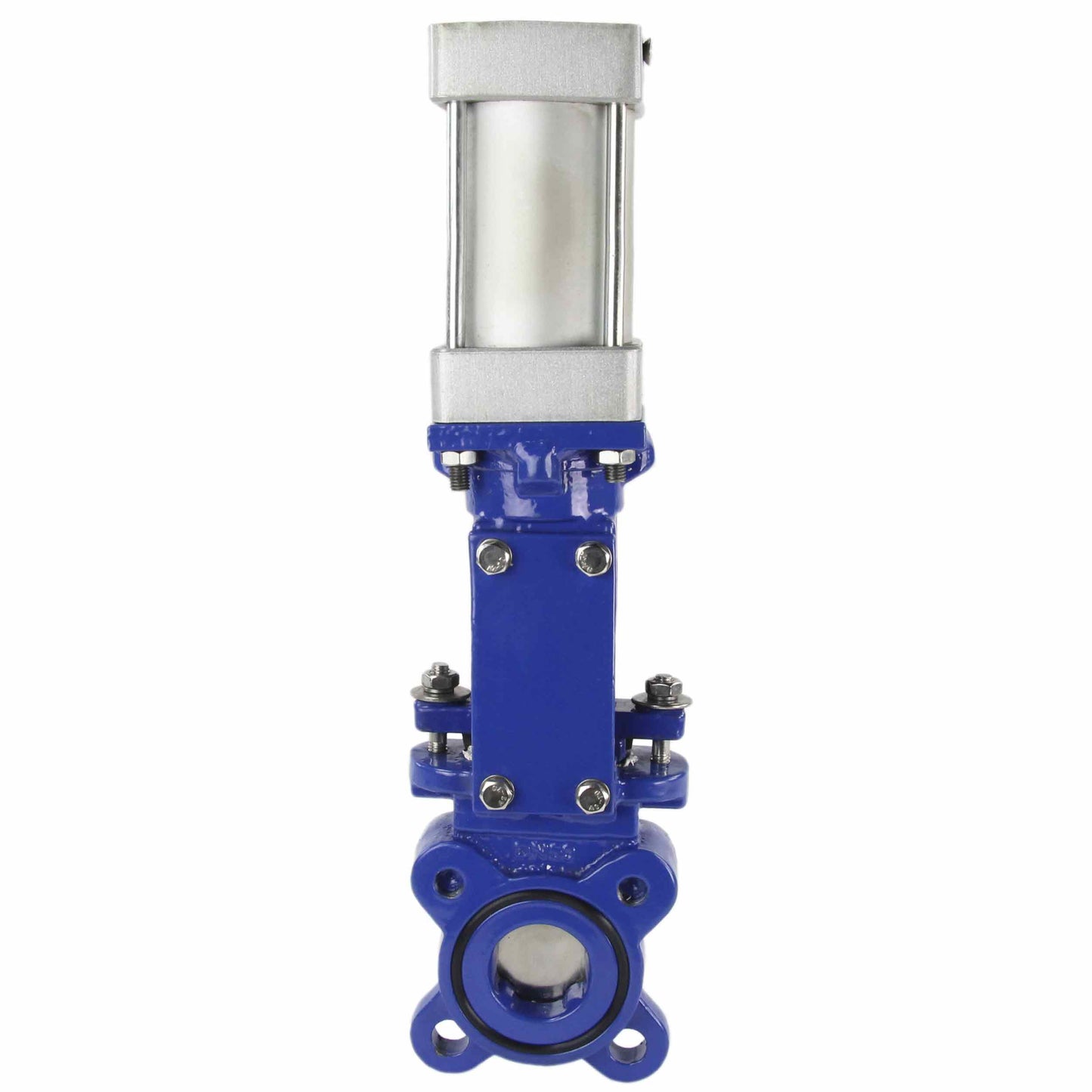

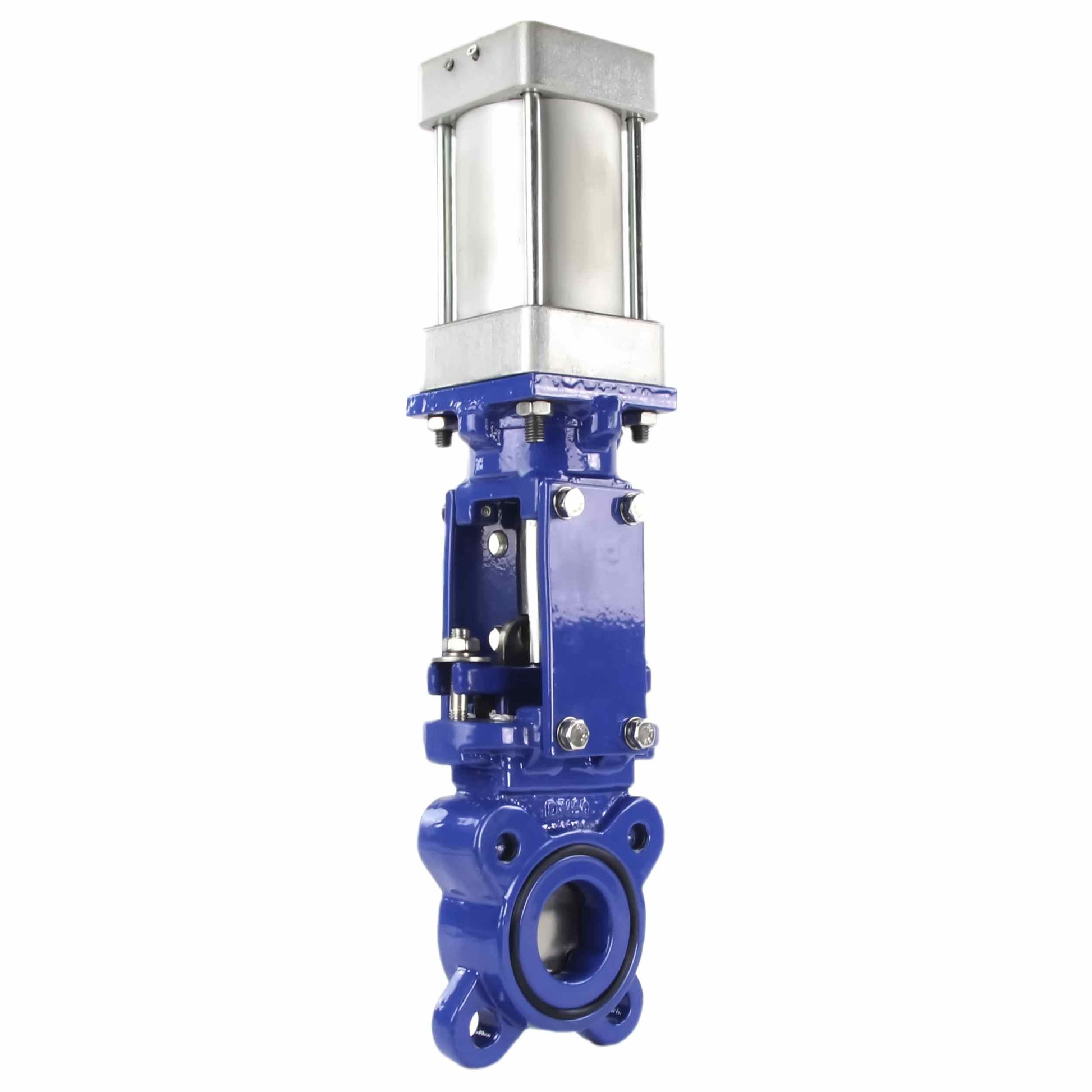

Knife Gate Valve DNOVA GVK3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator

From $120.40 USD
From $120.40 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Knife Gate Valve DNOVA is intended for installation on a pipeline as a shut-off device and for regulating the flow of the working medium in water supply systems and the chemical industry. 1.3. The principle of operation of the gate valve is to move the gate (knife) perpendicular to the flow of the medium. When the nominal diameter of the pipeline is completely blocked, a stop occurs flow, with partial flow - adjustment. The tightness of the gate valve in the closed state is ensured by pressing the gate valve to the seal under the influence of the pressure of the working medium.;

Overall and installation dimensions of the gate valve DNOVA GVK3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator

 Valve sketch DNOVA GVK3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator

DN L D D1 D2 H H1 N - Th Weight
50 48 165 125 99 430 510 4 – M16 11
65 48 185 145 118 470 560 4 – M16 13
80 51 200 160 132 543 640 8 – M16 15
100 51 220 180 156 592 700 8 – M16 19
125 57 250 210 184 688 810 8 – M16 25
150 57 285 240 211 780 920 8 – M20 30
200 70 340 295 266 923 1090 12 – M20 40

Construction and materials of the gate DNOVA GVK3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator

Material sketch of valve parts DNOVA GVK3131E-2W-Fb-2P, wafer type, body material - stainless steel AISI 304, with pneumatic actuator

№ Part name Material
1 Body Steel 304
2 Disk Steel 304
3-4 Bolt / Nut Steel 304
5 padding PTFE
6 Gland packing Steel 304
7-9 Bolt / Nut Steel 304
10 Clamping chuck Steel 45
11 Rack Steel A3
12 Support Steel A3
13 Pneumatic actuator -
14 Seat seal EPDM

Specifications

Country of origin
China
Body material
Stainless steel AISI 304/1.4301
Stopper Material
Stainless steel AISI 304/1.4301
Maximum allowable temperature
120 °C
Connection type
Compact flanged
Control type
Pneumatic actuator
Gate valve type
Knife Gate Valve
Nominal pressure
16 bar
Type of seal
EPDM
