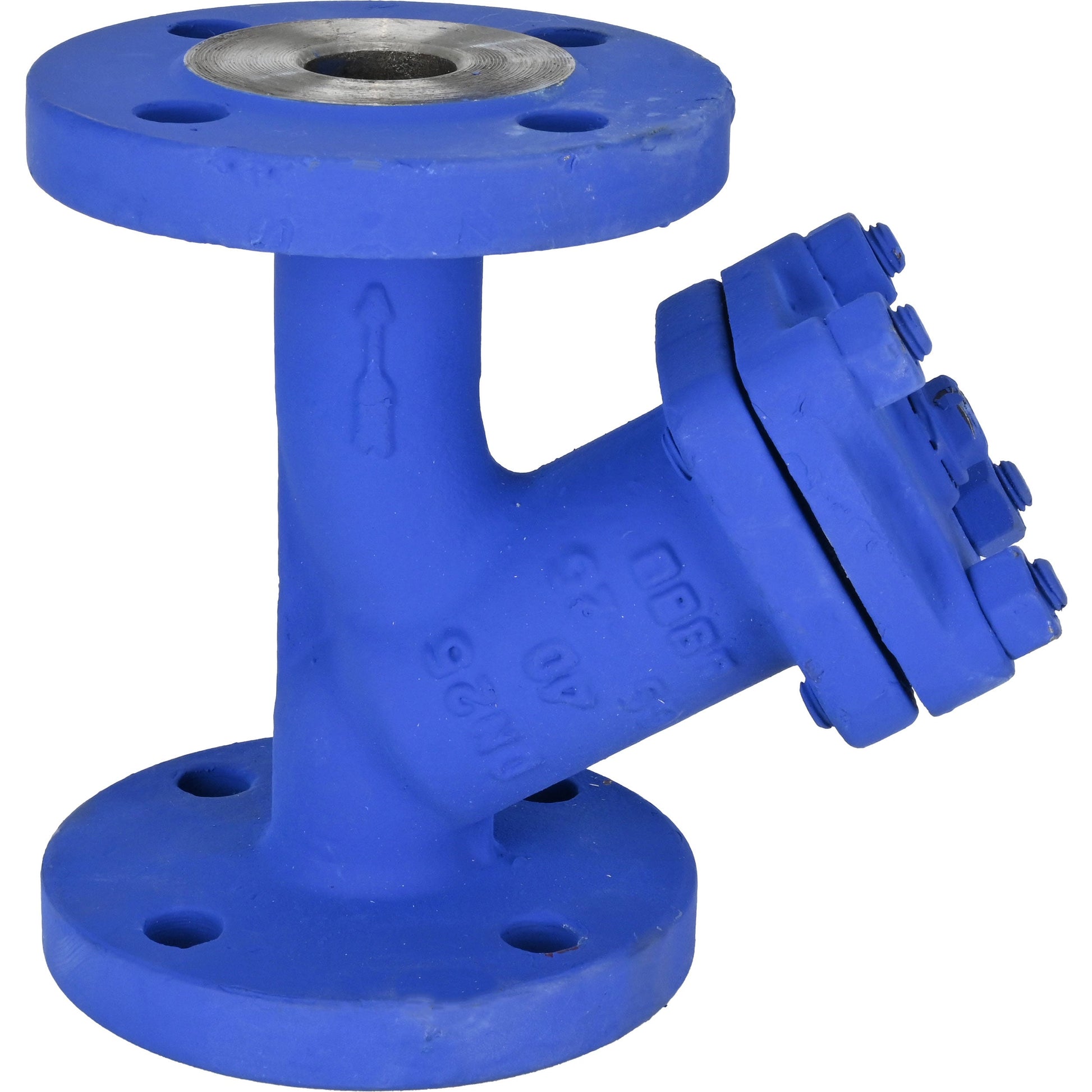

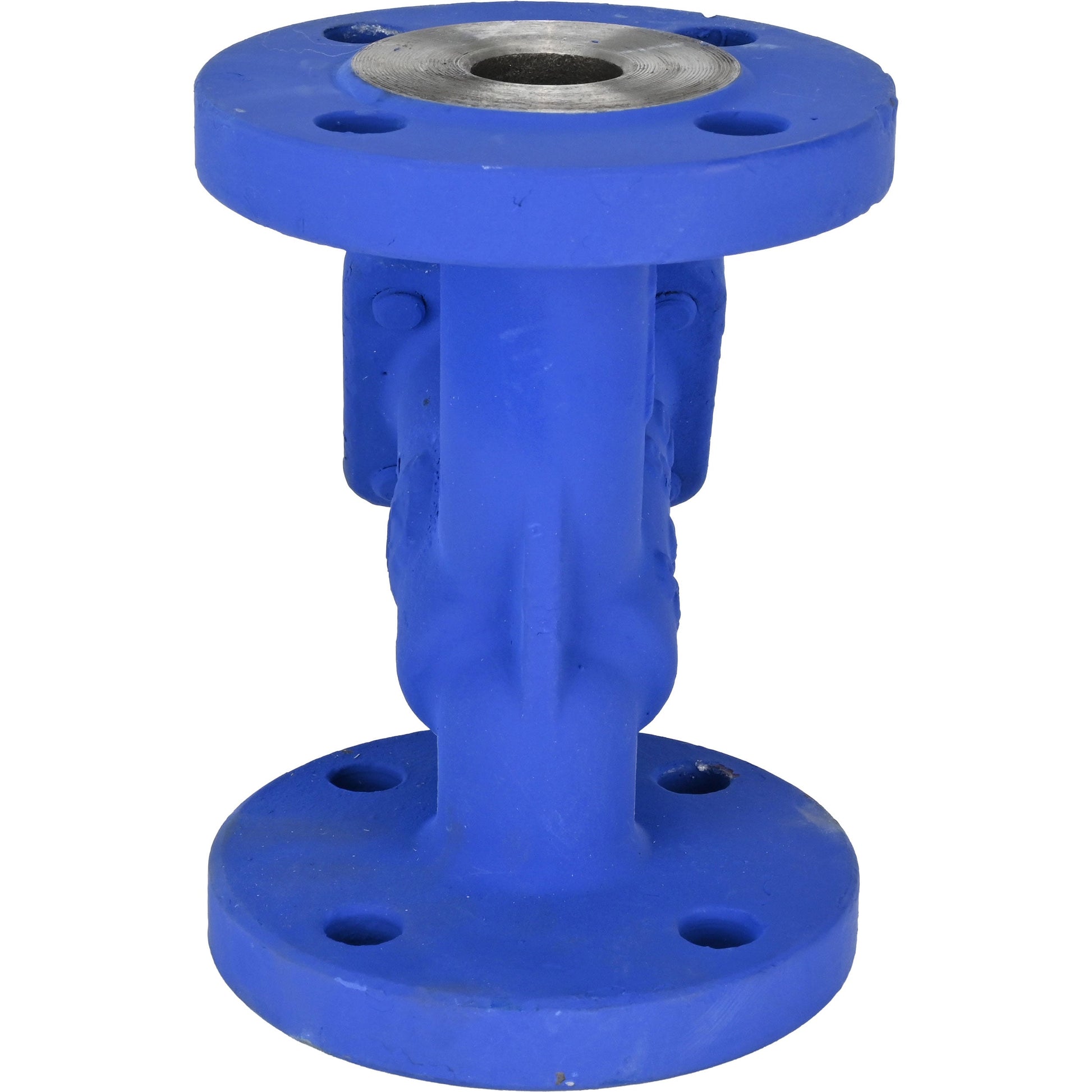

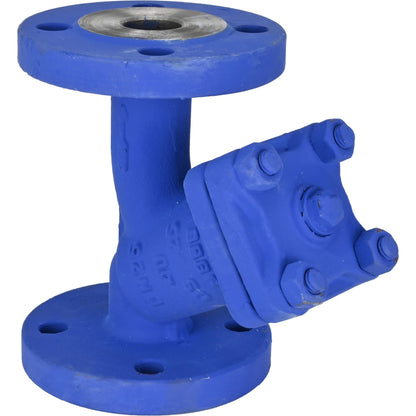

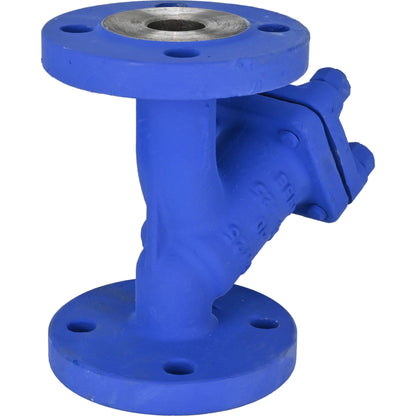

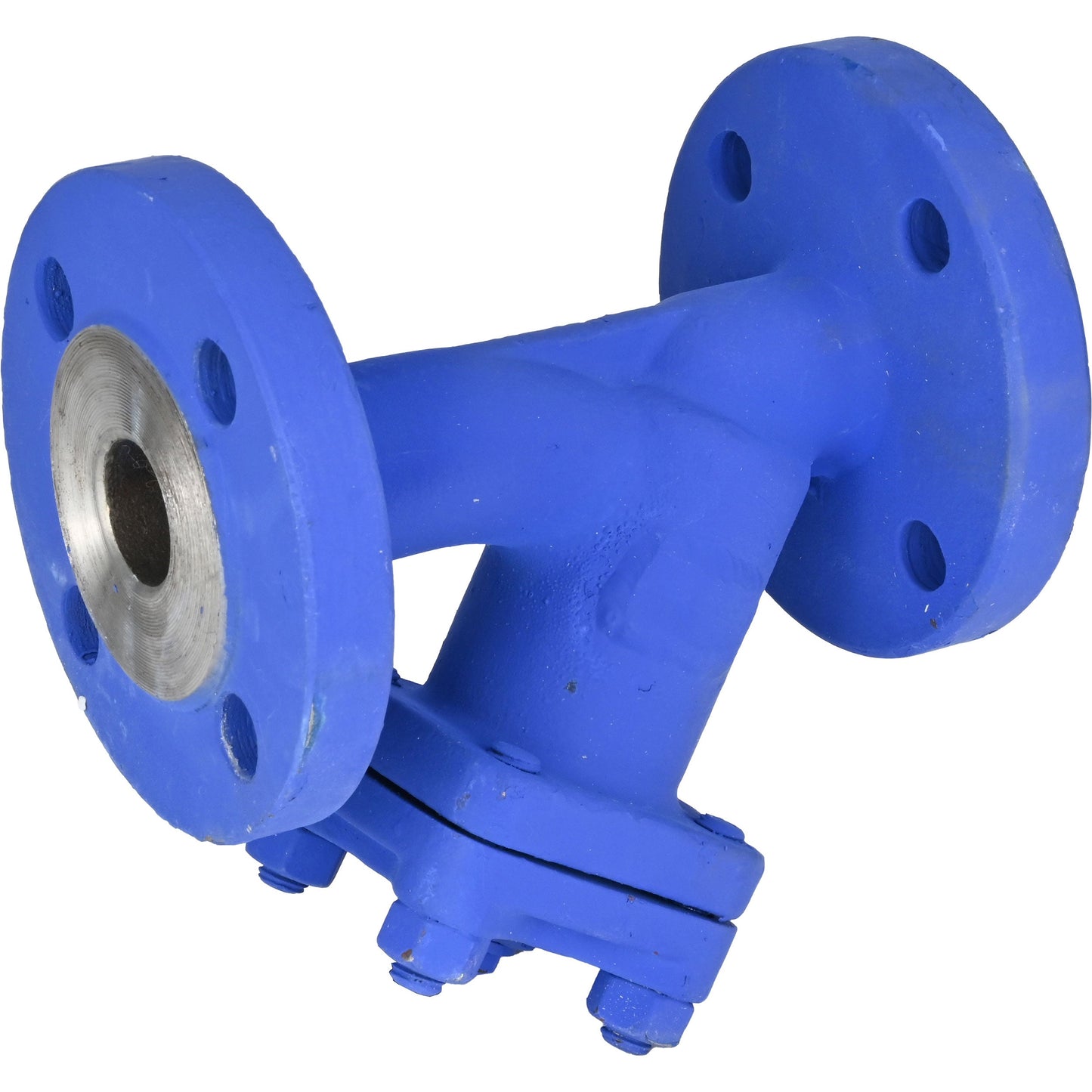

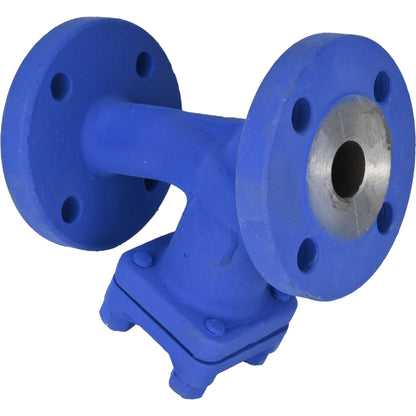

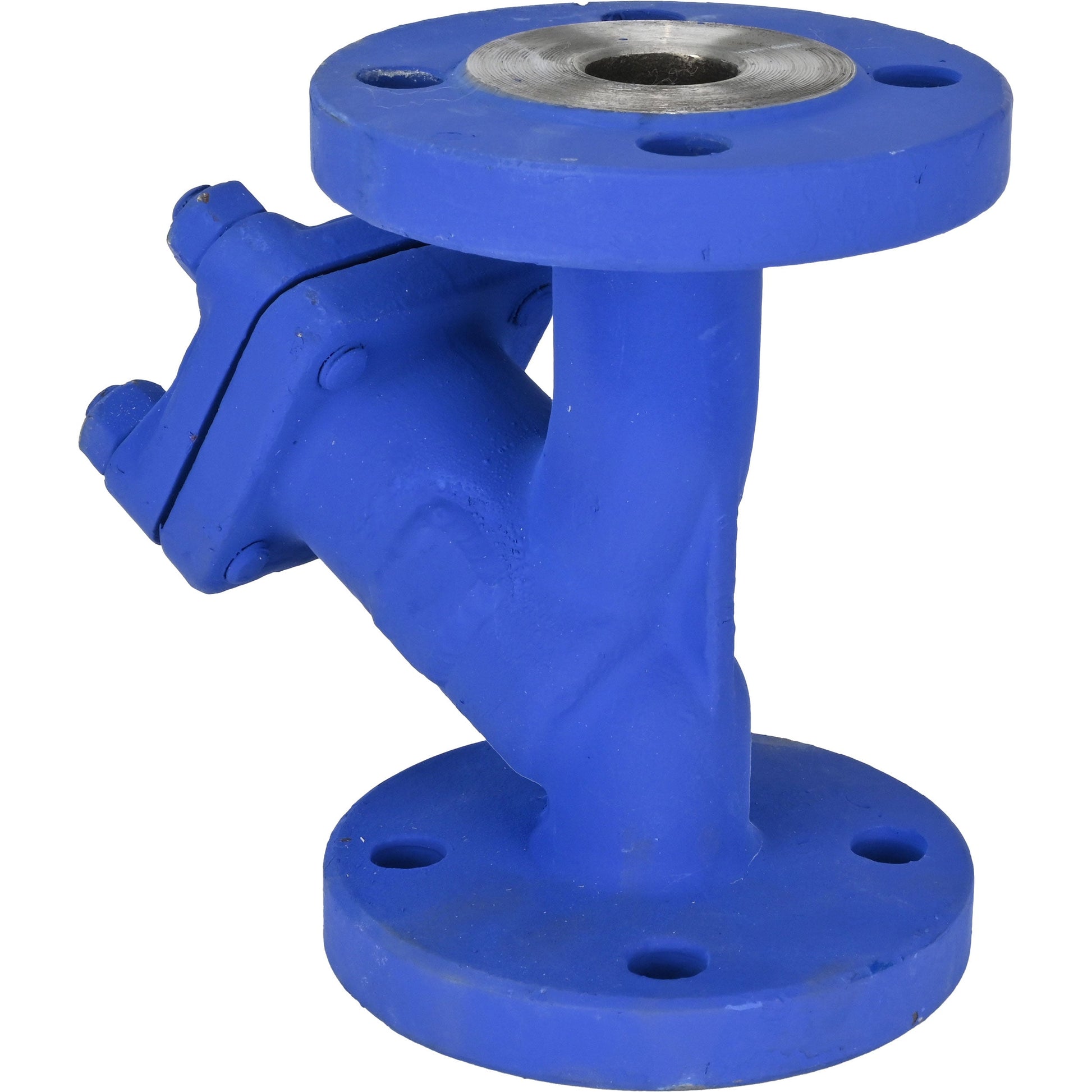

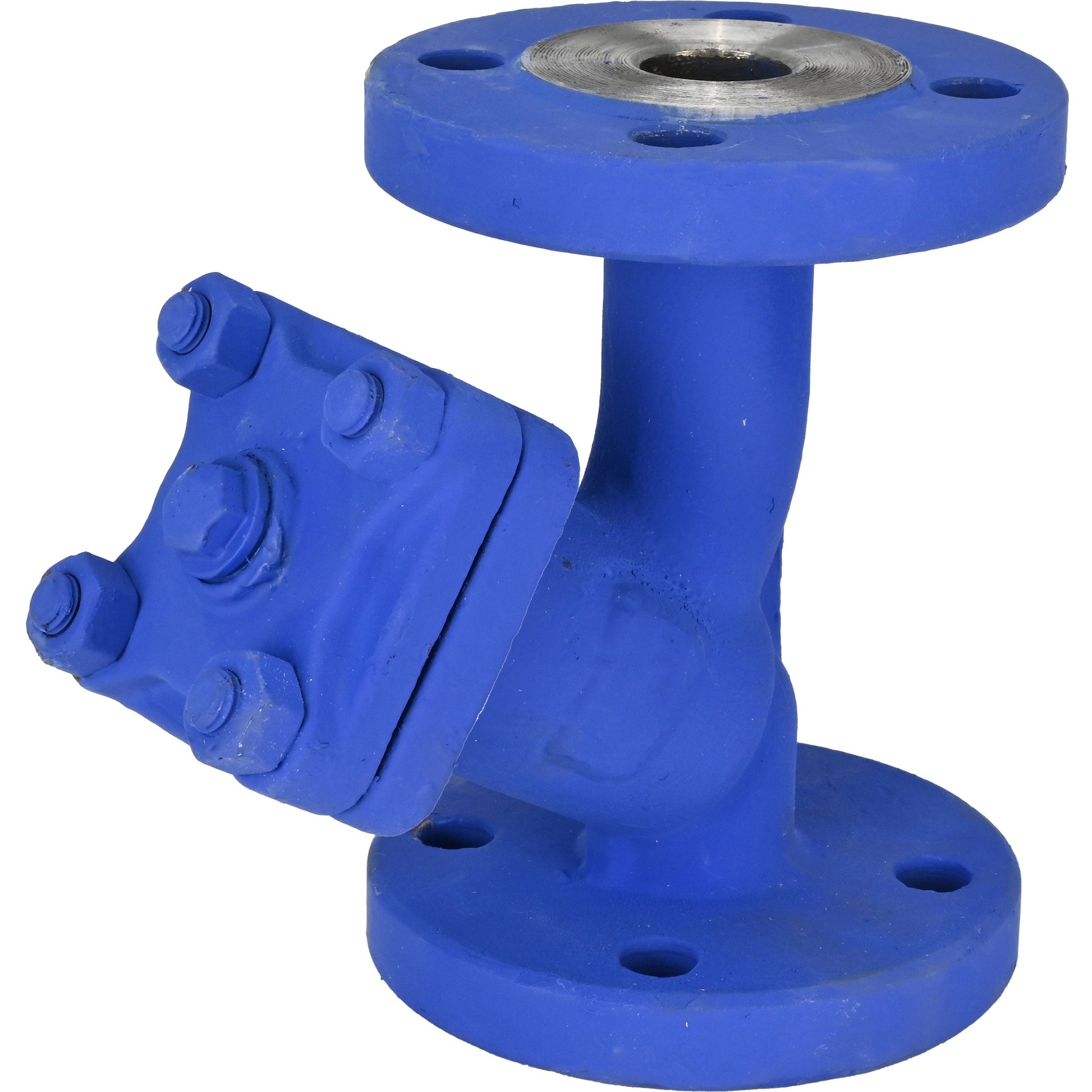

Mesh filters DNOVA FMY2131-F Y-shaped, flanged, body - carbon steel GS-C25, mesh - AISI/SS 304, gasket - PTFE

From $57.16 USD
From $57.16 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The strainers are designed for installation before control valves, flow meters and other devices with high requirements to purity of water passing through them in heating, heat supply, technical hot and cold water supply systems, for mechanical cleaning of working medium from dirt, rust, chips, etc.





Technical characteristics of strainers DNOVA FMY2131-F Y-shaped, flanged, body - carbon steel GS-C25, mesh - AISI/SS 304, gasket - PTFE

Characteristic Value
Nominal Pressure 40 bar
Operating Temperature -20 to +425 °C
Working Medium Water, Air, Steam
Application Heat Supply, Heating, Hot/Cold Water Supply
Connection Type Flanged
Warranty 12 months
Country of Manufacture China





Overall dimensions of strainers DNOVA FMY2131-F Y-shaped, flanged, body - carbon steel GS-C25, mesh - AISI/SS 304, gasket - PTFE

Model Size Weight, kg
L D D1 D2 b f n–Ød
DN15 130 95 65 45 16 2 4–Ø14 3.5
DN20 150 105 75 58 18 2 4–Ø14 4
DN25 160 115 85 68 18 2 4–Ø14 4.5
DN32 180 140 100 78 18 2 4–Ø18 6
DN40 200 150 110 88 18 3 4–Ø18 8
DN50 230 165 125 102 20 3 4–Ø18 11.5
DN65 290 185 145 122 22 3 8–Ø18 15
DN80 310 200 160 138 24 3 8–Ø18 20
DN100 350 235 190 162 24 3 8–Ø22 24
DN125 400 270 220 188 26 3 8–Ø26 34
DN150 480 300 250 218 28 3 8–Ø26 50
DN200 600 375 320 285 34 3 12–Ø30 80
DN250 730 450 385 345 38 3 12–Ø33 120
DN300 850 515 450 410 42 4 16–Ø33 140
DN350 980 580 510 465 48 4 16–Ø36 180
ND400 1100 660 585 535 52 4 16–Ø39 215

Dimensional sketch of strainers DNOVA FMY2131-F Y-shaped, flanged, body - carbon steel GS-C25, mesh - AISI/SS 304, gasket - PTFE





Dimensions of the filter mesh of strainers DNOVA FMY2131-F Y-shaped, flanged, body - carbon steel GS-C25, mesh - AISI/SS 304, gasket - PTFE

Model Mesh Diameter, mm Mesh Length, mm
DN15 25 62
DN20 25 62
DN25 30 78
DN32 40 90
DN40 48 94
DN50 55 108
DN65 70 125
DN80 90 136
DN100 100 182
DN125 136 198
DN150 140 268





Materials of mesh filter parts DNOVA FMY2131-F Y-shaped, flanged, body - carbon steel GS-C25, mesh - AISI/SS 304, gasket - PTFE

№ Part Name Material
1 Body Steel GS-C25
2 Cover Steel GS-C25
3 Mesh Stainless Steel AISI/SS 304
4 Outlet Pipe Steel GS-C25
5 Inlet Pipe Steel GS-C25
6 Filter Cover Gasket PTFE

Material sketch of strainers DNOVA FMY2131-F Y-shaped, flanged, body - carbon steel GS-C25, mesh - AISI/SS 304, gasket - PTFE

Specifications

Country of origin
China
Body material
carbon steel GS-C25
Maximum allowable temperature
425 °C
Connection type
Flanged
Operating environment
Water, Air, Steam
Applications
Heat supply, Heating, Hot/cold water supply
Nominal pressure
40 bar
Type of seal
PTFE
