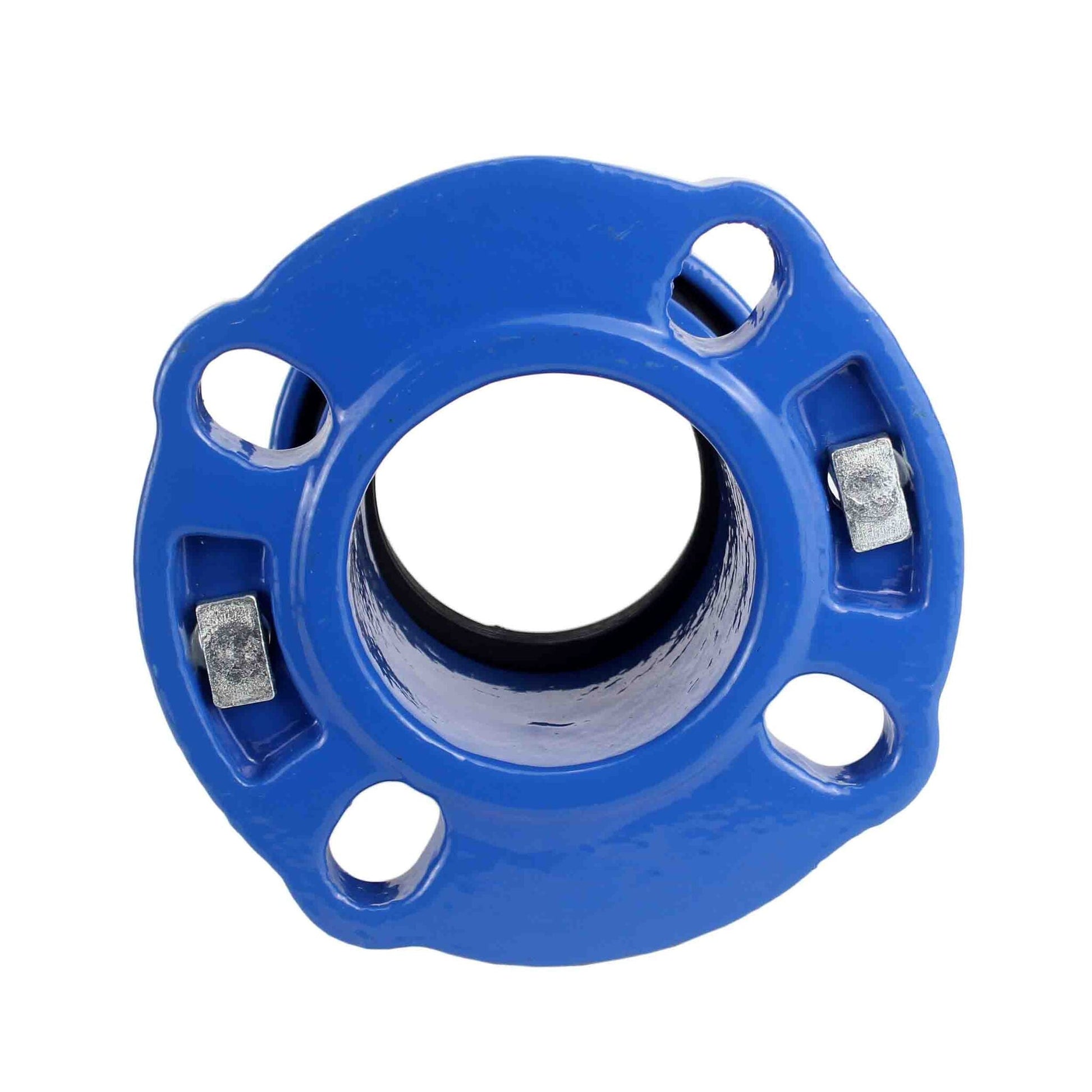

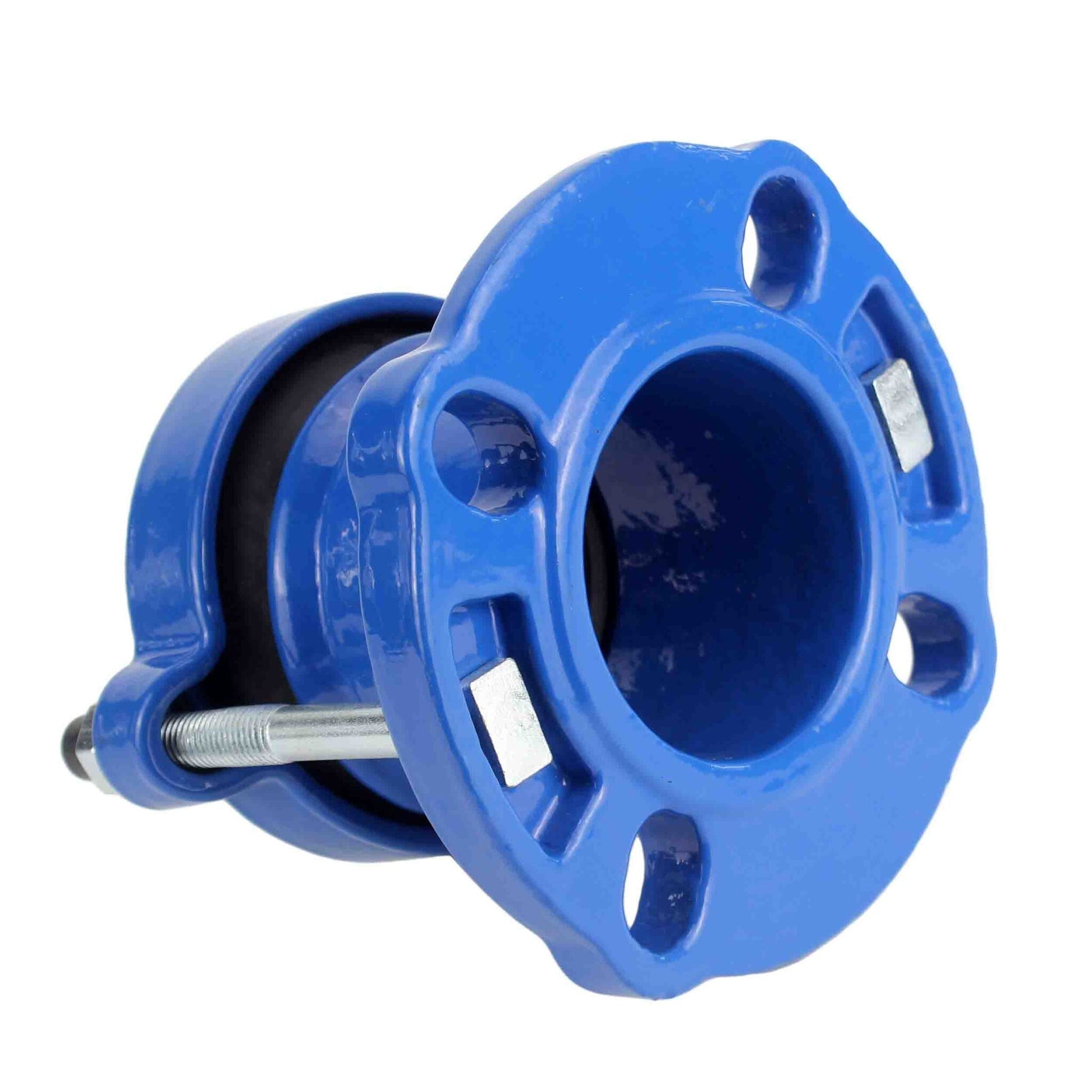

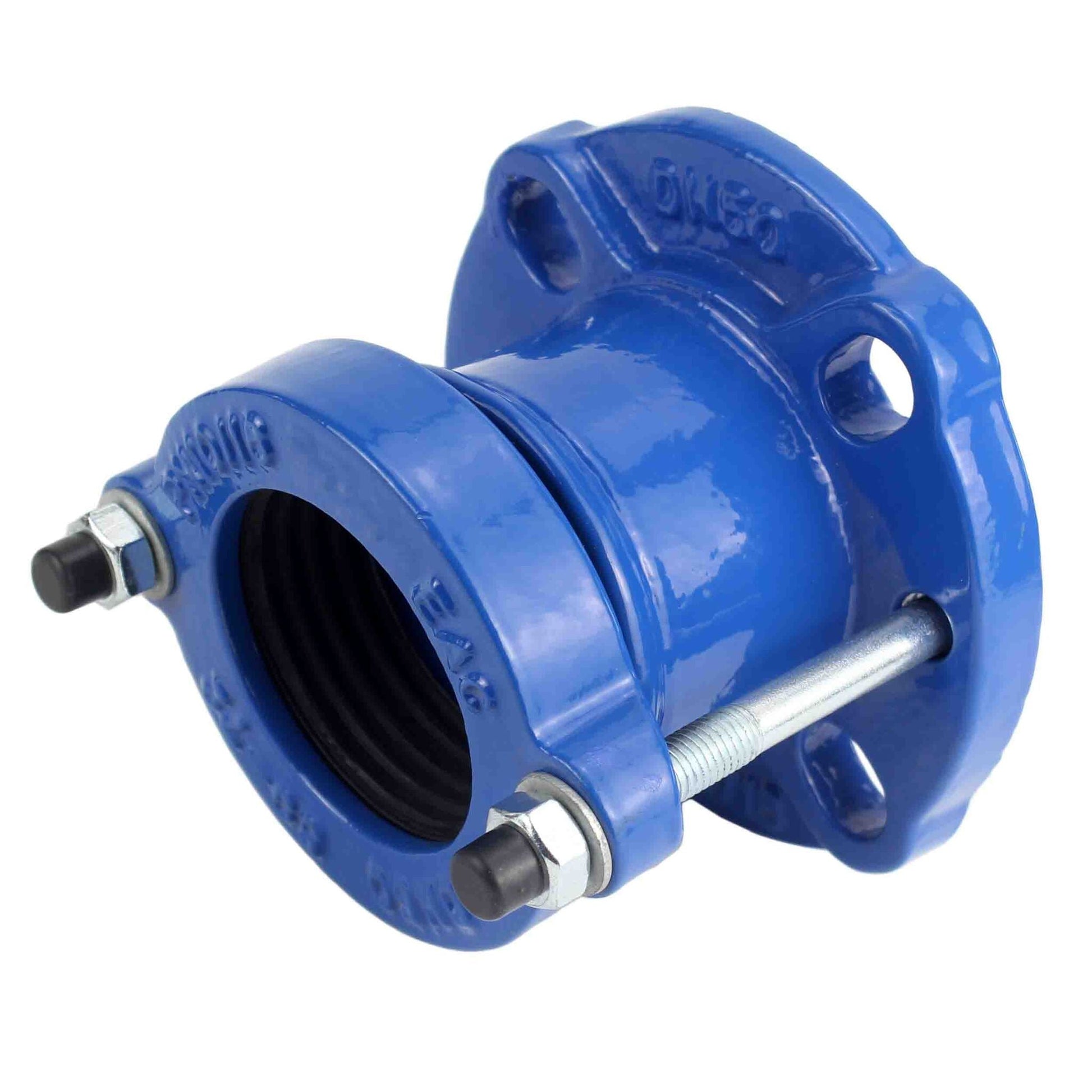

Flange adapter DNOVA CCFS1414E-FS, body material - cast iron GGG50, seal - PTFE

From $7.97 USD
From $7.97 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A flange adapter is a connecting element in a piping system that allows pipes, fittings, or equipment with flanged ends to be joined. This component has flanges at both ends, which can be fastened with bolts and nuts to provide a strong and sealed connection.



Overall dimensions of the coupling DNOVA CCFS1414E-FS, body material - cast iron GGG50, seal - PTFE

Dimensional sketch of the coupling DNOVA CCFS1414E-FS, body material - cast iron GGG50, seal - PTFE

DN Outer diameter of pipe, mm D,mm K,mm A,mm Bolt
number-thread x length
L mm		 Weight, kg
50 59 - 72 165 125 80 2-M12x130 3
80 88 – 103 200 160 80 4-M12x130 4,3
100 109 – 128 220 180 80 4-M12x130 5,2
125 132 - 153 250 210 80 4-M12x140 7
150 159 - 182 285 240 80 4-M12x140 8
175 192 - 209 340 295 80 4-M12x140 10
200 218 - 235 340 295 80 4-M12x140 12,6
250 272 - 289 400 355 90 6-M12x150 14
300 315 - 332 455 400/410 90 6-M12x150 17



Materials of parts of the coupling DNOVA CCFS1414E-FS, body material - cast iron GGG50, seal - PTFE

Detail of the coupling DNOVA CCFS1414E-FS, body material - cast iron GGG50, seal - PTFE

№ Part name Material
1 Body ductile iron GGG50
2 cuff EPDM
3 Bolt, washer, nut galvanized steel

Specifications

Country of origin
China
Body material
Cast iron GGG50/EN-GJS-500-7
Maximum allowable temperature
110 °C
Connection type
Compression
Operating environment
Water, Air, Liquid Medium
Applications
Heating Systems, Irrigation Systems, Ventilation Systems
Nominal pressure
16 bar
Type of seal
PTFE
