Description

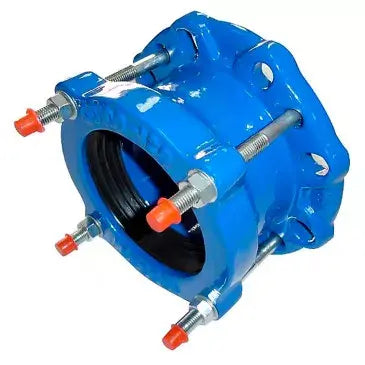

Flanged Socket Compensating Coupling is used for transitioning from a pipe made of any material (steel, cast iron, polyethylene, asbestos-cement) to a flanged connection. Once installed, it requires no additional maintece throughout its service life. In case of repeated use, mandatory replacement of rubber seals and, if necessary, fastening elements is required.
Overall and installation dimensions of couplings connecting DNOVA CCFS1212E-FS body material - cast iron GGG450-10, seal - EPDM
|
Model |
Size |
|||
|
L |
A |
H |
D |
|
|
150 |
M12x140 |
280 |
285 |
80 |
|
200 |
M12x140 |
328 |
340 |
80 |
Dimensional sketch of PFRC couplings DNOVA CCFS1212E-FS body material - cast iron GGG450-10, seal - EPDM
Materials of connection couplings DNOVA CCFS1212E-FS body material - cast iron GGG450-10, seal - EPDM
|
№ |
Part name |
Material |
|
1 |
Case |
ductile iron GGG450-10 |
|
2 |
clamping ring |
ductile iron GGG450-10 |
|
3 |
Bolt and nut |
galvanized steel |
|
4 |
O-ring |
EPDM |
Material sketch of coupling couplings DNOVA CCFS1212E-FS body material - cast iron GGG450-10, seal - EPDM
