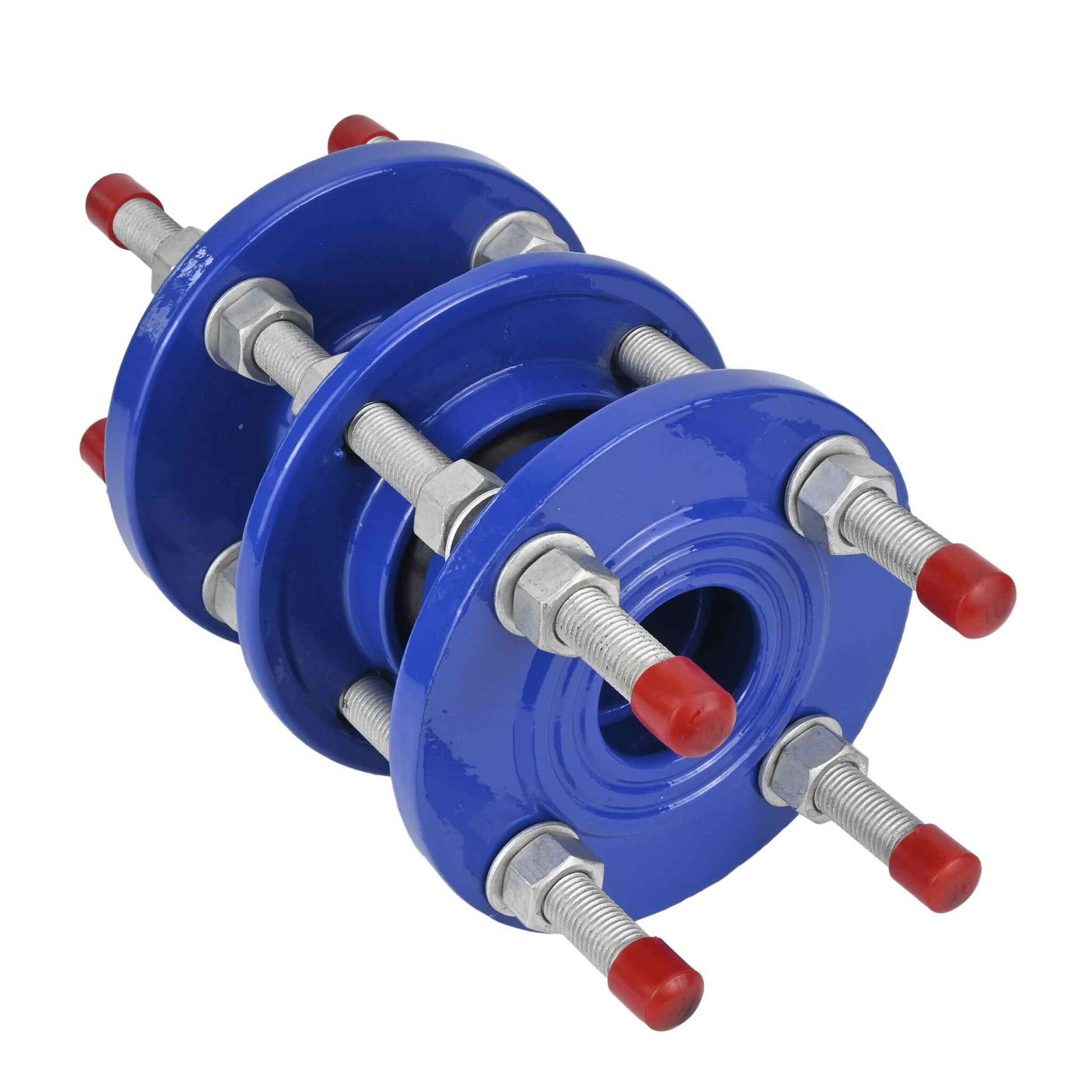

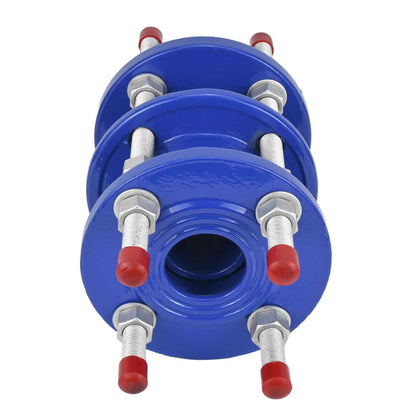

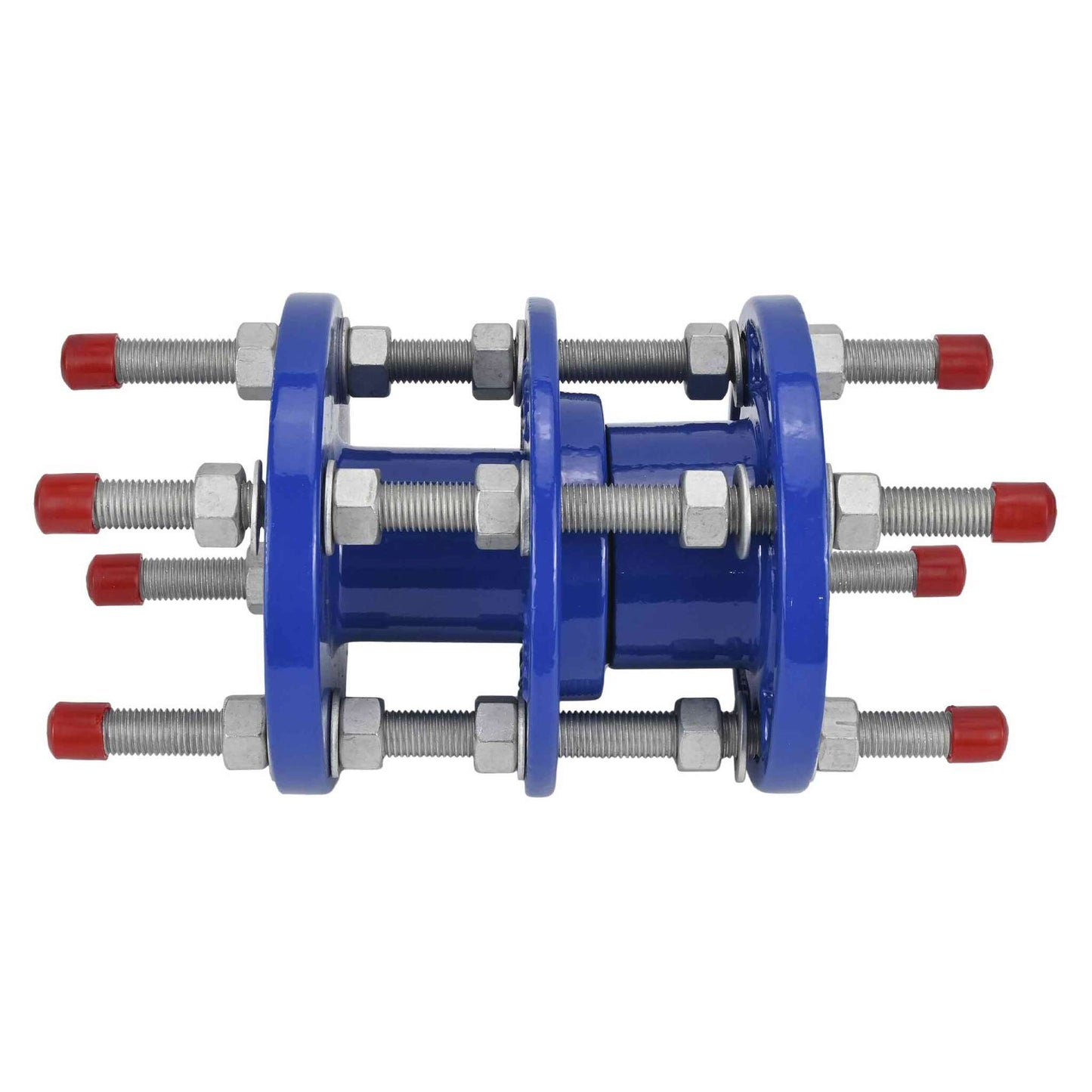

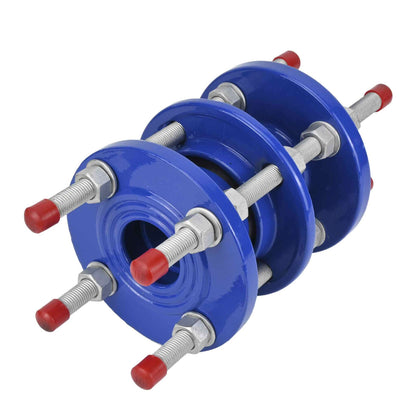

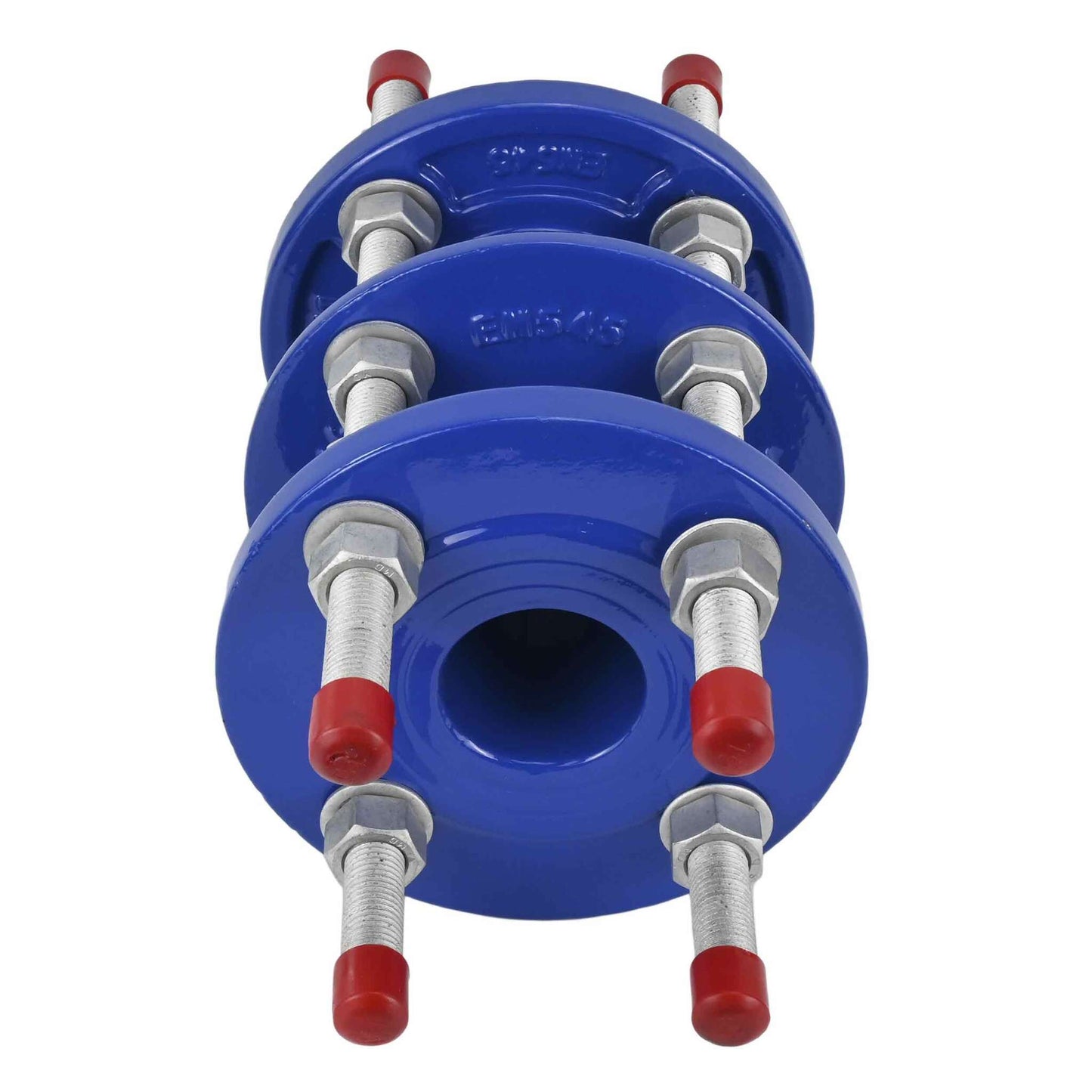

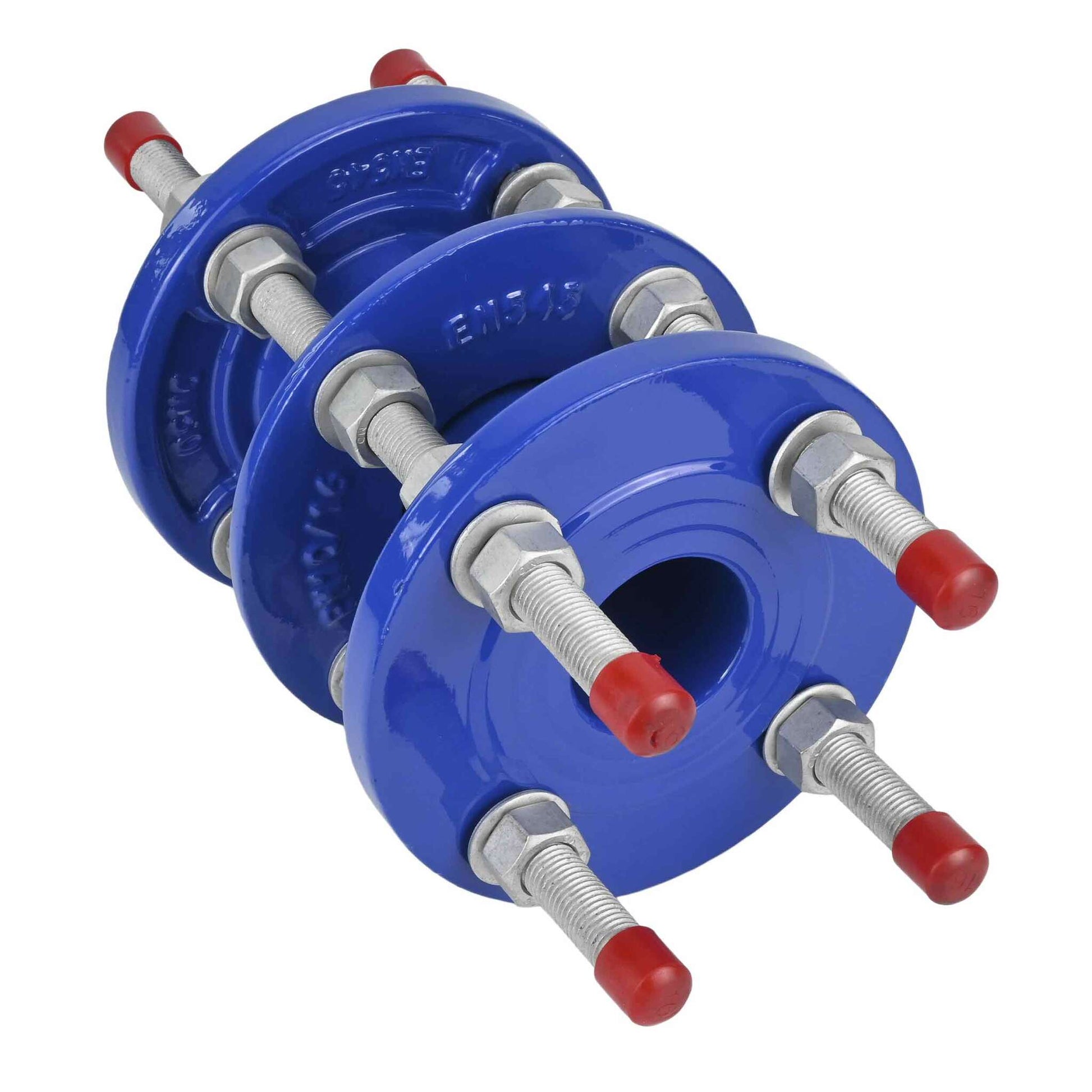

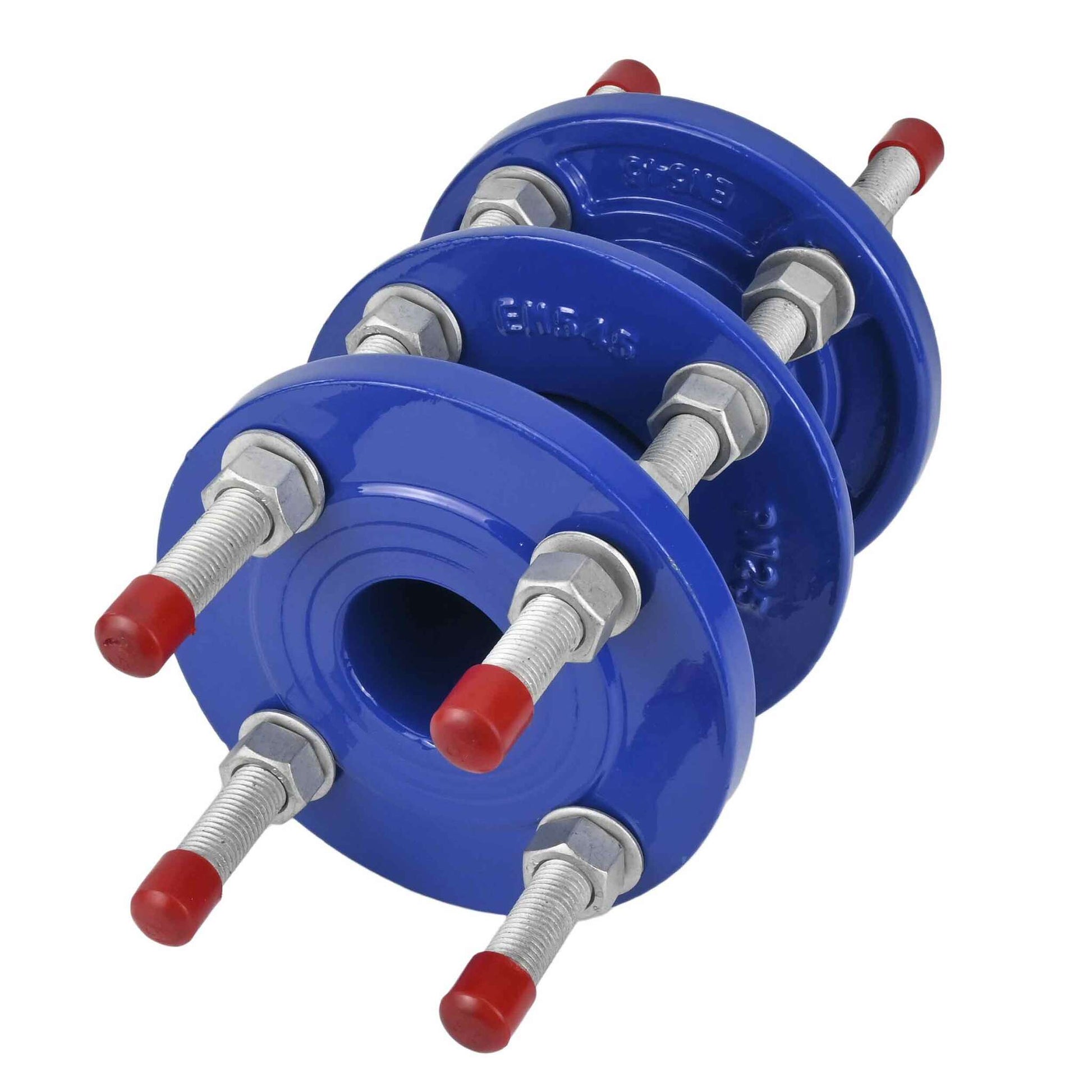

Dismantling joint DNOVA DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue

From $25.22 USD
From $25.22 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The dismantling joint (hereinafter referred to as DJ) is designed for slight compensation of length and angle (misalignment) of the pipeline during the installation of flanged pipeline fittings, as well as for connecting two pipelines during repair and restoration works of engineering networks. It reduces excessive load on the connecting flanges and simplifies installation work, allowing easy dismantling of equipment for scheduled maintece or complete replacement.





Dimensions and installation dimensions of dismantling insert DNOVA DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue

Model Size N Weight d
D1 D2 D3 L1 L2 t
DN50 10/16 bar 62 125 165 180 310 M16 4 6 8
DN80 10/16 bar 98 160 200 200 330 M16 8 8 16
DN100 10/16 bar 118 180 220 200 330 M16 8 8 19
DN150 10/16 bar 170 240 285 200 340 M20 8 8 29
DN200 10 bar 222 295 340 220 350 M20 8 8.5 37
DN250 10 bar 274 350 400 230 370 M20 12 9 51
DN300 10 bar 326 400 455 230 390 M20 12 10 63
DN200 16 bar 222 295 340 220 350 M20 12 8.5 41
DN250 16 bar 274 355 400 230 380 M24 12 9 58
DN300 16 bar 326 410 455 230 400 M24 12 10 70

Sketch of dismantling insert DNOVA DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue





Materials of parts of the disassembly insert DNOVA DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue

№ Name Material
1 Case ductile iron GGG400
2 Flange ductile iron  GGG400
3 Intermediate flange ductile iron  GGG400
4 Sealing EPDM
5 Hairpin galvanized steel

Material sketch of dismantling insert DNOVA DIA1212E-F body material - ductile iron GGG400, seal - EPDM, three-flanged, color - blue

Specifications

Country of origin
China
Body material
Cast iron GGG400
Maximum allowable temperature
90 °C
Connection type
Flanged
Operating environment
Water, Neutral Liquids
Applications
Water Supply, Heating, Industry
Nominal pressure
16 bar
Type of seal
EPDM

Delivery
