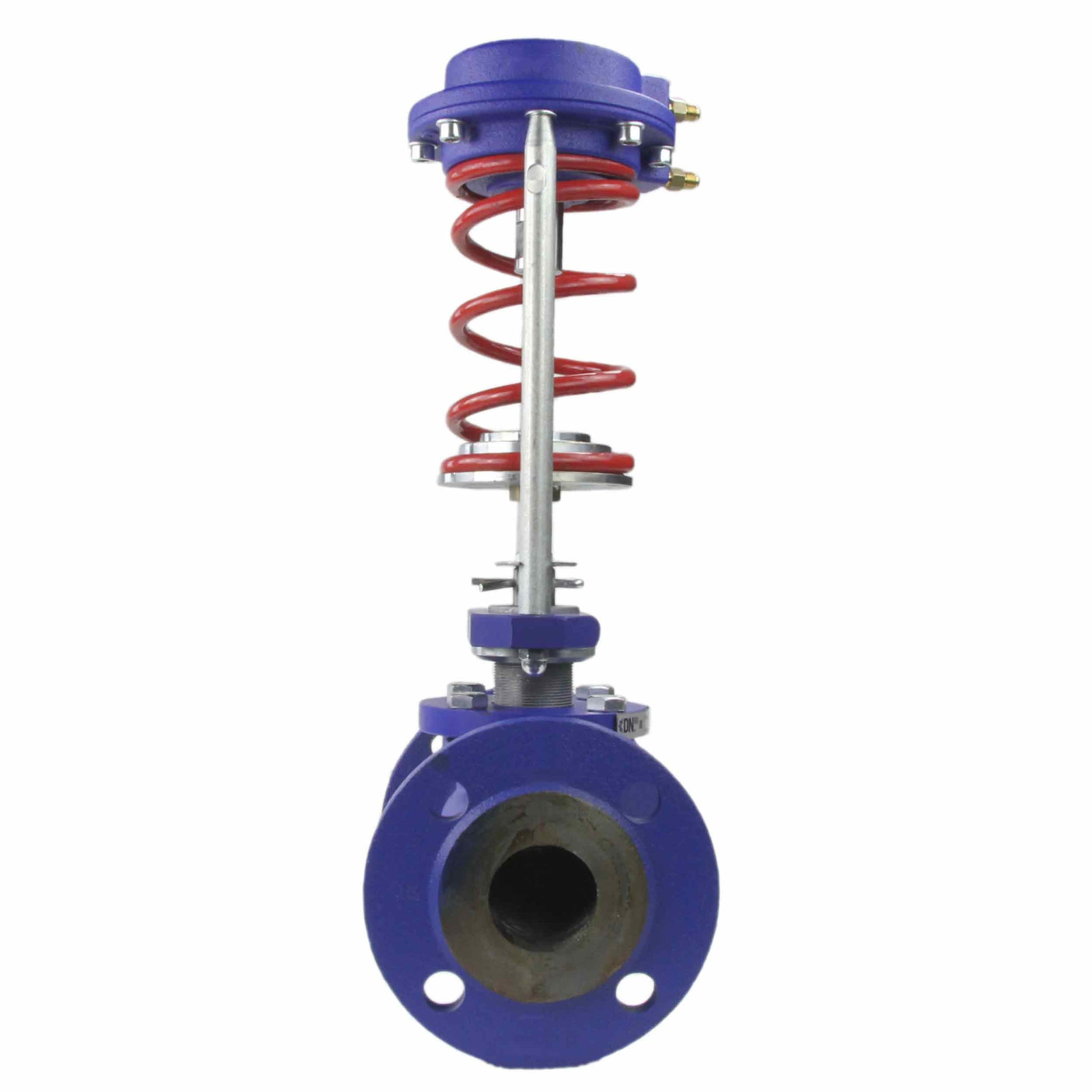

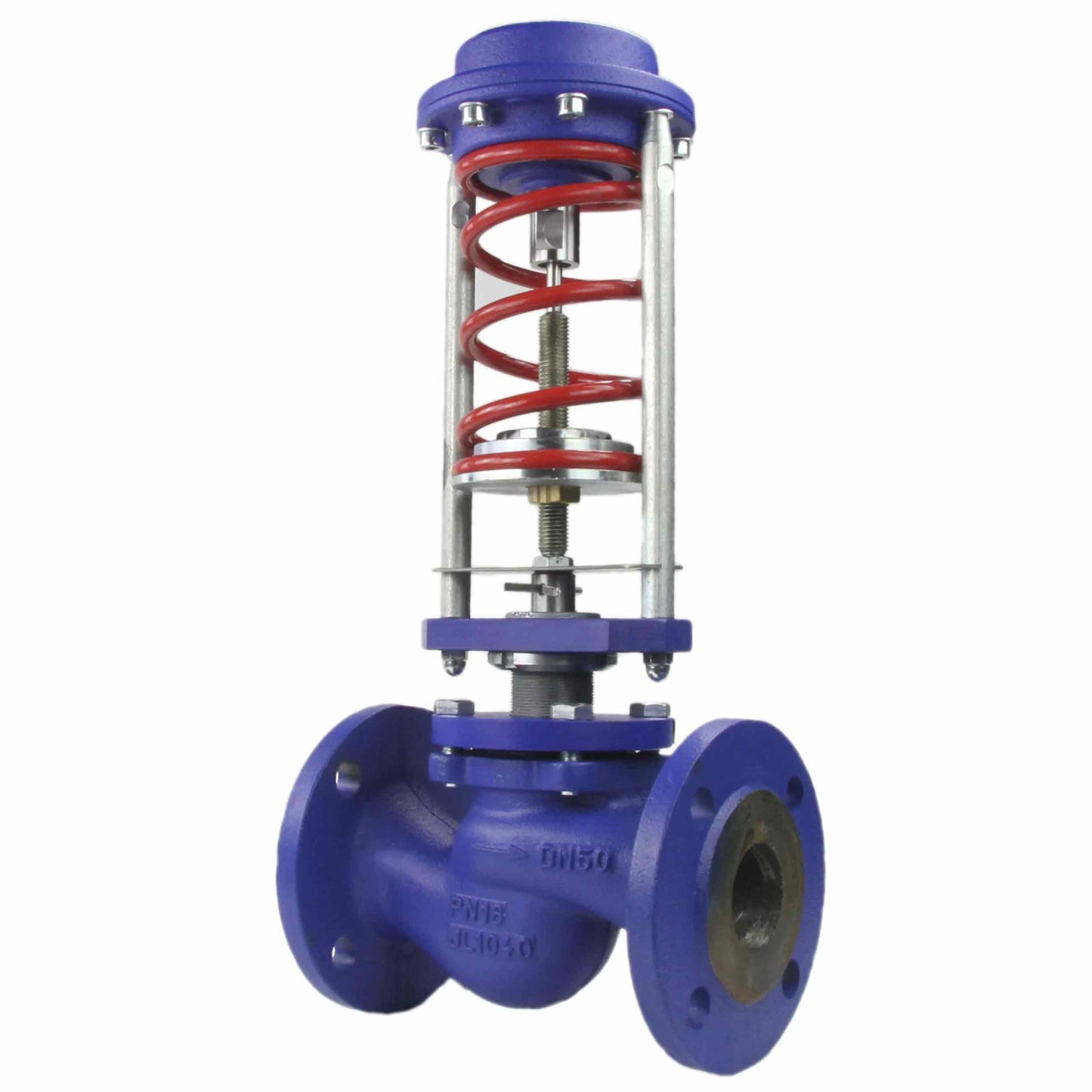

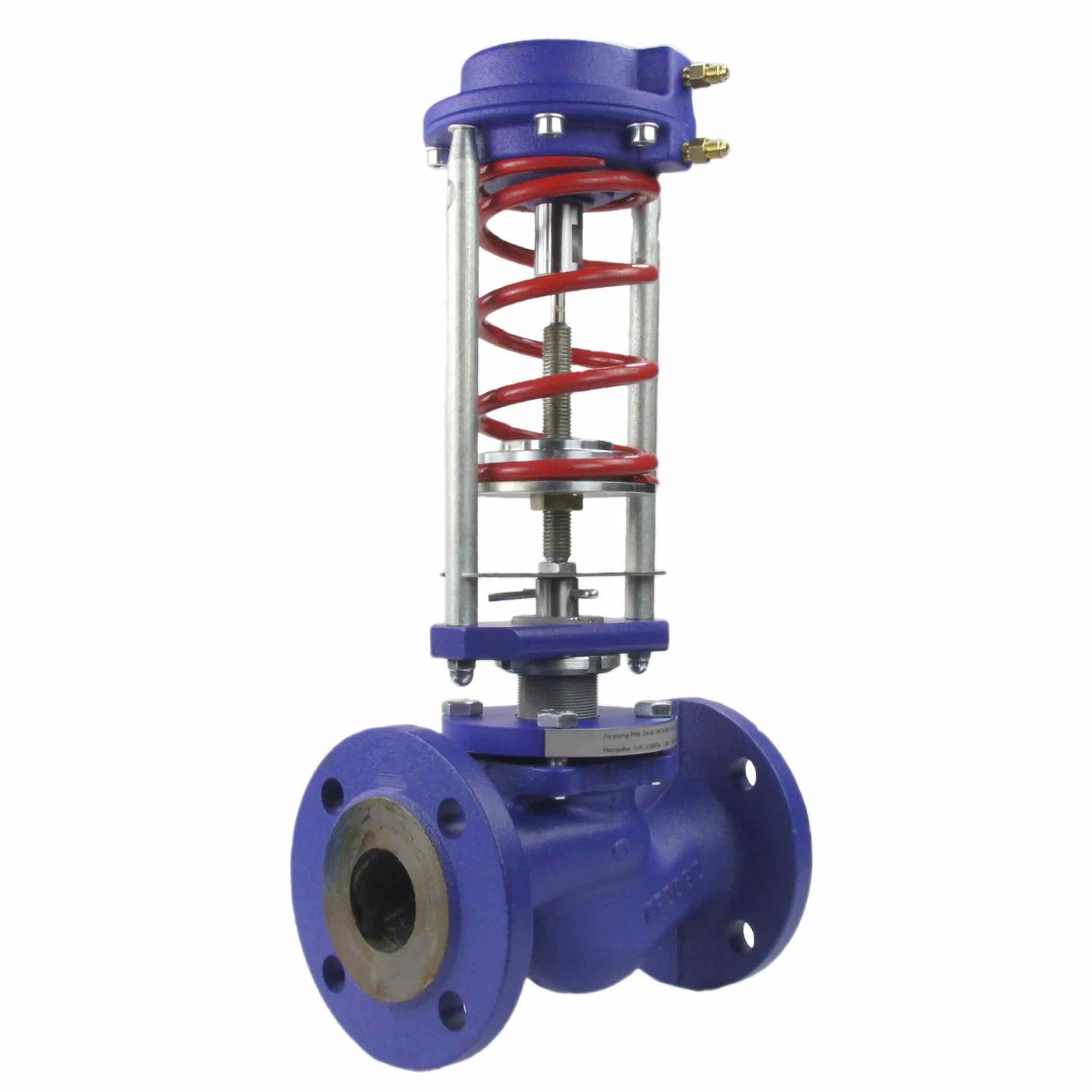

Bypass pressure regulator DNOVA PRB PSI 232 class 125 RF cast iron flange connection

From $461.17 USD
From $461.17 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The pressure regulator DNOVA PRB is designed to automatically maintain the specified pressure of the working medium in the pipeline to the regulator (in the direction of the working medium). The regulator valve is normally closed when there is no pressure. When the pressure rises to the regulator, the valve opens. In an individual heating point, the pressure regulator DNOVA PRB is installed on the return pipeline of the heating network to stabilize the pressure, as well as to prevent depletion and airing of the dependent heating system at low pressure in the return pipeline of the heating network. Does not work in the absence of flow and in dead-end circuits.





Name of parameters,
units of measurement 		Parameter values
Nominal diameter DN, mm 15 20 25 32 40 50 65 80 100 125 150
Conditional flow capacity Kvs, m3 / h 0.25
0.4
0.63
1.0
1.6
2.5
4.0 		4.0
6.3 		6.3
8.0 		10
12.5
16 		16
20
25 		20
25
32 		40
50 		63
80
100 		100
125
160 		100
125
160
200 		160
200
250
280
Cavitation onset coefficient, Z 0.6 0.6 0.6 0.55 0.55 0.5 0.5 0.45 0.4 0.35 0.3
Nominal pressure PN, bar (MPa) 16 (1.6)
Regulator setting range
, bar (MPa):

1
2
3
4
5
6

 0.016 - 0.18 (0.16 - 1.8)
0.024 - 0.30 (0.24 - 3.0)
0.04 - 0.48 (0.4 - 4.8)
0.05 - 0.58 (0.5 - 5.8)
0.09 - 1.0 (0.9 - 10.0)
0.14 - 1.58 (1.4 - 15.8)
Dynamic control range 1:50
Length 130 150 160 180 200 230 290 310 350 400 480
Height 435 460 465 470 476 495 642 674 735 810 850
Weight, kg 12.7 13.5 14.5 16 17.8 21.5 26 31.8 44.5 55.6 67.6

Specifications

Body material
Cast iron
Connection type
Flanged
Operating environment
Cold Water, Hot Water, Water-Glycol Solutions
Applications
Heat Supply, Water Supply
Nominal pressure
16 bar
Type of seal
Metal
Locking material
Stainless steel AISI 420/1.4031

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 / 16 barD230-09934
DN15 / 16 barD230-09934
$461.17/ea		 $0.00
$461.17/ea $0.00
DN20 / 16 barD230-09935
DN20 / 16 barD230-09935
$480.31/ea		 $0.00
$480.31/ea $0.00
DN25 / 16 barD230-09936
DN25 / 16 barD230-09936
$499.55/ea		 $0.00
$499.55/ea $0.00
DN32 / 16 barD230-09937
DN32 / 16 barD230-09937
$528.26/ea		 $0.00
$528.26/ea $0.00
DN40 / 16 barD230-09938
DN40 / 16 barD230-09938
$576.41/ea		 $0.00
$576.41/ea $0.00
DN50 / 16 barD230-09939
DN50 / 16 barD230-09939
$595.55/ea		 $0.00
$595.55/ea $0.00
DN65 / 16 barD230-09940
DN65 / 16 barD230-09940
$653.27/ea		 $0.00
$653.27/ea $0.00
DN80 / 16 barD230-09941
DN80 / 16 barD230-09941
$768.42/ea		 $0.00
$768.42/ea $0.00
DN100 / 16 barD230-09942
DN100 / 16 barD230-09942
$979.76/ea		 $0.00
$979.76/ea $0.00
DN125 / 16 barD230-09943
DN125 / 16 barD230-09943
$1,824.94/ea		 $0.00
$1,824.94/ea $0.00
DN150 / 16 barD230-09944
DN150 / 16 barD230-09944
$2,428.68/ea		 $0.00
$2,428.68/ea $0.00
