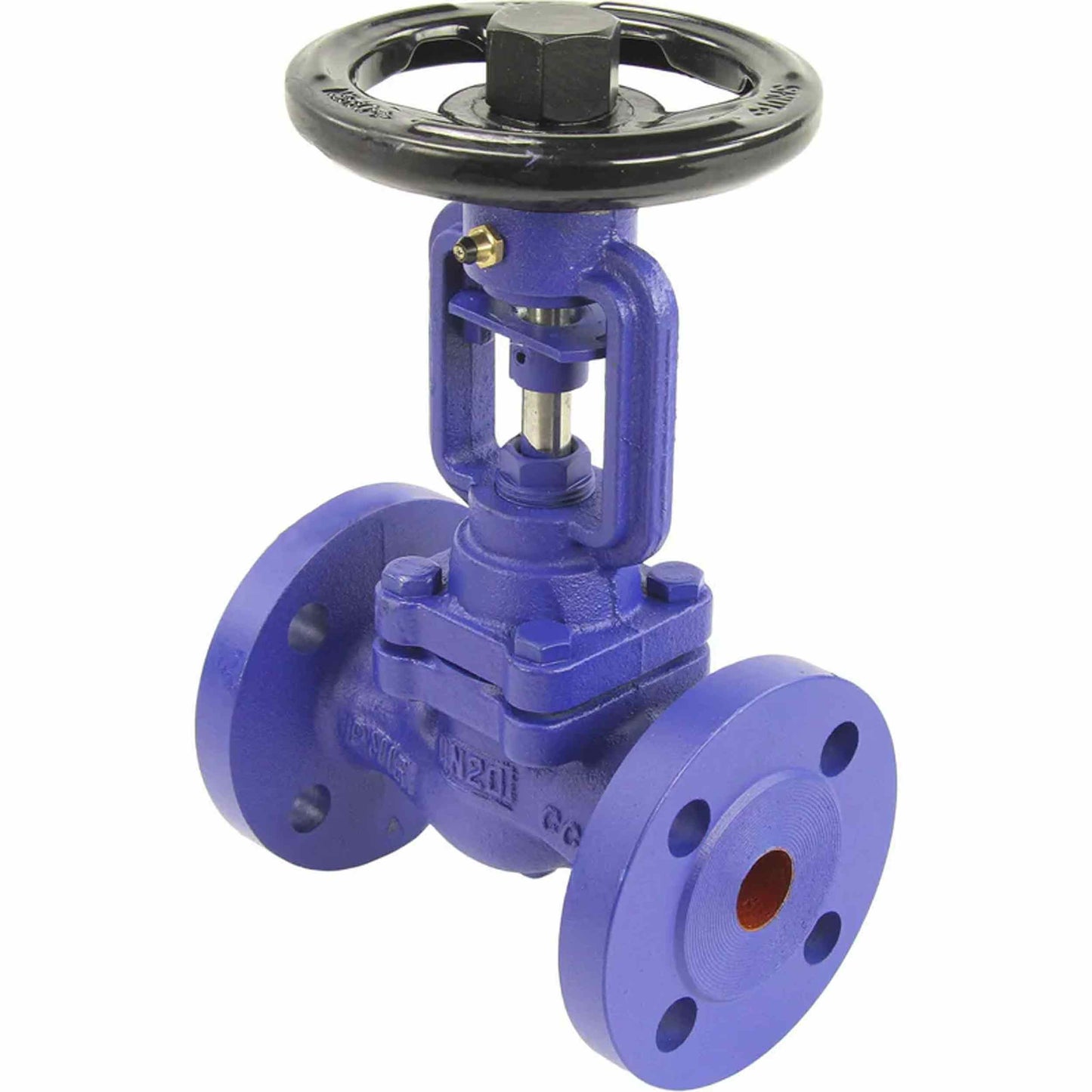

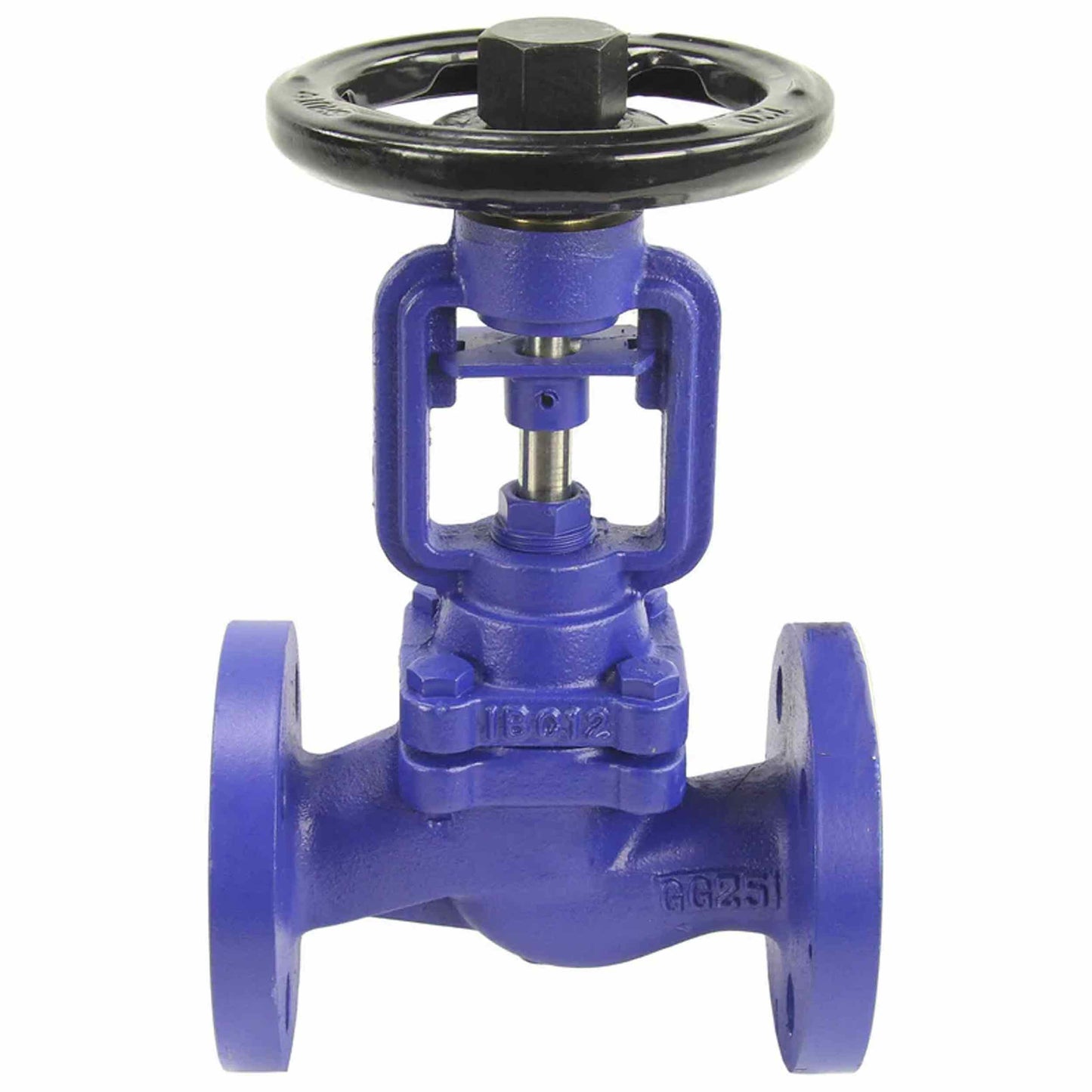

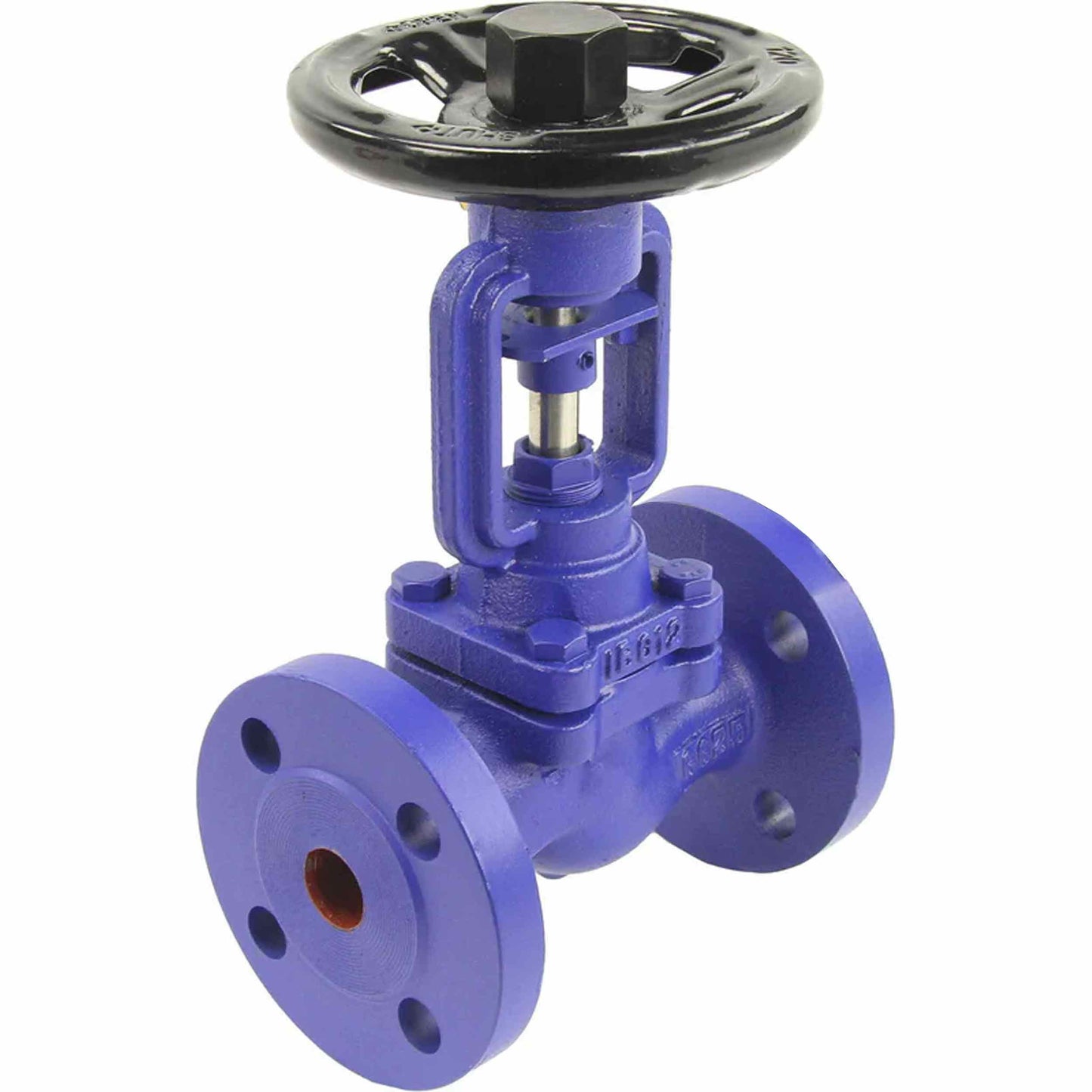

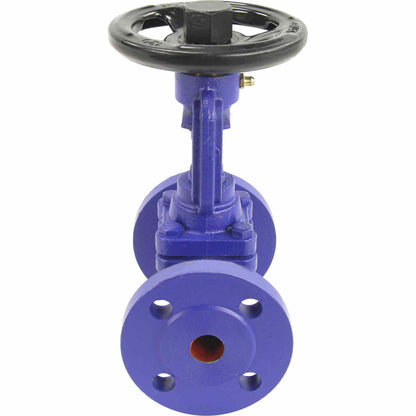

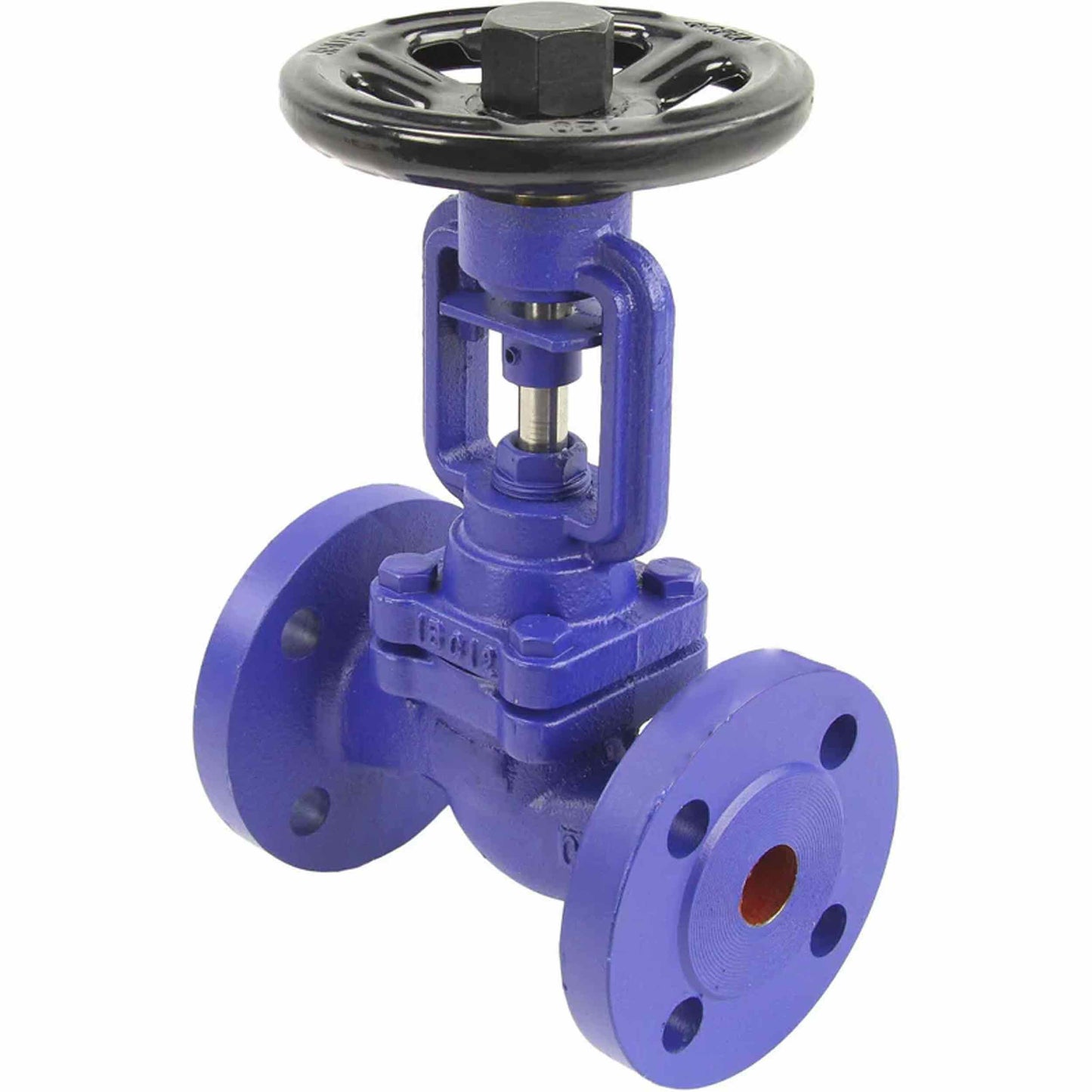

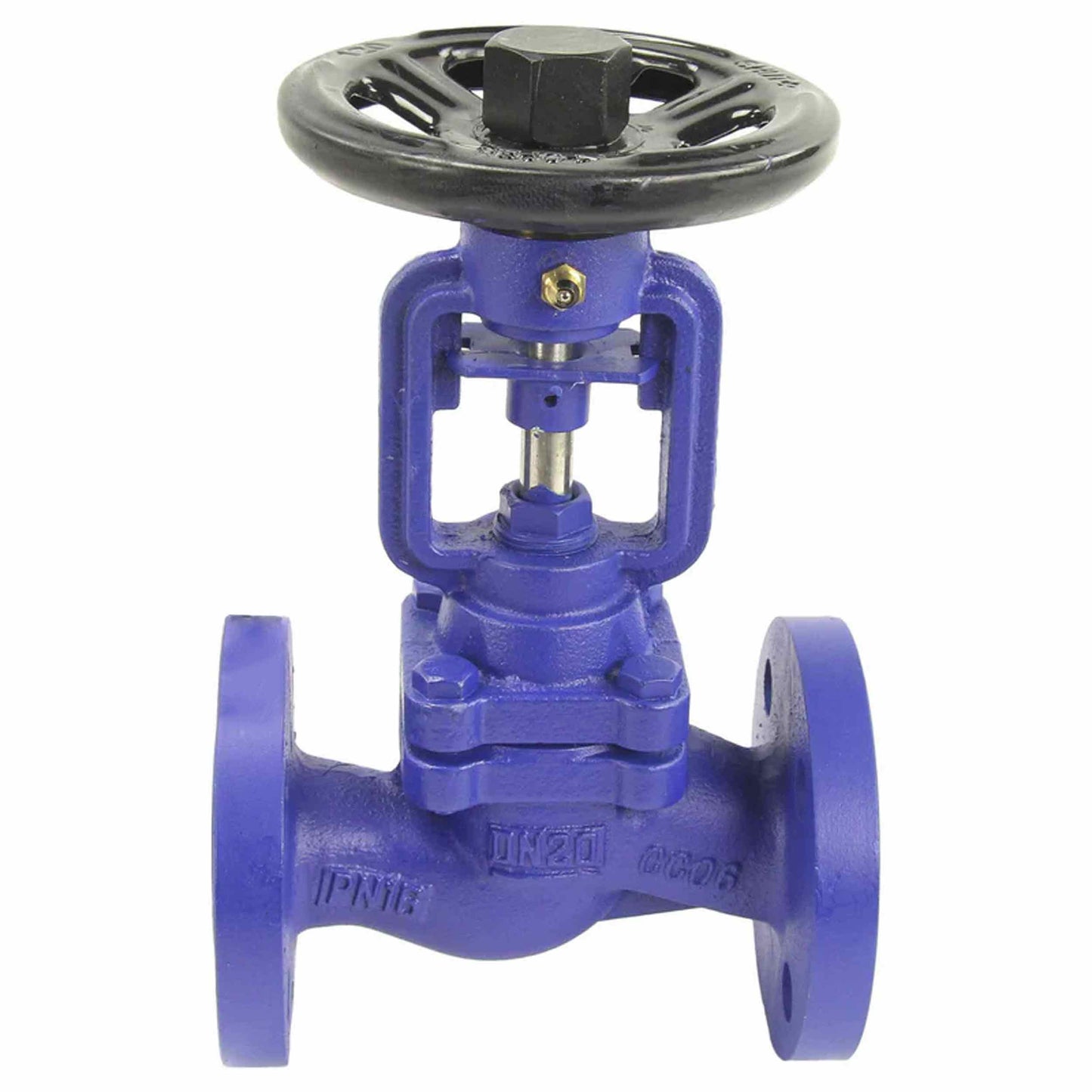

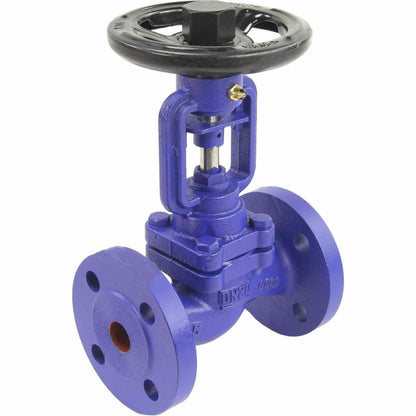

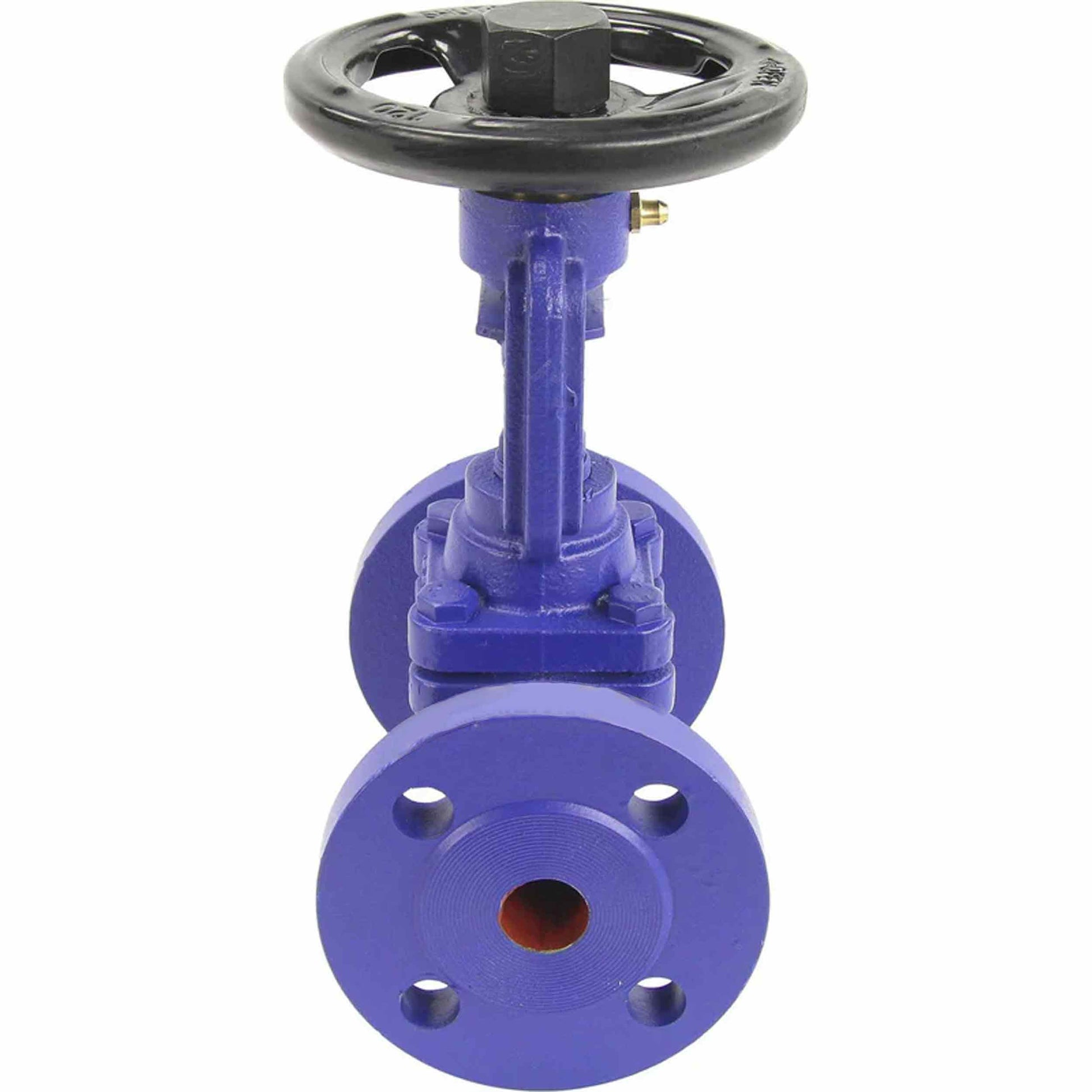

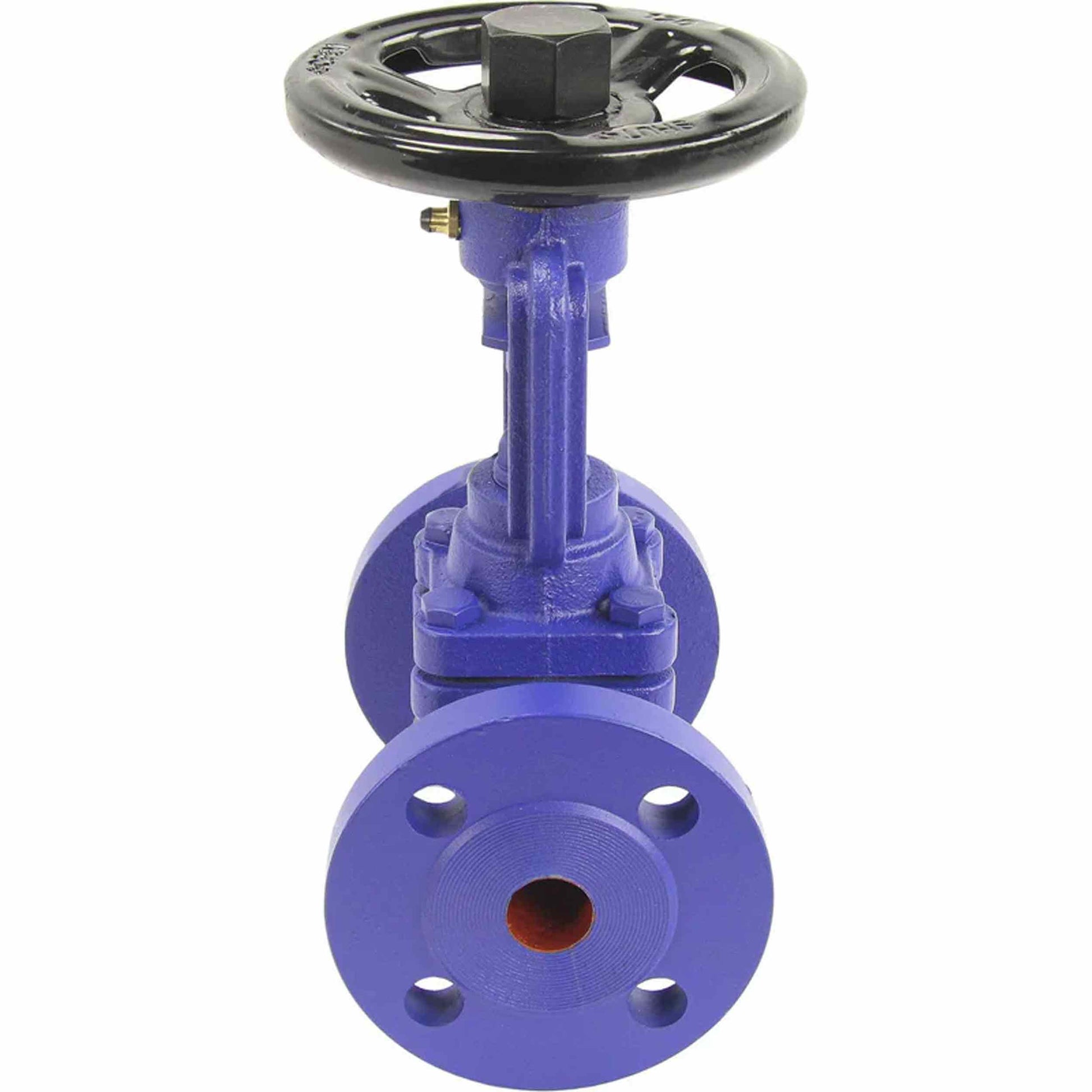

Gland Stop Valve DNOVA 215A 16 bar cast iron flange connection

From $24.04 USD
From $24.04 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

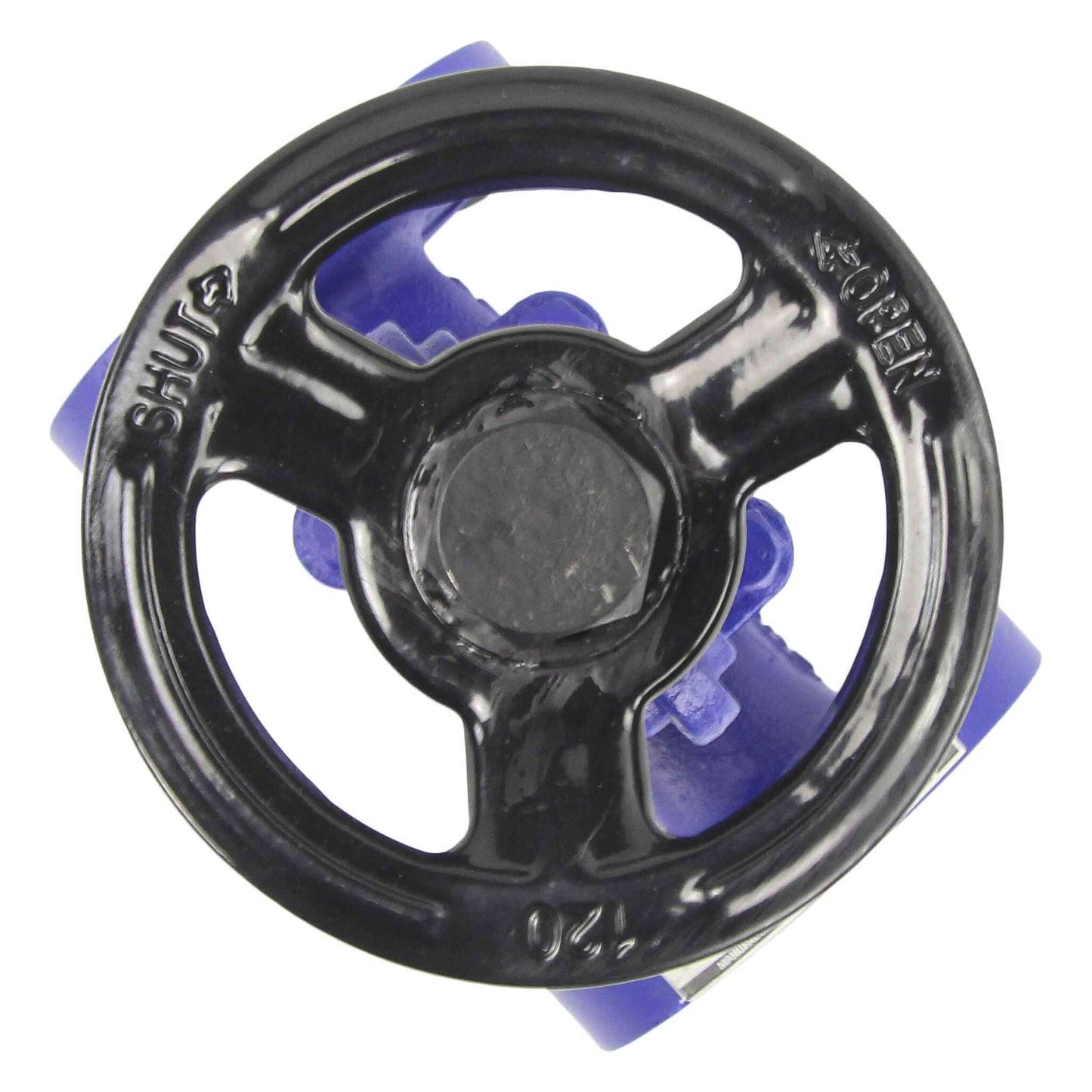

Gland Stop Valve DNOVA 215A is designed for installation as a shut-off device on pipelines. Operating principle: When the flywheel rotates clockwise or counterclockwise, the rotational motion is transmitted to the spindle, and the spool attached to it closes or opens the passage hole in the housing. WARNING: The use of Gland Stop Valve as control valves is prohibited.В

В

В

Overall dimensions of the Gland Stop Valve DNOVA 215A PN16 cast iron flange connectionВ

DN L, mm D, mm D1, mm D2, mm B-f, mm ZxØd, mm Weight, kg
15 130В±2 95 65 46 14-2 4x14 3,1
20 150В±2 105 75 56 16-2 4x14 3,87
25 160В±2 115 85 65 16-2 4x14 4,95
32 180В±2 140 100 76 18-2 4x19 7,9
40 200В±2 150 110 84 18-2 4x19 9,32
50 230В±2 165 125 99 20-2 4x19 14,13
65 290В±2 185 145 118 20-2 4x19 19,42
80 310В±2 200 160 132 22-2 8x19 28,77
100 350В±2 220 180 156 24-2 8x19 38,27

Sketch of Gland Stop Valve DNOVA 215A PN16 cast iron flange connection

В

В

Materials of parts of theВ Gland Stop Valve DNOVA 215A PN16 cast iron flange connectionВ

в„– Part name Material
1 Body cast iron HT250(GG25)
2 Housing O-ring steel 304
3 Plate A105 steel
4 Stainless wire steel 304
5 Gasket St08+thermally expanded graphite
6 Stem 2Cr13 steel
7 Bolt St35
8 Sealing expanded graphite
9 Cover cast iron QT400(GGG40)
10 gland cast iron (GG20)
11 T-bolt St35
12 Nut St25
13 Rod nut bronze ZQA1 9-4
14 Set screw St35
15 Helm cast iron QT450-10
16 Washer Q235 steel
17 Nut St25

В

Material sketch of Gland Stop Valve DNOVA 215A PN16 cast iron flange connection

Specifications

Country of origin
China
Body material
Cast iron GG25/EN-GJL-250
Connection type
Flanged
Operating environment
Water, Air, Oil Products
Applications
Heat Supply System, Water Supply System, Compressed Air Pipelines, Steam Plants, Industrial Pipelines
Nominal pressure
16 bar
Type of seal
Metal
Locking material
Steel A105
Stop valve type
Bellow sealed
