Description
The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Explosion-proof quarter-turn electric actuators are designed for remote and local control of the rotation of a shut-off element by 0° ~ 270° of such types as a ball valve, etc. They are widely used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc. They are suitable for use in industrial explosion-hazardous areas.

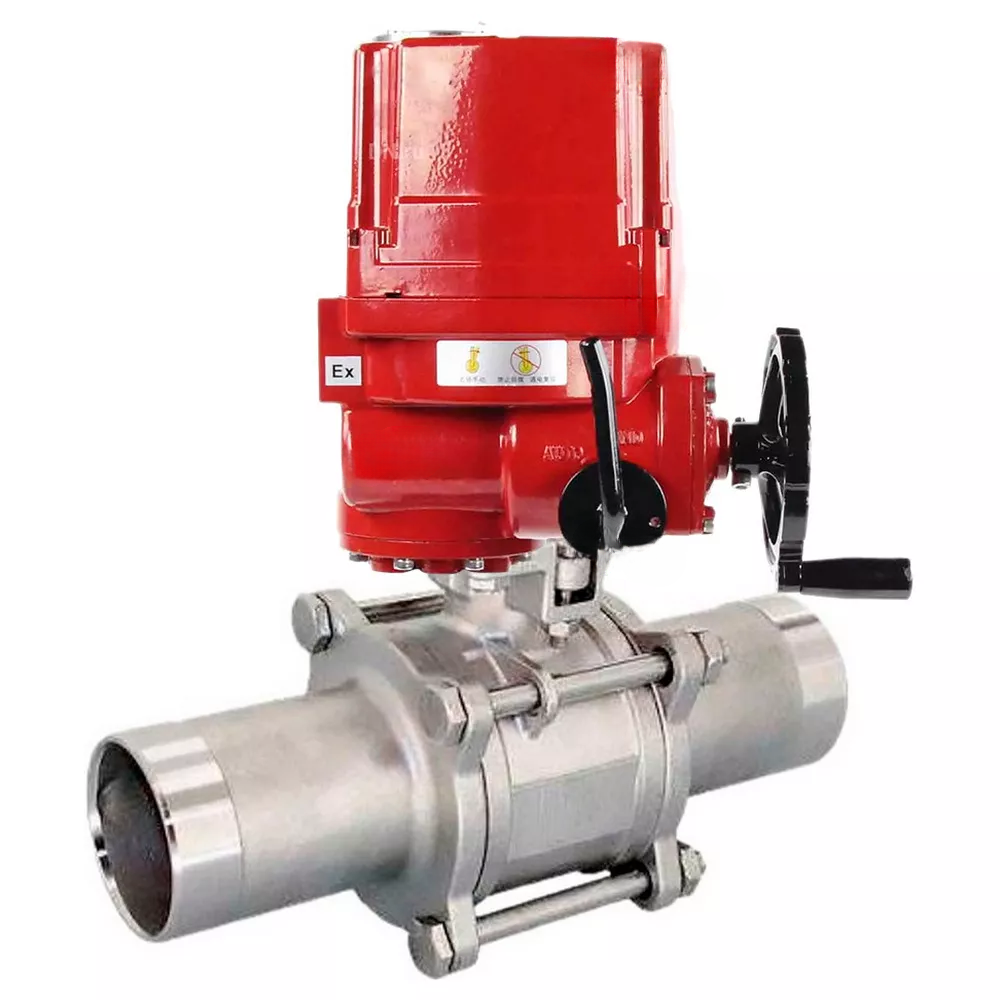

Technical characteristics of DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-24VDC-U1 24V
| Name | Meaning |
| Connection type | for welding |
| Control type | With electric drive |
| Application | water supply, heat supply, industry |
| Crane ball passage | full bore |
| Climate performance | U1 |
| Working environment temperature, °C | from -20 to 180 |
| Joining | for welding |
| Control | Electric drive 380V |
| Sealing class | A |
| Water intake | No |
| Type of crane device | two-way |
| Working medium | water, steam, petroleum products, neutral media, gaseous media |
| Warranty, g. | 1 |
| Service life, years | 5 |
Sketch of dimensions and sizes of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-24VDC-U1 24V
Dimensions and sizes of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-24VDC-U1 24V
| Model | L, mm | L1, mm | H, mm |
| DN10 | 130 | 255 | 265 |
| DN15 | 150 | 255 | 265 |
| DN20 | 155 | 255 | 265 |
| DN25 | 186 | 255 | 265 |
| DN32 | 195 | 255 | 265 |
| DN50 | 243 | 255 | 265 |
Sketch of parts and materials of ball valves EDNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-24VDC-U1 24V
Table of parts and materials of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 316, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-24VDC-U1 24V
| Item No. | Part name | Material |
| 1 | Frame | Stainless steel 316 |
| 2 | Side element (2 pcs) | Stainless steel 316 |
| 3 | Ball | Stainless steel 316 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | Stainless steel 316 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Electric drives
Technical parameters of electric drives:
| Parameter | Value |
| Enclosure protection class | IP67 |
| Control type | ON / OFF |
| Rotation angle, ° | 90±10 |
| Power supply voltage | 220 VAC, 380 VAC, 24 VDC |
| Motor type | Asynchronous motor with squirrel cage rotor |
| Limit switches | 1xOpen/Close, SPDT, 250VAC 10A |
| Auxiliary limit switches | 1xOpen/Close, SPDT, 250VAC 10A |
| Torque switch | 1xOpen/Close, SPDT, 250VAC 10A (except QT-EX-010EM-O2-x-U1) |
| Internal thermal protection | Off at 115°C ±5°C, on at 97°C ±5°C |
| Visual position indicator | Available |
| Manual override | Handwheel |
| Electric actuator position self-locking | Self-locking by worm gear mechanism |
| Mechanical limit stops | Two external adjustable stops |
| Cable entry | M20×1.5 and M36×2 |
| Ambient temperature, °C | from -20 to +70 |
| Lubrication | Aluminum-based (EP type) |
| Explosion-proof standard | ExdIICT4 |
| Enclosure | Aluminum alloy with powder epoxy anti-corrosion coating |
| Max ambient humidity, % | 90 (non-condensing) |
| Average number of open/close cycles | 60 |
Sketch of dimensions and sizes of electric drives
Dimensions and sizes of electric drives:
| Model | W | K | K1 | A | B | D |
| mm | ||||||
| QT-EX-010EM | 160 | 70 | 230 | Ø90 | Ø70 | Ø50 |
| QT-EX-015EM | 160 | 70 | 230 | Ø90 | Ø70 | Ø50 |
| QT-EX-020EM | 160 | 80 | 250 | Ø120 | Ø102 | Ø70 |
| QT-EX-030EM | 160 | 72 | 298 | Ø150 | Ø102 | Ø70 |
| QT-EX-050EM | 160 | 72 | 298 | Ø150 | Ø102 | Ø70 |
| QT-EX-080EM | 160 | 104 | 296 | Ø180 | Ø125 | Ø102 |
| QT-EX-100EM | 160 | 104 | 296 | Ø180 | Ø125 | Ø102 |
| QT-EX-160EM | 160 | 104 | 296 | Ø210 | Ø165 | Ø125 |
| QT-EX-200EM | 160 | 104 | 296 | Ø210 | Ø165 | Ø125 |
| Model | F | L | L1 | Н | n-C | n-E |
| mm | ||||||
| QT-EX-010EM | Ø16 | 240 | 68 | 270 | 4-M8 | 4-M6 |
| QT-EX-015EM | Ø16 | 240 | 68 | 270 | 4-M8 | 4-M6 |
| QT-EX-020EM | Ø30 | 260 | 75 | 280 | 4-M10 | 4-M8 |
| QT-EX-030EM | Ø30 | 290 | 82 | 320 | 4-M12 | 4-M8 |
| QT-EX-050EM | Ø30 | 290 | 82 | 320 | 4-M12 | 4-M8 |
| QT-EX-080EM | Ø40 | 333 | 82 | 320 | 4-M14 | 4-M12 |
| QT-EX-100EM | Ø40 | 333 | 93 | 350 | 4-M14 | 4-M12 |
| QT-EX-160EM | Ø60 | 333 | 93 | 350 | 4-M16 | 4-M14 |
| QT-EX-200EM | Ø60 | 333 | 93 | 350 | 4-M16 | 4-M14 |
Electric drive device:
| Item No. | Details | Material |
| 1 | Drive casing | Aluminum |
| 2,23,33,38,40,64 | Shaft | Steel 45 |
| 3,39,46,48,51,66 | Sealing ring | Oil resistant rubber |
| 4.27 | bracket | Steel Q235 |
| 5 | Insulation gasket | Textolite |
| 6,9,16 | Bracket mounting screw | Steel 1Cr18Ni9Ti |
| 7.1 | Plate | Steel Q235 |
| 8 | Screw plug | Aluminum |
| 11,14 | Limit switch cam | Steel Q235 |
| 12,13 | Limit switch group | XK06-101-2530 |
| 15.32 | Sleeve | Brass H62 |
| 16,30,35,41,44,61 | Screw | Steel 1Cr18Ni9Ti |
| 17,18 | Disk | Steel Q235 |
| 19 | Mechanical limiting cam | Steel Q235 |
| 20 | Drive casing | Aluminum |
| 21.25 | Mounting screw | Steel 35 |
| 22 | Sight glass seal | Steel 1Cr18Ni9Ti |
| 24 | Indication plate | Aluminum |
| 26 | Capacitor | CEM 2GR 220nJ |
| 28 | Terminal block | 1Pcs T |
| 29 | Heating element | NTA-1/005 |
| 31,36 | Washer | Stainless steel |
| 34 | Through cover | MHQ50 |
| 37,39 | Lock washer, sealing ring | Steel 1Cr18Ni9Ti |
| 42 | Torque switch group | XK06-101-2530 |
| 43,48 | Torque switch mechanism | Steel Q235 |
| 45 | Flywheel cover | Aluminum |
| 47.69 | First stage gear | Zinc alloy ZQAL10-5-5 |
| 49 | Limit screw | Steel 35 |
| 50 | Hairpin | Steel 1Cr18Ni9Ti |
| 52 | Clutch handle | Steel 45 |
| 53 | Fork block | Aluminum |
| 54 | Thrust washer | Zinc alloy |
| 55,56 | Separator fork | Zinc alloy ZQAL10-5-5 |
| 57 | Retaining ring | Steel 1Cr18Ni9Ti |
| 58.6 | Disk, main gear | Zinc alloy ZQAL10-5-5 |
| 59.68 | Second and first stage worm | Steel 40Cr |
| 62,67 | Seal | Aluminum |
| 63 | Motor | - |
| 65 | Clutch | Steel ZG20 |
Specifications
