Description
The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Pneumatic actuators DNOVA double-acting rotary PA-DA are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.
The pneumatic distributor is used to change the direction, start, and stop the flow of compressed air in a pneumatic system depending on the external control action.
The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off element of the valve: valve, tap or butterfly valve. It is installed on top of the surface of the pneumatic drive and connected to the DIN standard drive shaft. In a sealed box, as a rule, there are two sensors that monitor the position of the drive shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. Visual indication of the position can be seen on the body of the unit there is a 3D visual indicator RED - CLOSED and GREEN - OPEN.
The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain pressure at a given level, and supply lubricant from the reservoir to the compressed air flow to the elements of the pneumatic system.

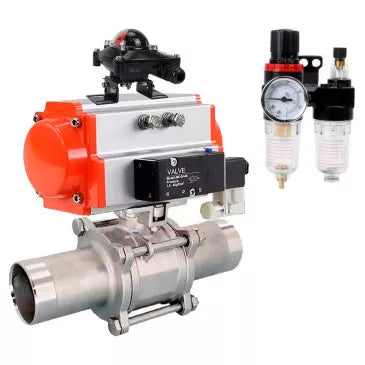

Technical parameters of DNOVA BV3232P(3pc)-FP-W-ISO-H LONG ball valves DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with PA-DA pneumatic actuator, 4V320-08 220V pneumatic distributor, APL-510N EX and AFC2000:
| Name | Meaning |
| Working environment temperature, °C | from -20 to 180 |
| Type of crane device | two-way |
| Application | water supply, heat supply, industry |
| Working environment | water, steam, petroleum products, neutral media, gaseous media |
| Connection to the pipeline | for welding |
| Water intake | No |
| Type of flow section | full bore |
| Control type | With pneumatic drive |
| Joining | for welding |
| Control | double acting pneumatic actuator |
| Availability of limit switches | There is |
| Availability of pneumatic distributor | There is |
| Availability of electropneumatic positioner | No |
| Average service life, years | 5 |
| Warranty, g. | 1 |
Sketch of the overall dimensions and sizes of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V, APL-510N EX and AFC2000
Dimensions and sizes of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V, APL-510N EX and AFC2000:
| Model | L, mm | A, mm | E, mm | I, mm | B, mm | C, mm |
| DN10 | 130 | 153 | 72 | 162 | 88 | 139 |
| DN15 | 150 | 153 | 72 | 162 | 88 | 139 |
| DN20 | 155 | 174 | 89 | 162 | 88 | 139 |
| DN25 | 186 | 216 | 109 | 162 | 88 | 139 |
| DN32 | 195 | 153 | 72 | 162 | 88 | 139 |
| DN40 | 231 | 174 | 89 | 162 | 88 | 139 |
| DN50 | 243 | 216 | 109 | 162 | 88 | 139 |
| DN65 | 290 | 216 | 109 | 162 | 88 | 139 |
| DN80 | 302 | 216 | 109 | 162 | 88 | 139 |
| DN100 | 326 | 279 | 134 | 162 | 88 | 139 |
| DN125 | 360 | 308 | 157 | 162 | 88 | 139 |
| DN150 | 390 | 405 | 174 | 162 | 88 | 139 |
Sketch of parts and materials of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V, APL-510N EX and AFC2000
Table of parts and materials of ball valves DNOVA BV3232P(3pc)-FP-W-ISO-H LONG DN10-150 PN16-63 full bore, body - stainless steel 316, for welding, with pneumatic actuator PA-DA, pneumatic distributor 4V320-08 220V, APL-510N EX and AFC2000:
| Item No. | Part name | Material |
| 1 | Frame | stainless steel 316 |
| 2 | Side element (2 pcs) | stainless steel 316 |
| 3 | Ball | stainless steel 316 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | stainless steel 316 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Pneumatic drive DNOVA
Technical parameters of the pneumatic drive DNOVA
| Name | Meaning |
| Design | double acting |
| Control pressure, bar | 2 ÷ 8 |
Sketch of the dimensions and sizes of the pneumatic drive DNOVA
Dimensions and sizes of the pneumatic drive DNOVA:
| Model | PA-DA-52 | PA-DA-65 | PA-DA-83 | PA-DA-105 | PA-DA-130 | PA-DA-140 |
| A1, mm | 108 | 125 | 152 | 189 | 210 | 268 |
| B1, mm | 153 | 174 | 216 | 279 | 308 | 405 |
| C, mm | 30 | 36 | 46 | 55 | 67.5 | 76 |
| D, mm | 41 | 46 | 55 | 64 | 70 | 77 |
| E, mm | 72 | 89 | 109 | 134 | 157 | 174 |
| F, mm | 26 | 26 | 26 | 26 | 36 | 36 |
| G, mm | 15 | 15 | 15 | 25 | 25 | 30 |
| H, mm | F03 | F05 | F05 | F07 | F07 | F10 |
| I, mm | F05 | F07 | F07 | F10 | F10 | F12 |
| J, mm | 4-M5x8 | 4-M6x10 | 4-M6x10 | 4-M8x12 | 4-M8x12 | 4-M10x16 |
| K, mm | 4-M6x10 | 4-M8x12 | 4-M8x12 | 4-M10x16 | 4-M10x16 | 4-M12x20 |
| L, mm | 11x11 | 14x14 | 17x17 | 22x22 | 22x22 | 27x27 |
| Mmm | 80 | 80 | 80 | 80 | 80 | 130 |
| N, mm | 30 | 30 | 30 | 30 | 30 | 30 |
| F0, mm | 34 | 34 | 34 | 41 | 62 | 62 |
| R, mm | 20 | 20 | 20 | 20 | 30 | 30 |
Table of parts and materials of pneumatic drive DNOVA:
| No. | Name | Quantity | Material | Coating |
| 1 | Frame | 1 | extruded aluminum | hard anodized |
| 2 | Side plugs | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/galvanic zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clamp | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator housing | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/galvanic zinc plating |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | Sealing ring | 2 | NBR | |
| 23 | Sealing ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjusting nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Sleeve | 2 | aluminum |
Pneumatic distributor DNOVA 4V320-08 220V
Technical parameters of pneumatic distributors DNOVA 4V320-08 220V
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V320-08 220V |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220V |
| Response frequency, cycles/sec | 5 |
Sketch of dimensions and sizes of pneumatic distributors DNOVA 4V320-08 220V
Dimensions and sizes of pneumatic distributors DNOVA 4V320-08 220V
| Model of pneumatic distributor | 4V320-08 |
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
| H, mm | 82.4 |
Limit Switch Block DNOVA APL-510N EX
Technical parameters of the limit switch unit DNOVA APL-510N EX
| Name | Meaning |
| Limit switch block model | APL-510N EX |
| Ambient temperature, °C | from -20 to 66 |
| Service life, years | 10 |
Sketch of the dimensions and sizes of the limit switch block DNOVA APL-510N EX
Dimensions and sizes of the limit switch unit DNOVA APL-510N EX:
| Model | APL-510N EX |
| A, mm | 118 |
| B, mm | 118 |
| C, mm | 138.4 |
| D, mm | 17 |
| E, mm | 19 |
| F, mm | 7 |
| G, mm | 3 |
| H, mm | 4 |
| I, mm | 59 |
| J, mm | 59 |
| K, mm | 59 |
| L, mm | 59 |
| M, mm | 121.4 |
| Ød1, mm | 50 |
| Ød2, mm | 5 |
Air preparation unit DNOVA AFC2000
Technical parameters of the air preparation unit DNOVA AFC2000
| Name | Meaning |
| Working pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Size of filtered particles, µm | 40 microns |
| Weight, kg | 0.395 |
Sketch of the dimensions and sizes of the air preparation unit DNOVA AFC2000
Dimensions and sizes of the air preparation unit DNOVA AFC2000:
| Model BPV | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
