Description
Ball valves are used as shut-off valves in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
The shut-off of the working flow occurs by means of a locking element, which is a ball with a through cylindrical hole. The handle installed on the body rotates the ball around the axis. To completely shut off the flow, it is enough to turn it by an angle of 90 degrees.
Quarter-turn electric actuators are designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off element. They are used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc.

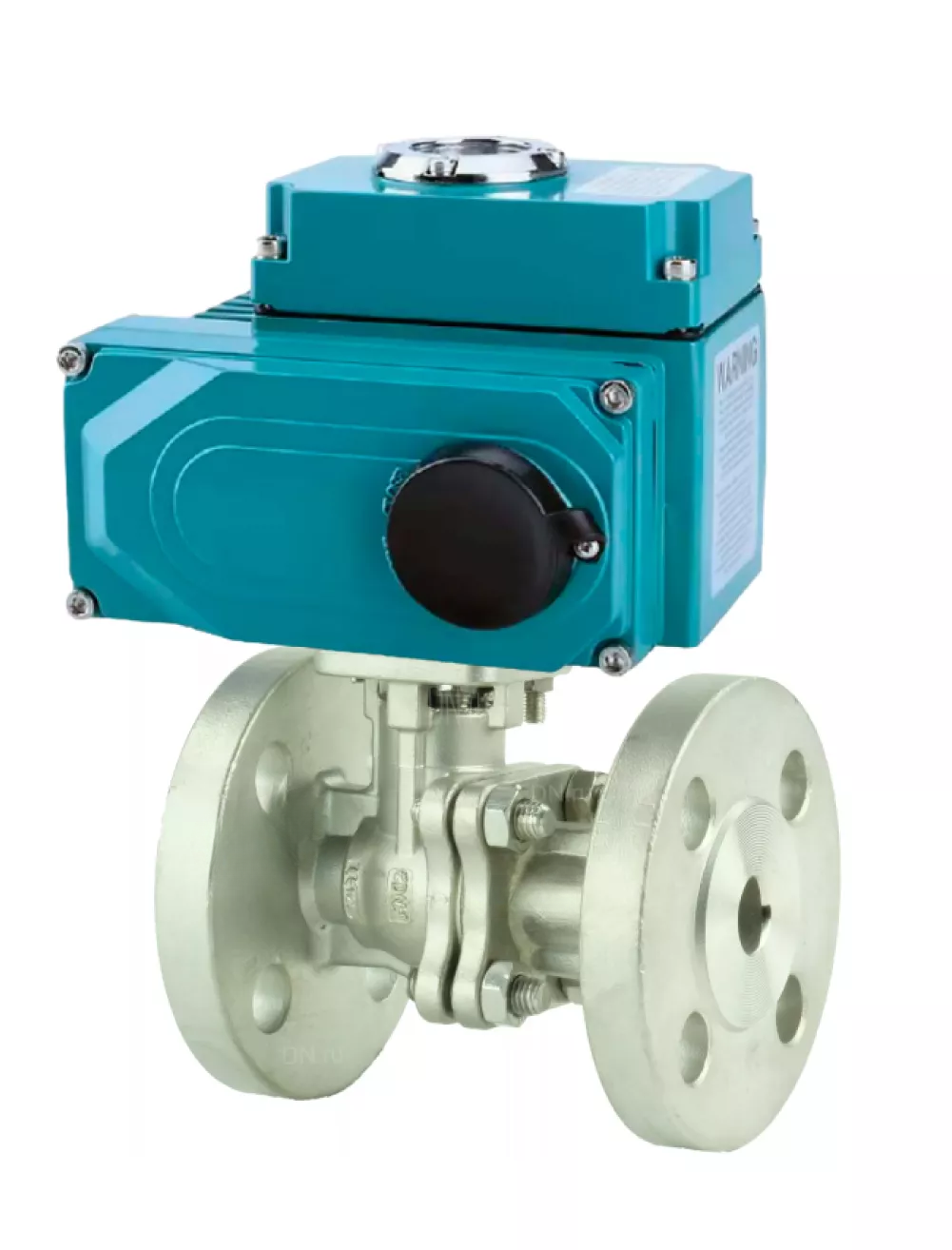

Technical characteristics of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-380VAC-U1 380V HARK
| Nominal diameter DN, mm | 15 – 100 |
| Nominal pressure PN, bar | 40 / 16 |
| Temperature of working environment t, ⁰C | from -20 to +210 |
| Working environment | water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials used |
| Connection to the pipeline | flanged |
| Passage of the ball | full bore without constriction |
| Body material | ASTM CF8M (analogue of AISI 316 steel) |
| Estimated service life of the crane (number of opening/closing cycles) | 40,000 |
Sketch of dimensions and sizes of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-380VAC-U1 380V HARK
Dimensions and sizes of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-380VAC-U1 380V HARK
| DN | Model | Size, mm | |||||||
| b | d | H | L | D | D1 | D2 | Y | ||
| 15 | QT-N-020EMT | 16 | 15 | 50 | 115 | 95 | 65 | 45 | 241.8 |
| 20 | 18 | 20 | 55 | 120 | 105 | 75 | 58 | 241.8 | |
| 25 | 18 | 25 | 58 | 125 | 115 | 85 | 68 | 241.8 | |
| 32 | 18 | 32 | 42 | 130 | 140 | 100 | 78 | 241.8 | |
| 40 | 18 | 40 | 76 | 140 | 150 | 110 | 88 | 241.8 | |
| 50 | 20 | 50 | 85 | 150 | 165 | 125 | 102 | 241.8 | |
| 65 | 18 | 65 | 95 | 170 | 185 | 145 | 122 | 241.8 | |
| 80 | 20 | 80 | 115 | 180 | 200 | 160 | 138 | 241.8 | |
| 100 | 20 | 100 | 140 | 190 | 220 | 180 | 158 | 241.8 | |
Materials of parts of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H full bore, flanged, body - stainless steel SS316, seal - PTFE, with 1/4-turn electric drive QT-N-020EM-O1-380VAC-U1 380V HARK
| Item No. | Detail | Material |
| 1 | Frame | AISI 316 steel |
| 2 | Ball | Stainless steel SS316 |
| 3 | Bolt | stainless steel |
| 5 | Stock | Stainless steel SS316 |
| 6 | Flange element (2 pcs) | AISI 316 steel |
| 7 | Ball seal (2 pcs) | PTFE |
| 8 | Thrust washer | PTFE |
Image of electric drives DNOVA QT-N-xEMT-O1-x-UHL1 with thermal protection and heater
Technical electric drives DNOVA QT2-N-xEM-O1-x-U1m
| Electric drive type | quarter turn |
| Engine type | asynchronous |
| Rotation angle, ° | 90±5 |
| Body material | aluminum alloy, epoxy powder coated |
| Shaft material | alloy steel |
| Supply voltage | 380V/AC, 50Hz |
| Cable entry | gland 2xM18 |
| Connection type | ISO 5211 |
| Self-locking device | self-locking worm and worm gear |
| Automatic shut-off in the open, closed and jammed positions |
2 limit switches + 2 additional switches (dry contact); |
| Thermal protection |
switch on at 120°C ±5°C; switch off at 97°C ±5°C |
| Mechanical limitation of output shaft rotation | 2 external adjustable stoppers |
| Housing protection class | IP67 |
| Noise level, dB | ≤ 50 |
| Heater power, W | 5 |
| Ambient temperature, °C | from -20 to +70 |
| Ambient humidity | ≤95% (25°C) |
| Explosion protection of the housing | No |
Sketch of overall dimensions of electric drives DNOVA QT2-N-xEM-O1-x-U1
Dimensions and sizes of electric drives DNOVA QT2-N-xEM-O1-x-U1
| Model | 003EMT |
| L, mm | 123 |
| H, mm | 115 |
| A, mm | 101 |
| B, mm | 98 |
| C, mm | 74 |
| D, mm | 49 |
| E, mm | 34.5 |
| F, mm | 35 |
| G, mm | 5 |
| Rod size, square, mm | 14x14 |
| ISO 5211 | F05/F07 |
Electric drive device diagram DNOVA QT2-N-xEM-O1-x-U1
The device diagram of electric drives DNOVA QT-N-xEM-O1-x-U1 HARK:
| Item No. | Name |
| 1 | Position indicator |
| 2 | Top cover |
| 3 | Control board |
| 4 | Capacitor |
| 5 | Push cams |
| 6 | Output shaft with worm wheel |
| 7 | Frame |
| 8 | Output shaft travel limiters |
| 9 | Worm shaft |
| 10 | Electric motor |
| 11 | Reducer |
| 12 | Gearbox cover |
