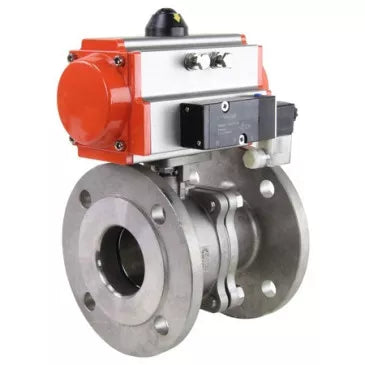

Ball valve BV3232P(2pc)-FP-F-ISO-H with pneumatic double-acting actuator

PA-DA · 4V320-10 220V pilot · flanged, AISI 316 body, PTFE seal

Model BV3232P(2pc)-FP-F-ISO-H SKU D160-46850

$199.25 USD

Sale Sold out

Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.

View full details

In detail

What it is made of

Body Stainless steel AISI 316

Seal PTFEUp to 200 °C

Connection FlangedDN15–DN250

Actuator PneumaticDouble-acting

How it works

Double-acting rotary actuator

Two-way ball valve

5/2 double-solenoid pilot

5/2 double-solenoid pilot: Both coils off — **Both coils off**The spool keeps its last position; the drawing retains the coil-14 example.

The number that matters

Max. medium temperature

200°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

Water
Air
Steam
Industrial Water
Oil
Petroleum Products

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Pneumatic DNOVA rotary actuators with return spring PA-DA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

Technical parameters of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE

Parameter	Value
Operating Medium Temperature, °C	-50 to 200
Application	Heating Supply
Working Medium	Water, Air, Steam, Technical Water, Oil, Petroleum Products
Pipeline Connection	Flanged
Water-drawing	No
Type of Flow Passage	Full Bore
Ball Valve Tightness Class	A
Control Type	Pneumatic Actuator
Connection Type	Flanged
Control	Pneumatic Actuator with Return Springs
Limit Switches	Yes
Pneumatic Distributor	Yes
Warranty, years	1
Country of Manufacture	China

Dimensions and dimensions of ball valves BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE

DN	D, mm	L, mm	B1, mm	E, mm	ØD, mm	ØD1, mm	ØG, mm	f, mm	T, mm	H2, mm
15	15	114	153	72	95	65	35	2	8	50
20	20	120	153	72	104	75	43	2	8.9	55
25	25	125	174	89	113	85	51	2	9.6	60
32	32	130	174	89	139	100	64	2	11.2	65
40	40	140	216	109	149	110	73	2	12.7	70
50	50	150	216	109	165	125	92	2	14.3	80
65	65	170	216	109	185	145	105	2	15.9	95
80	80	180	216	109	200	160	127	2	17.5	105
100	100	190	279	134	221	180	157	2	22.3	120

Sketch dimensions and dimensions of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE

Table of parts and materials for ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE

№	Part Name	Material
1	Body	Steel 316
2	Ball Seal	RPTFE
3	Ball	Steel 316
4,6,12	Bolt, Nut	Steel 304
5,10	Seal	PTFE
7	Pipe Section	Steel 316
8	Stem	Steel 316
9	Packing	PTFE
11	Packing	Steel 304

Parts and materials sketch for ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H, full bore flanged, stainless steel SS316, seal - PTFE

Technical parameters of pneumatic actuator DNOVA

Parameter	Value
Operating Pressure, bar	6
Working Medium	Filtered compressed air or non-aggressive gases, oils
Manual Override	helm

Dimensions and dimensions of pneumatic actuator DNOVA

Model	DA-065
G, mm	15
M, mm	80
N, mm	30
f0, mm	34
P, mm	20
B1, mm	174
C, mm	36
E, mm	89
J	4-M6x10
K	4-M8x12
F, mm	26
A1, mm	125
D, mm	46
H	F05
I	F07
L	14x14

Sketch of dimensions and dimensions of pneumatic actuator DNOVA

Parts and materials table for pneumatic actuator DNOVA

№	Name	Qty	Material	Coating
1	Housing	1	Extruded aluminum	Hard anodized
2	Side plugs	2	Cast aluminum
3	Gear	1	Stainless steel	Nickel-plated
4	Piston	2	Steel/Aluminum	Oxidation/Galvanic zinc coating
5	Plugs	8	Stainless steel
6	Piston ring	2	NBR
7	Springs	0-12	Spring steel	Epoxy coating
8	Piston bearing	2	Engineering plastic
9	Piston ring	2	NBR
10	Plug	2	NBR
11	Stop ring	2	Engineering plastic
12	Ring	1	Engineering plastic
13	Washer	1	Stainless steel
14	Spring clamp	2	Stainless steel
15	Indicator	1	Plastic
16	Indicator housing	1	Plastic
17	Bearing	1	Engineering plastic
18	Cam	1	Steel	Oxidation/Galvanic zinc coating
19	Bearing	1	NBR
20	Bearing	1	Engineering plastic
21	Bearing	1	Engineering plastic
22	Sealing ring	2	NBR
23	Sealing ring	2	NBR
24	Bearing	2	Stainless steel
25	Adjustment nut	2	Stainless steel
26	Adjustment screw	2	Stainless steel
27	Bushing	2	Aluminum

Technical parameters of pneumatic valve DNOVA 4V320-10 220V

Name	Value
Pneumatic distributor model	4V320-10 220V
Operating pressure, bar	1.5 ÷ 8
Supply voltage, V	220V
Actuation frequency, cycles/sec	5

Dimensions and dimensions of DNOVA 4V320-10 220V pneumatic directional control valve

Model	4V320-08
A, mm	71.9
B, mm	45
C, mm	94.4
D, mm	27
E, mm	69
F, mm	40
I, mm	24
K, mm	40
L, mm	188.8
M, mm	69.4
N, mm	50
O, mm	83.4
P, mm	22
S, mm	20
T, mm	6.5
U, mm	2.4
H, mm	82.4

Sketch of dimensions and dimensions of pneumatic valve DNOVA

Passports and certificates

Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return spring

Port opening: full bore
Body material: Stainless steel AISI 316
Maximum allowable temperature: 200 °C
Connection type: Flanged
Control type: Pneumatically actuated
Operating environment: Water, Air, Steam, Industrial Water, Oil, and Petroleum Products
Type of seal: PTFE
Voltage: 220V
Explosion-proof: No
Torque: 176 Nm
Limit switches: No
Type of pneumatic actuator: double action
Country of origin: China

Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.

Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.

To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.

Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
