How it works
Double-acting rotary actuator
Two-way ball valve
5/2 single-solenoid pilot
Limit-switch box
The number that matters
Max. medium temperature
200°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Oil Products
- Liquid Media
- Neutral Media
- Gaseous Media
The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
PA-DA-1 pneumatic actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
The MON manual doubler with worm gear and HDM reduction gearbox allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
The AFC2000 air treatment unit is designed to purify compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from a reservoir in the compressed air stream to pneumatic system elements with a large capacity range from 500 liters/minute to 10,000 liters/minute. The lubricator (oil atomizer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
The limit switch unitAPL-510N-EX is an electrotechnical device designed for opening and closing of the working circuit and for visualization of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of fault detection.
Technical parameters DNOVA BV3232P-FP-Fb-ISO-H 16 bar wafer, full bore, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052-105 pneumatic distributor 4M310-08 24V reducer MON ATU AFC2000 LSU APL-510N-EX:
| Nominal diameter DN, mm | 15 - 100 |
| Nominal pressure PN, bar | 16 |
| Ambient temperature, °C | from -50 to +200 |
| Working medium | water, steam, oil products and other liquid or gaseous media neutral to the materials used |
| Connection to pipeline | interflange |
| Control type | manual (handle) |
| Ball passage | full bore without constriction |
| Complement | electric or pneumatic actuator can be installed (ISO 5211-2001) |

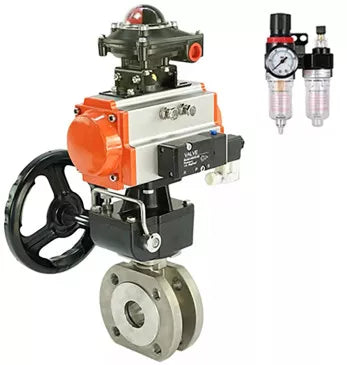

DNOVA BV3232P-FP-Fb-ISO-H 16 bar wafer, full bore, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052-105 pneumatic distributor 4M310-08 24V reducer MON ATU AFC2000 LSU APL-510N-EX
Dimensions and dimensions DNOVA BV3232P-FP-Fb-ISO-H 16 bar wafer, full bore, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052-105 pneumatic distributor 4M310-08 24V reducer MON ATU AFC2000 LSU APL-510N-EX:
| DN | d, mm | D2, mm | D1, mm | D, mm | T, mm | C, mm | L, mm | L1, mm | H, mm | I, mm | X, mm | Y, mm |
| 15 | 15 | 45 | 65 | 95 | 14 | 14 | 42 | 153 | 98 | 104 | 88 | 162 |
| 20 | 20 | 58 | 75 | 105 | 16 | 16 | 48 | 153 | 98 | 104 | 88 | 162 |
| 25 | 25 | 68 | 85 | 115 | 16 | 16 | 50 | 153 | 98 | 104 | 88 | 162 |
| 32 | 32 | 78 | 100 | 140 | 16 | 16 | 60 | 153 | 98 | 104 | 88 | 162 |
| 40 | 36 | 88 | 110 | 150 | 16 | 16 | 65 | 216 | 135 | 115 | 88 | 162 |
| 50 | 46 | 102 | 125 | 165 | 18 | 18 | 80 | 216 | 135 | 115 | 88 | 162 |
| 65 | 58 | 122 | 145 | 185 | 18 | 18 | 110 | 216 | 135 | 115 | 88 | 162 |
| 80 | 73 | 138 | 160 | 200 | 20 | 20 | 120 | 216 | 135 | 115 | 88 | 162 |
| 100 | 90 | 158 | 180 | 220 | 20 | 20 | 150 | 279 | 160 | 158 | 88 | 162 |
Sketch of dimensions and dimensions DNOVA BV3232P-FP-Fb-ISO-H 16 bar wafer, full bore, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052-105 pneumatic distributor 4M310-08 24V reducer MON ATU AFC2000 LSU APL-510N-EX
Parts and materials table DNOVA BV3232P-FP-Fb-ISO-H 16 bar wafer, full bore, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052-105 pneumatic distributor 4M310-08 24V reducer MON ATU AFC2000 LSU APL-510N-EX:
| № | Parts | Material |
| 1 | Nut | Steel 304 |
| 2 | Handle | Steel 201+PVC |
| 3 | Washer | Steel 304 |
| 4 | Locking ring | Steel 304 |
| 5 | Thrust washer | Steel 304 |
| 6 | Gland washer | Steel 304 |
| 7 | Gland | PTFE |
| 8 | Stop gasket | PTFE |
| 9 | Rod | Steel 316 |
| 10 | Ball cover | Steel 316 |
| 11 | Ball | Steel 316 |
| 12 | Ball seal | PTFE |
| 13 | Gasket | PTFE |
| 14 | Body | Steel 316 |
Parts and material sketch DNOVA BV3232P-FP-Fb-ISO-H 16 bar wafer, full bore, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052-105 pneumatic distributor 4M310-08 24V reducer MON ATU AFC2000 LSU APL-510N-EX
Technical data of PA-DA pneumatic actuators:
| Design | Double action |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, °C | - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air) |
| Adjustment range | ± 5 ° for rotation at 0 ° and 90 ° |
| Manual override | is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts are anti-corrosion coated) |
PA-DA pneumatic actuator
PA-DA pneumatic actuator component materials:
| № | Name | Material |
| 1 | Enclosure | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Parts and material sketch of the PA-DA pneumatic actuator
Technical parameters of the handwheel MON:
| Name | Value |
| Climatic version | U,UHL,T,OM |
| Degree of protection, IP | 67 |
| Connection type | ISO 5211 |
Manual doubler MON
Dimensions and dimensions of the handwheel MON:
| Model | MON1-250-T26-ISO | MON2-450-T28-ISO | MON3-700-T38-ISO | MON4-1200-T54-ISO |
| b1, mm | 14 | 17 | 22 | 27 |
| N, mm | 22 | 22 | 28 | 32 |
| b2, mm | 14 | 17 | 22 | 27 |
| M, mm | 16 | 18 | 22 | 30 |
| D1, mm | Ø50 | Ø70 | Ø102 | Ø102 |
| 4-M1, mm | 4-M6 | 4-M8 | 4-M10 | 4-M10 |
| D2, mm | Ø70 | Ø102 | Ø125 | Ø125 |
| 4-M2, mm | 4-M8 | 4-M10 | 4-M12 | 4-M12 |
| E, mm | 70x70 | 95x95 | 114x114 | 129x129 |
| D3, mm | Ø50 | Ø70 | Ø102 | Ø125 |
| 4-Ø1, mm | 4-Ø6.5 | 4-Ø8.5 | 4-Ø10.5 | 4-Ø12.5 |
| D4, mm | Ø70 | Ø102 | Ø125 | Ø140 |
| 4-Ø2, mm | 4-Ø8.5 | 4-Ø10.5 | 4-Ø12.5 | 4-Ø16.5 |
| A, mm | 90 | 125 | 140 | 188.5 |
| B, mm | 55 | 64 | 71 | 93 |
| ØC, mm | Ø88 | Ø110 | Ø129 | Ø174 |
| F, mm | 115 | 135 | 166 | 202 |
| T, mm | 44 | 62.5 | 70 | 94 |
| Y, mm | 145 | 178 | 212 | 280 |
| H, mm | 120 | 133 | 180 | 195 |
| S, mm | 53 | 56.5 | 68.7 | 84 |
| K, mm | 10 | 13 | 12.5 | 15 |
| Ø hand wheel, mm | 180 | 200 | 280 | 320 |
Sketch of dimensions and dimensions of the MON handwheel MON
MON handwheel materials:
| № | Name | Material |
| 1 | Stem for mounting the pneumatic actuator | Steel 45 |
| 2 | Sealing ring | EPDM |
| 3 | Fixing spring | Spring steel |
| 4 | Upper end cover | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Locking bracket (main rod) | Steel 304 |
| 7 | Housing | Aluminum alloy |
| 8 | Sealing ring | EPDM |
| 9 | Gear unit | Cast iron BCh50 |
| 10 | Transition coupling | Cast iron BCh40 |
| 11 | Gear stem | Cast iron BCh40 |
Materials of the handwheel
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Characteristics of limit switch unit APL-510N-EX:
| Parameter | Significance |
| Enclosure | all-weather IP67/ NEMA4 4X,7,9 explosion-proof E EX d IIC T6 |
| Compatible devices | quarter-turn pneumatic actuators; - any actuators with shaft rotation by 90 |
| Full rotation angle | 90° |
| Cable glands | 2 x NPT 3/4” |
| Electrical connection | screw terminals 8 points (0.08 - 2.5) mm2 |
| Cable gland thread | 2 x NPT 3/4” |
| Type of visual indicator | two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red |
| Switches/sensors | two mechanical switches two proximity sensors |
| Rated voltage, V | 250 |
| Rated current, A | 16 |
| Permissible ambient temperature, °C | -20 to +66 |
| Average life, cycles | 10 000 000 |
| Weight, kg | 1.8 |
Main parameters of the AFC2000 air treatment unit:
| Operating pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0,5 ÷ 9 |
| Breaking pressure, bar | 15 |
| Air connection | 1/4” |
| Operating temperature, C | -5 to +60 |
| Filter particle size, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0,395 |
| Set composition | filter-moisture separator, pressure regulator, lubricator, bracket |
Air treatment unit AFC2000
Passports and certificates
Data sheet for DNOVA DA/SA double-acting pneumatic actuator with return springs
- Port opening
- full bore
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 200 °C
- Connection type
- Compact flanged
- Control type
- Pneumatically actuated
- Operating environment
- Water, Steam, Oil Products, Liquid Media, Neutral Media, and Gaseous Media
- Type of seal
- PTFE
- Voltage
- 24 V
- Explosion-proof
- have
- Torque
- 176 Nm
- Limit switches
- have
- Type of pneumatic actuator
- double action
- Country of origin
- China
