Description

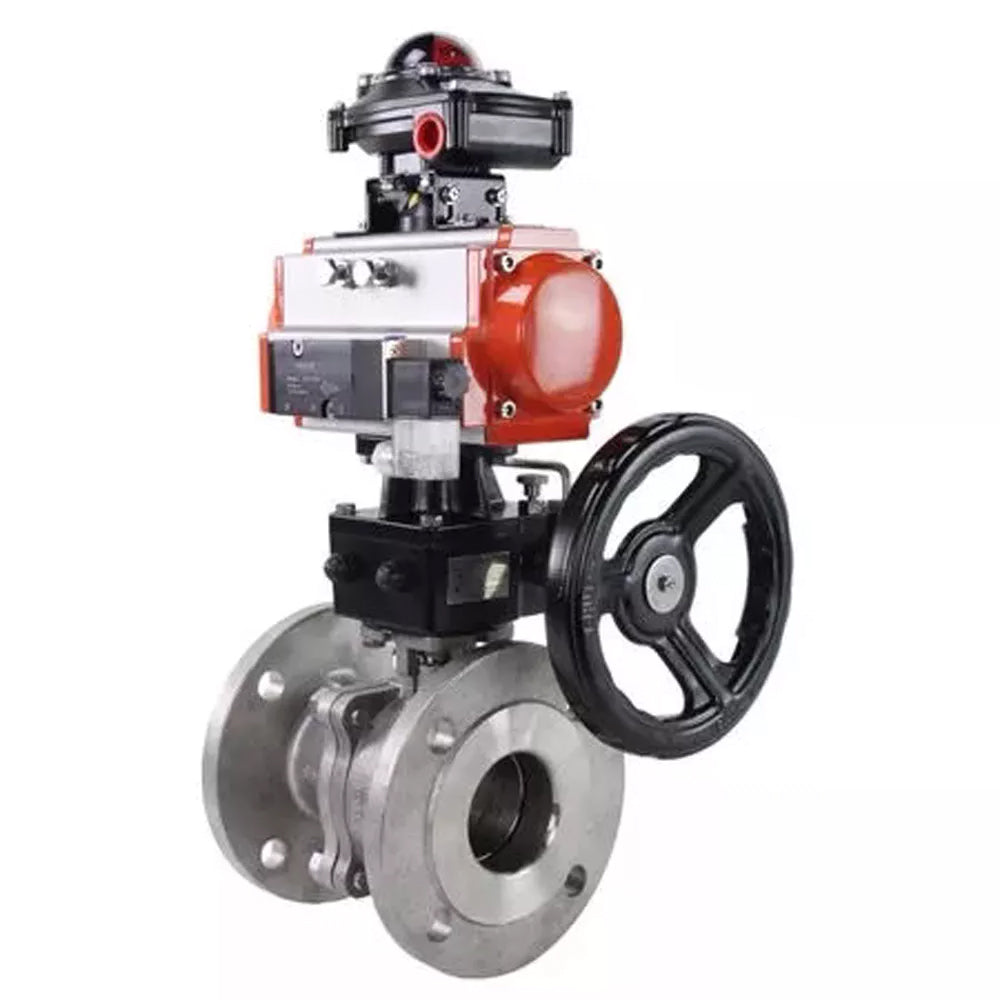

Ball valve DNOVA BV3232P(2pc)-FP-F-ISO-H is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3232P(2pc)-FP-F-ISO-H series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.
Double-acting pneumatic actuator DNOVA PA-DA is designed for automation of control process of industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valve DNOVA 4V320-10 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.
The DNOVA APL-210N limit switch box is an electrical device designed for opening and closing of the working circuit and for visualisation of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
The DNOVA MON manual doubleturn actuator with worm gear and HDM reduction gearbox enables manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
Technical parameters of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual doubler MON:
| Name | Meaning |
| Type of crane device | two-way |
| Application | heat supply |
| Working environment | water, air, steam, industrial water, oil, oil products |
| Connection to the pipeline | flanged |
| Water intake | No |
| Type of flow section | full bore |
| Control type | With pneumatic drive |
| Joining | flanged |
| Control | double acting pneumatic actuator |
| Availability of limit switches | There is |
| Availability of pneumatic distributor | There is |
Sketch of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual override MON
Dimensions and dimensions of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual doubler MON:
| DN | L | D | F | L1 | E | G |
| 15 | 115 | 95 | 98 | 153 | 120 | 77 |
| 20 | 120 | 105 | 98 | 153 | 120 | 77 |
| 25 | 125 | 115 | 115 | 174 | 120 | 77 |
| 32 | 130 | 140 | 115 | 174 | 120 | 77 |
| 40 | 140 | 150 | 115 | 174 | 120 | 77 |
| 50 | 150 | 165 | 135 | 216 | 133 | 77 |
| 65 | 170 | 185 | 135 | 216 | 133 | 77 |
| 80 | 180 | 200 | 135 | 216 | 133 | 77 |
| 100 | 190 | 220 | 160 | 279 | 180 | 77 |
| 125 | 325 | 250 | 210 | 405 | 195 | 77 |
| 150 | 350 | 285 | 210 | 405 | 195 | 77 |
| 200 | 400 | 340 | 237 | 465 | 195 | 77 |
Detail and material sketch of ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H
Table of parts and materials for ball valves DNOVA BV3232P(2pc)-FP-F-ISO-H:
| Item No. | Name of parts | Material |
| 1 | Frame | CF8M (analogue of AISI 316 steel) |
| 2 | Ball | Stainless steel SS316 |
| 3 | Bolt | stainless steel |
| 4 | Thrust washer | PTFE |
| 5 | Stock | Stainless steel SS316 |
| 6 | Flange element (2 pcs) | CF8M (analogue of AISI 316 steel) |
| 7 | Ball seal (2 pcs) | PTFE |
Technical parameters of the PA-DA double-acting pneumatic actuator:
| Name | Meaning |
| Model | PA-DA |
| Design | double acting |
| Control pressure, bar | 2 ÷ 8 |
| Availability of manual backup | steering wheel |
Sketch of parts and materials of DNOVA PA-DA double-acting pneumatic actuator
Parts and materials table for double-acting pneumatic actuator DNOVA PA-DA:
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Technical parameters of the DNOVA 4V320-10 220V pneumatic valve
| Name | Meaning |
| Type of pneumatic distributor | spool valve |
| Model of pneumatic distributor | 4V320-10 220V |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Response frequency, cycles/sec | 5 |
Limit switch unit DNOVA APL-210N
Technical parameters of limit switch unit DNOVA APL-210N
| Name | Meaning |
| Limit switch block model | APL-210N |
| Ambient temperature, °C | from -20 to 210 |
| Service life, years | 10 |
Table of parts and materials of the limit switch unit DNOVA APL-210N:
| No. | Name | Material |
| 1 | Frame | cast aluminum |
| 2 | Indicator cap | polyester plastic |
| 3 | 3D indicator | ABC plastic |
| 4 | Cam | polyester plastic |
| 5 | Spring | stainless steel |
| 6 | Screws | stainless steel |
| 7 | Sealing rings | NBR |
| 8 | Sleeve | bronze |
| 9 | Ground terminal | stainless steel |
| 10 | Shaft | stainless steel |
Sketch of the DNOVA MON handwheel.
Technical parameters of DNOVA MON handwheels:
| Name | Meaning |
| Degree of protection, IP | 67 |
| Connection type | ISO 5211 |
Sketch of parts and materials for the DNOVA MON handwheel.
Parts and materials table for the DNOVA MON handwheel:
| No. | Name | Material |
| 1 | Rod for mounting a pneumatic actuator | Steel 45 |
| 2 | Sealing ring | EPDM |
| 3 | Locking spring | Spring steel |
| 4 | Top end cap | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Fixing bracket (main rod) | Steel 304 |
| 7 | Frame | Aluminum alloy |
| 8 | Sealing ring | EPDM |
| 9 | Reducer | Cast iron VCh50 |
| 10 | Transition coupling | Cast iron VCh40 |
| 11 | Gearbox rod | Cast iron VCh40 |
