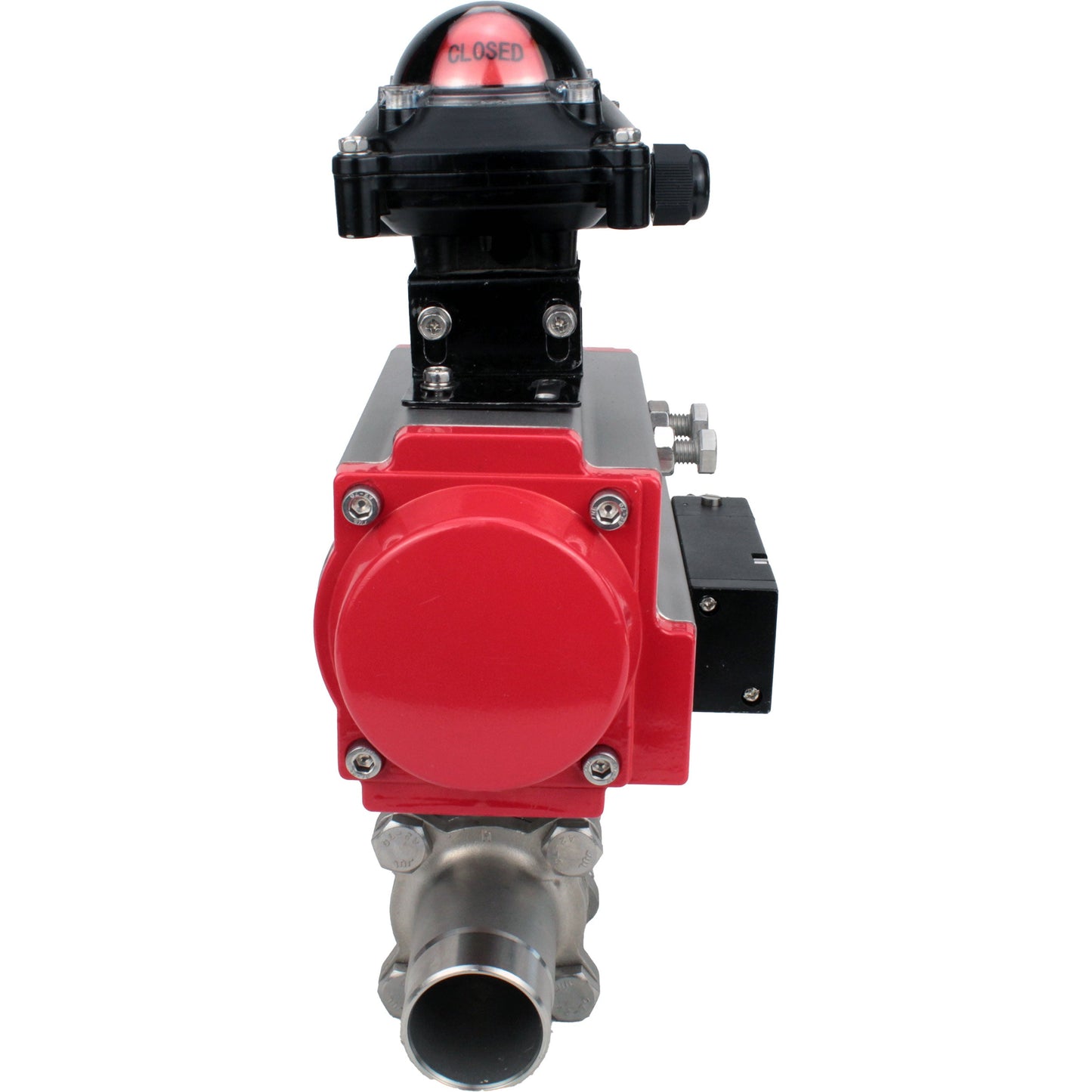

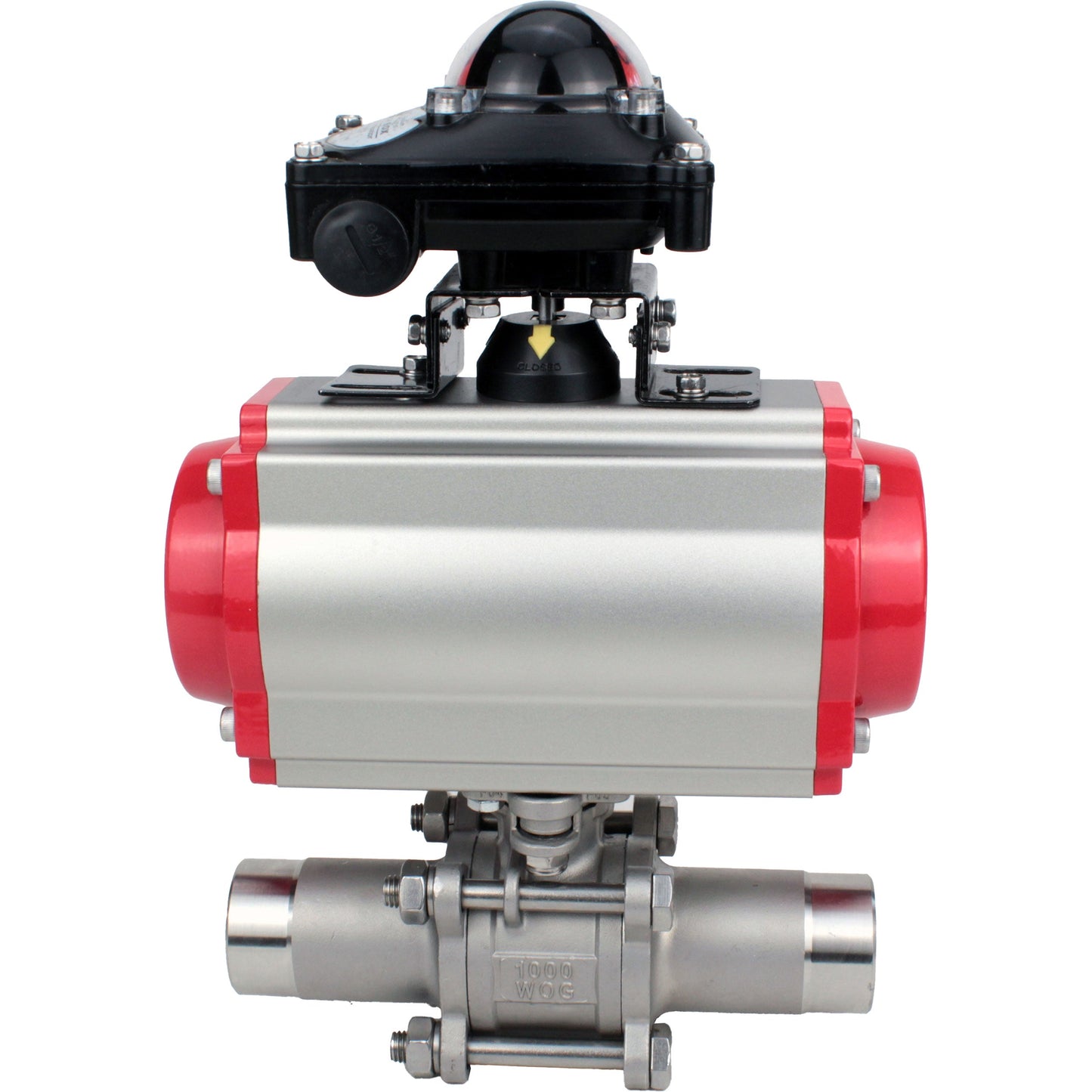

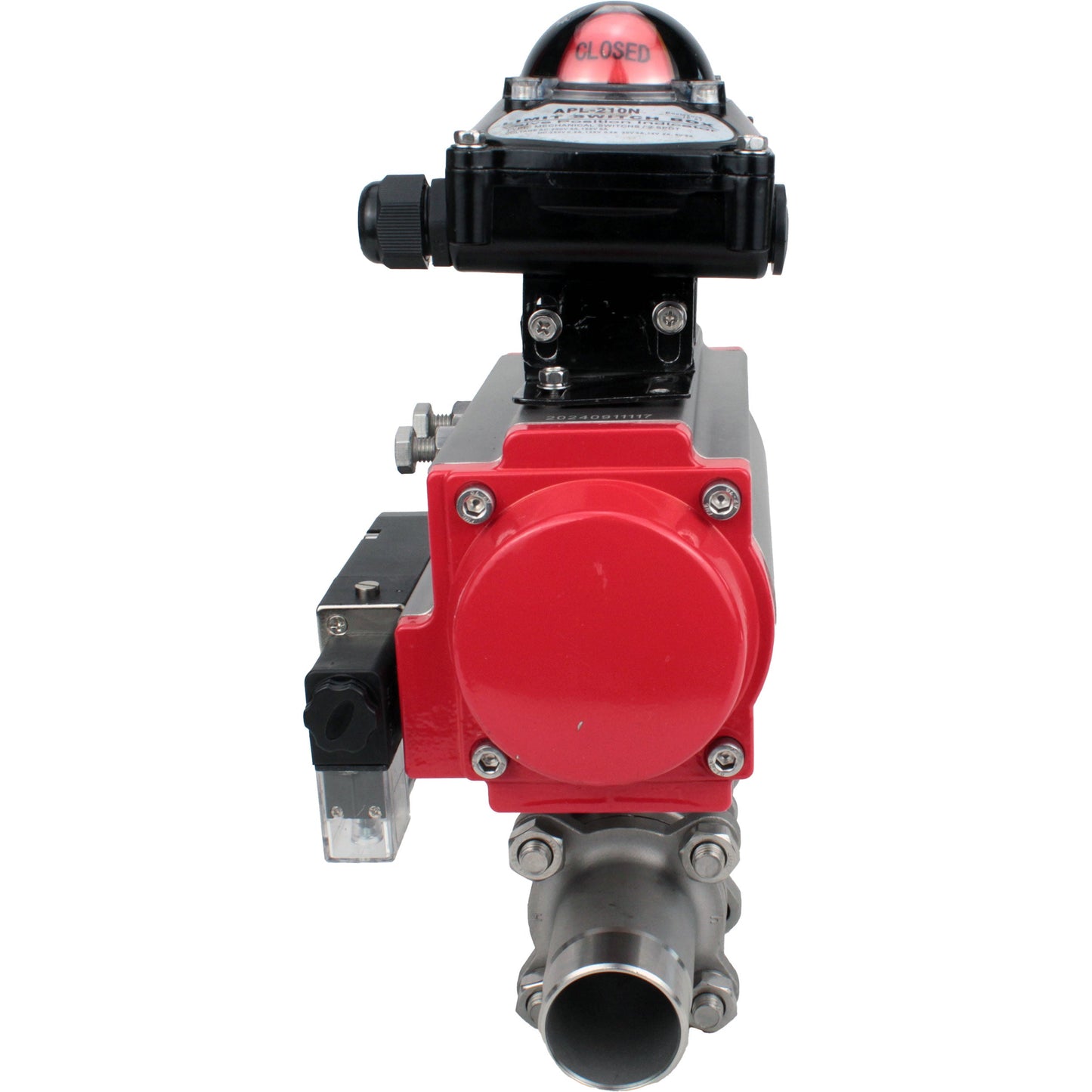

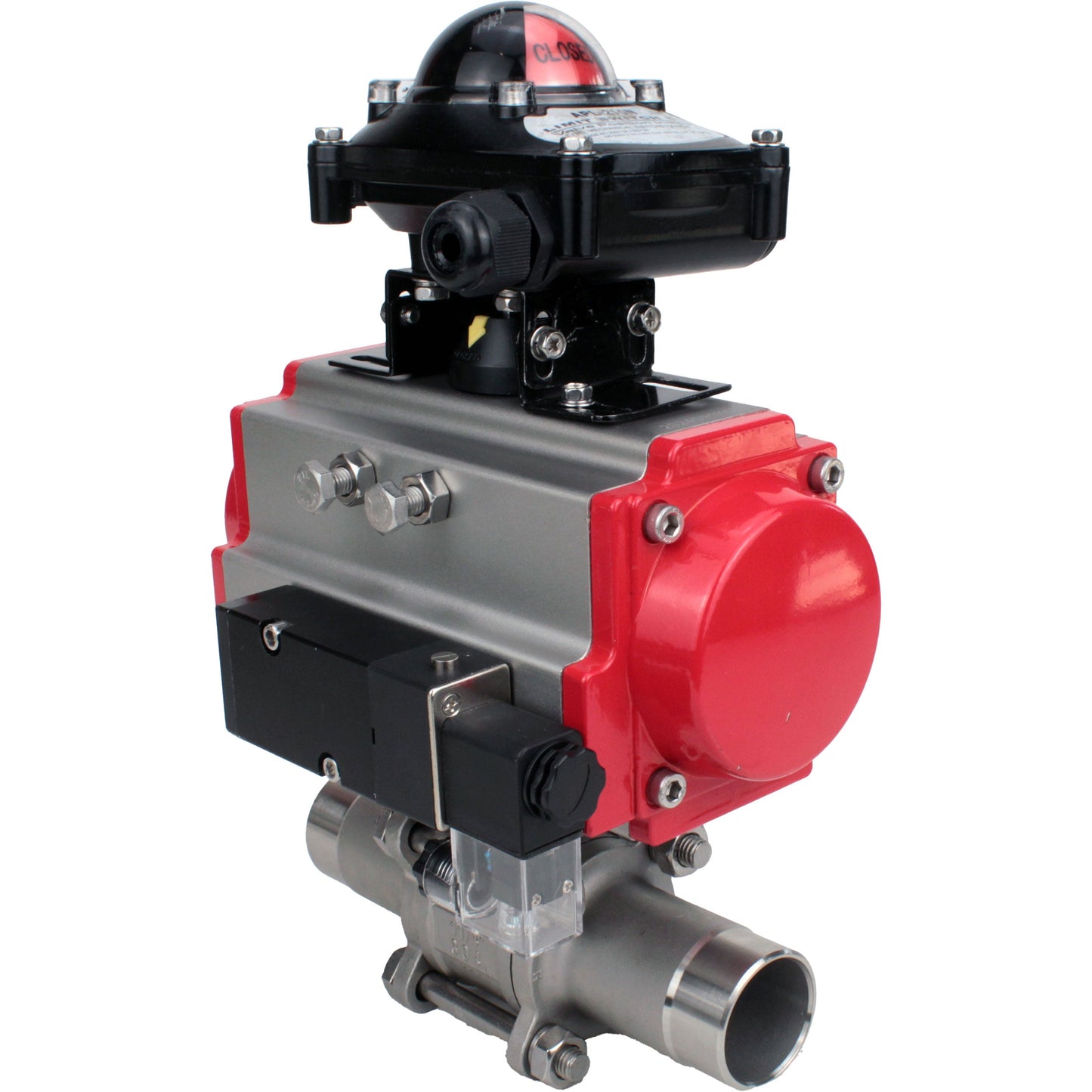

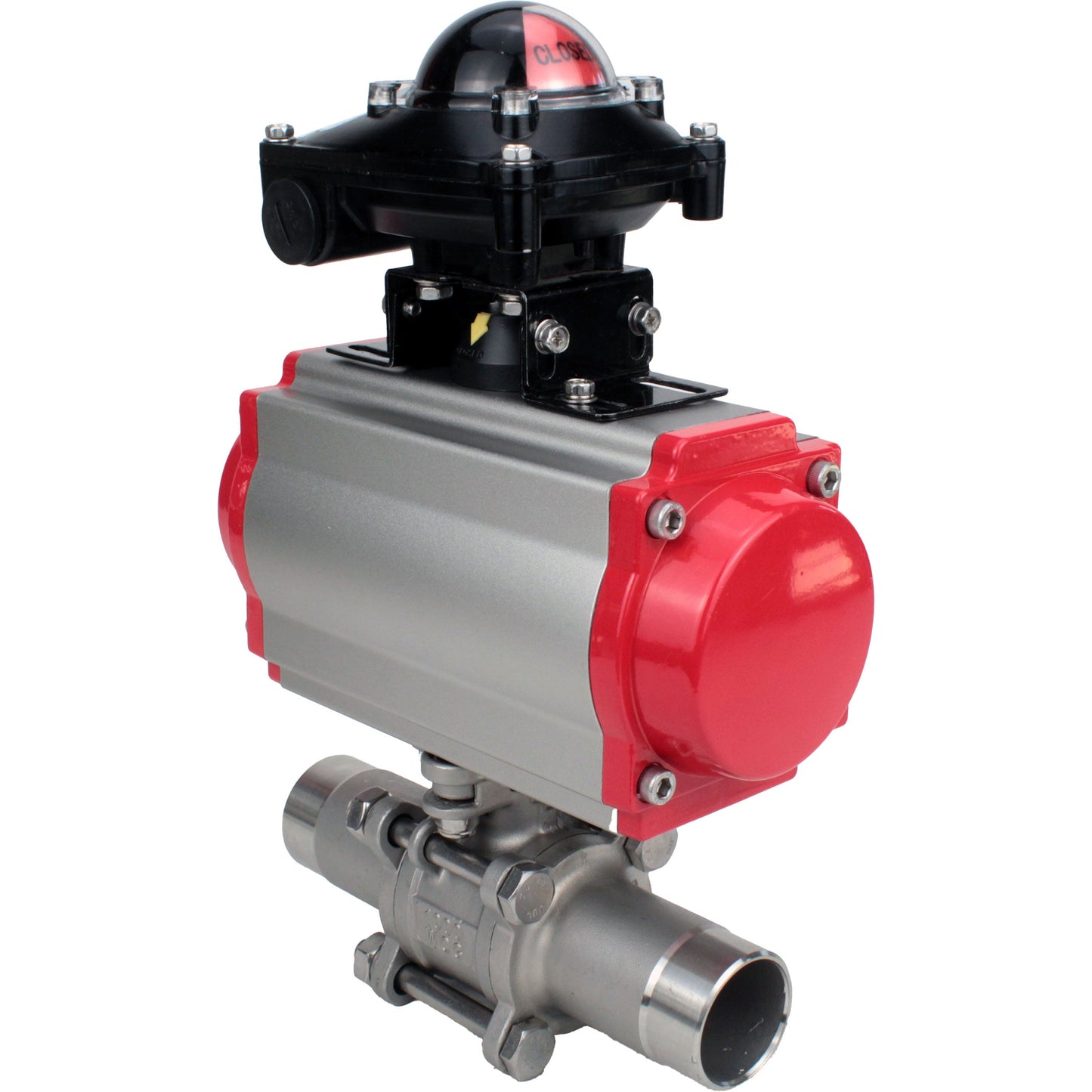

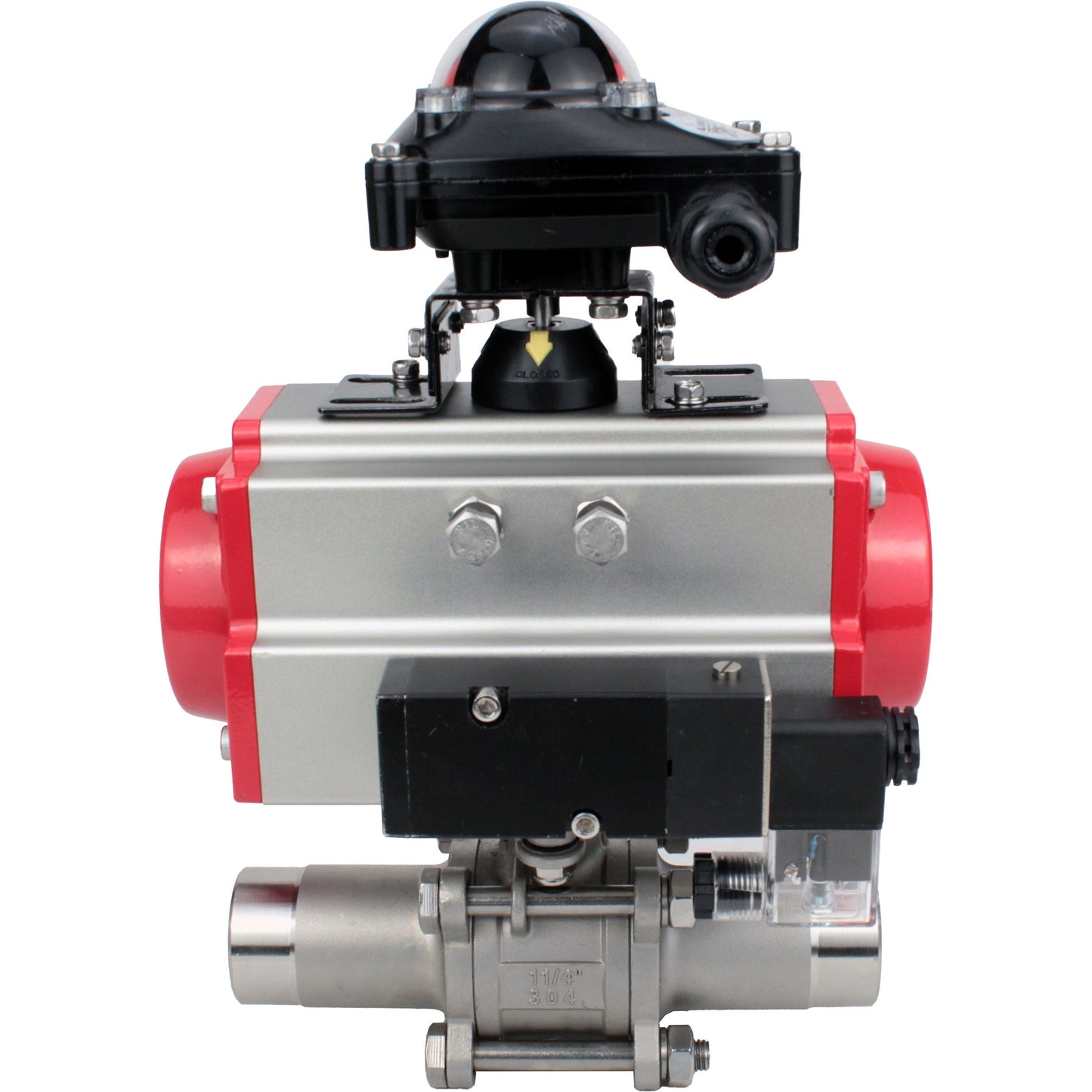

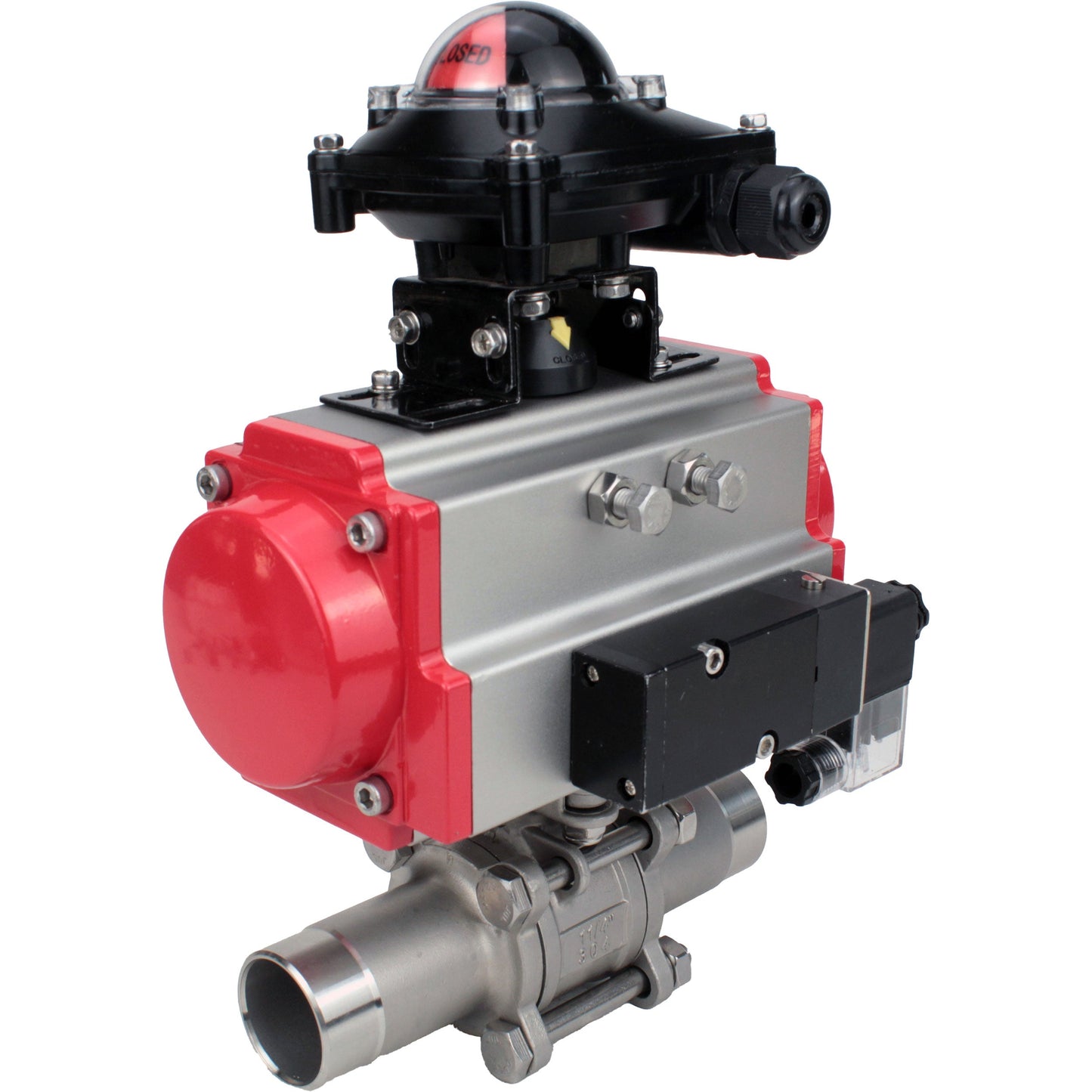

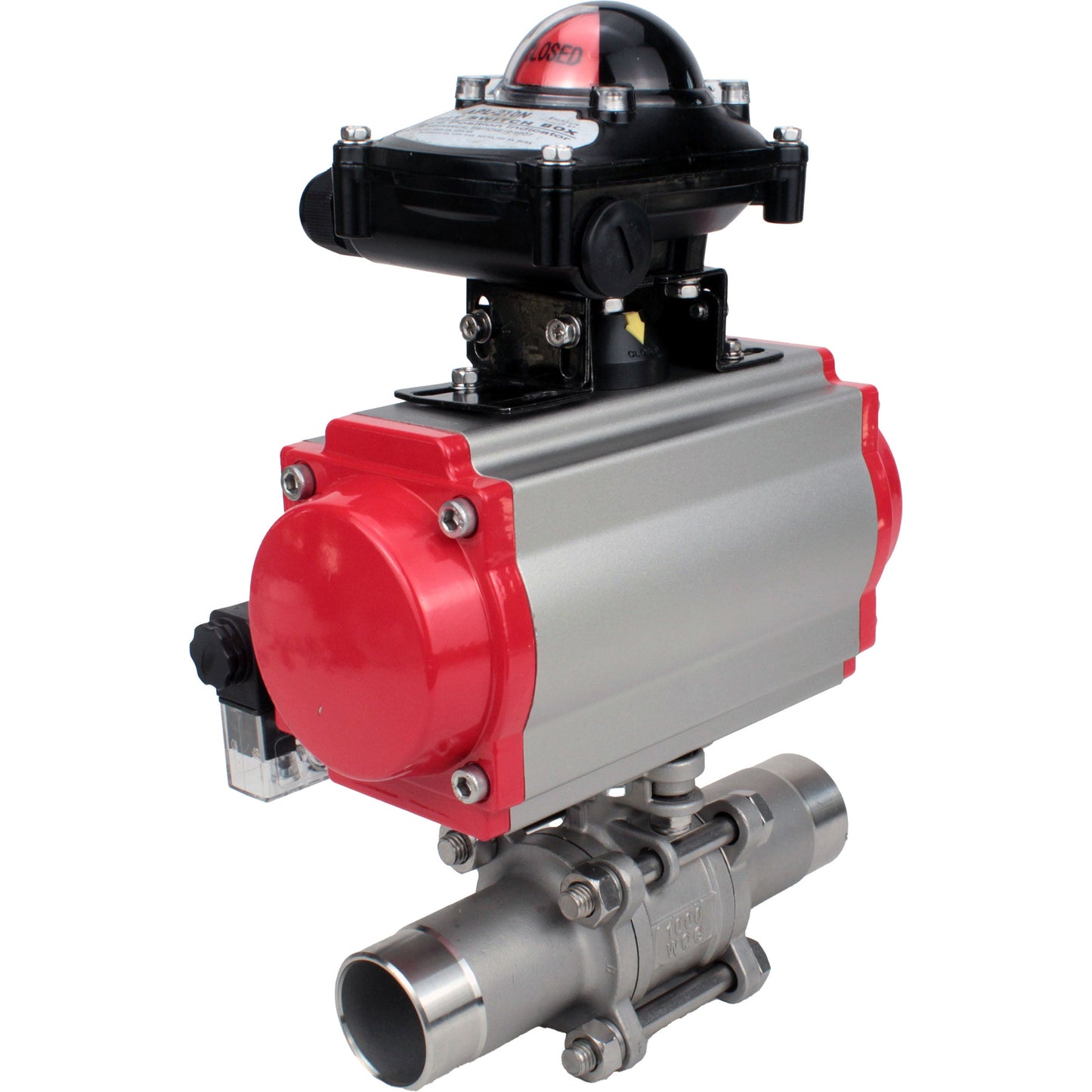

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Pneumatic DNOVA rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| Name | Value |
|---|---|
| Operating medium temperature, °C | from -20 to 180 |
| Valve type | two-way |
| Application | water supply, heating, industry |
| Working medium | water, steam, petroleum products, neutral media, gaseous media |
| Pipeline connection | weld-on |
| Water dispensing | no |
| Bore type | full bore |
| Sealing class | A |
| Control type | with pneumatic actuator |
| Connection | weld-on |
| Control | pneumatic actuator with return springs |
| End position switches | yes |
| Pneumatic distributor presence | yes |
| Electro-pneumatic positioner presence | no |
| Average service life, years | 5 |
| Warranty, years | 1 |
| Country of origin | China |
Dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| DN | d, mm | D, mm | B, mm | H, mm | L, mm | E, mm |
| 10 | 12 | 17,2 | 2,1 | 50 | 130 | 120 |
| 15 | 15 | 21,3 | 2,1 | 55 | 150 | 120 |
| 20 | 20 | 26,9 | 2,1 | 66 | 155 | 135 |
| 25 | 25 | 33,7 | 2,8 | 71 | 186 | 160 |
| 32 | 32 | 42,4 | 2,8 | 81 | 195 | 170 |
| 40 | 38 | 48,3 | 2,8 | 87 | 231 | 190 |
| 50 | 50 | 60,3 | 2,8 | 91 | 243 | 220 |
| 65 | 64 | 76,1 | 3,0 | 119 | 290 | 280 |
| 80 | 76 | 88,9 | 3,0 | 125 | 302 | 280 |
| 100 | 100 | 114,3 | 3,0 | 159 | 326 | 330 |
| 100 | 100 | 114,3 | 3,0 | 159 | 326 | 330 |
| 125 | 125 | 141,3 | 3,4 | 186 | 360 | 330 |
| 150 | 150 | 168,3 | 3,4 | 207 | 390 | 330 |
Sketch dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
Table of parts and materials for ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel 304 |
| 2 | Side element (2 pcs) | Stainless steel 304 |
| 3 | Ball | Stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Stem seal | PTFE |
| 6 | Bushing | Stainless steel 304 |
| 7 | Stem | Stainless steel 304 |
| 8 | Washer | Stainless steel |
| 9 | Nut | Steel A2-70 |
| 10 | Bolt | Steel A2-70 |
Parts and materials sketch for ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
Technical data of SA pneumatic actuators with return springs:
| Type of pneumatic actuator | SA - with return springs |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, °C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
SA pneumatic actuators rotary with return springs
Dimensions and mounting dimensions of SA pneumatic actuators with return springs:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| PA-x-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| PA-x-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| PA-x-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| PA-x-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| PA-x-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| PA-x-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| PA-x-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| PA-x 210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| PA-x-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| PA-x-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| PA-x-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| PA-x-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| PA-x-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| PA-x-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| PA-x-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| PA-x-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| PA-x-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| PA-x-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| PA-x 210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| PA-x-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| PA-x-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| PA-x-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
Sketch of dimensions of SA pneumatic actuators with return springs
Materials of parts of SA pneumatic actuators with return springs:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of SA pneumatic actuators with return springs
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Technical parameters of limit switch unit DNOVA APL-210N
| Name | Value |
|---|---|
| Limit switch box model | APL-210N |
| Service life, years | 10 |
Dimensions and dimensions of limit switch unit DNOVA APL-210N
| Model | APL-210N |
| H, mm | 77 |
| L, mm | 112 |
| B, mm | 88 |
| D, mm | 10 |
| D1, mm | 5 |
| M, mm | 20x1.5 |
Sketch of dimensions and dimensions of limit switch unit DNOVA APL-210N
- Body material
- Stainless steel AISI 304
- Maximum allowable temperature
- #ИМЯ?
- Connection type
- For welding
- Control type
- Pneumatically actuated
- Operating environment
- Water, Steam, Petroleum Products, Neutral Media, and Gaseous Media
- Applications
- Water Supply
- Type of seal
- PTFE
- Voltage
- 220V
- Explosion-proof
- No
- Torque
- 3 Nm
- Limit switches
- Yes
- Actuator model
- PA-SA-052-10
- Country of origin
- China
