How it works
Electric quarter-turn actuator
Two-way ball valve
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Petroleum Products
- Neutral Media
- Gaseous Media
- Water Supply
The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.
Explosion-proof quarter-turn electric actuators are designed for remote and local control of the rotation of a shut-off element by 0° ~ 270° of such types as a ball valve, etc. They are widely used in various sectors of the national economy: in the gas, oil, metallurgy, food industries, in housing and communal services, etc. They are suitable for use in industrial explosion-hazardous areas.

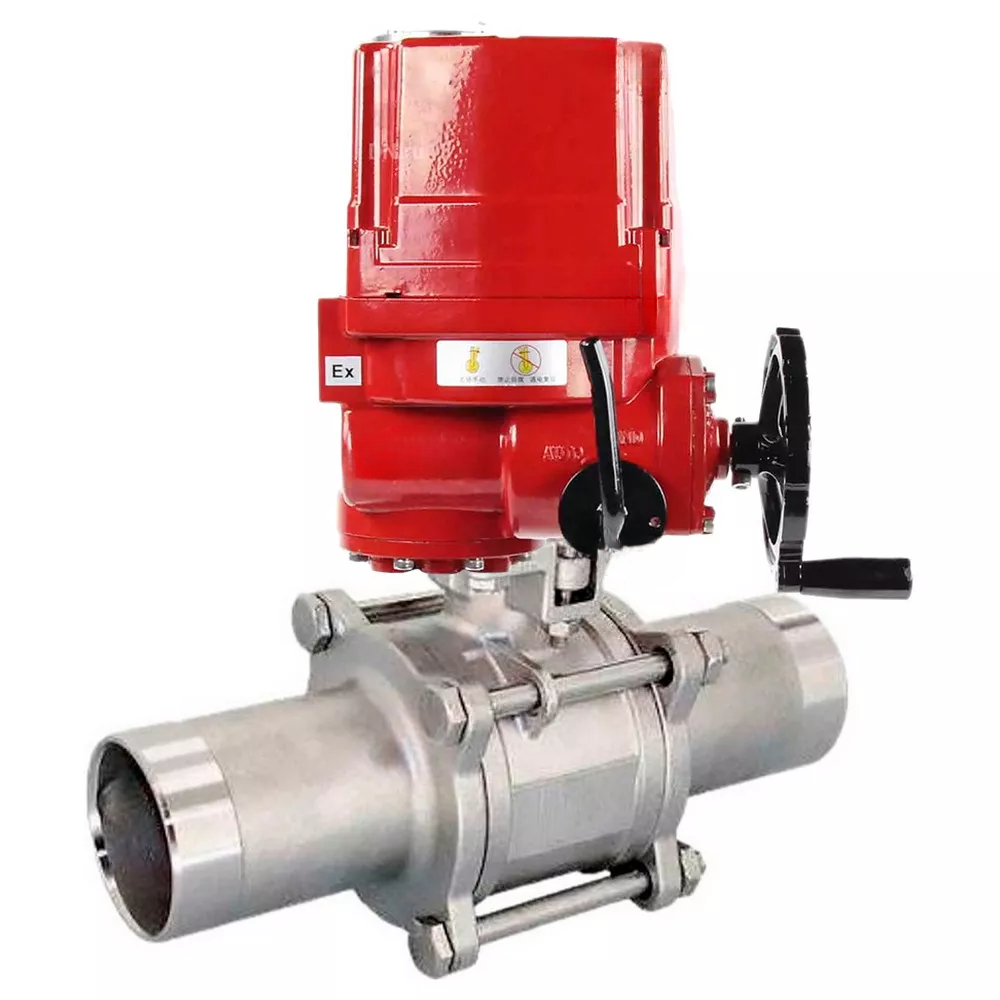

Technical characteristics of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-220VAC-U1 220V
| Name | Meaning |
| Connection type | for welding |
| Control type | With electric drive |
| Application | water supply, heat supply, industry |
| Crane ball passage | full bore |
| Climate performance | U1 |
| Working environment temperature, °C | from -20 to 180 |
| Joining | for welding |
| Control | Electric drive 220V |
| Sealing class | A |
| Water intake | No |
| Type of crane device | two-way |
| Working medium | water, steam, petroleum products, neutral media, gaseous media |
| Warranty, g. | 1 |
| Service life, years | 5 |
Sketch of overall dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-220VAC-U1 220V
Dimensions and sizes of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-220VAC-U1 220V
| Model | L, mm | L1, mm | H, mm |
| DN10 | 130 | 255 | 265 |
| DN15 | 150 | 255 | 265 |
| DN20 | 155 | 255 | 265 |
| DN25 | 186 | 255 | 265 |
| DN32 | 195 | 255 | 265 |
| DN40 | 231 | 255 | 265 |
| DN50 | 243 | 255 | 265 |
| DN65 | 290 | 280 | 270 |
| DN80 | 302 | 280 | 270 |
| DN100 | 326 | 310 | 310 |
| DN125 | 360 | 310 | 310 |
Sketch of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-220VAC-U1 220V
Table of parts and materials of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304, welded, with 1/4-turn explosion-proof electric drive DNOVA QT-EX-EM-O2-220VAC-U1 220V
| Item No. | Part name | Material |
| 1 | Frame | stainless steel 304 |
| 2 | Side element (2 pcs) | stainless steel 304 |
| 3 | Ball | stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Rod seal | PTFE |
| 6 | Sleeve | stainless steel 304 |
| 7 | Stock | stainless steel 304 |
| 8 | Washer | stainless steel |
| 9 | screw | steel A2-70 |
| 10 | Bolt | steel A2-70 |
Electric drives DNOVA
Technical parameters of electric drives:
| Name | Meaning |
| Supply voltage | 220V |
| Ambient temperature | from -20°C to 60°C |
| Availability of manual backup | steering wheel |
| Limit switches | There is |
| Degree of protection of the case | IP67 |
Sketch of dimensions and sizes of electric drives
Dimensions and sizes of electric drives:
| Model | L | L1 | H |
| EX-010EM | 240 | 68 | 270 |
| EX-015EM | 240 | 68 | 270 |
| EX-020EM | 260 | 75 | 280 |
| EX-030EM | 290 | 82 | 320 |
| EX-050EM | 290 | 82 | 320 |
| EX-080EM | 333 | 82 | 320 |
| EX-100EM | 333 | 93 | 350 |
| EX-160EM | 333 | 93 | 350 |
| EX-200EM | 333 | 93 | 350 |
Electric drive device:
| Item No. | Details | Material |
| 1 | Drive casing | Aluminum |
| 2,23,33,38,40,64 | Shaft | Steel 45 |
| 3,39,46,48,51,66 | Sealing ring | Oil resistant rubber |
| 4.27 | bracket | Steel Q235 |
| 5 | Insulation gasket | Textolite |
| 6,9,16 | Bracket mounting screw | Steel 1Cr18Ni9Ti |
| 7.1 | Plate | Steel Q235 |
| 8 | Screw plug | Aluminum |
| 11,14 | Limit switch cam | Steel Q235 |
| 12,13 | Limit switch group | XK06-101-2530 |
| 15.32 | Sleeve | Brass H62 |
| 16,30,35,41,44,61 | Screw | Steel 1Cr18Ni9Ti |
| 17,18 | Disk | Steel Q235 |
| 19 | Mechanical limiting cam | Steel Q235 |
| 20 | Drive casing | Aluminum |
| 21.25 | Mounting screw | Steel 35 |
| 22 | Sight glass seal | Steel 1Cr18Ni9Ti |
| 24 | Indication plate | Aluminum |
| 26 | Capacitor | CEM 2GR 220nJ |
| 28 | Terminal block | 1Pcs T |
| 29 | Heating element | NTA-1/005 |
| 31,36 | Washer | Stainless steel |
| 34 | Through cover | MHQ50 |
| 37,39 | Lock washer, sealing ring | Steel 1Cr18Ni9Ti |
| 42 | Torque switch group | XK06-101-2530 |
| 43,48 | Torque switch mechanism | Steel Q235 |
| 45 | Flywheel cover | Aluminum |
| 47.69 | First stage gear | Zinc alloy ZQAL10-5-5 |
| 49 | Limit screw | Steel 35 |
| 50 | Hairpin | Steel 1Cr18Ni9Ti |
| 52 | Clutch handle | Steel 45 |
| 53 | Fork block | Aluminum |
| 54 | Thrust washer | Zinc alloy |
| 55,56 | Separator fork | Zinc alloy ZQAL10-5-5 |
| 57 | Retaining ring | Steel 1Cr18Ni9Ti |
| 58.6 | Disk, main gear | Zinc alloy ZQAL10-5-5 |
| 59.68 | Second and first stage worm | Steel 40Cr |
| 62,67 | Seal | Aluminum |
| 63 | Motor | - |
| 65 | Clutch | Steel ZG20 |
- Body material
- Stainless steel AISI 304
- Maximum allowable temperature
- #ИМЯ?
- Connection type
- For welding
- Control type
- Electrically driven
- Operating environment
- Water, Steam, Petroleum Products, Neutral Media, and Gaseous Media
- Applications
- Water Supply
- Type of seal
- PTFE
- Voltage
- 220V
- Explosion-proof
- Yes
- Torque
- 3 Nm
- Limit switches
- Yes
- Actuator model
- QT-EX-010EM-O2-220VAC-U1
- Country of origin
- China
