Description
The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
DNOVA pneumatic double-acting rotary actuators PA-DA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The worm gear manual doubleturn actuator with reduction gear allows the manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
The air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure value at a preset level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.

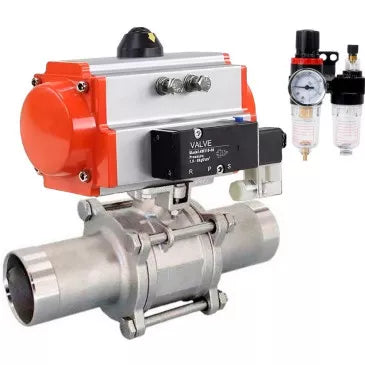

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| Name | Value |
|---|---|
| Operating medium temperature, °C | from -20 to 180 |
| Valve type | Two-way |
| Application | Water supply, heating, industry |
| Working medium | Water, steam, petroleum products, neutral media, gaseous media |
| Pipeline connection | Welded |
| Water dispensing | No |
| Flow section type | Full bore |
| Control type | With pneumatic actuator |
| Connection | Welded |
| Control | Double-acting pneumatic actuator |
| Limit switches | No |
| Pneumatic distributor | Yes |
| Electropneumatic positioner | No |
| Average service life, years | 5 |
| Warranty, years | 1 |
| Country of manufacture | China |
Dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| DN | L | A | E | I | B | C |
| 10 | 130 | 147 | 92 | 162 | 88 | 139 |
| 15 | 150 | 147 | 92 | 162 | 88 | 139 |
| 20 | 155 | 168 | 108 | 162 | 88 | 139 |
| 25 | 186 | 204 | 128.7 | 162 | 88 | 139 |
| 32 | 195 | 147 | 92 | 162 | 88 | 139 |
| 40 | 231 | 168 | 108 | 162 | 88 | 139 |
| 50 | 243 | 204 | 128.7 | 162 | 88 | 139 |
| 65 | 290 | 204 | 128.7 | 162 | 88 | 139 |
| 80 | 302 | 204 | 128.7 | 162 | 88 | 139 |
| 100 | 326 | 268 | 153 | 162 | 88 | 139 |
| 125 | 360 | 301 | 185 | 162 | 88 | 139 |
| 150 | 390 | 390 | 202 | 162 | 88 | 139 |
Sketch dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
Table of parts and materials for ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
| № | Part Name | Material |
|---|---|---|
| 1 | Body | Stainless steel 304 |
| 2 | Side element (2 pcs) | Stainless steel 304 |
| 3 | Ball | Stainless steel 304 |
| 4 | Ball seal | PTFE |
| 5 | Stem seal | PTFE |
| 6 | Bushing | Stainless steel 304 |
| 7 | Stem | Stainless steel 304 |
| 8 | Washer | Stainless steel |
| 9 | Nut | Steel A2-70 |
| 10 | Bolt | Steel A2-70 |
Parts and materials sketch for ball valves BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304
Technical data of DA double-acting pneumatic actuators:
| Type of pneumatic actuator | DA - double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, ⁰C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
| DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
| DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
| DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
| DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
| DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
| DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
| DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
| DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
| DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
| DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Technical parameters of pneumatic valve DNOVA 4M310-08 220V
| Name | Value |
|---|---|
| Pneumatic distributor type | Spool |
| Pneumatic distributor model | 4M310-08 220V |
| Operating pressure, bar | 1.5 ÷ 1.8 |
| Supply voltage, V | 220V |
| Switching frequency, cycles/sec | 5 |
Dimensions and dimensions of DNOVA 4M310-08 220V pneumatic directional control valve
| Name | Value |
|---|---|
| Pneumatic distributor model | 4M310-08 |
| D, mm | 32 |
| E, mm | 69 |
| F, mm | 40 |
| I, mm | 45 |
| K, mm | 40 |
| L, mm | 134.5 |
| M, mm | 40 |
| N, mm | 24 |
| S, mm | 27 |
| U, mm | 2.4 |
| H, mm | 17.5 |
Sketch of dimensions and dimensions of pneumatic valve DNOVA 4M310-08 220V
Technical parameters of DNOVA AFC2000 air treatment unit
| Name | Value |
|---|---|
| Operating pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Filtered particle size, µm | 40 µm |
| Weight, kg | 0.395 |
Dimensions and dimensions of DNOVA AFC2000 air treatment unit
| Model | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Sketch of dimensions and dimensions of DNOVA AFC2000 air treatment unit
