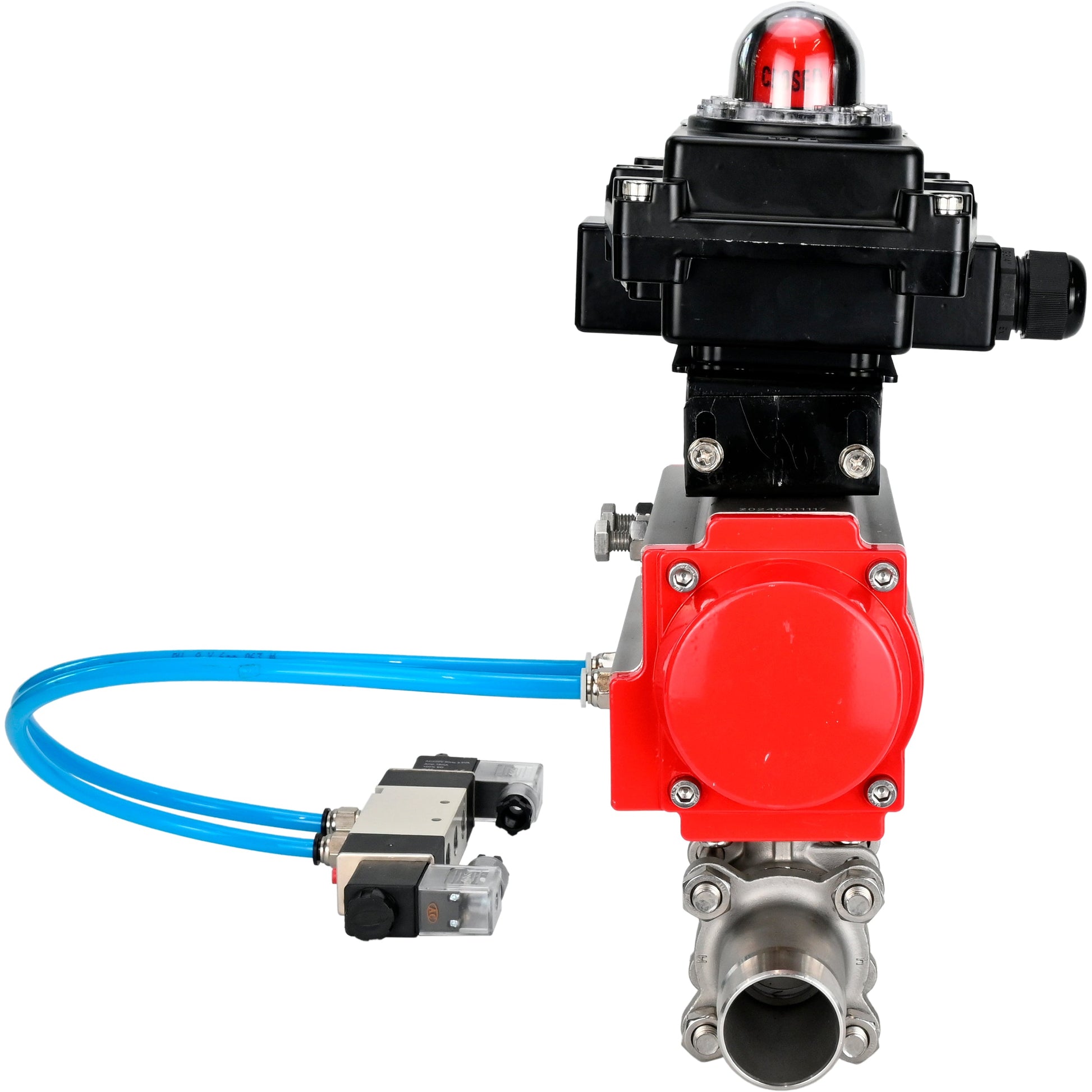

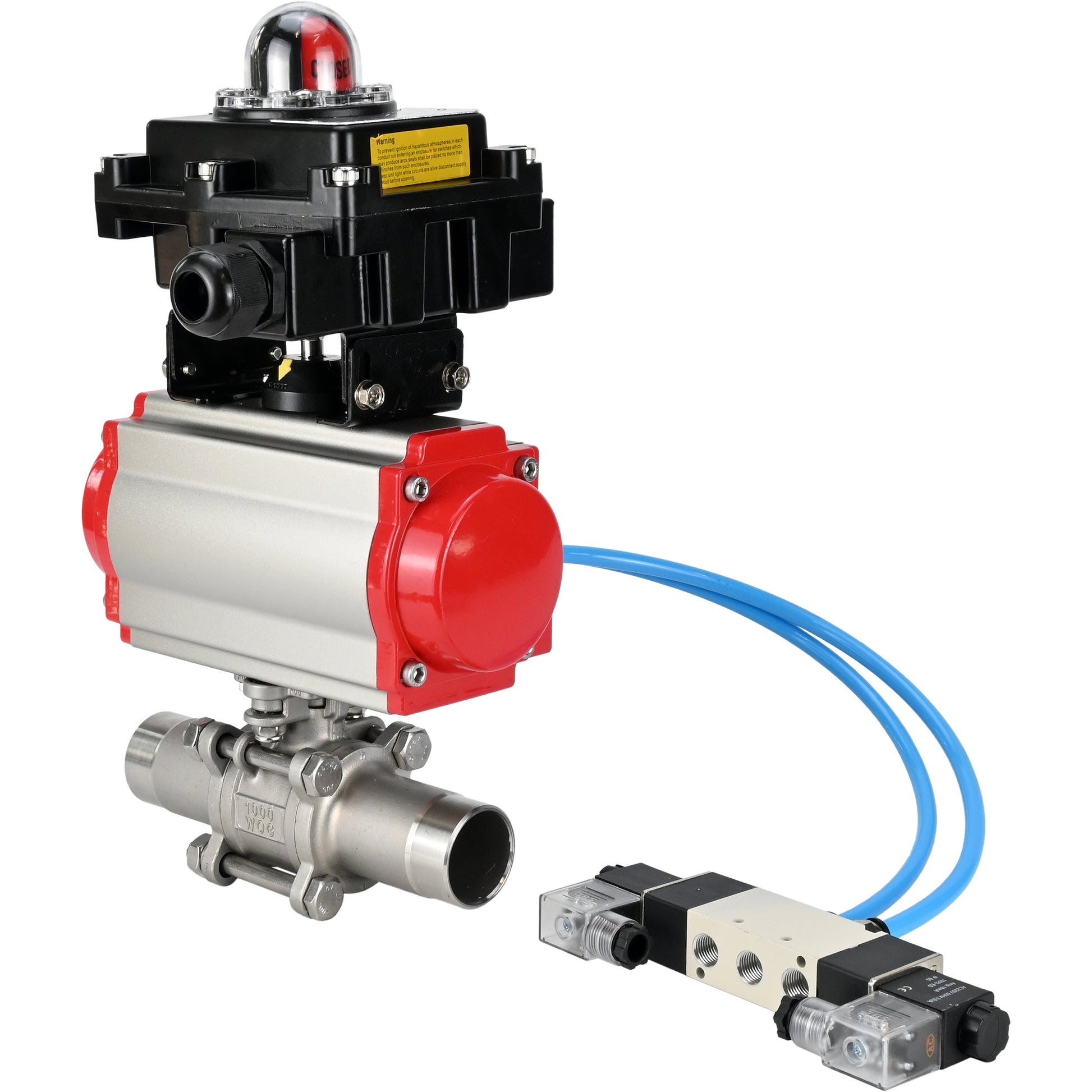

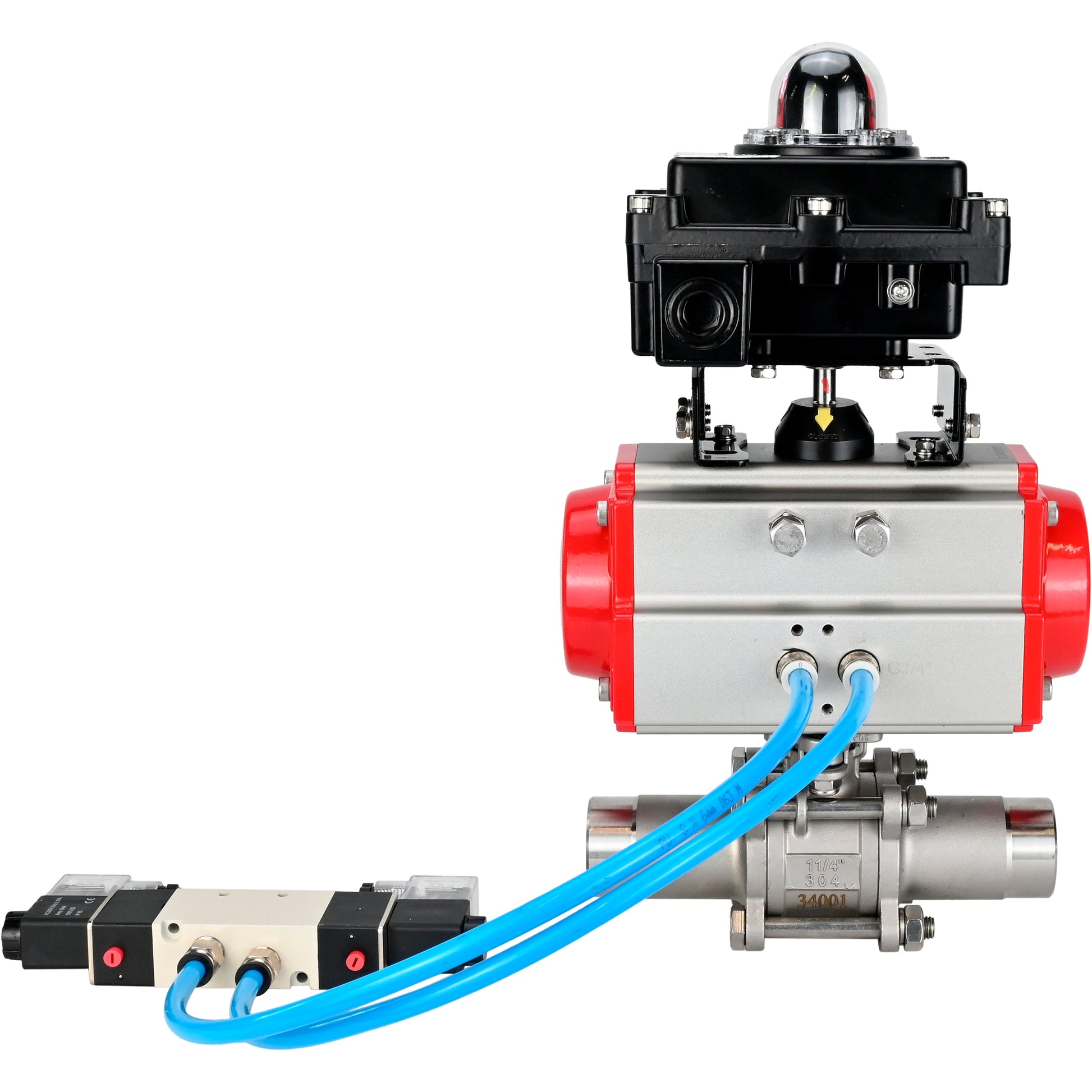

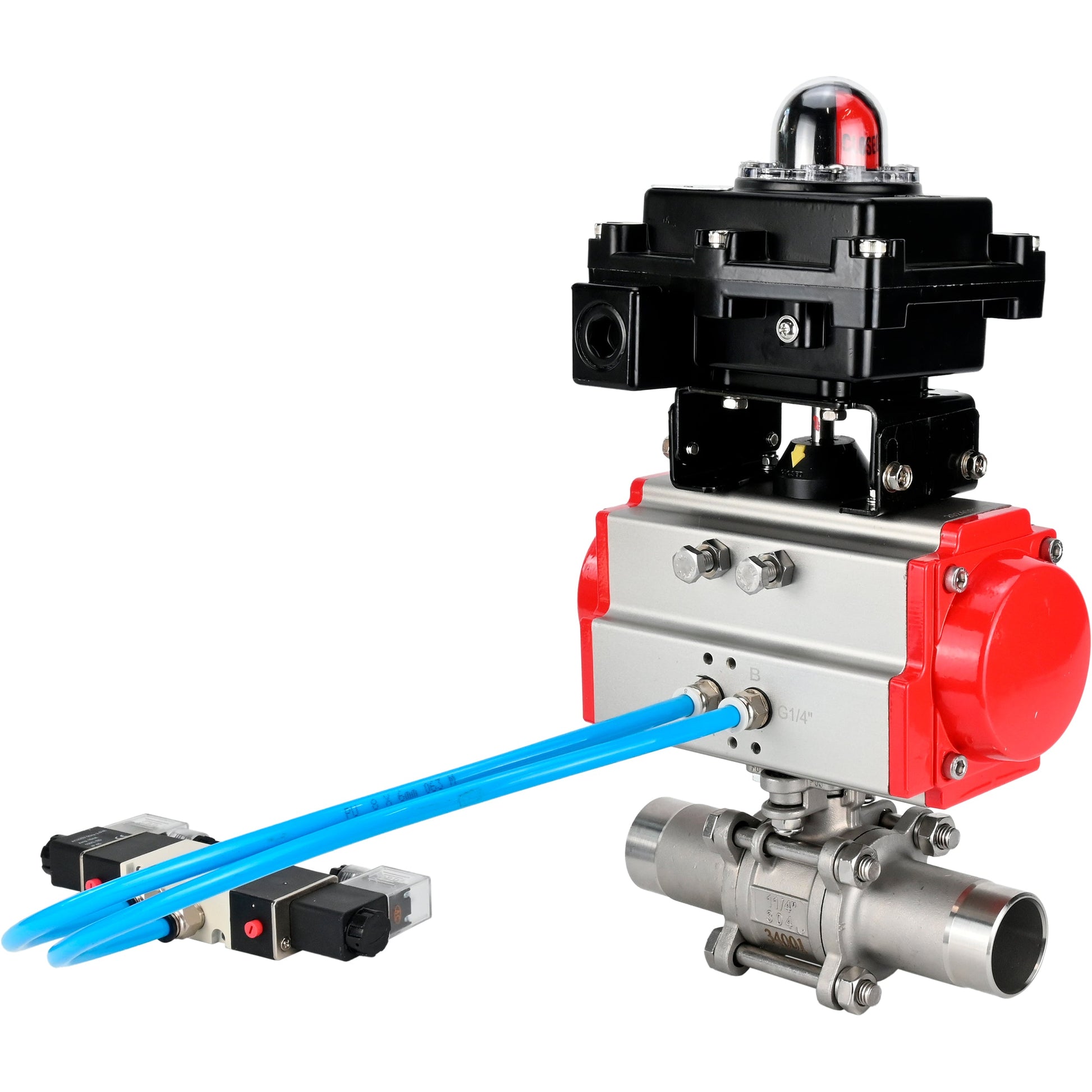

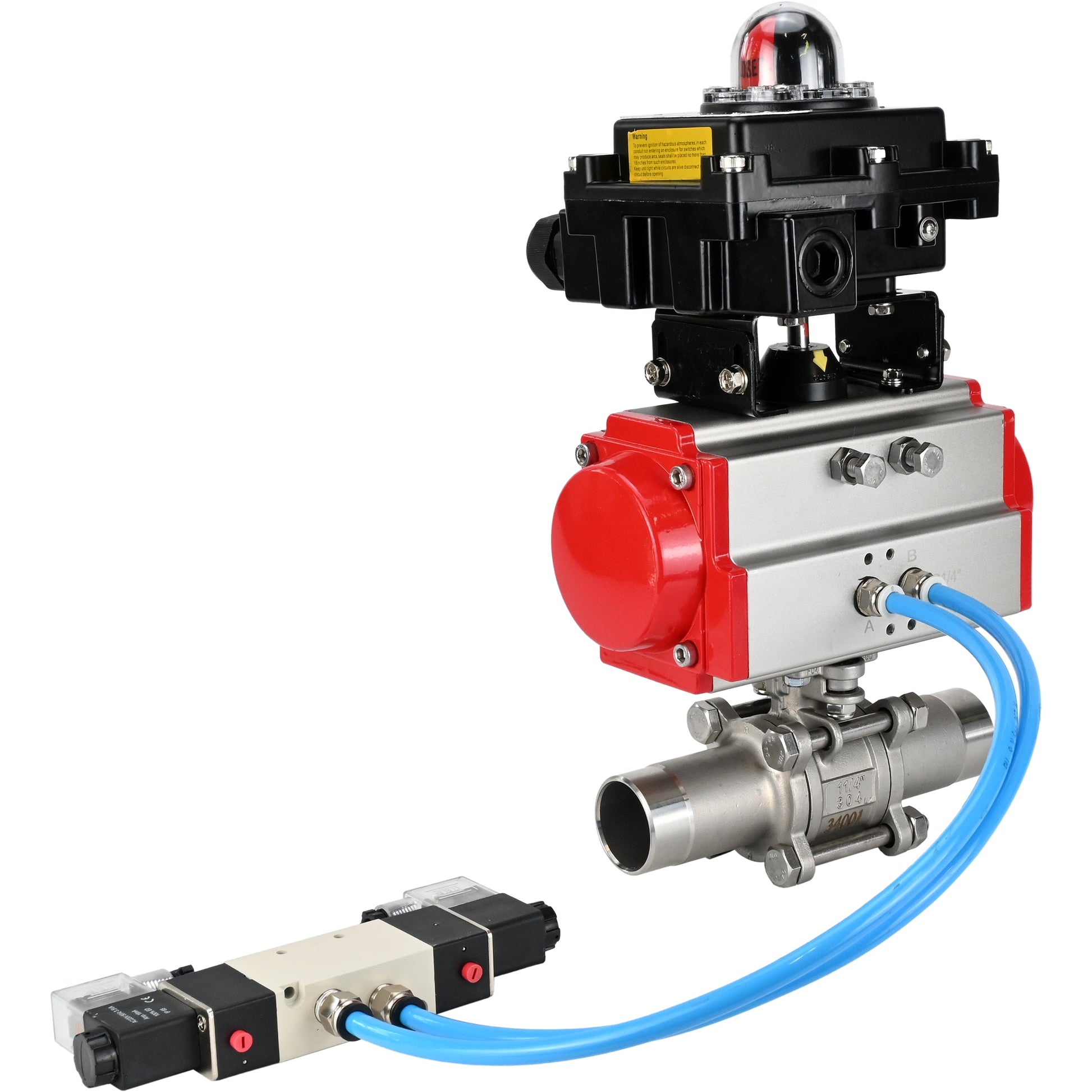

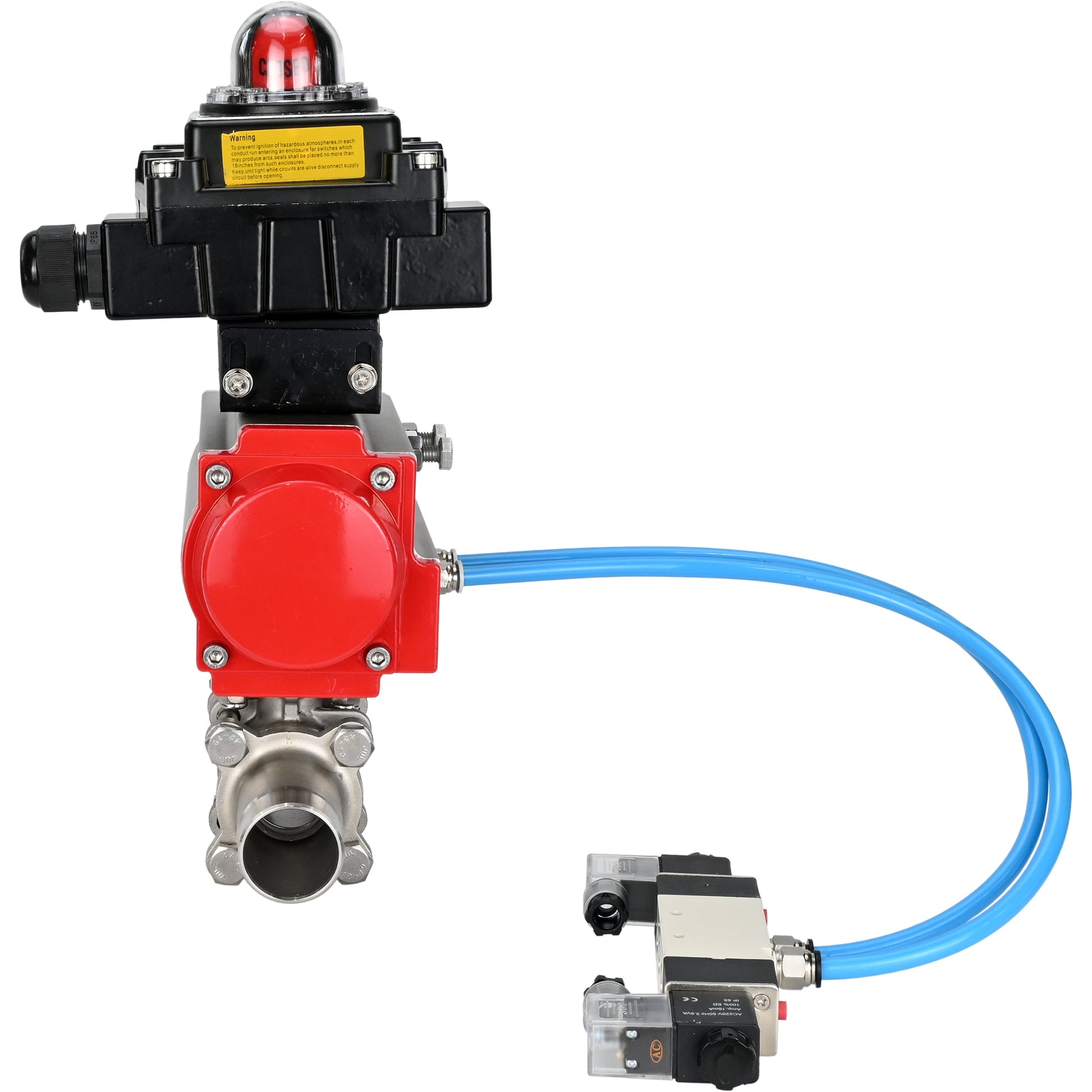

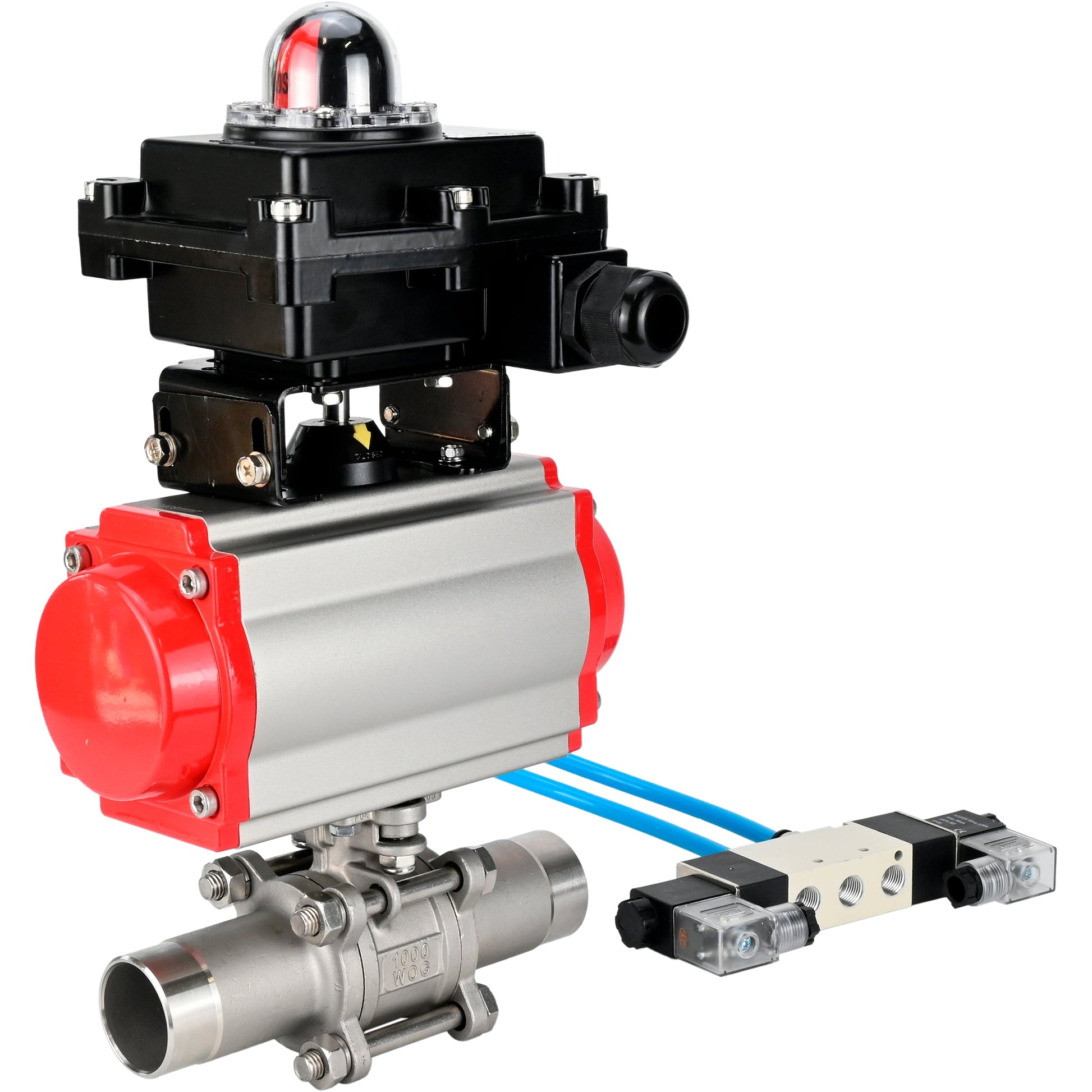

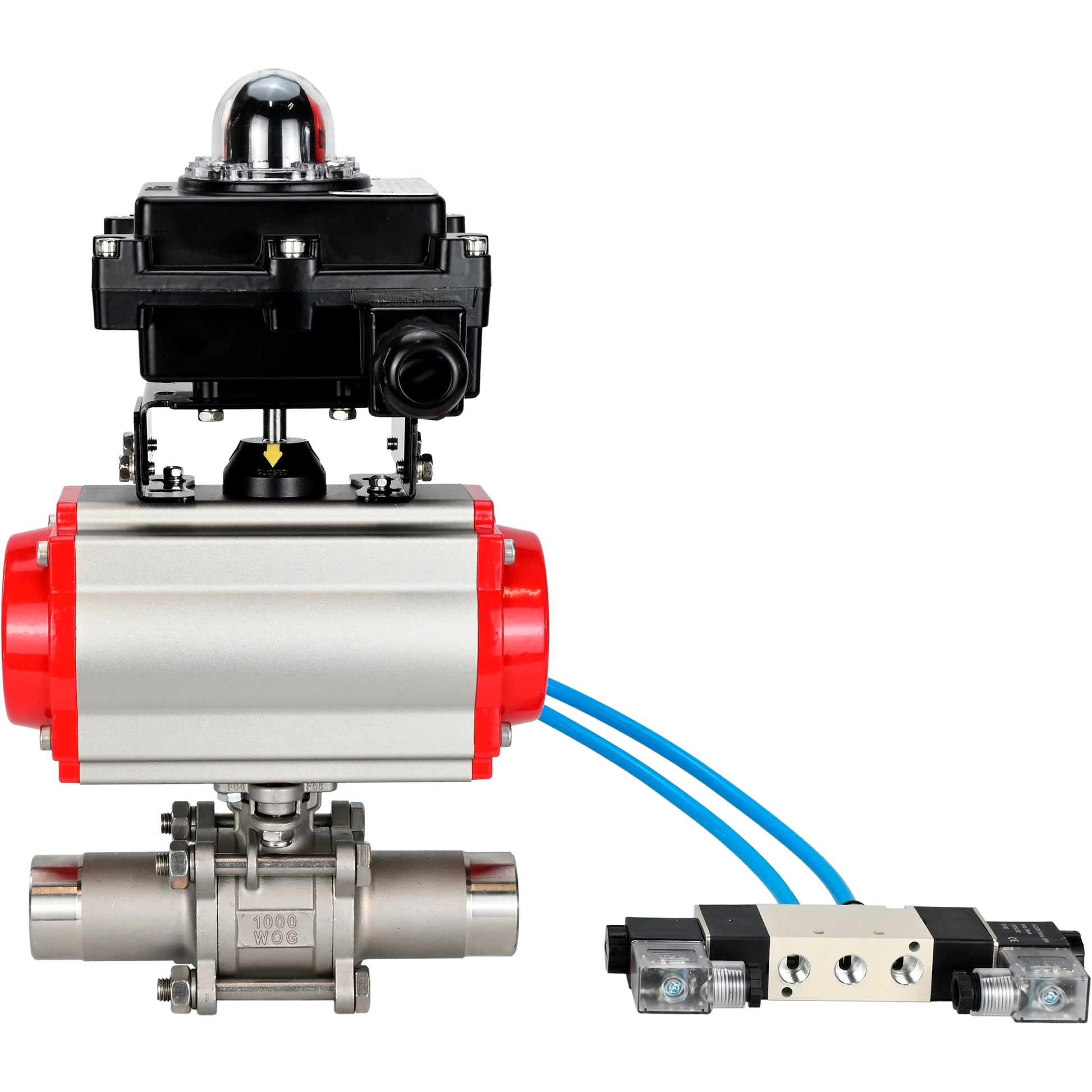

Ball valve BV3131P(3pc)-FP-W-ISO-H LONG with pneumatic double-acting actuator

PA-DA · APL-410N EX limit switch · 4V320-08 220V pilot · weld-end, AISI 304 body, PTFE seal

Model BV3131P(3pc)-FP-W-ISO-H SKU D160-50717
$254.33 USD
$254.33 USD
Sale Sold out
Taxes included. Freight is quoted by our manager after you order; nothing ships until you approve it.
Request a quote
View full details

How it works

Double-acting rotary actuator

Double-acting rotary actuator: Air to one port
Air to one portAir turns the shaft one way.
Double-acting rotary actuator: Air to the other port
Air to the other portAir to the other port turns it back.

Two-way ball valve

Two-way ball valve: Closed
ClosedThe ball bore stands across the pipe.
Two-way ball valve: Open
OpenThe bore lines up with the pipe.

5/2 double-solenoid pilot

5/2 double-solenoid pilot: Coil 14 pulse
Coil 14 pulseSupply 1 feeds port 4; port 2 exhausts through 3.
5/2 double-solenoid pilot: Coil 12 pulse
Coil 12 pulseSupply 1 feeds port 2; port 4 exhausts through 5.
5/2 double-solenoid pilot: Both coils off
Both coils offThe spool keeps its last position; the drawing retains the coil-14 example.

Limit-switch box

Limit-switch box: Closed
ClosedThe closed-position contact is made.
Limit-switch box: Open
OpenThe open-position contact is made.

The number that matters

Max. medium temperature

180°C

The highest medium temperature this valve is rated for.

Applications

Media and industries

  • Water
  • Steam
  • Petroleum Products
  • Neutral Media
  • Gaseous Media

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

DNOVA pneumatic double-acting rotary actuators PA-DA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

Technical parameters of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Property Name Value
Operating temperature, °C from -20 to 180
Valve type Two-way
Application Water supply, heating, industry
Operating medium Water, steam, petroleum products, neutral media, gases
Pipeline connection Welded
Water draw-off No
Flow section type Full-bore
Tightness class of ball valve A
Control type With pneumatic actuator
Connection Welded
Control Double-acting pneumatic actuator
End switches presence Yes
Pneumatic distributor presence Yes
Electropneumatic positioner presence No
Average service life, years 5
Warranty, years 1
Country of manufacture China

Dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

DN d, mm D, mm B, mm H, mm L, mm E, mm
10 12 17,2 2,1 50 130 120
15 15 21,3 2,1 55 150 120
20 20 26,9 2,1 66 155 135
25 25 33,7 2,8 71 186 160
32 32 42,4 2,8 81 195 170
40 38 48,3 2,8 87 231 190
50 50 60,3 2,8 91 243 220
65 64 76,1 3,0 119 290 280
80 76 88,9 3,0 125 302 280
100 100 114,3 3,0 159 326 330
100 100 114,3 3,0 159 326 330
125 125 141,3 3,4 186 360 330
150 150 168,3 3,4 207 390 330

Sketch dimensions and dimensions of ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

Table of parts and materials for ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304

№ Part Name Material
1 Housing Stainless steel 304
2 Side element (2 pcs) Stainless steel 304
3 Ball Stainless steel 304
4 Ball seal PTFE
5 Shaft seal PTFE
6 Bushing Stainless steel 304
7 Shaft Stainless steel 304
8 Washer Stainless steel
9 Nut Steel A2-70
10 Bolt Steel A2-70
Parts and materials sketch for ball valves DNOVA BV3131P(3pc)-FP-W-ISO-H LONG full bore, body - stainless steel 304


Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, °C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators


Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130

Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators

Technical parameters of pneumatic valve DNOVA 4V320-08 220V

Parameter Value
Pneumatic Valve Model 4V320-08 220V
Operating Pressure, bar 1.5 ÷ 8
Supply Voltage, V 220V
Actuation Frequency, cycles/sec 5

Dimensions and dimensions of DNOVA 4V320-08 220V pneumatic directional control valve

Parameter Value (mm)
A 71.9
B 45
C 94.4
D 27
E 69
F 40
I 24
K 40
L 188.8
M 69.4
N 50
O 83.4
P 22
S 20
T 6.5
U 2.4
H 82.4

Sketch of dimensions and dimensions of pneumatic valve DNOVA 4V320-08 220V

Technical parameters of limit switch units DNOVA APL-410N EX

Parameter Value
Model of limit switch block APL-410N EX
Service life, years 10

Dimensions and dimensions of DNOVA APL-410N EX limit switch units

Model APL-410N EX
A, mm 177
B, mm 174
C, mm 178
D, mm 101
E, mm 76
F, mm 57
G, mm 55
H, mm 23
I, mm 27
J, mm 3
K, mm 4
Ød1, mm Ø5
Ød2, mm Ø9.5
Sketch of dimensions and dimensions of DNOVA APL-410N EX limit switch units

Passports and certificates

Data sheet for DNOVA pneumatic valve 4m310-08

Data sheet for limit switch unit DNOVA APL-410N EX

Port opening
full bore
Body material
Stainless steel AISI 304
Maximum allowable temperature
180 °C
Connection type
For welding
Control type
Pneumatically actuated
Operating environment
Water, Steam, Petroleum Products, Neutral Media, and Gaseous Media
Type of seal
PTFE
Voltage
220V
Explosion-proof
have
Torque
3 Nm
Limit switches
have
Type of pneumatic actuator
double action
Country of origin
China

Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.

Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.

To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.

Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
