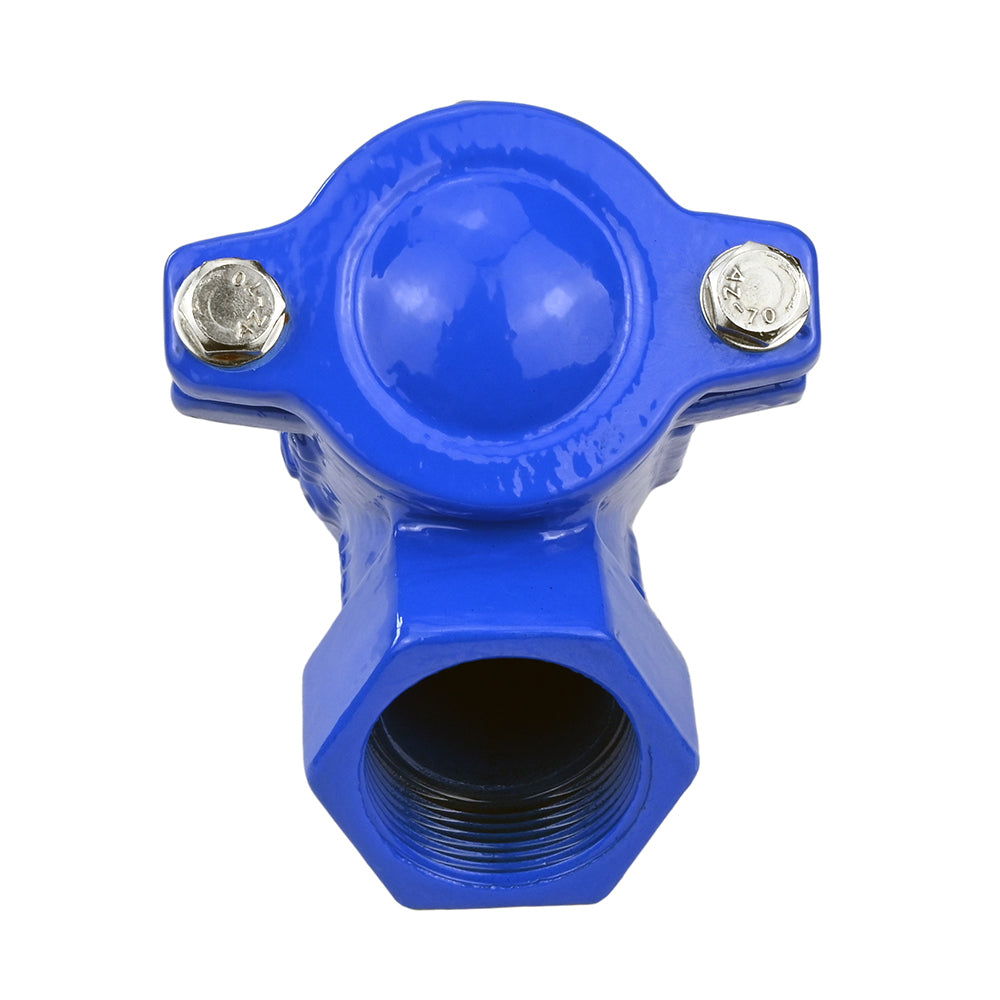

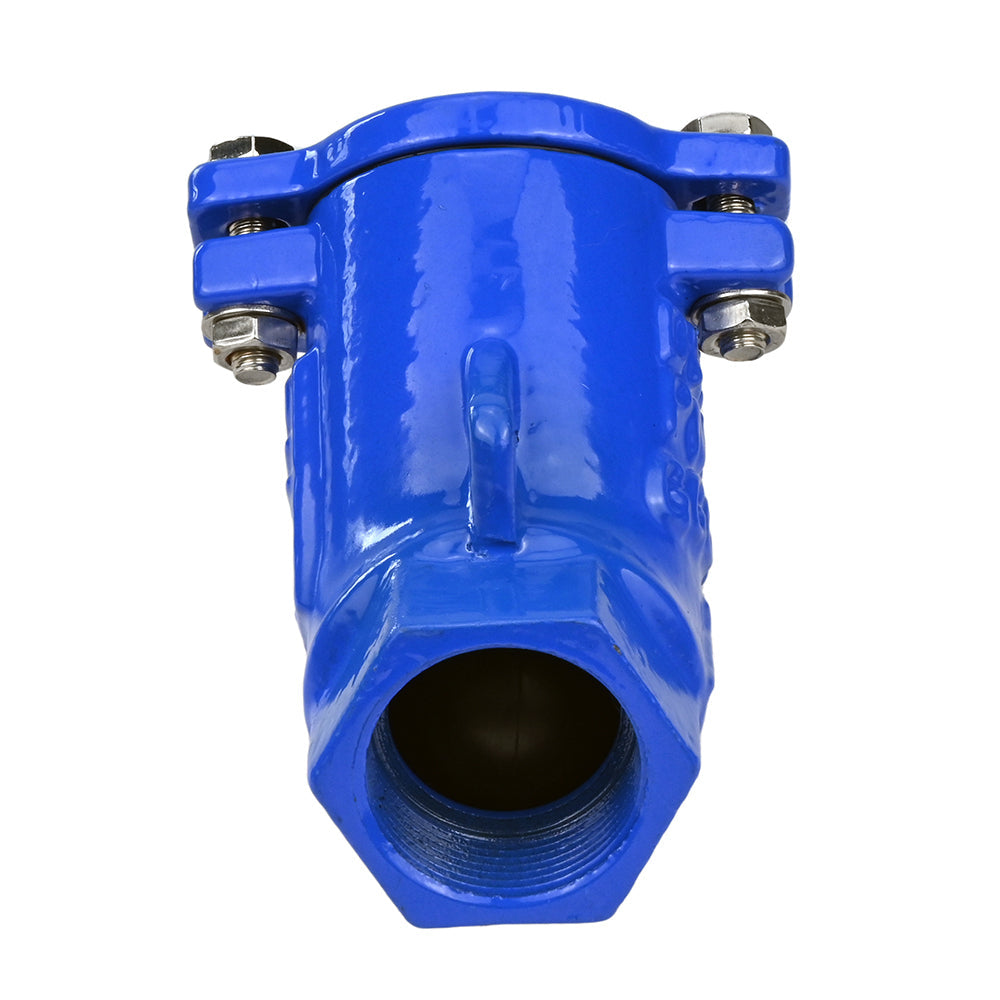

Ball check valve DNOVA VCB1433N-T PSI232 body material - cast iron GGG50, seal - NBR, ball material - Steel, NBR, threaded

From $9.50 USD
From $9.50 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The ball check valve is designed to prevent changes in the direction of flow of the working medium in the pipeline in the opposite direction.
The shut-off element of the valve is a steel ball coated with a protective layer of NBR rubber. The position of the ball inside the housing is determined by the pressure created in the pipeline. In normal mode, under the influence of the pressure of the working medium, the ball moves upward and takes place in a special compartment in the valve body, without interfering with the flow. If the pressure drops below the level determined by the technical characteristics of the valve, the ball, under the influence of gravity, falls down and blocks the cross-section of the pipeline. The design of the internal part of the housing is designed in such a way that the flow of the working medium moving in the opposite direction does not displace the shut-off element upward, but fixes it in the lower position.





Overall and installation dimensions of valves DNOVA VCB1433N-T PSI232 body material - cast iron GGG50, seal - NBR, ball material - Steel, NBR, threaded

DN L H Weight, kg
15 120±2 75±10 1,44
20 120±2 75±10 1,44
25 120±2 75±10 1,44
32 135±2 75±10 2
40 145±2 93±10 2,04
50 175±2 106±10 3,2
65 200±2 131±10 5,3

Sketch of valve dimensions DNOVA VCB1433N-T PSI232 body material - cast iron GGG50, seal - NBR, ball material - Steel, NBR, threaded





Valve material specification DNOVA VCB1433N-T PSI232 body material - cast iron GGG50, seal - NBR, ball material - Steel, NBR, threaded

№ Name Material
1 Case Cast iron GGG50
2 Char steel+NBR
3 Case cover gasket NBR
4 Cover Cast iron GGG50
5, 6 Bolt, nut steelSS201

Valve sketch DNOVA VCB1433N-T PSI232 body material - cast iron GGG50, seal - NBR, ball material - Steel, NBR, threaded

Specifications

Country of origin
China
Body material
Cast iron GGG50/EN-GJS-500-7
Maximum allowable temperature
80 °C
Connection type
Threaded NPT/BSP
Operating environment
Water, Air, Oil Products
Applications
Water Supply
Nominal pressure
16 bar
Type of seal
NBR
Check valve type
Ball
