Check valve is a device in a pipeline that allows fluids or gases to flow in only one direction. When the pressure of the fluid or gas in the pipeline exceeds a certain value, the valve opens, allowing the substance to pass through. However, when the pressure drops or tries to move in the opposite direction, the valve closes, preventing backflow. Check valves are widely used in various industrial and commercial applications to ensure safety and control the flow in pipeline systems.

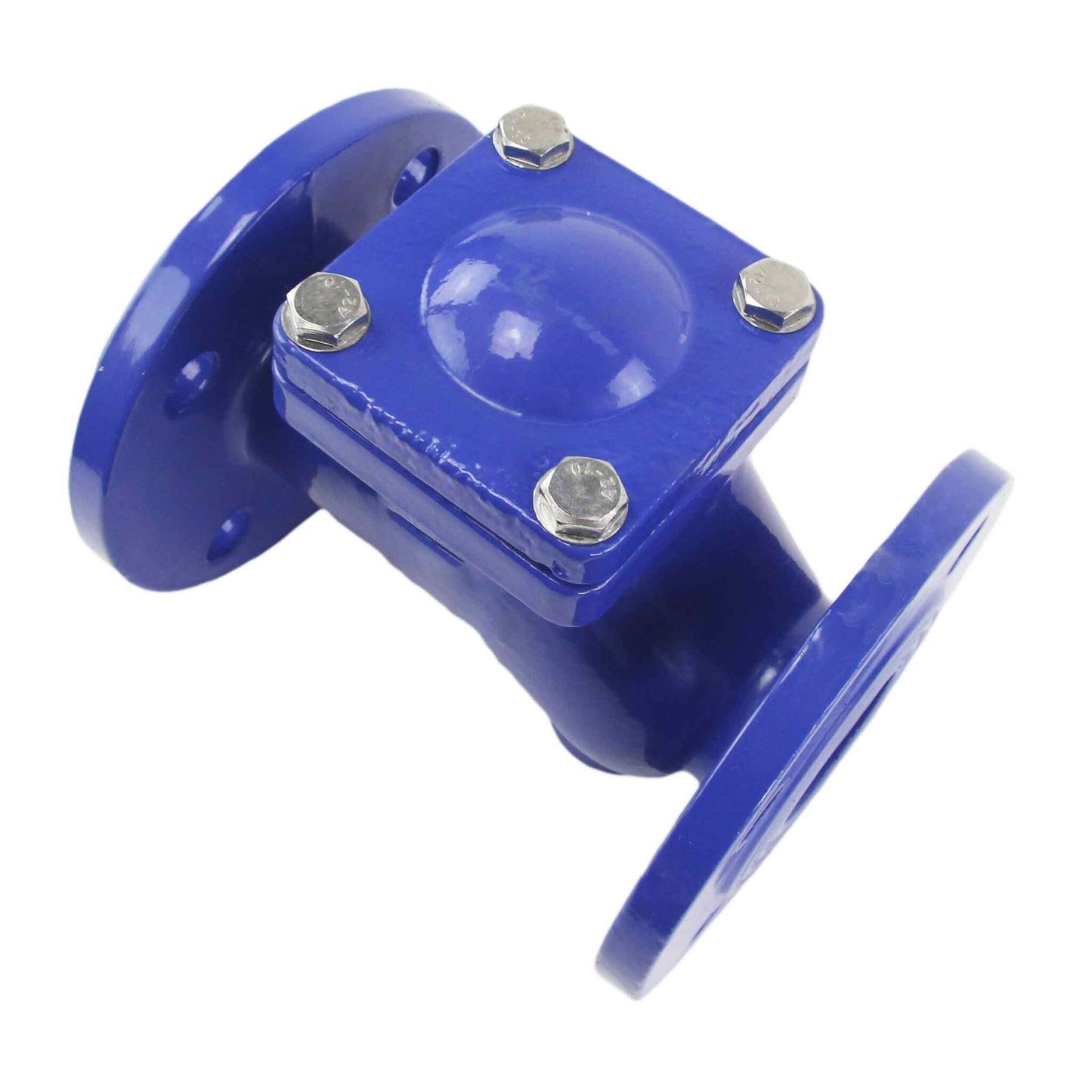

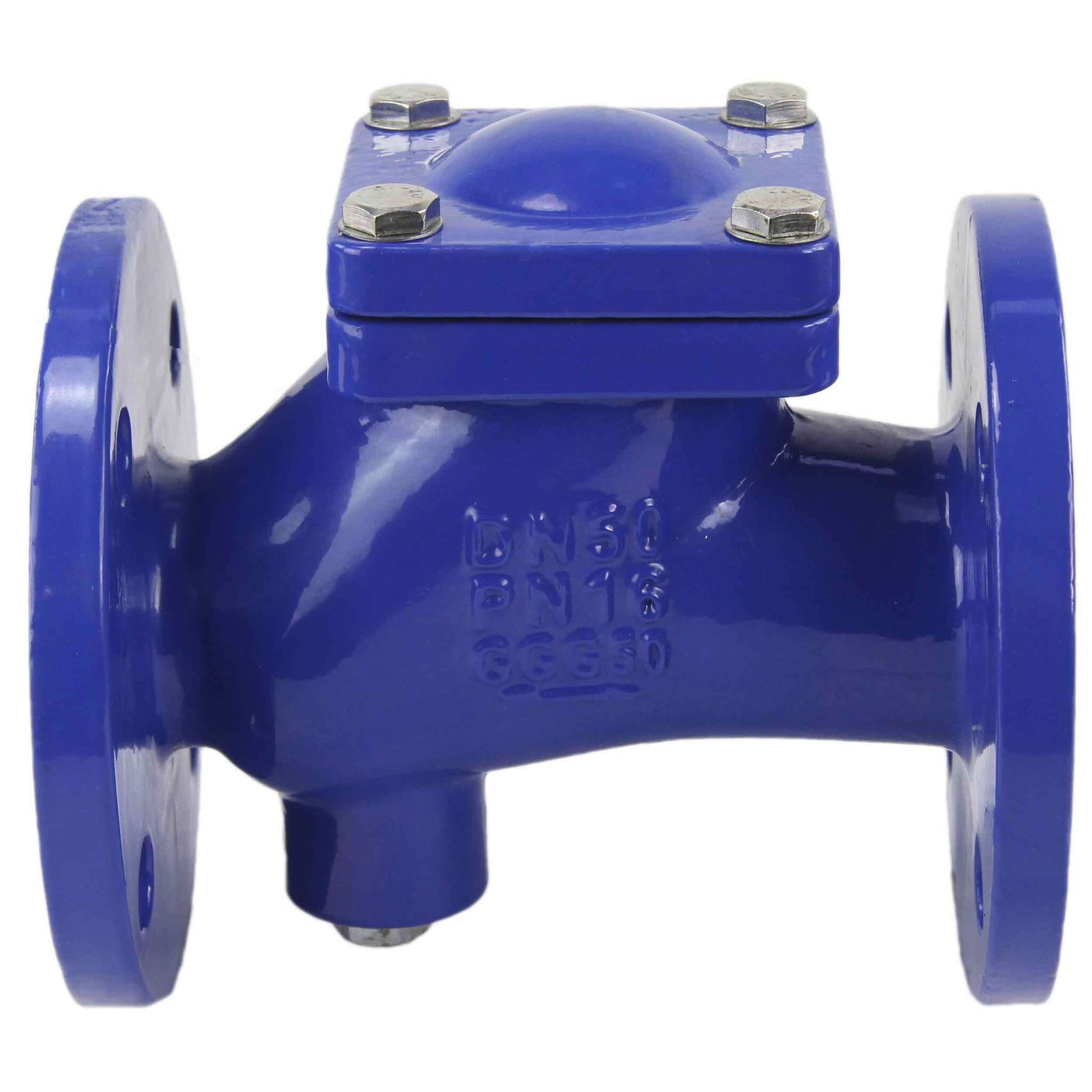

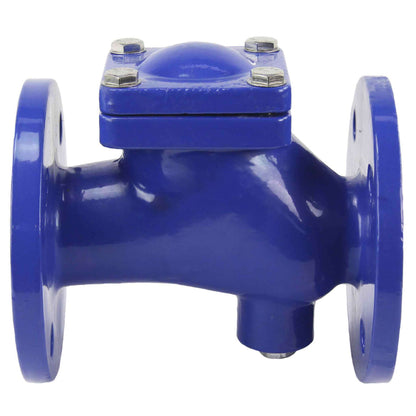

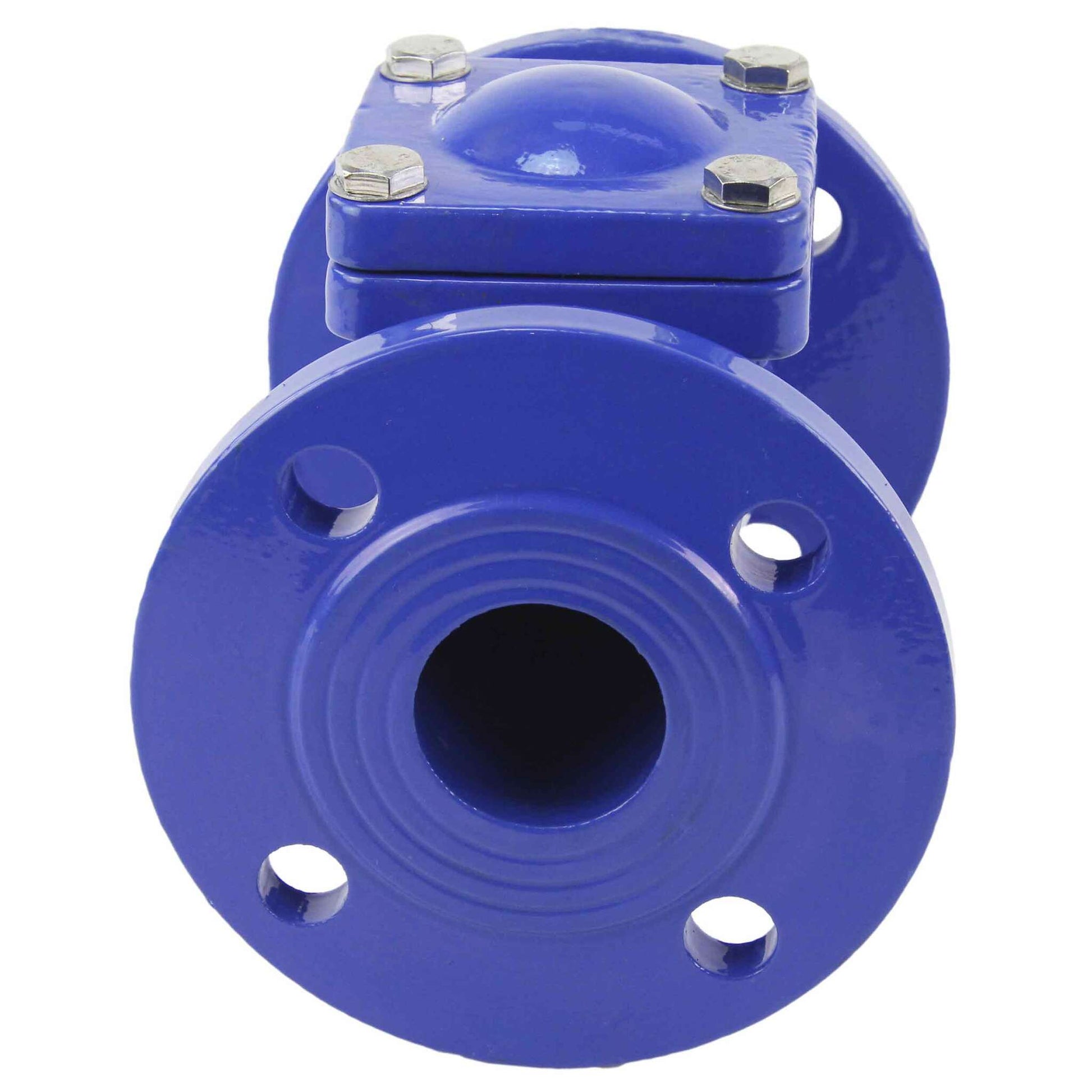

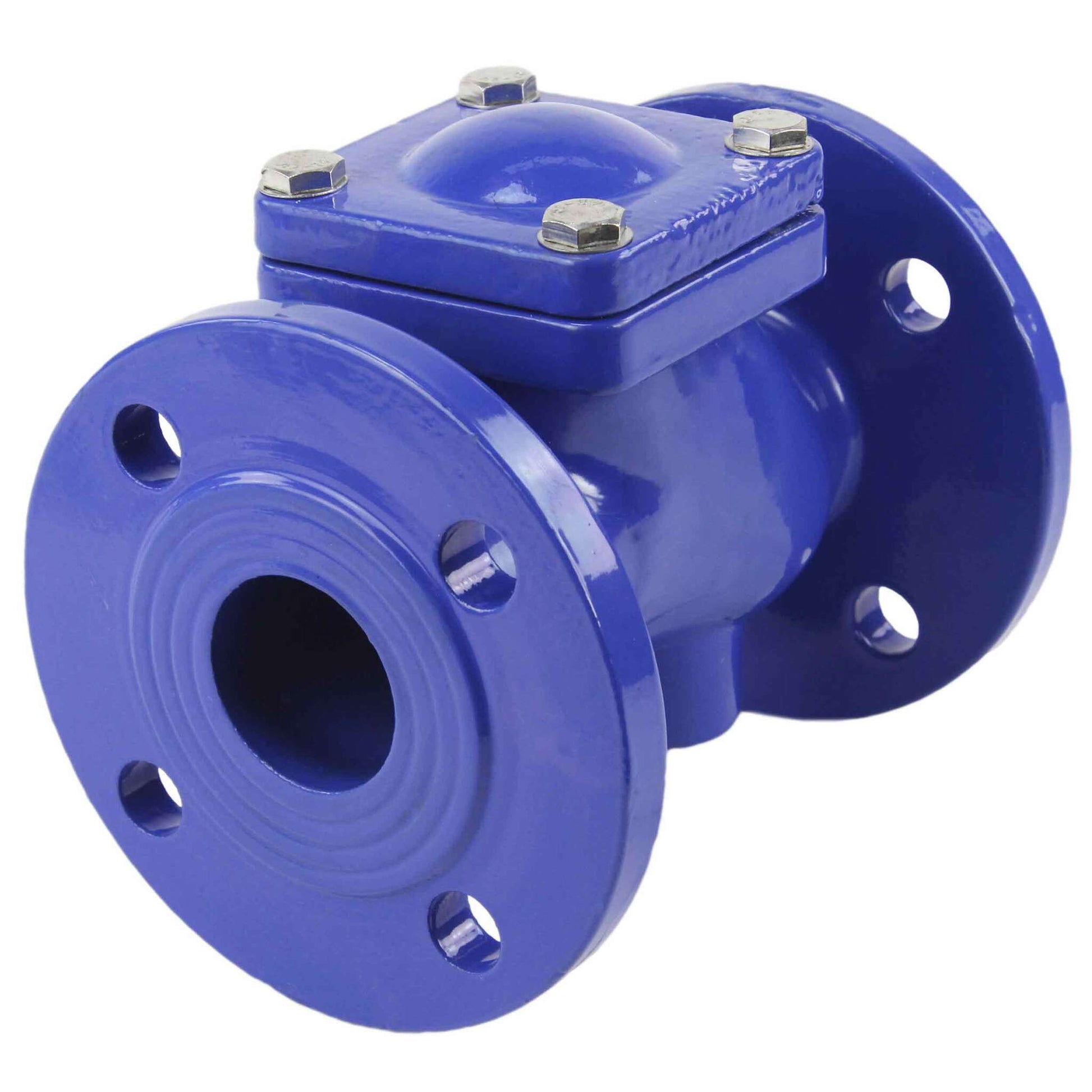

Dimensions of check valves DNOVA VCB1414N-F 16 bar, body material - cast iron GGG50, seal - NBR
Dimensional sketch of check valves DNOVA VCB1414N-F 16 bar, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR
| DN | L | D | C | D1 | n - d | b | f | Weight,kg |
| 40 | 180 | 150 | 110 | 84 | 4 – Ø19 | 18 | 3 | 6 |
| 50 | 200 | 165 | 125 | 99 | 4 – Ø19 | 19 | 3 | 9 |
| 65 | 240 | 185 | 145 | 118 | 8 – Ø19 | 19 | 3 | 12 |
| 80 | 260 | 200 | 160 | 132 | 8 – Ø19 | 19 | 3 | 15.5 |
| 100 | 300 | 220 | 180 | 156 | 8 – Ø19 | 19 | 3 | 23.5 |
| 125 | 350 | 250 | 210 | 184 | 8 – Ø19 | 19 | 3 | 29.5 |
| 150 | 400 | 285 | 240 | 211 | 8 – Ø23 | 19 | 3 | 45.5 |
| 200 | 500 | 340 | 295 | 266 | 12 – Ø23 | 20 | 3 | 72.5 |
| 250 | 600 | 405 | 355 | 319 | 12 – Ø28 | 22 | 3 | 120 |
| 300 | 700 | 455 | 410 | 370 | 12 – Ø28 | 24.5 | 4 | 195 |
Materials of ball check valves DNOVA VCB1414N-F 16 bar, body material - cast iron GGG50, seal - NBR

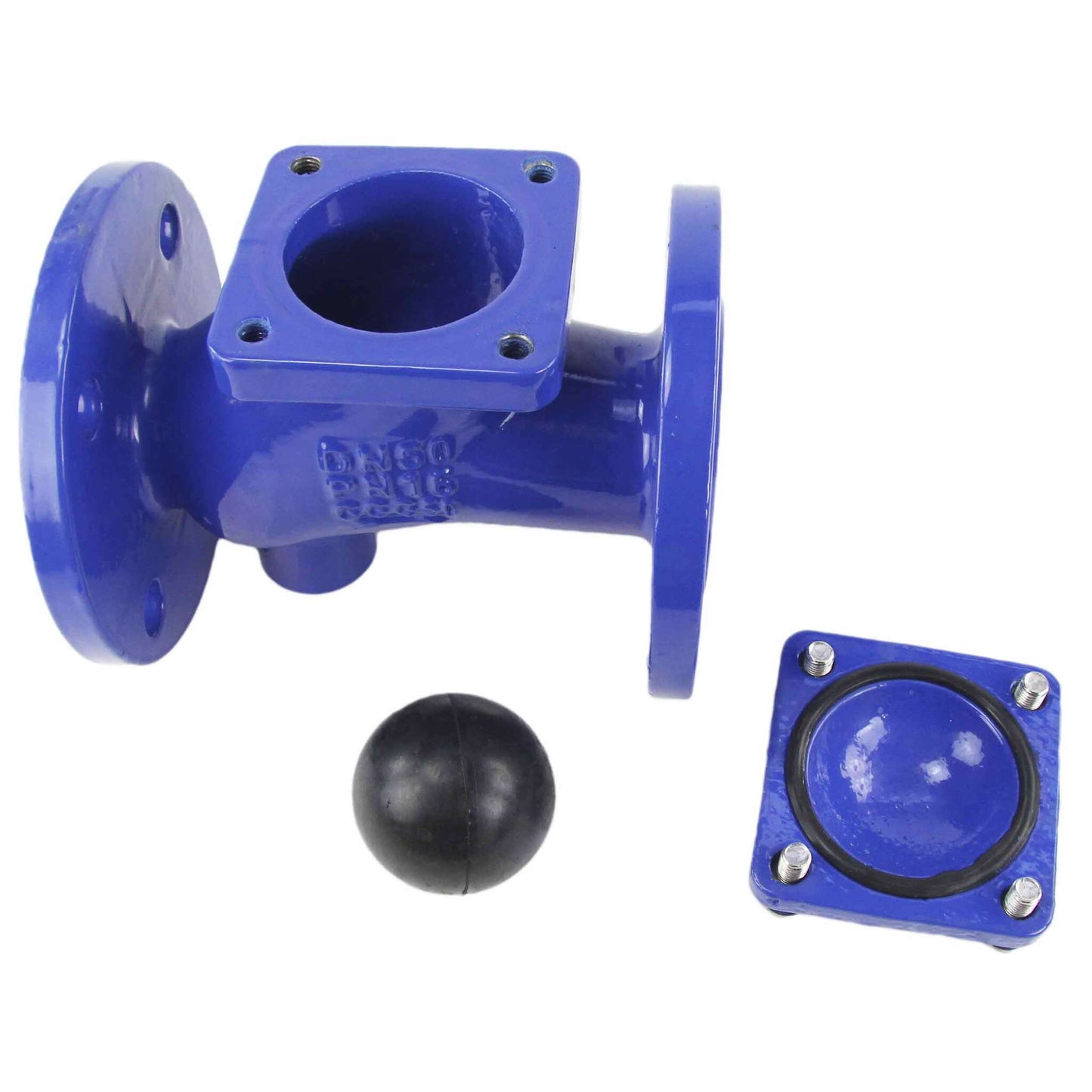

Detailed sketch of check valves DNOVA VCB1414N-F 16 bar, body material - cast iron GGG50, closure element material - cast iron GGG50, seal - NBR
| № | Part name | Material |
| 1 | Body | Cast iron GGG50 |
| 2 | Char | Cast iron GGG50 + NBR |
| 3 | Sealing | NBR |
| 4 | Cover | Cast iron GGG50 |
| 5 | Bolt | SS304 steel |
| 6 | Washer | SS304 steel |
| 7 | Washer | NYL |
| 8 | Cork | SS304 steel |
