Multi-turn electric actuator
Non-rising-stem wedge gate
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Industrial Water
- Water Supply
- Heating
- Industry

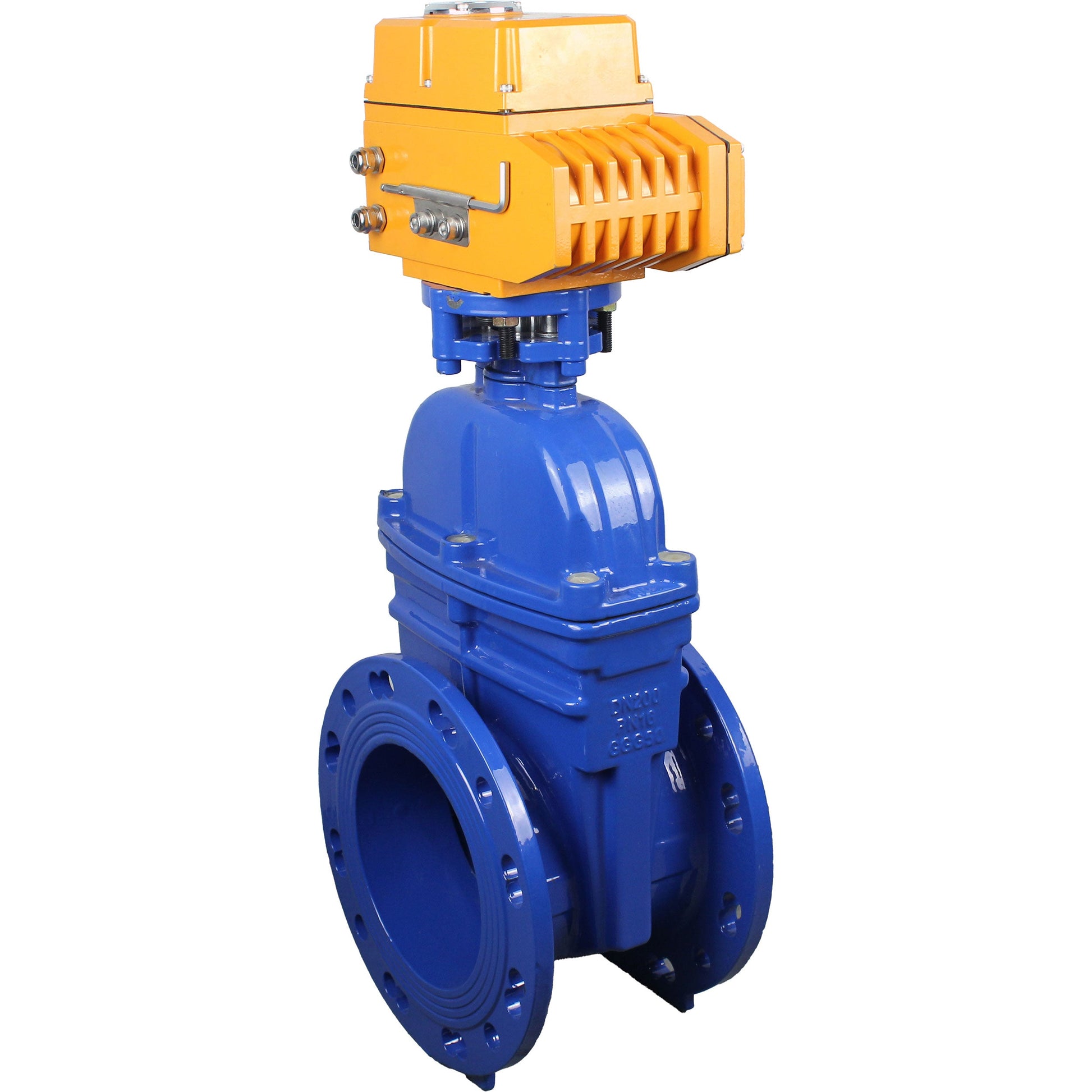

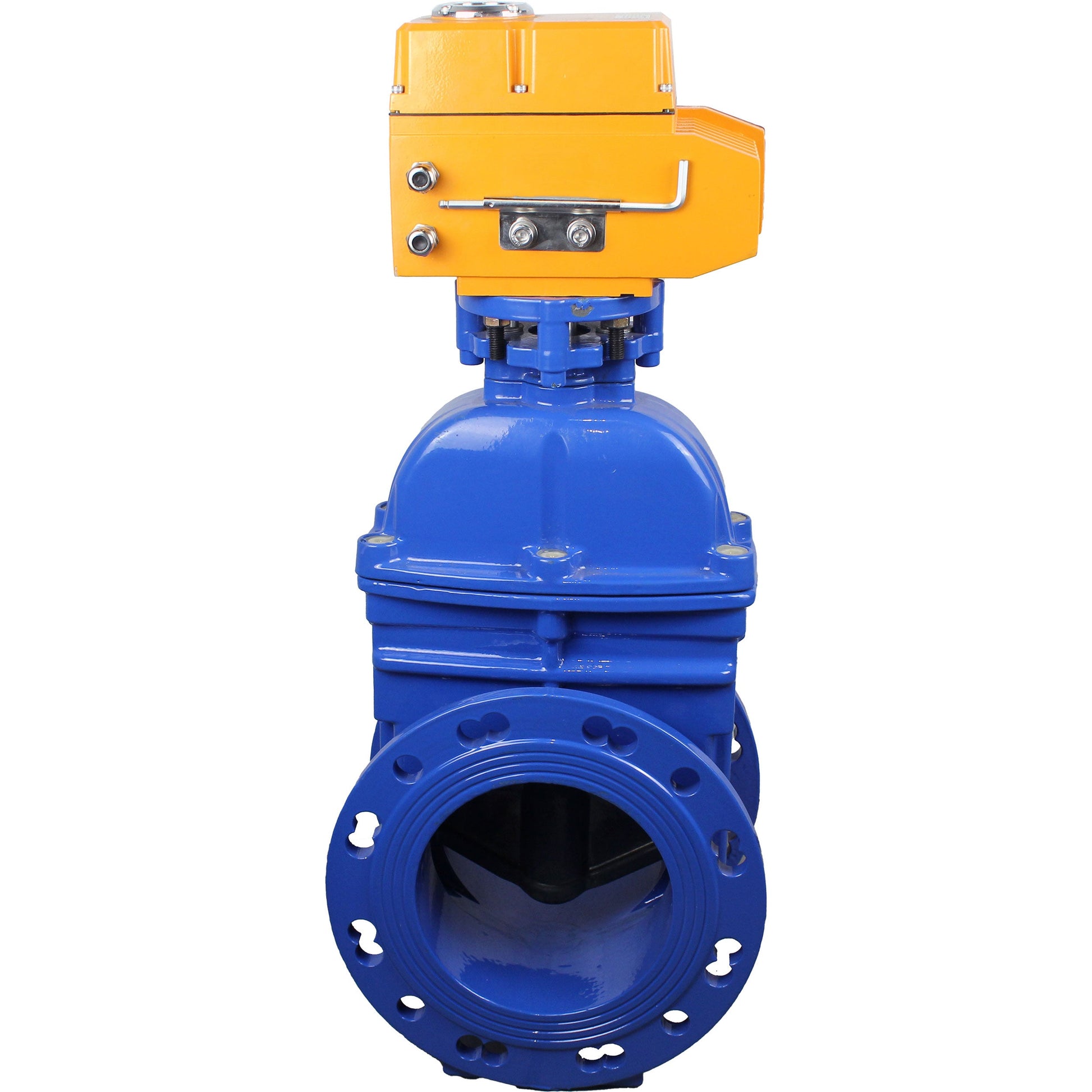

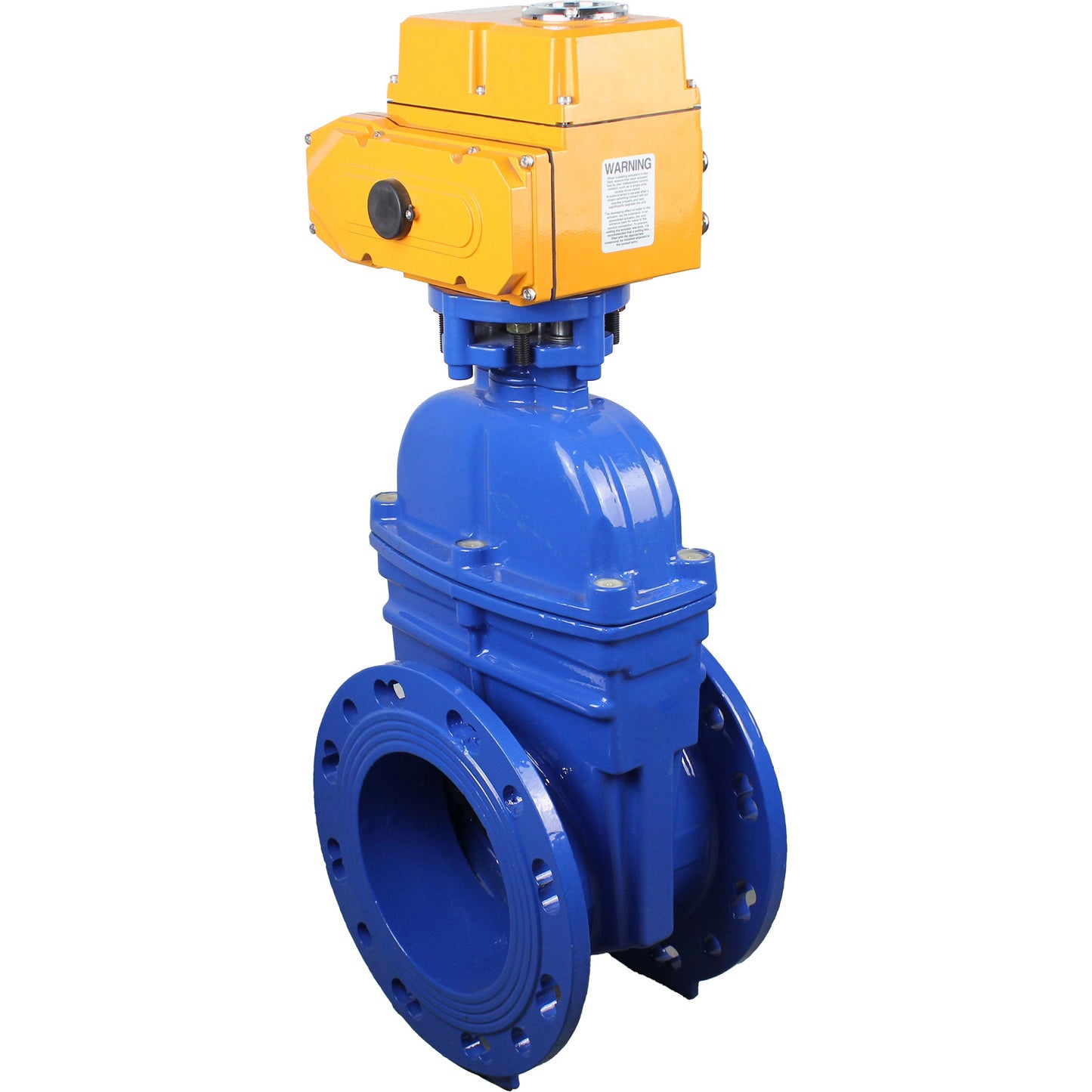

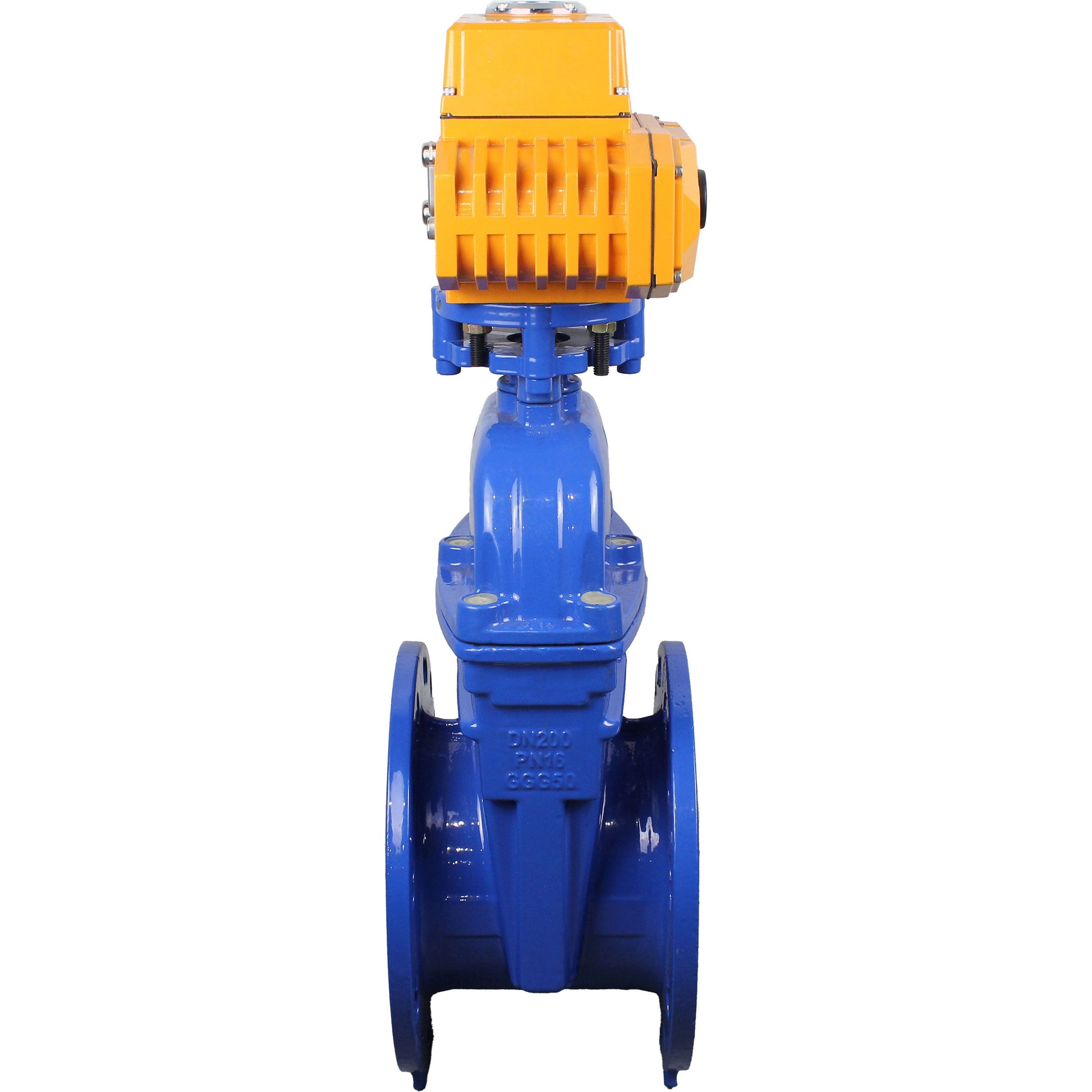

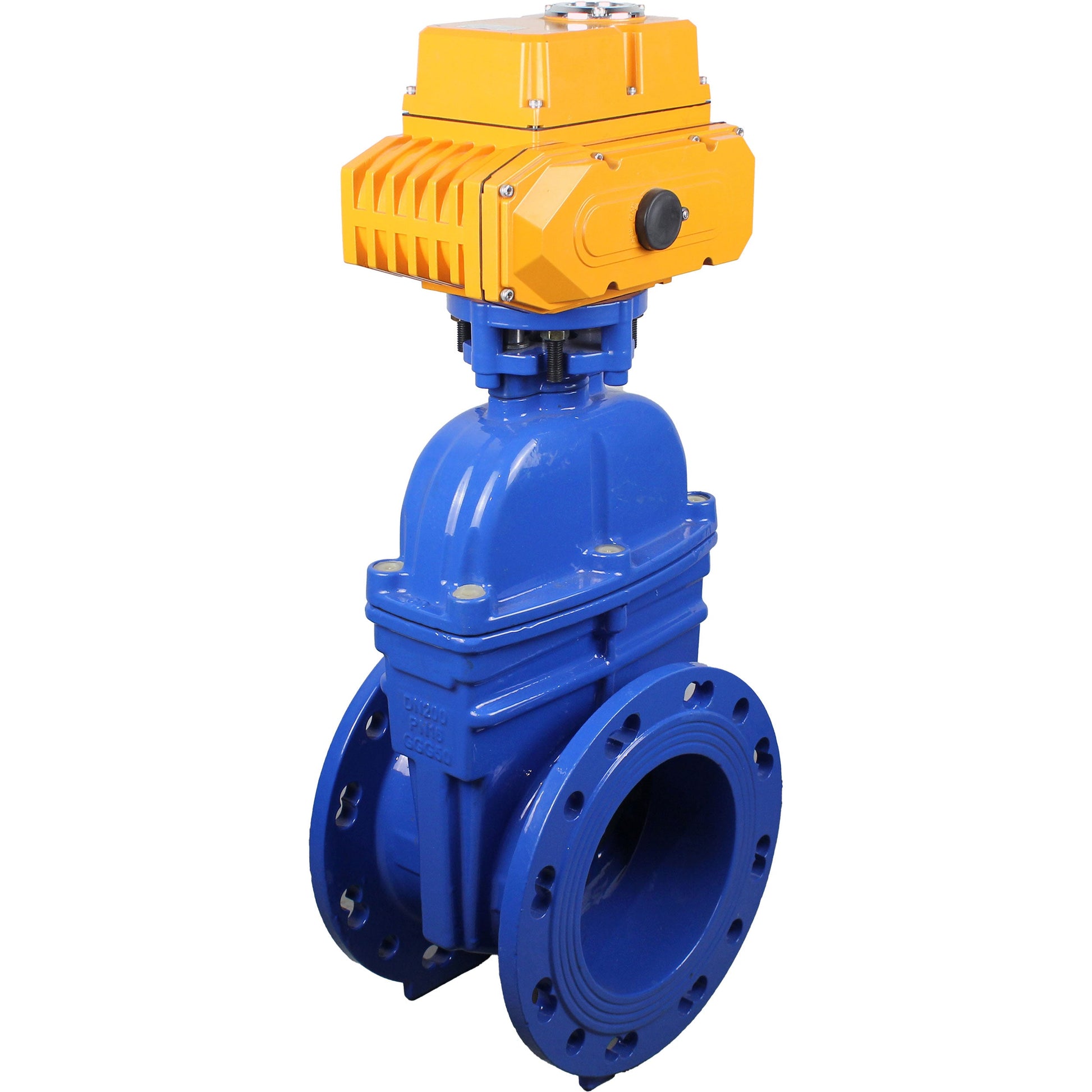

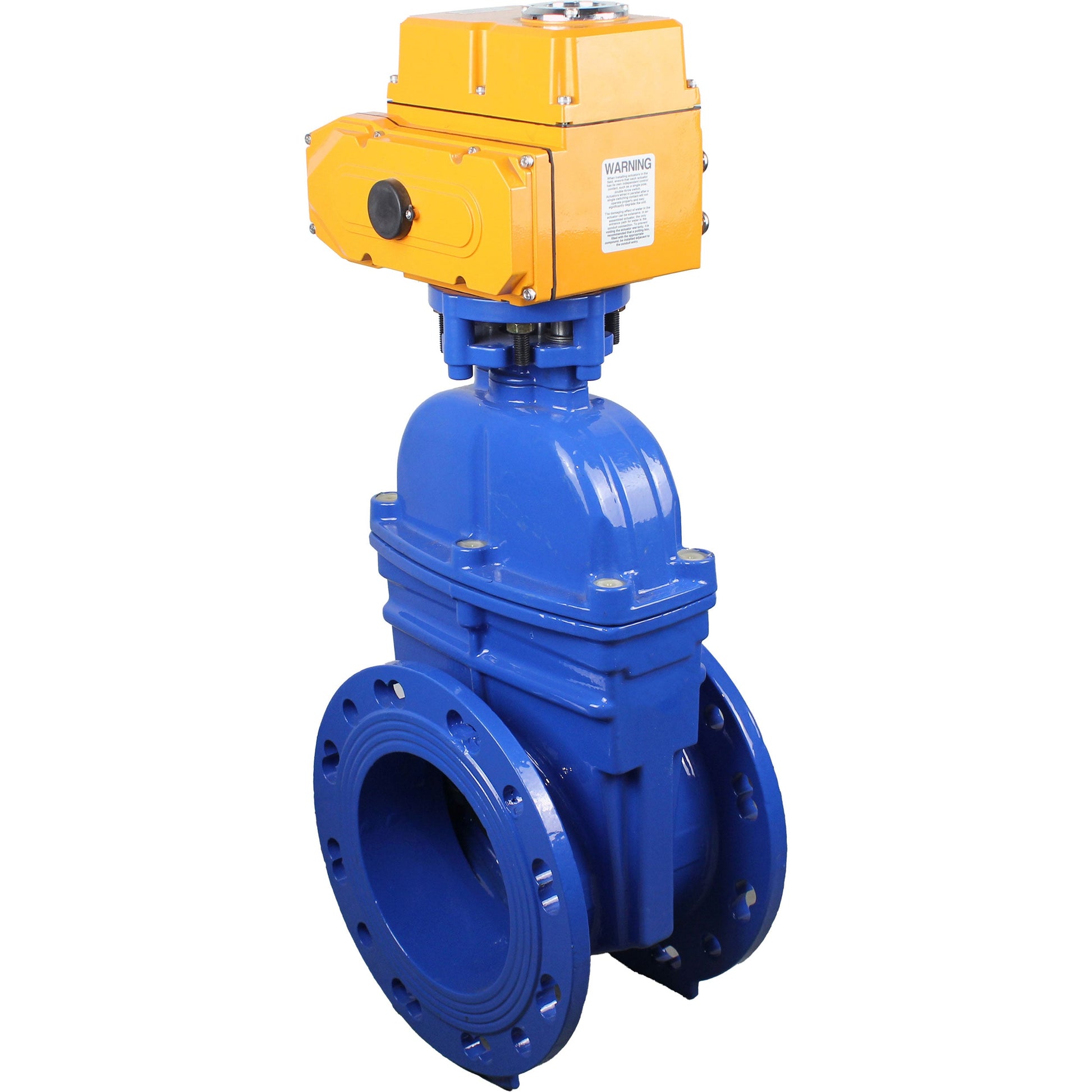

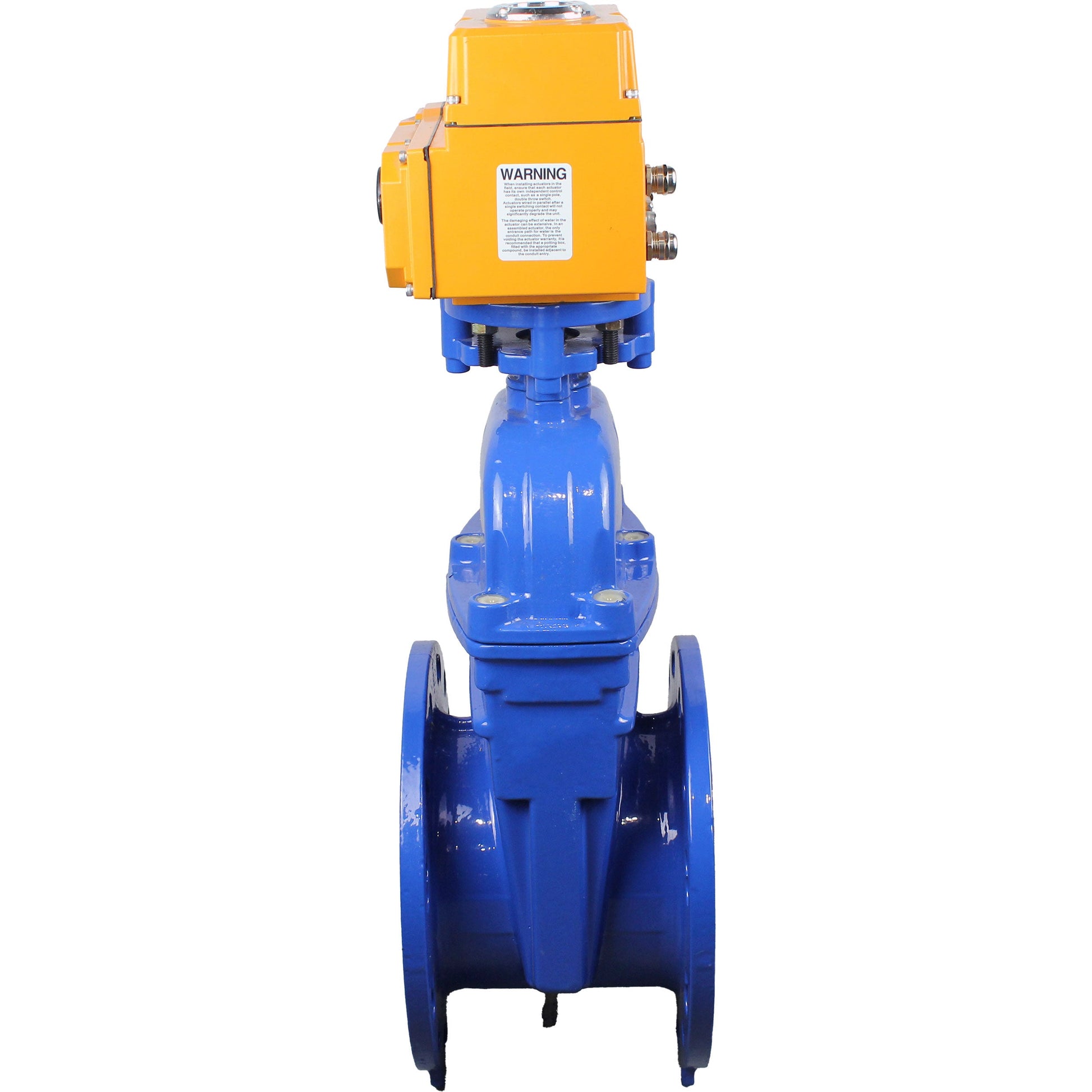

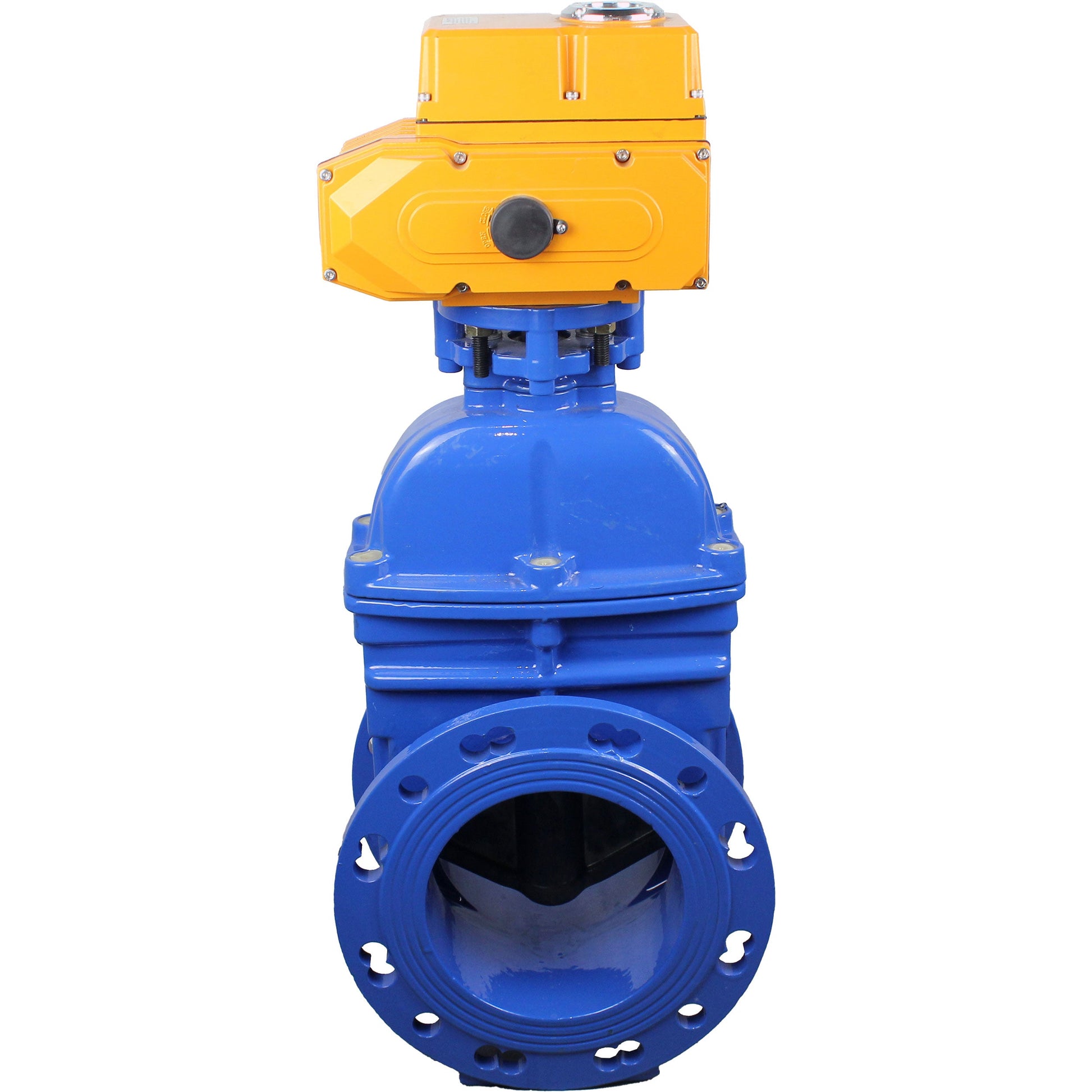

The DNOVA wedge gate valve is designed for installation on pipelines as a shut-off device in water supply systems and chemical industry.
Electric multi-turn actuator DNOVA is designed to automate the process of controlling industrial valves, as well as to determine the position of the valve shut-off body.

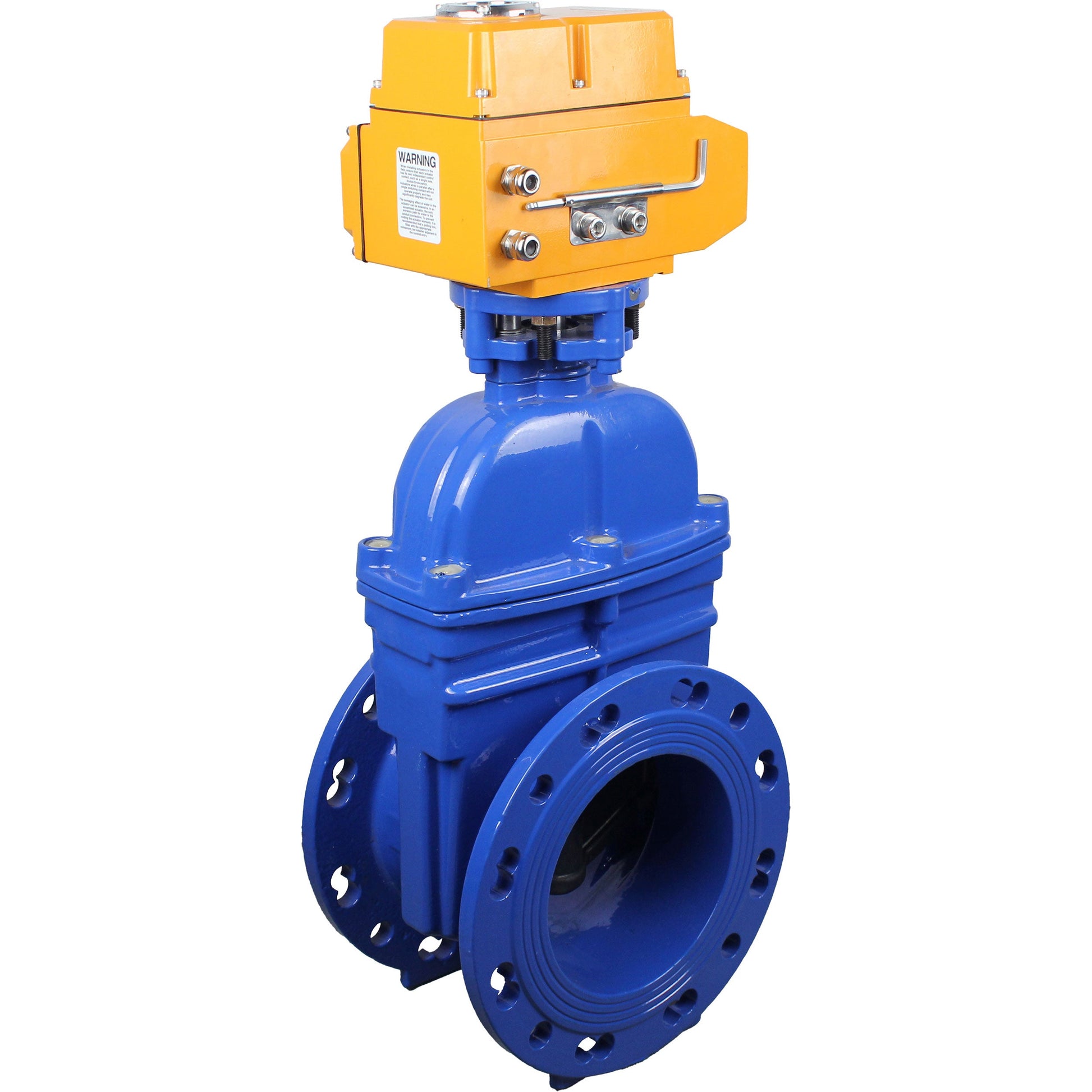

Technical parameters of wedge valves DNOVA GVWN1414E-2W-F flanged wedge valves, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with multi-turn electric drive MT-N-Z-O1-380VAC-U1
|
Nominal diameter DN, mm |
50–250 |
|
Operating pressure PN, bar |
10, 16 |
|
Working medium temperature t, °C |
From 0 to 80 |
|
Working medium |
Water, lightly contaminated liquids with up to 5% suspended particles |
|
Flow direction |
Two-way |
|
Type of control |
For electric actuator |
|
Connection to pipeline |
Flanged |
|
Body material |
Cast iron GGG50 |
|
Closing element material (wedge) |
Cast iron GGG50 (with EPDM rubber lining) |
|
Areas of application |
Heating and water supply systems; industrial pipelines |
|
Service life, years |
10 |
Dimensions of wedge valves DNOVA GVWN1414E-2W-F flanged wedge valves, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with multi-turn electric drive MT-N-Z-O1-380VAC-U1
| DN | L, mm | D, mm | D1, mm | O, mm | c, mm | E, mm | G, mm |
| 50 | 150 | 165 | 125 | 40 | 114 | 151 | 117 |
| 65 | 170 | 185 | 145 | 40 | 114 | 151 | 117 |
| 80 | 180 | 200 | 160 | 40 | 114 | 151 | 117 |
| 100 | 190 | 220 | 180 | 40 | 114 | 151 | 117 |
| 125 | 200 | 250 | 210 | 40 | 114 | 151 | 117 |
| 150 | 210 | 285 | 240 | 40 | 114 | 151 | 117 |
Table of parts and materials of wedge valves DNOVA GVWN1414E-2W-F flanged wedge valves, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with multi-turn electric drive MT-N-Z-O1-380VAC-U1
|
№ |
Part name |
Material |
|
1 |
Body |
Cast iron GGG50 |
|
2 |
Wedge |
Cast iron GGG50 + EPDM |
|
3 |
Stem nut |
Brass |
|
4 |
Stem |
Stainless steel SS420 |
|
5 |
Cover |
Cast iron GGG50 |
|
6 |
Ring |
Brass |
Installation dimensions of wedge gate valves DNOVA GVWN1414E-2W-F with ISO flange
| DN | ØD | Ød1 | Ød2 | Ød3 | Ød4 | Ød5 | Ød6 | Ød7 | h | f | MxM | ISO |
| mm | ||||||||||||
| 50 | 18 | 125 | 70 | 102 | 12 | 49 | 45 | 39 | 40 | 3 | 14x14 | F10 |
| 65 | 18 | 125 | 70 | 102 | 12 | 49 | 45 | 39 | 40 | 3 | 14x14 | F10 |
| 80 | 20 | 125 | 70 | 102 | 12 | 49 | 45 | 39 | 40 | 3 | 14x14 | F10 |
| 100 | 20 | 125 | 70 | 102 | 12 | 49 | 45 | 39 | 40 | 3 | 14x14 | F10 |
| 125 | 24 | 125 | 70 | 102 | 12 | 49 | 45 | 39 | 40 | 3 | 17x17 | F10 |
| 150 | 24 | 125 | 70 | 102 | 12 | 49 | 45 | 39 | 40 | 3 | 17x17 | F10 |
| 200 | 26 | 150 | 85 | 125 | 14 | 62 | 58 | 45 | 50 | 3 | 19x19 | F12 |
| 250 | 30 | 150 | 85 | 125 | 14 | 62 | 58 | 45 | 50 | 3 | 22x22 | F12 |
Sketch of installation dimensions of wedge gate valves DNOVA GVWN1414E-2W-F with ISO flange
Technical parameters of electric actuators MT-N-Z-O1-380VAC
|
Housing protection rating |
IP67 |
|
Maximum number of actuator revolutions |
50 |
|
Ambient temperature, °C |
-28 … +60 |
|
Internal thermal protection activation temperature, °C |
110 |
|
Availability of doubler |
Hexagon |
|
Mounting angle |
Arbitrary (any angle) |
|
Body material |
Aluminum alloy |
|
Type of ISO flange |
F10/F12 |
|
Speed, rpm |
5 |
|
Weight, kg |
10 |
- Body material
- Cast iron GGG50/EN-GJS-500-7
- Maximum allowable temperature
- 80 °C
- Connection type
- Flanged
- Control type
- Electrically driven
- Operating environment
- Water and Industrial Water
- Applications
- Water Supply, Heating, and Industry
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Disc material
- Cast iron + EPDM
- Country of origin
- China
