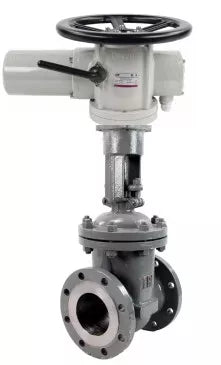

Wedge valves DNOVA GAIR GVWR2121M-2W-F-OST flanged, body - steel 25L, wedge material - steel 25L, seal - metal, with OST flange, round stem, with electric drive DNOVA MT-N-xEM- O2-220VAC-U1 220V

Regular price From $1,554.82 USD
Regular price Sale price From $1,554.82 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Collapsible content

Description

The wedge gate valve is designed for installation on a pipeline as a shut-off device in water supply systems and the chemical industry.
Operating principle: The wedge, connected to the spindle, is lowered or raised depending on the direction of rotation of the handwheel, closing or opening the flow section of the gate body.
The multi-turn electric drive is designed to control industrial shut-off pipeline valves, such as cast iron and steel gate valves, slide gate valves, ball valves, etc.
Application: the electric drive allows using the valves in automatic control systems for heat supply, water supply of civil and industrial facilities.






Technical characteristics of wedge gate valves DNOVAu GAIR GVWR2121M-2W-F-OST DN50-250 Ru16 flanged, with OST flange, round stem, for electric drive:

Characteristic Meaning
Gate valve type Wedge
Diameter 50-300 mm
Nominal pressure 16 bar
Working medium water, steam, petroleum products, gaseous media
Working environment temperature from -29 to +425°C
Application water supply, heat supply
Connection type flanged
Control type electric drive





Electric drives DNOVA MT-N-xEM-O2-220VAC-U1






Technical characteristics of electric drives DNOVA MT-N-xEM-O2-220VAC-U1:

Characteristic Meaning
Electric drive type multi-turn
Supply voltage 220 V
Ambient temperature from -28°C to +60°C
Maximum drive speed 50
Degree of protection of the case IP67
Internal thermal protection response temperature 90°C
ISO Flange Type F10,F14
Country of origin China





Sketch of dimensions of wedge gate valves DNOVA GAIR GVWR2121M-2W-F-OST DN50-250 Ru16 flanged, with OST flange, round stem, for electric drive




Overall and installation dimensions of wedge gate valves DNOVA GAIR GVWR2121M-2W-F-OST DN50-250 Ru16 flanged, with OST flange, round stem, for electric drive

Diameter L, mm D, mm D1, mm D2, mm b, mm f, mm
DN50 180 160 125 102 17 3
DN80 210 195 180 135 20 3
DN100 230 215 180 158 20 3
DN250 450 405 355 320 30 3
DN300 500 460 410 375 31 4








Sketch of dimensions of electric drives DNOVAu MT-N-xEM-O2-220VAC-U1






Overall and installation dimensions of electric drives DNOVA MT-N-xEM-O2-220VAC-U1:

Model H, mm H1, mm L, mm L1, mm
MT-N-020EM-02-x-U1 248 90 435 278
MT-N-030EM-02-x-U1 248 90 435 278
MT-N-045EM-02-x-U1 325 116 640 410
MT-N-060EM-02-x-U1 325 116 640 410





Sketch of materials of wedge gate valves DNOVAu GAIR GVWR2121M-2W-F-OST DN50-250 Ru16 flanged, with OST flange, round stem, for electric driv





Materials of parts of wedge gate valves DNOVA GAIR GVWR2121M-2W-F-OST DN50-250 Ru16 flanged, with OST flange, round stem, for electric drive:

No. Part name Material
1 Frame Steel 25L + Steel 13Cr
2 Wedge Steel 25L + Steel 13Cr
3 Stock ASTM A182 F6a steel
4 Bolt ASTM A193 B7 steel
5 screw ASTM A194 2H steel
6 Pad stainless steel+graphite
7 Lid steel 25L
8 Spindle seal flexible graphite
9 Pin ASTM A29 1045 steel
10 Gland packing carbon steel
11 screw ASTM A194 2H steel
12 Bolt ASTM A193 B7 steel
13 Bracket steel 25L
14 Bearing -
15 Cuff -
16 Stem nut brass
17 Casing ASTM A29 1035 steel

Specifications

Country of origin
China
Body material
Steel 20/25L
Connection type
Flanged
Type of seal
Metal
Disc material
Steel 25L
Limit switches
Yes

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
