Description
The wedge gate valve is designed for installation on a pipeline as a shut-off device in water supply systems and the chemical industry.
Operating principle: The wedge, connected to the spindle, is lowered or raised depending on the direction of rotation of the handwheel, closing or opening the flow section of the gate body.
The multi-turn electric drive is designed to automate the process of controlling industrial valves, as well as to determine the position of the shut-off element of the valve.
The operating principle of the electric drive is to convert the electrical signal coming from the control device into rotational movement of the output shaft.
В
В

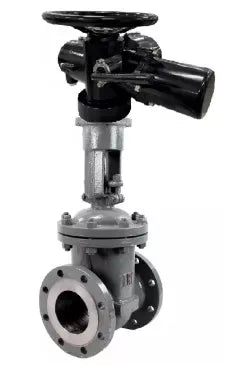

Technical characteristics of wedge gate valves 30nz941nz DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST flange, bare stem, for electric drive:
| Characteristic | Meaning |
| Gate valve type | Wedge |
| Diameter | 50 mm |
| Nominal pressure | 16 bar |
| Wednesday | water, steam, petroleum products, gaseous media |
| Working environment temperature | from -29 to +425В°C |
| Application | water supply, heat supply |
| Connection type | flanged |
| Control type | electric drive |
В
В
Electric actuators DNOVA MT-N-xEM-O2-380VAC-U1 five-cam
В
Technical characteristics of electric drives DNOVA MT-N-xEM-O2-380VAC-U1 five-cam:
| Characteristic | Meaning |
| Electric drive type | multi-turn |
| Supply voltage | 220 V |
| Ambient temperature | from -30В°C to +70В°C |
| Degree of protection of the case | IP67 |
| OST flange type | type A, type B |
| Country of origin | China |
В
В
Sketch of dimensions of wedge gate valves 30nz941nz DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST flange, bare stem, for electric drive
В
Overall and installation dimensions of wedge gate valves 30nz941nz DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST flange, bare stem, for electric drive:
| Diameter | L, mm | D, mm | D1, mm | D2, mm | b, mm | f, mm |
| DN50 | 180 | 160 | 125 | 100 | 16 | 3 |
В
В
Sketch of dimensions of electric drives DNOVA MT-N-xEM-O2-380VAC-U1 five-cam
В
В
Overall and installation dimensions of DNOVA MT-N-xEM-O2-220VAC-U1 five-cam electric drives:
| Model | W, mm | H, mm | L, mm |
| MT-N-010EM-02-x-U1 | 334 | 258 | 411 |
| MT-N-020EM-02-x-U1 | 365 | 290 | 470 |
| MT-N-030EM-02-x-U1 | 365 | 290 | 470 |
| MT-N-045EM-02-x-U1 | 433 | 337 | 564 |
| MT-N-060EM-02-x-U1 | 433 | 337 | 564 |
В
В
Material sketch of wedge gate valves 30nzh941nzh DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST-flange, bare stem, under electric actuator
В
Materials of parts of wedge gate valves 30nz941nz DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST flange, bare stem, for electric drive:
| No. | Part name | Material |
| 1 | Frame | steel 12x18H9TL |
| 2 | Wedge | steel 12x18H9TL |
| 3 | Wedge fastening | steel 12x18H9TL |
| 4 | Stock | steel 12x18H9TL |
| 5 | Pad | steel 12x18H9TL + graphite |
| 6 | Lid | steel 12x18H9TL |
| 7 | Hairpin | stainless steel 201 |
| 8 | screw | stainless steel 201 |
| 9 | Spindle seal | expanded graphite |
| 10 | Gland seal | stainless steel 201 |
| 11 | Bracket | steel 12x18H9TL |
| 12 | Stem nut | copper alloy ZCuAl10fe3 |
