Description
The wedge gate valve is designed for installation on a pipeline as a shut-off device in water supply systems and the chemical industry.
Operating principle: The wedge, connected to the spindle, is lowered or raised depending on the direction of rotation of the handwheel, closing or opening the flow section of the gate body.
Multi-turn electric drives are used to control various pipeline valves. The drives ensure reliable movement and retention of the shut-off element of the TPA in a given position, with a torque of 50 to 5000 Nm.
Multi-turn general-purpose industrial electric drives GZ are used in various sectors of public utilities, water supply, chemical, petrochemical industries, and the oil and gas complex.
В

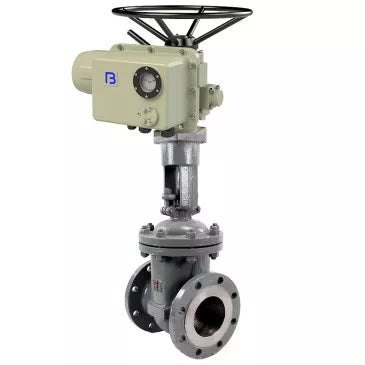

Technical characteristics of wedge gate valves 30nzh941nzh DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST-flange, bare stem, under electric actuator:
| Characteristic | Meaning |
| Gate valve type | Wedge |
| Diameter | 50 mm |
| Nominal pressure | 16 bar |
| Wednesday | water, steam, petroleum products, gaseous media |
| Working environment temperature | from -29 to +425В°C |
| Application | water supply, heat supply |
| Connection type | flanged |
| Control type | electric drive |
В
В
Electric drives GZ 380V
В
Technical characteristics of electric drives GZ 380V:
| Characteristic | Meaning |
| Electric drive type | multi-turn |
| Supply voltage | 380 V |
| Ambient temperature | from -45В°C to +70В°C |
| Degree of protection of the case | IP65 |
| OST flange type | type A, type B |
В
В
Sketch of dimensions of wedge gate valves 30nzh941nzh DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST-flange, bare stem, under electric actuator
В
В
Overall and installation dimensions of wedge gate valves 30nzh941nz DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST flange, bare stem, for electric drive:
| Diameter | L, mm | D, mm | D1, mm | D2, mm | b, mm | f, mm |
| DN50 | 180 | 160 | 125 | 100 | 16 | 3 |
В
В
Sketch of the dimensions of the electric drives GZ 380V
В
Overall and installation dimensions of electric drives GZ 380V:
| Model | W, mm | H, mm | L, mm |
| GZ-A.100/24 | 371 | 309 | 447 |
| GZ-B.300/24 | 405 | 369 | 571 |
В
В
Material sketch of wedge gate valves 30nzh941nzh DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST-flange, bare stem, under electric actuator
В
В
Materials of parts of wedge gate valves 30nz941nz DNOVA GAIR GVWR2424M-2W-F-OST DN50 Ru16 flanged, with OST flange, bare stem, for electric drive:
| No. | Part name | Material |
| 1 | Frame | steel 12x18H9TL |
| 2 | Wedge | steel 12x18H9TL |
| 3 | Wedge fastening | steel 12x18H9TL |
| 4 | Stock | steel 12x18H9TL |
| 5 | Pad | steel 12x18H9TL + graphite |
| 6 | Lid | steel 12x18H9TL |
| 7 | Hairpin | stainless steel 201 |
| 8 | screw | stainless steel 201 |
| 9 | Spindle seal | expanded graphite |
| 10 | Gland seal | stainless steel 201 |
| 11 | Bracket | steel 12x18H9TL |
| 12 | Stem nut | copper alloy ZCuAl10fe3 |
