Wedge gate valves are designed for installation on a pipeline as a shut-off device in water supply systems and the chemical industry.
The wedge, connected to the spindle, is lowered or raised depending on the direction of rotation of the handwheel, closing or opening the flow section of the gate body.

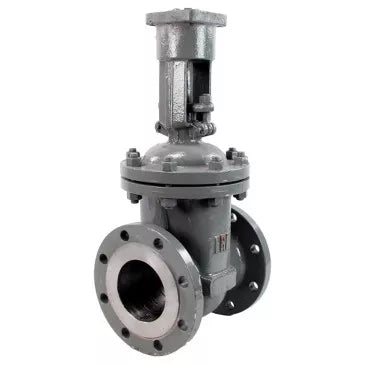

Technical characteristics of wedge gate valves 30s964nzh DNOVA GAIR GVWR2121M-2W-F-OST DN80-150 Ru25 flanged, with OST-flange, bare stem, under electric actuator:
| Characteristic | Meaning |
| Gate valve type | Wedge |
| Diameter | 50-150 mm |
| Nominal pressure | 25 bar |
| Working medium | water, steam, petroleum products, gaseous media |
| Working environment temperature | from -29 to +425°C |
| Application | water supply, heat supply |
| Connection type | flanged |
| Control type | bare stock |
Sketch of dimensions of wedge gate valves 30s964nzh DNOVA GAIR GVWR2121M-2W-F-OST DN80-150 Ru25 flanged, with OST flange, bare stem, for electric drive
Overall and installation dimensions of wedge gate valves 30s964nzh DNOVA GAIR GVWR2121M-2W-F-OST DN80-150 Ru25 flanged, with OST flange, bare stem, for electric drive:
| Diameter | L, mm | D, mm | D1, mm | D2, mm | b, mm | f, mm |
| DN80 | 280 | 195 | 160 | 133 | 22 | 3 |
| DN150 | 350 | 300 | 250 | 212 | 30 | 3 |
Sketch of materials of wedge gate valves 30s964nzh DNOVA GAIR GVWR2121M-2W-F-OST DN80-150 Ru25 flanged, with OST flange, bare stem, for electric drive
Materials of parts of wedge gate valves 30s964nzh DNOVA GAIR GVWR2121M-2W-F-OST DN80-150 Ru25 flanged, with OST flange, bare stem, for electric drive:
| No. | Part name | Material |
| 1 | Frame | steel 25L |
| 2 | Wedge | steel 25L |
| 3 | Stock | steel 20Cr13 |
| 4 | Bolt | steel 45 |
| 5 | screw | tired 35 |
| 6 | Pad | stainless steel+graphite |
| 7 | Lid | steel 25L |
| 8 | Spindle seal | flexible graphite |
| 9 | Pin | ASTM A29 1045 steel |
| 10 | Gland packing | carbon steel |
| 11 | screw | steel 35 |
| 12 | Bolt | steel 45 |
| 13 | Bracket | steel 25L |
| 14 | Bearing | - |
| 15 | Cuff | - |
| 16 | Stem nut | brass |
| 17 | Casing | ASTM A29 1035 steel |
- Body material
- Steel 20/25L
- Connection type
- Flanged
- Type of seal
- Metal
- Disc material
- Steel 25L
- Country of origin
- China
