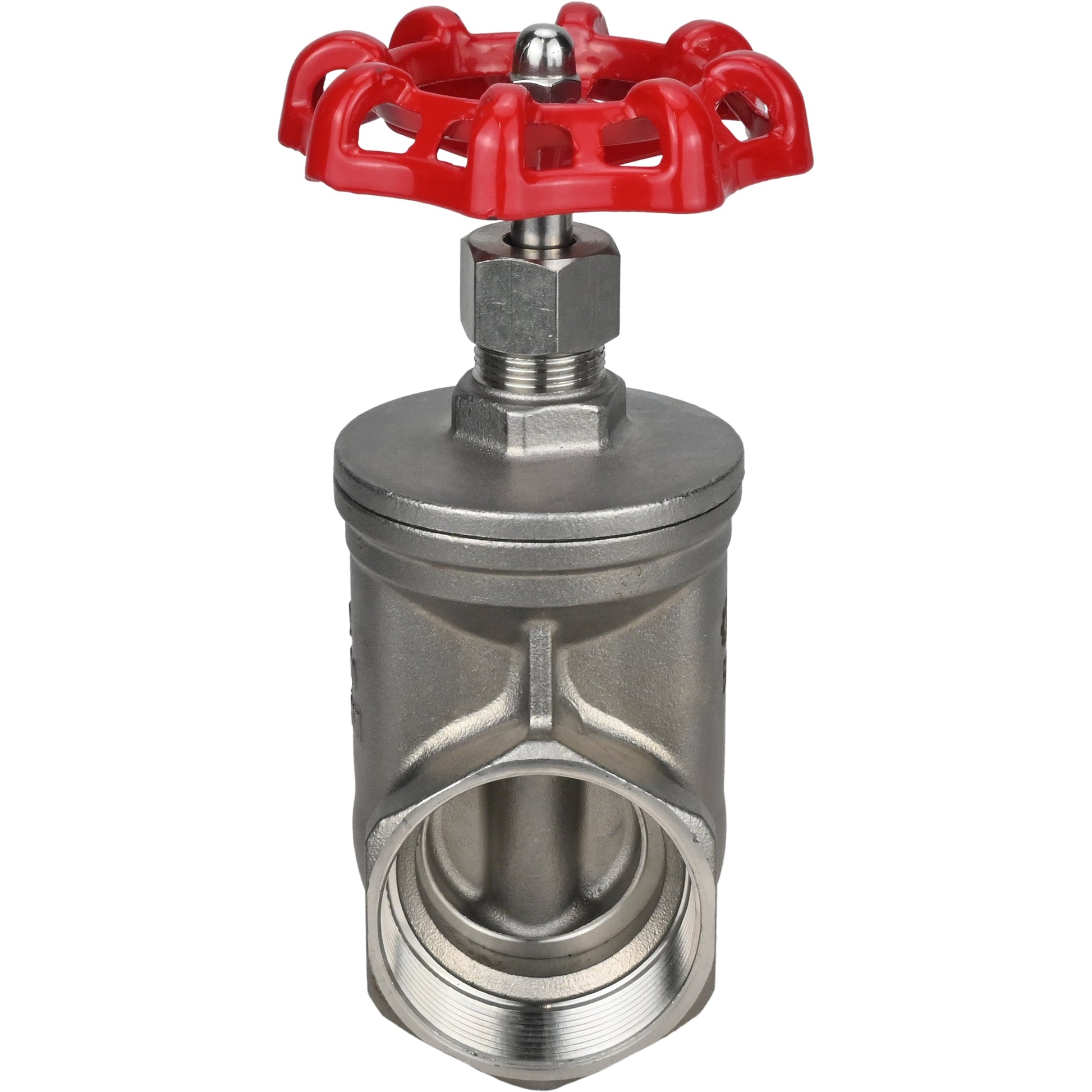

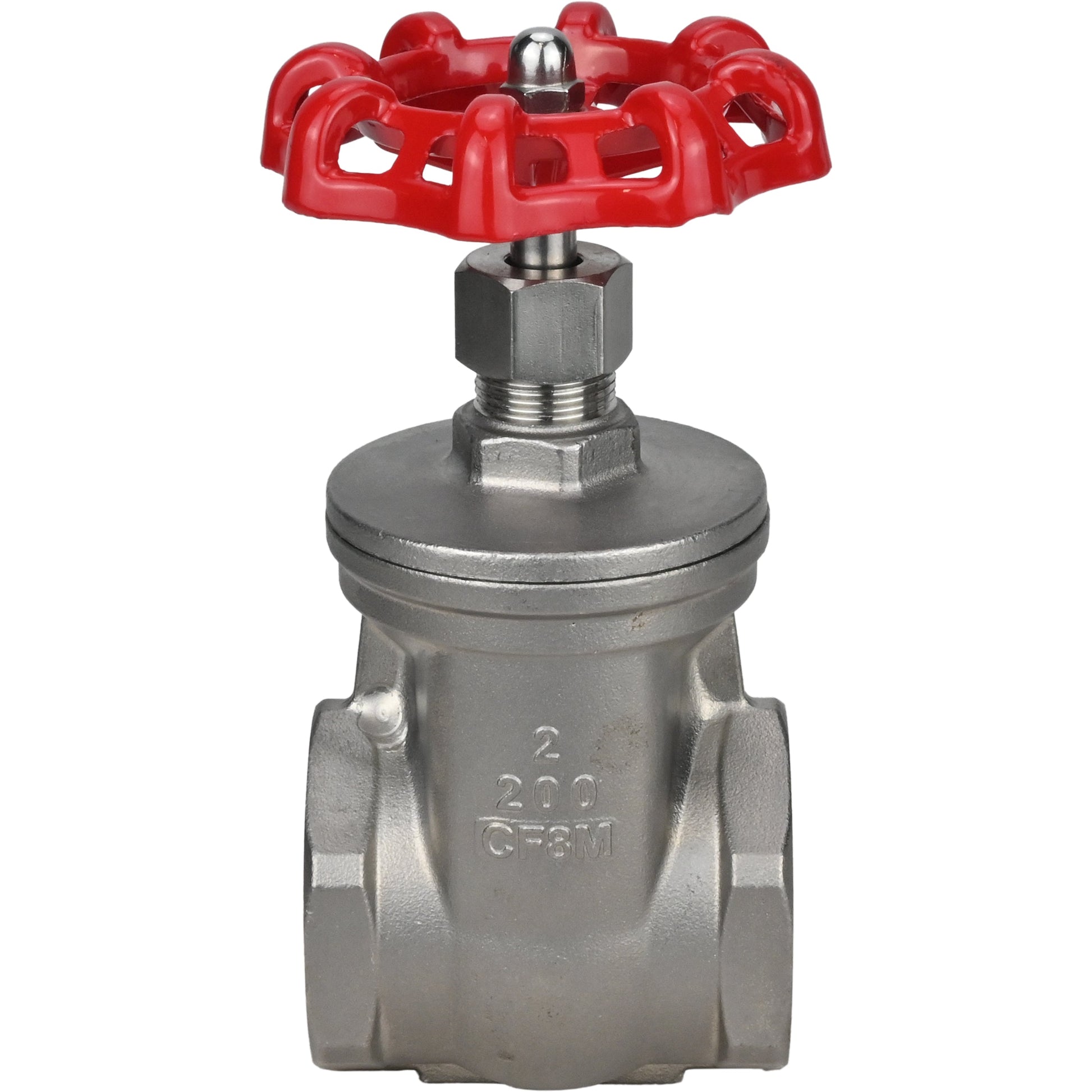

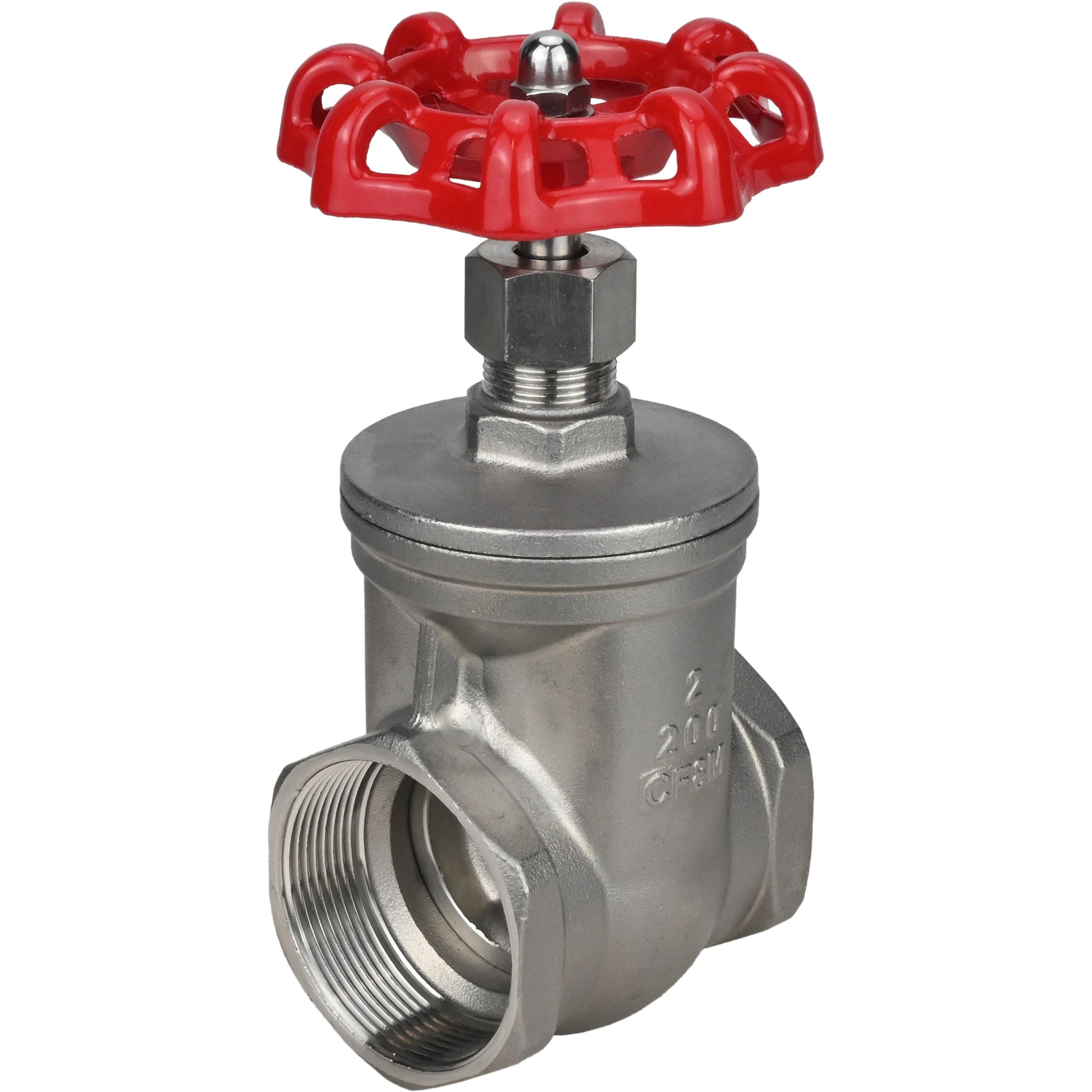

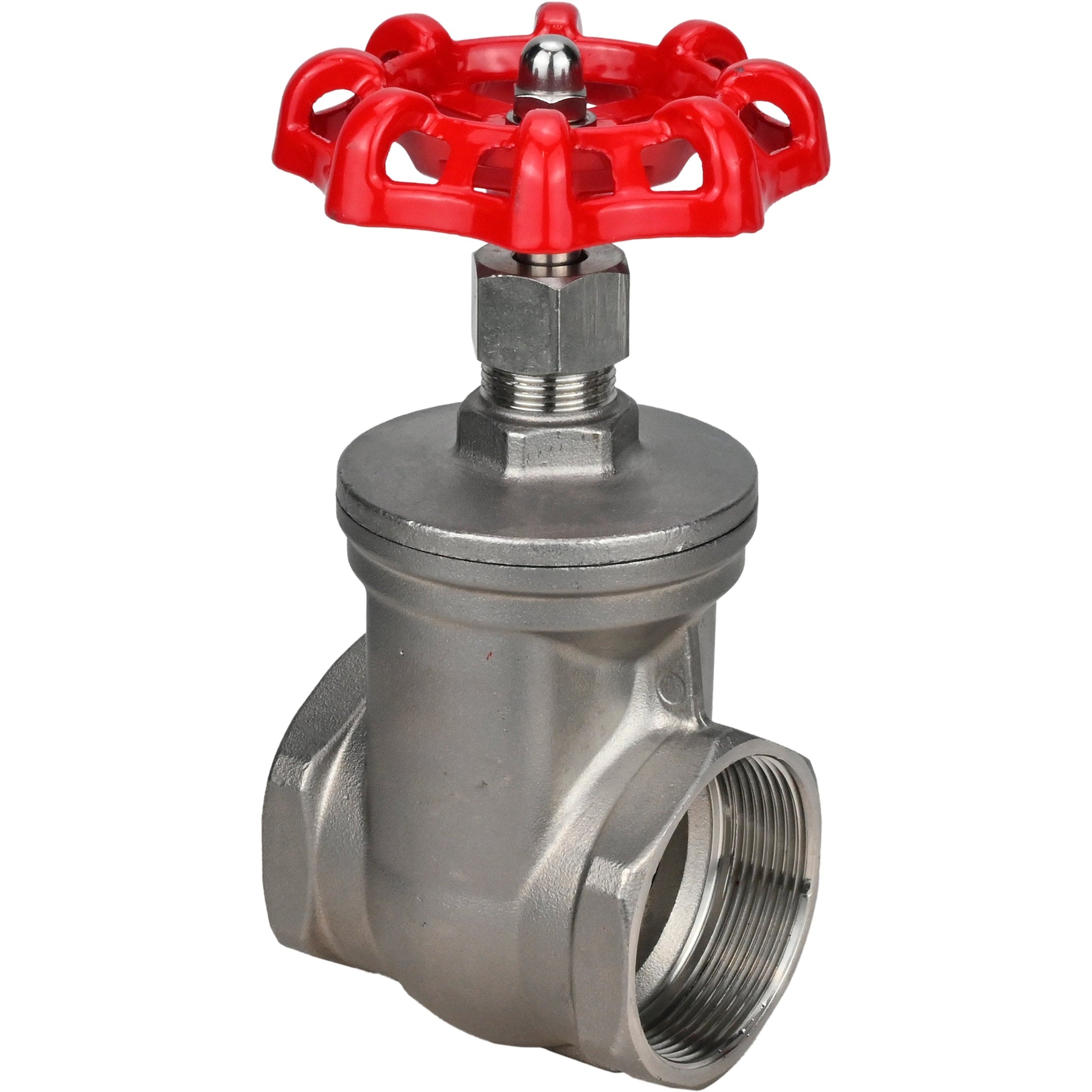

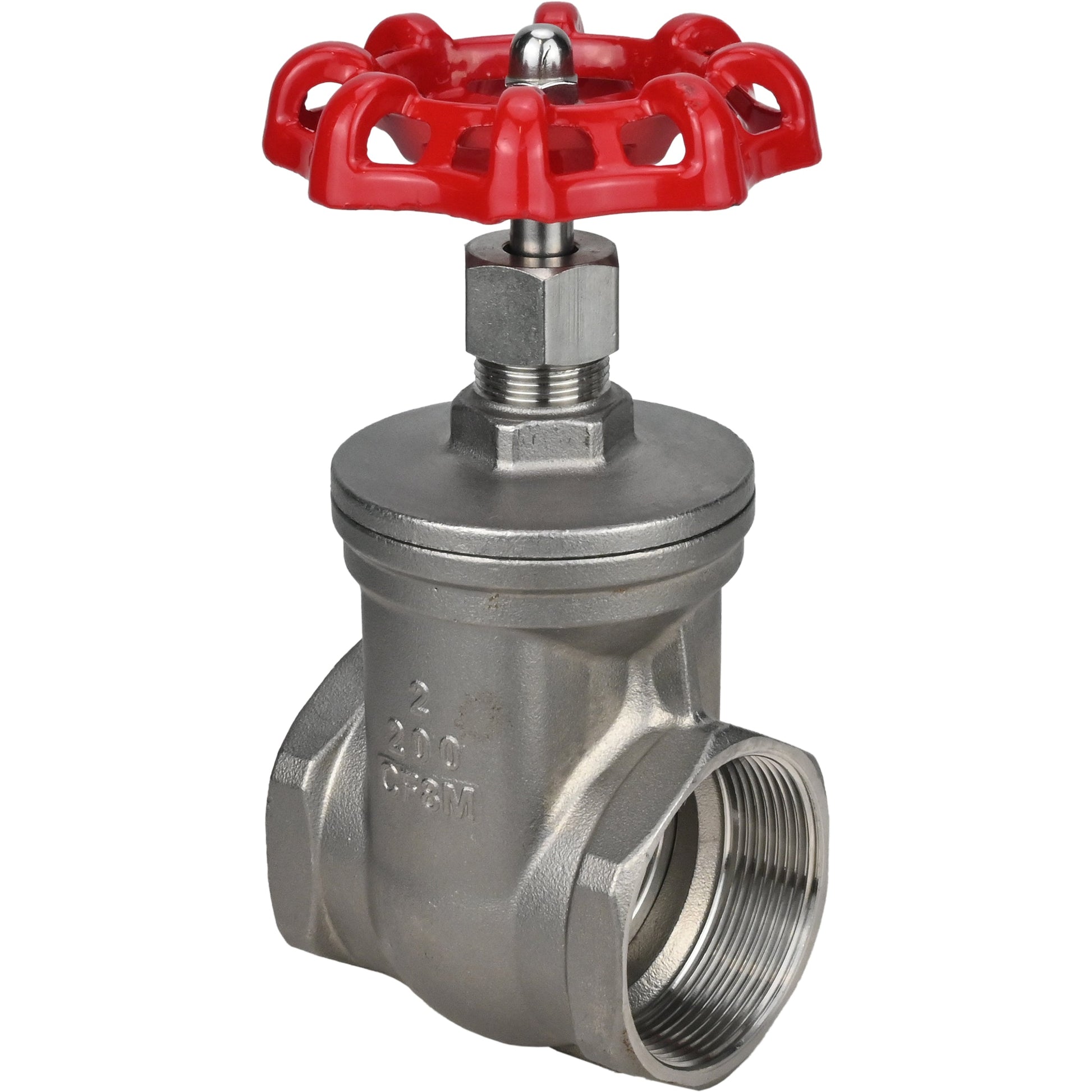

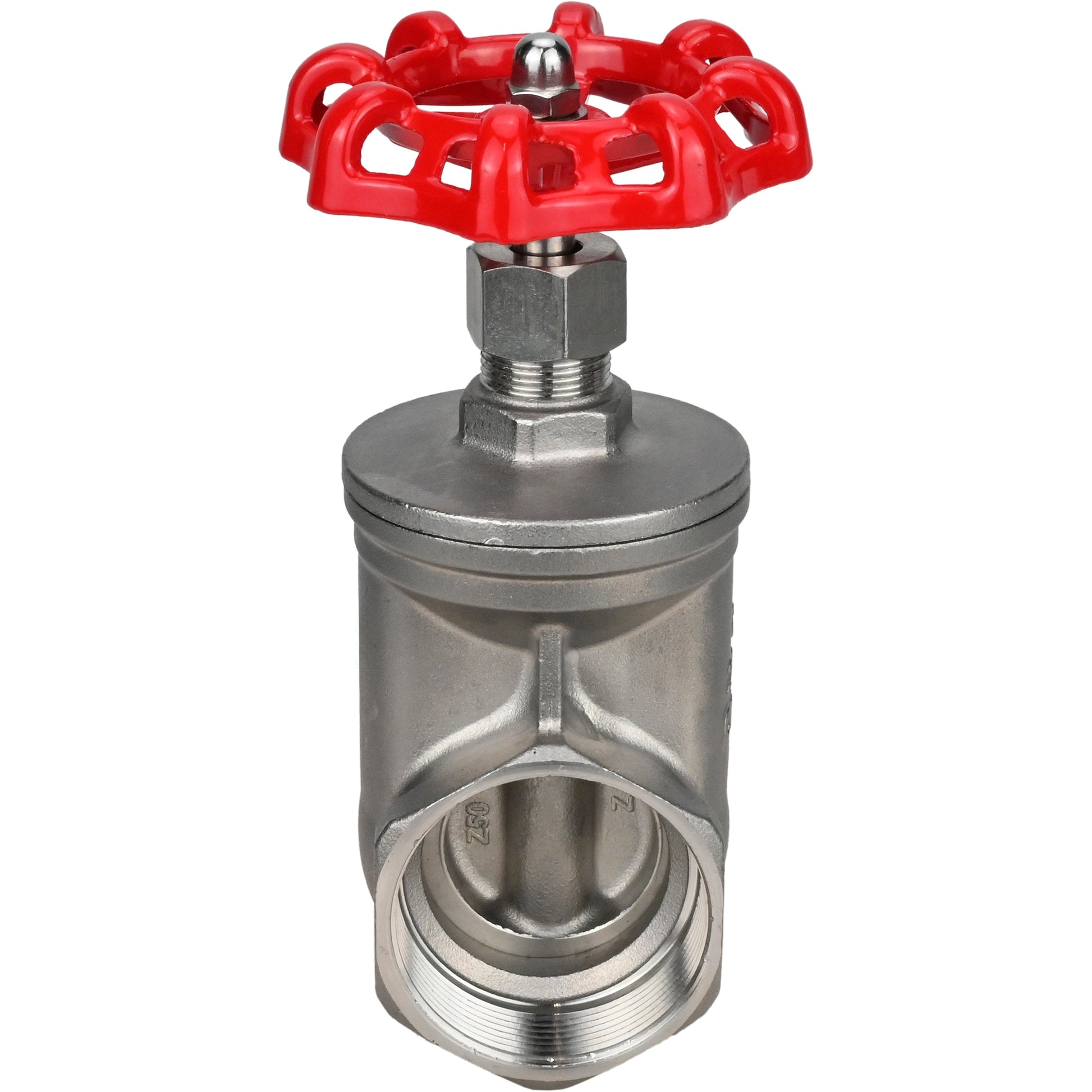

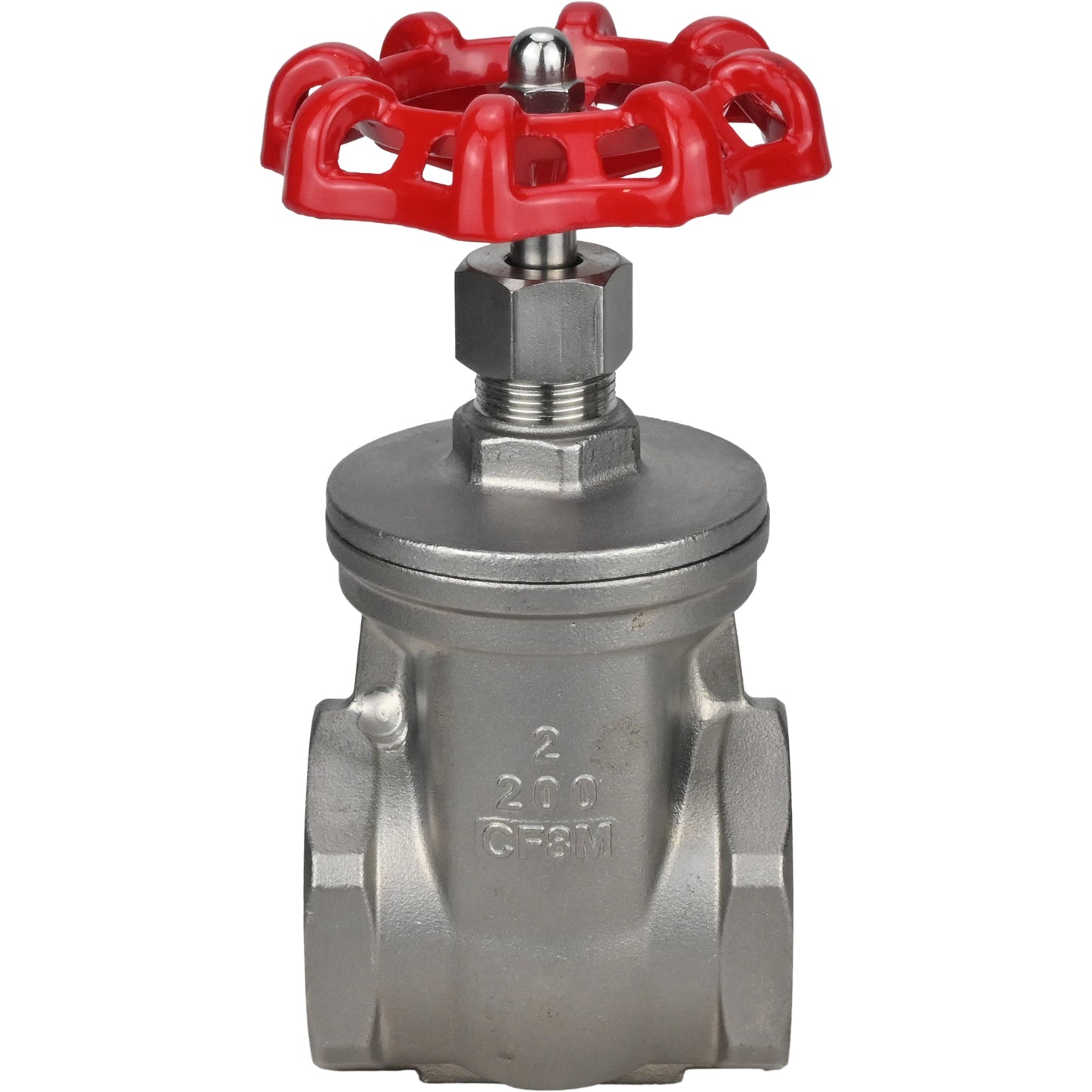

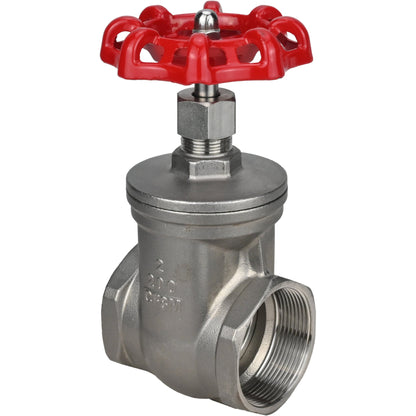

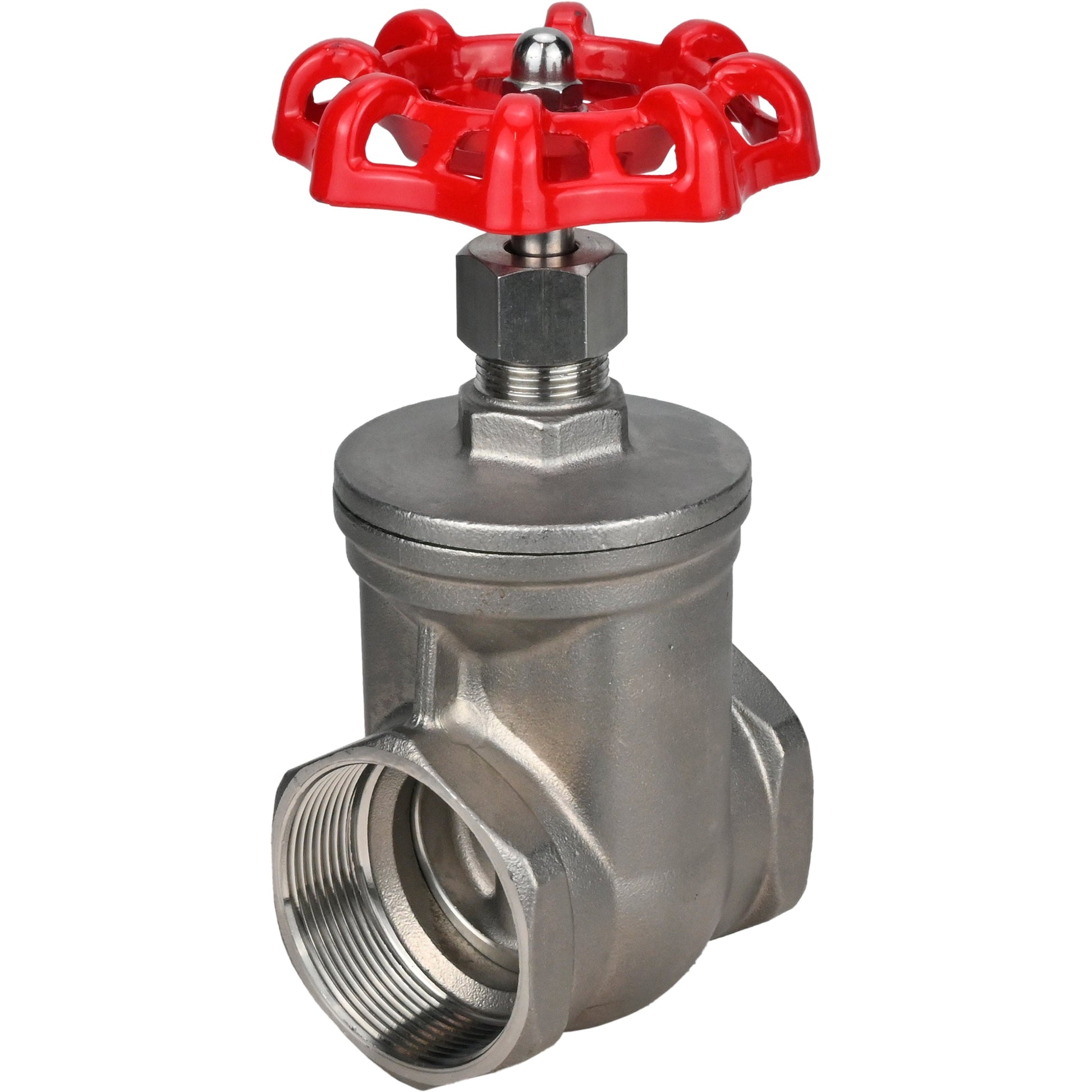

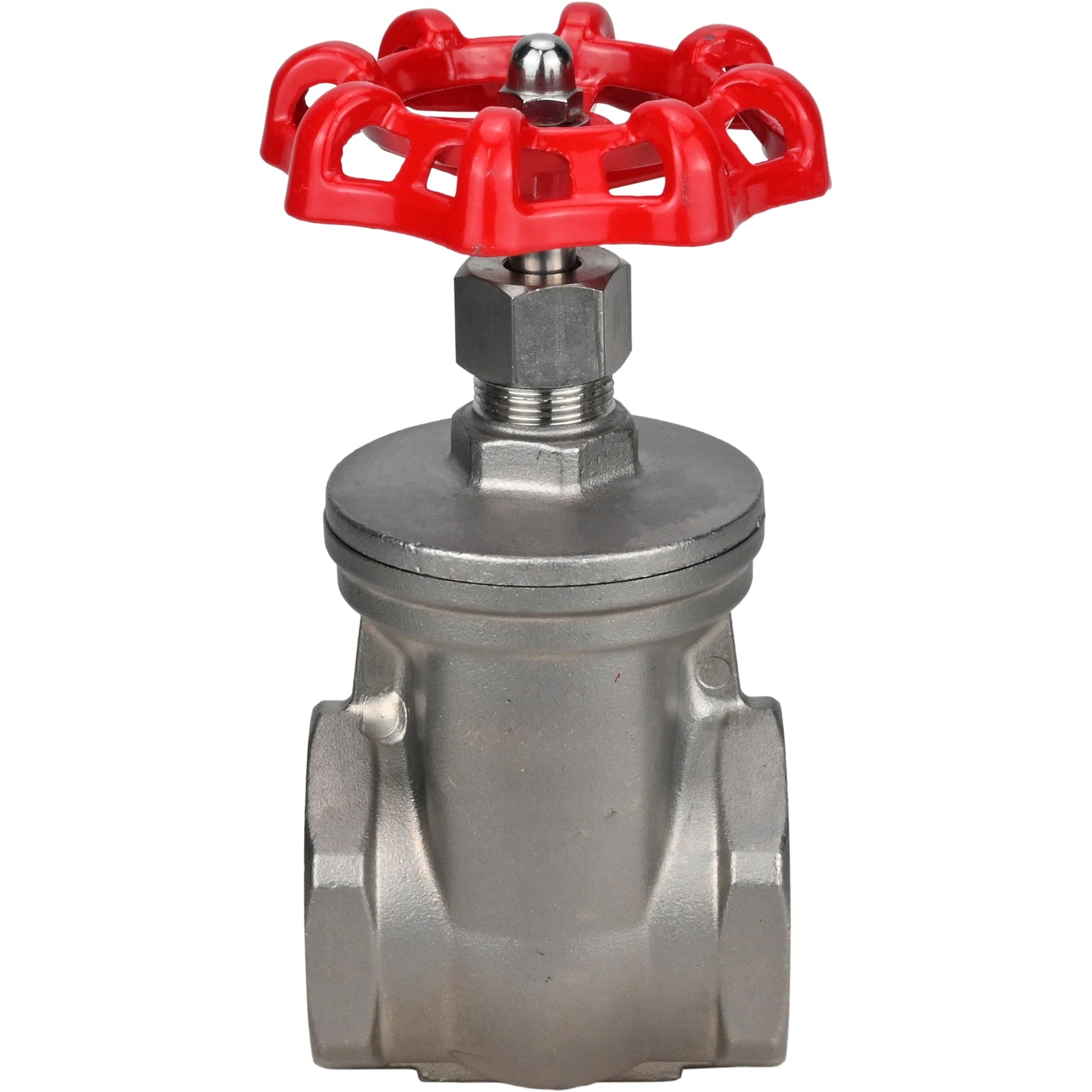

Wedge gate valve DNOVA GVWR3131M-2W-T-S, body material - stainless steel AISI 304, wedge material - stainless steel AISI 304, seal - metal, handwheel

From $4.76 USD
From $4.76 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The wedge gate valve is designed for installation in pipelines as a shut-off device in water supply systems and chemical industry.

The wedge connected to the spindle is lowered or raised depending on the direction of rotation of the handwheel or the shaft of the electric actuator, gearbox, closing or opening the cross-section of the gate valve body.

The wedge valve is designed to be installed on a pipeline as a shut-off device in water supply systems and chemical industry.

Dimensions and dimensions of threaded wedge gate valves DNOVA GVWR3131M-2W-T-S, withdrawable stem, body - SS304 stainless steel, wedge - SS304 stainless steel, seal - metal, control - hand wheel

Model L d H W
DN15 50 14 96 70
DN20 60 20 102 70
DN25 65 24 114 70
DN32 75 30 132 70
DN50 95 47 170 97
DN65 103 63 200 97

Sketch of dimensions and dimensions of wedge gate valves DNOVA GVWR3131M-2W-T-S threaded, stem-retractable, body - stainless steel SS304, wedge - stainless steel SS304, seal - metal, control - hand wheel

Table of parts and materials of wedge gate valves DNOVA GVWR3131M-2W-T-S threaded, stem-retractable, body - stainless steel SS304, wedge - stainless steel SS304, seal - metal, control - hand wheel

№ Details Material
1 Case stainless steel 304
2 Wedge stainless steel 304
3 Stem stainless steel 304
4 Cover stainless steel 304
5 O-ring seal PTFE
6 Stem holder stainless steel 304
7 Gasket stainless steel 304
8 Stem seal PTFE
9 clamping ring stainless steel 304
10 Nut stainless steel 304
11 Helm stainless steel201
12 spring washer stainless steel 304
13 Nut steel A 194 8

Specifications

Country of origin
China
Body material
stainless steel AISI 304
Stopper Material
stainless steel AISI 304
Maximum allowable temperature
180 °C
Connection type
threaded
Control type
handwheel
Gate valve type
Wedge Gate Valve
Nominal pressure
16 bar
Type of seal
metal
