Description
The wedge gate valve is designed for installation as a shut-off device on pipelines for transportation of water, steam, oils, in relation to which the materials used in the gate valve are corrosion-resistant.
The multi-turn actuator is designed for automation of industrial valve control process and for determining the position of the valve shut-off body.

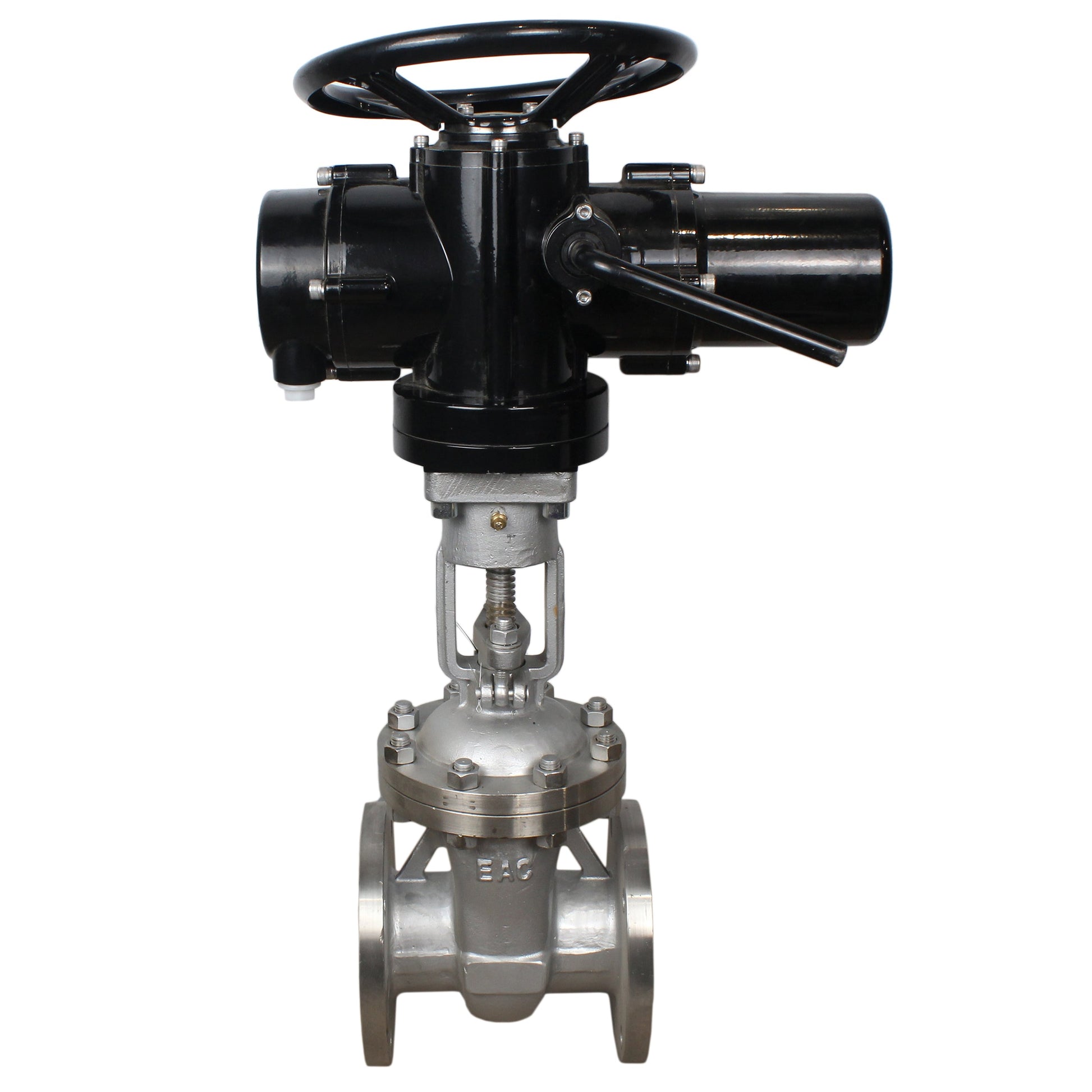

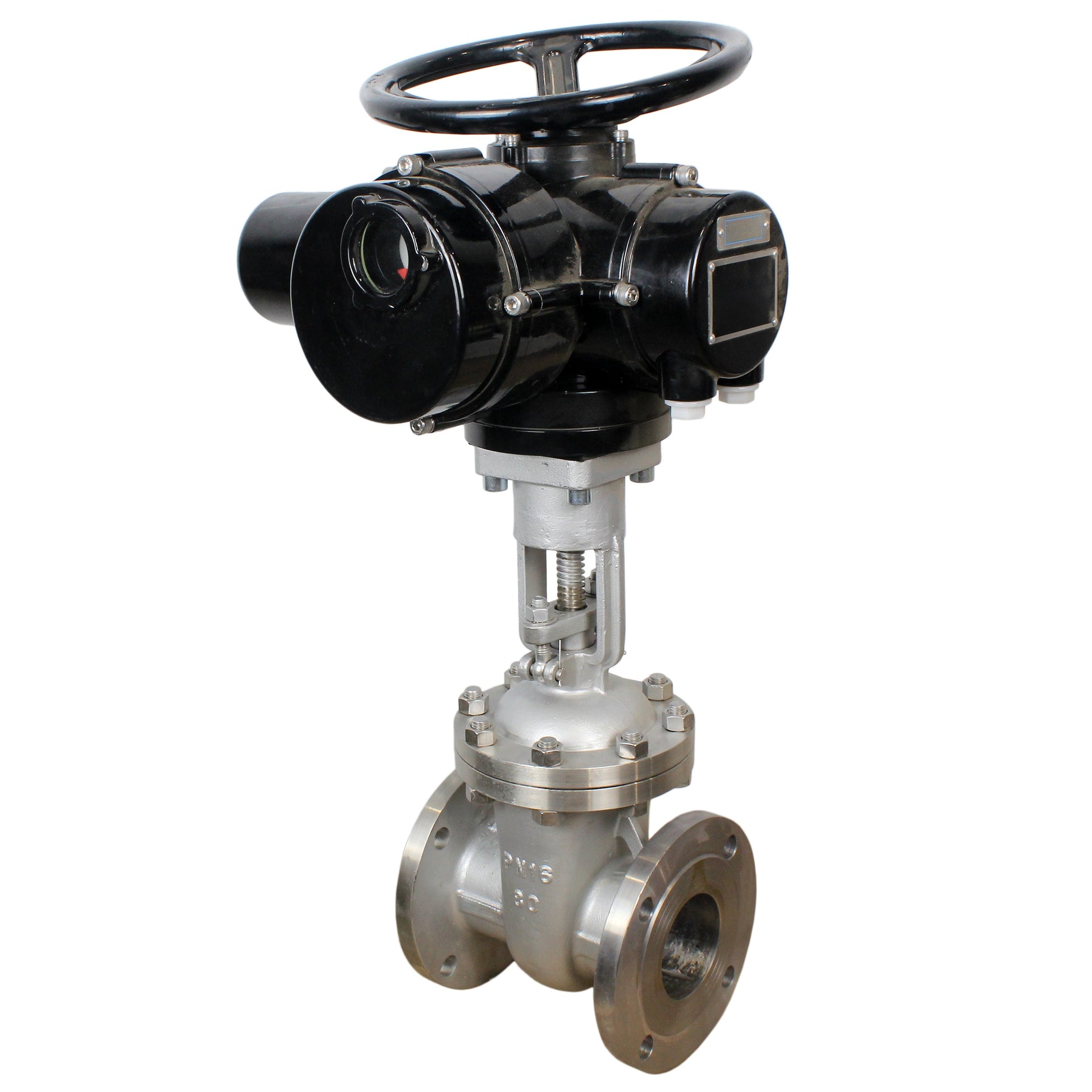

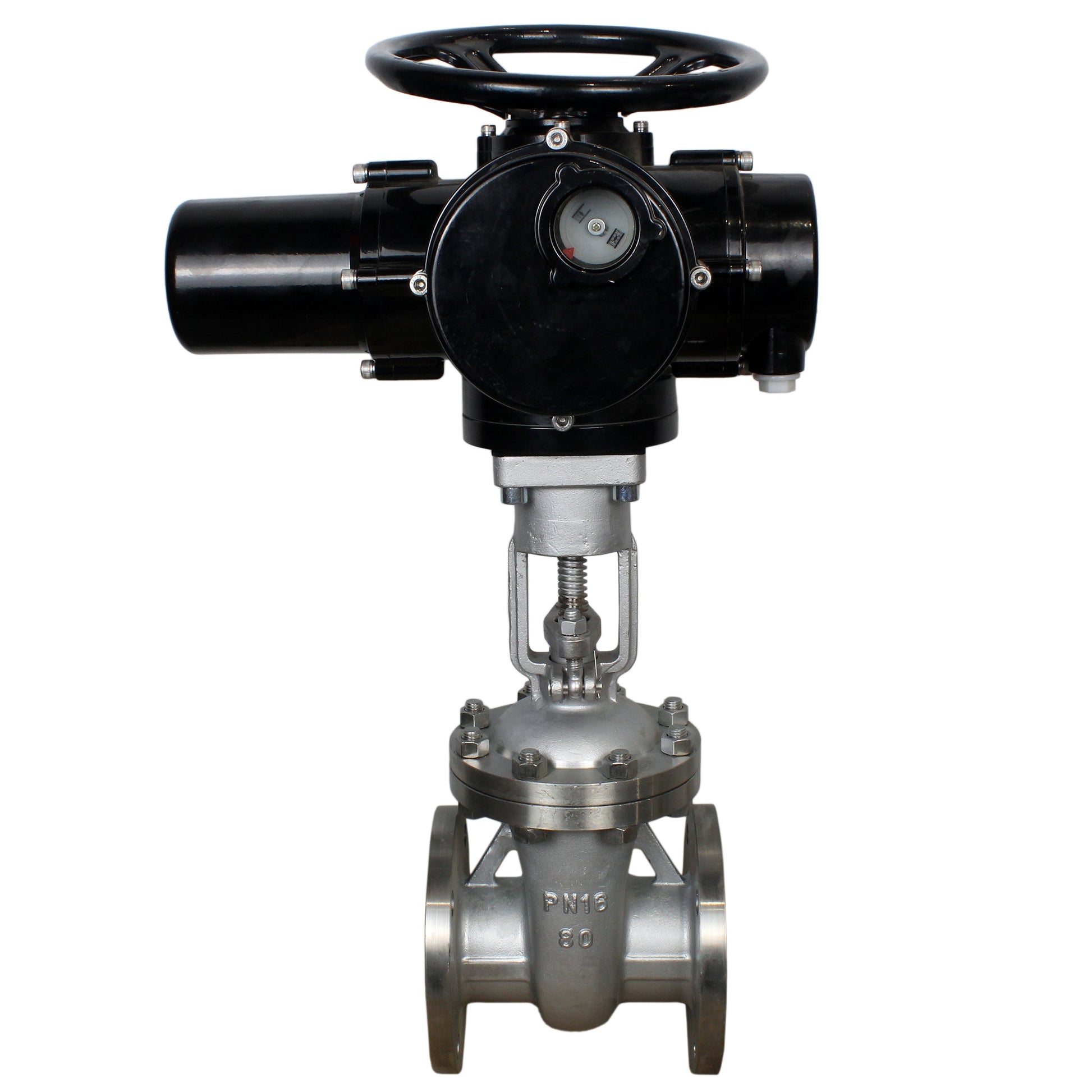

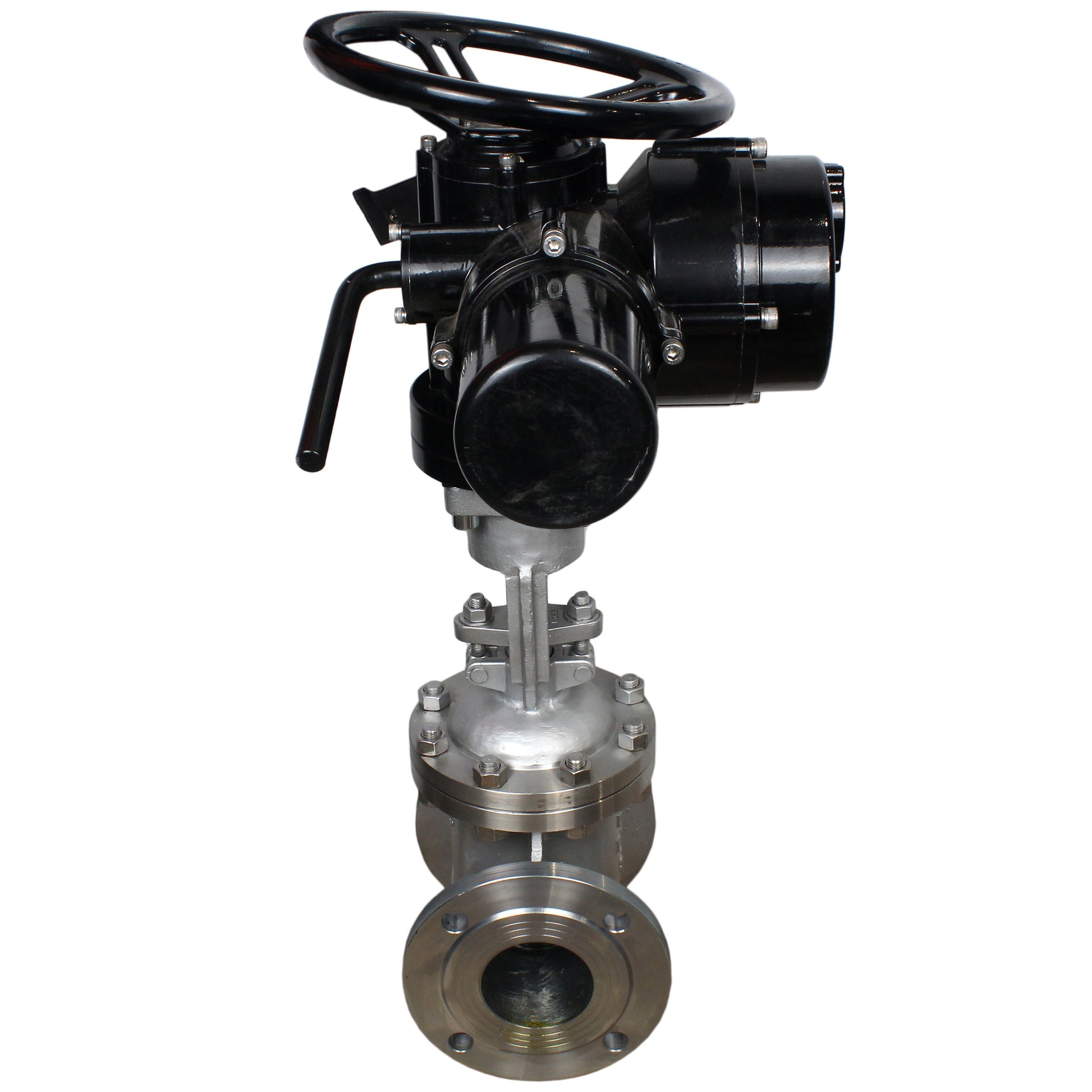

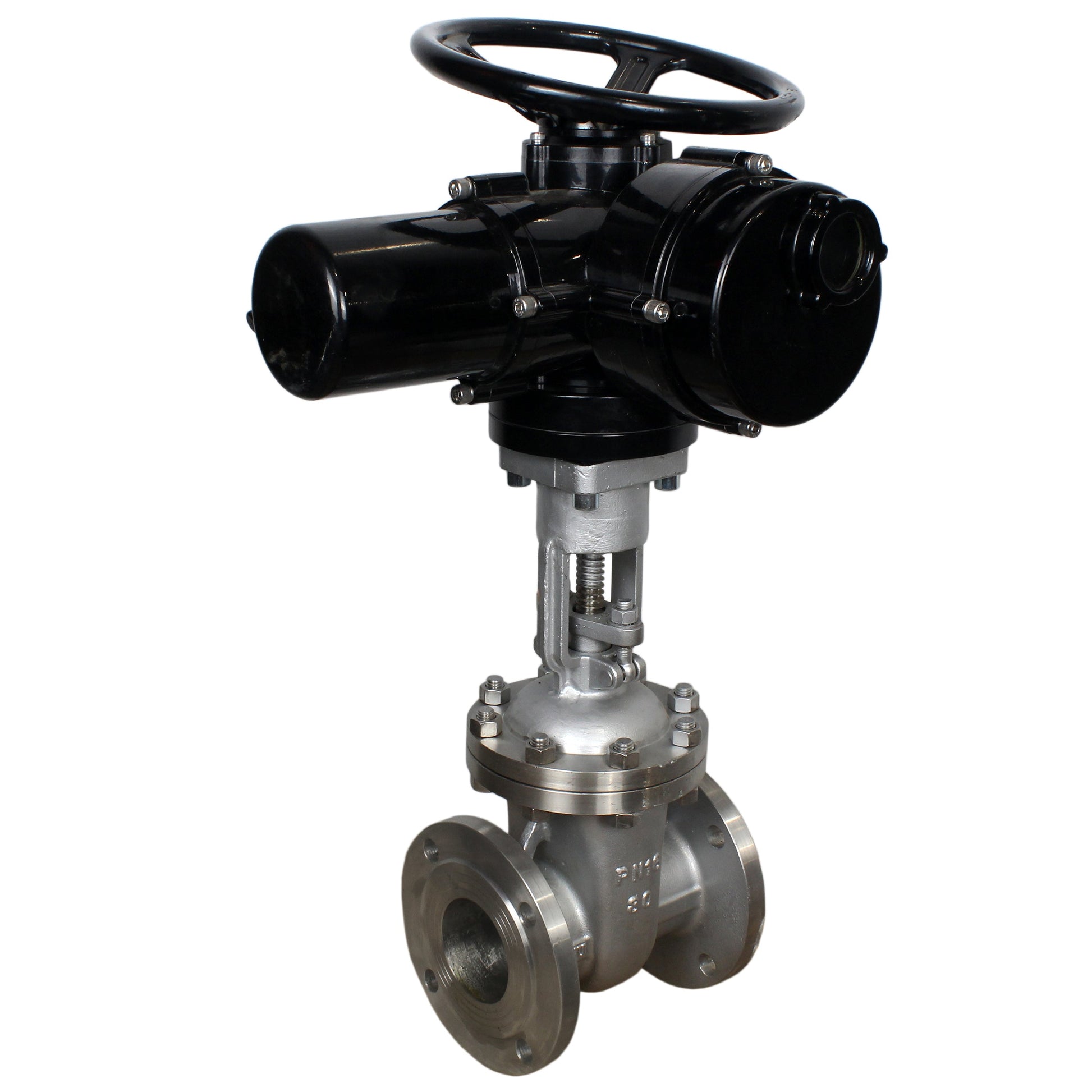

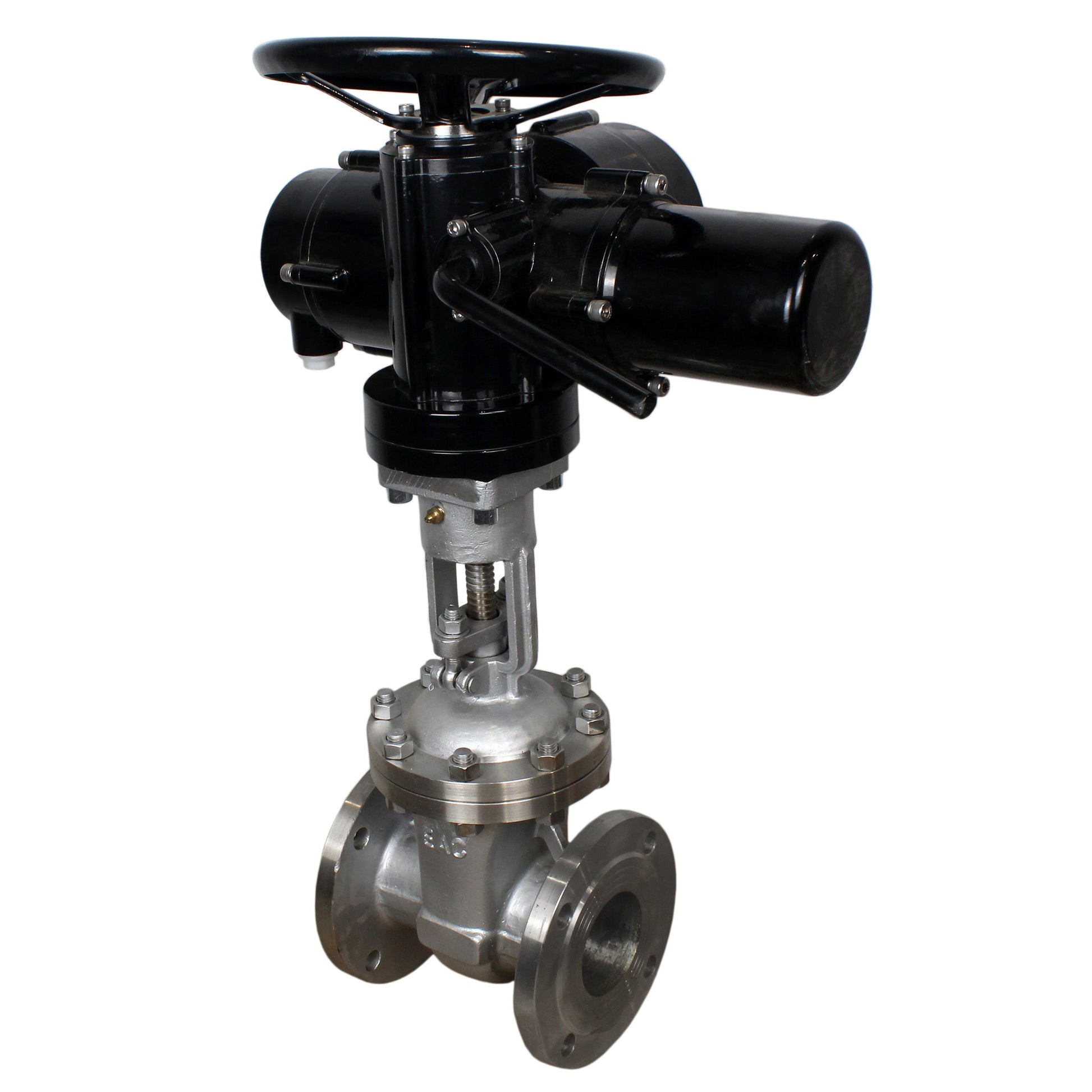

Dimensions and dimensions of wedge gate valves DNOVA GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL
| Size | L, mm | L1, mm | D, mm | D1, mm | D2, mm |
| 50 | 250 | 411 | 160 | 125 | 100 |
| 80 | 280 | 411 | 195 | 160 | 135 |
| 100 | 300 | 470 | 230 | 190 | 160 |
| 150 | 350 | 470 | 300 | 250 | 218 |
| 200 | 400 | 470 | 260 | 310 | 278 |
| 250 | 450 | 470 | 425 | 370 | 332 |
| 300 | 500 | 564 | 485 | 430 | 390 |
Sketch of dimensions and dimensions of wedge gate valves DNOVA GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL, seal - metal
Table of parts and materials of wedge gate valves DNOVA GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL, seal - metal
| № | Name | Material |
| 1 | Spindle nut | brass |
| 2 | Sealing | graphite |
| 3 | Bolt/nut | steel St35 |
| 4 | Stem | steel 2cr13 |
| 5 | Saddle | steel WCB+D507 |
| 6 | Wedge | steel WCB+D507MO |
| 7 | Case | 12Cr18Ni9TL steel |
Sketch of parts and materials of wedge gate valves DNOVA GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL, seal - metal
Technical parameters of the actuator DNOVA
| Name | Significance |
| Power supply voltage | 380 V |
| Ambient temperature, °C | -30 to +70 |
| Type of actuator | multiturn |
| Engine type | asynchronous |
| Output shaft speed, rpm | 18/24 |
| Manual drive gear ratio | 1:1 |
| Cable entry | waterproof G1/2 |
| Enclosure protection class, IP | 67 |
| Automatic shut-off in open, closed and jammed positions | have |
| Winding insulation type | F |
| Ambient humidity, % | ≤95 (at 25°C) |
| Explosion protection of the enclosure | no |
Dimensions and dimensions of the actuator DNOVA
| Model | MT-N-010EM-O2-380-U1 | MT-N-015EM-O2-380-U1 | MT-N-020EM-O2-380-U1 | MT-N-030EM-O2-380-U1 | MT-N-045EM-O2-380-U1 | MT-N-060EM-O2-380-U1 |
| W, mm | 334 | 334 | 365 | 365 | 433 | 433 |
| H, mm | 258 | 258 | 290 | 290 | 337 | 337 |
| L, mm | 411 | 411 | 470 | 470 | 564 | 564 |
| DxD, mm | 100x100 | 100x100 | 122x122 | 122x122 | 200x200 | 200x200 |
| D1, mm | 104 | 104 | 135 | 135 | 220 | 220 |
| D2, mm | 70 | 70 | 108 | 108 | 155 | 155 |
| d1, mm | 32 | 32 | 45 | 45 | 70 | 70 |
| d2, mm | 44 | 44 | 57 | 57 | 84 | 84 |
| f, mm | 8 | 8 | 15 | 15 | 22 | 22 |
| h, mm | 5 | 5 | 8 | 8 | 11 | 11 |
| h1, mm | 3 | 3 | 7 | 7 | 11 | 11 |
| h2, mm | 18 | 18 | 22 | 22 | 28 | 28 |
Sketch of dimensions and dimensions of actuator DNOVA
Schematic diagram of the electric actuator DNOVA
| № | Name |
| 1 | Electric motor |
| 2 | Gearmotor |
| 3 | Worm gearbox |
| 4 | Worm |
| 5 | Handle |
| 6 | Torque mechanism |
| 7 | Set of disc springs |
| 8 | Opening indicator |
| 9 | Handling mechanism |
| 10 | Output shaft |
| 11 | Worm gearbox |
| 12 | Bevel gear |
Sketch of the schematic diagram of the electric actuator DNOVA
