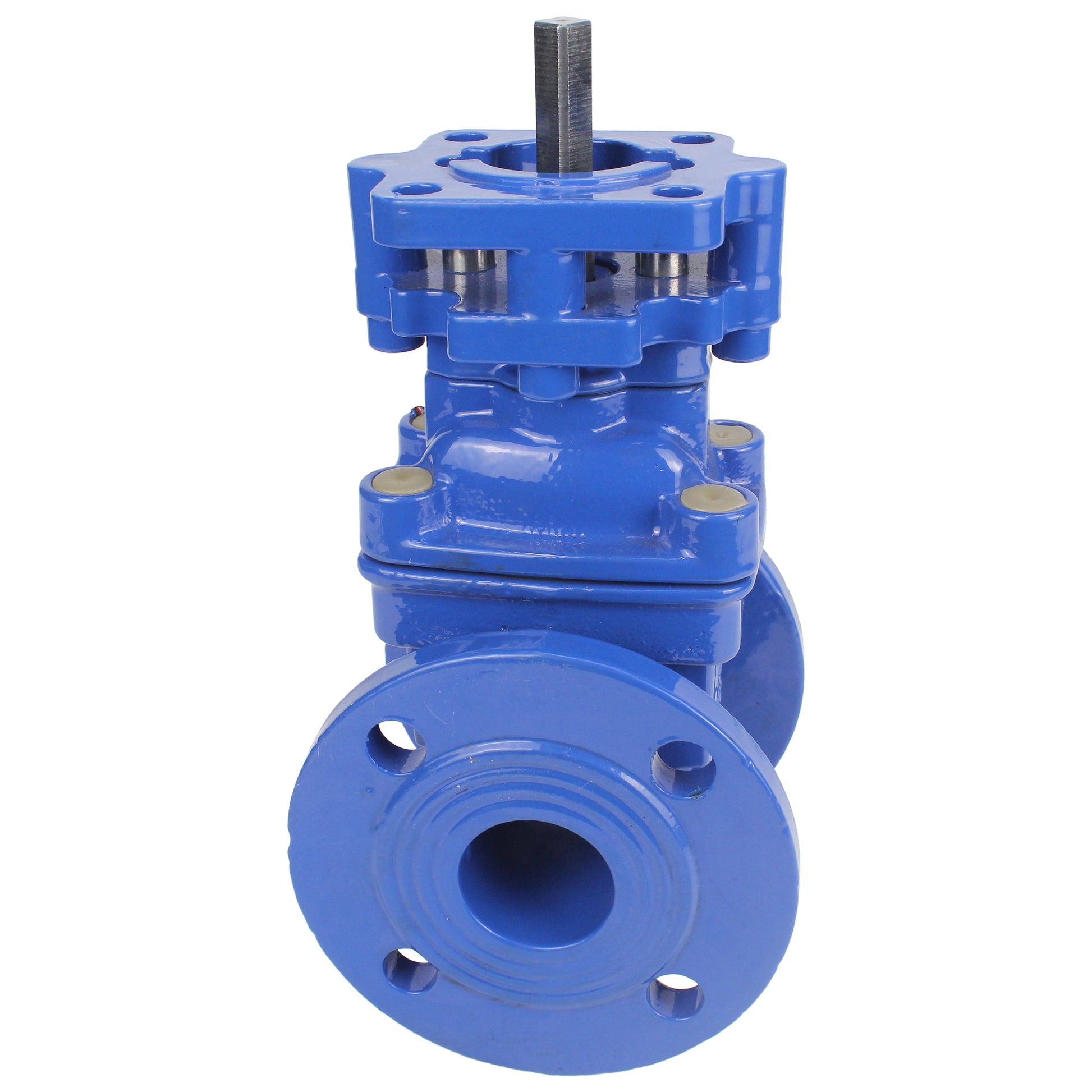

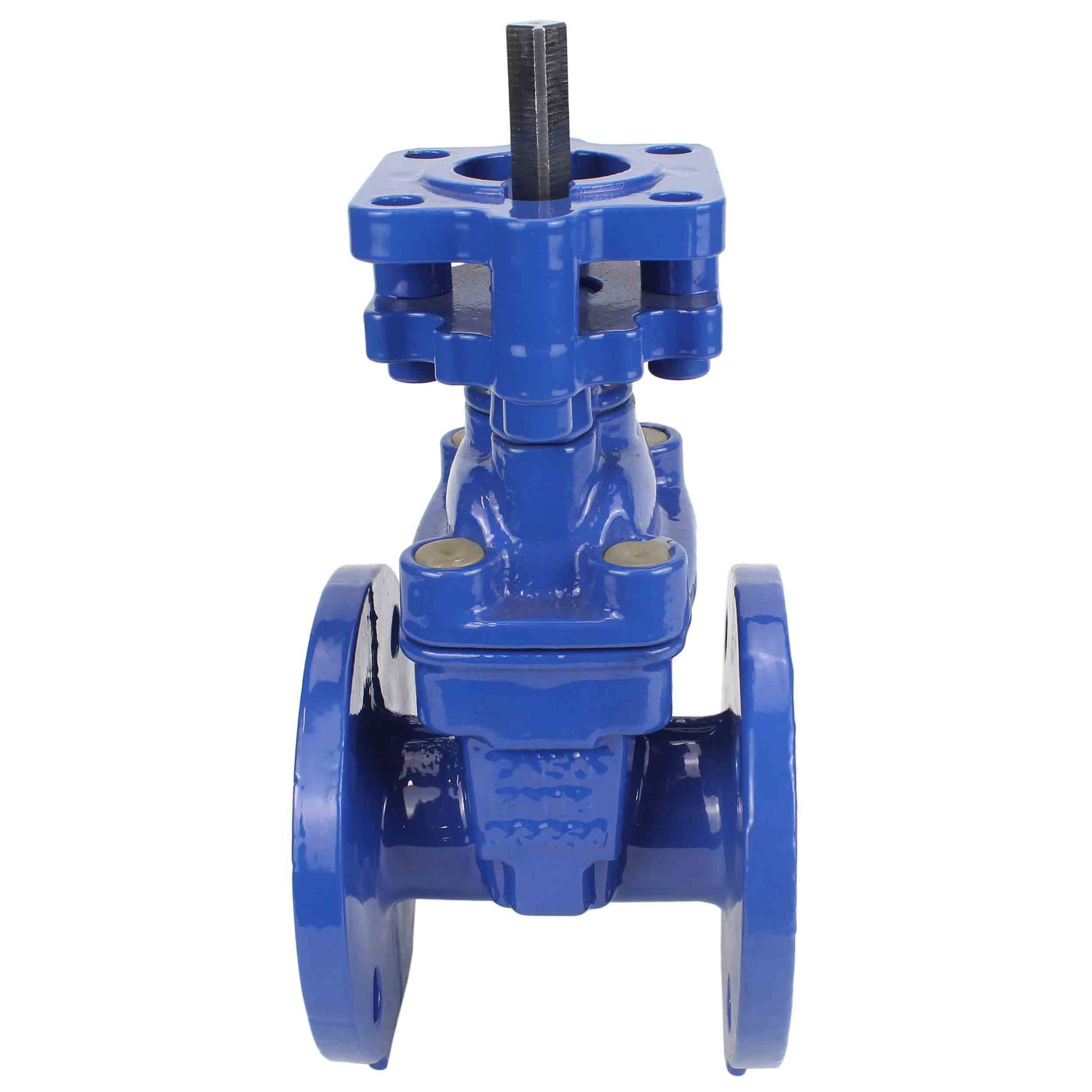

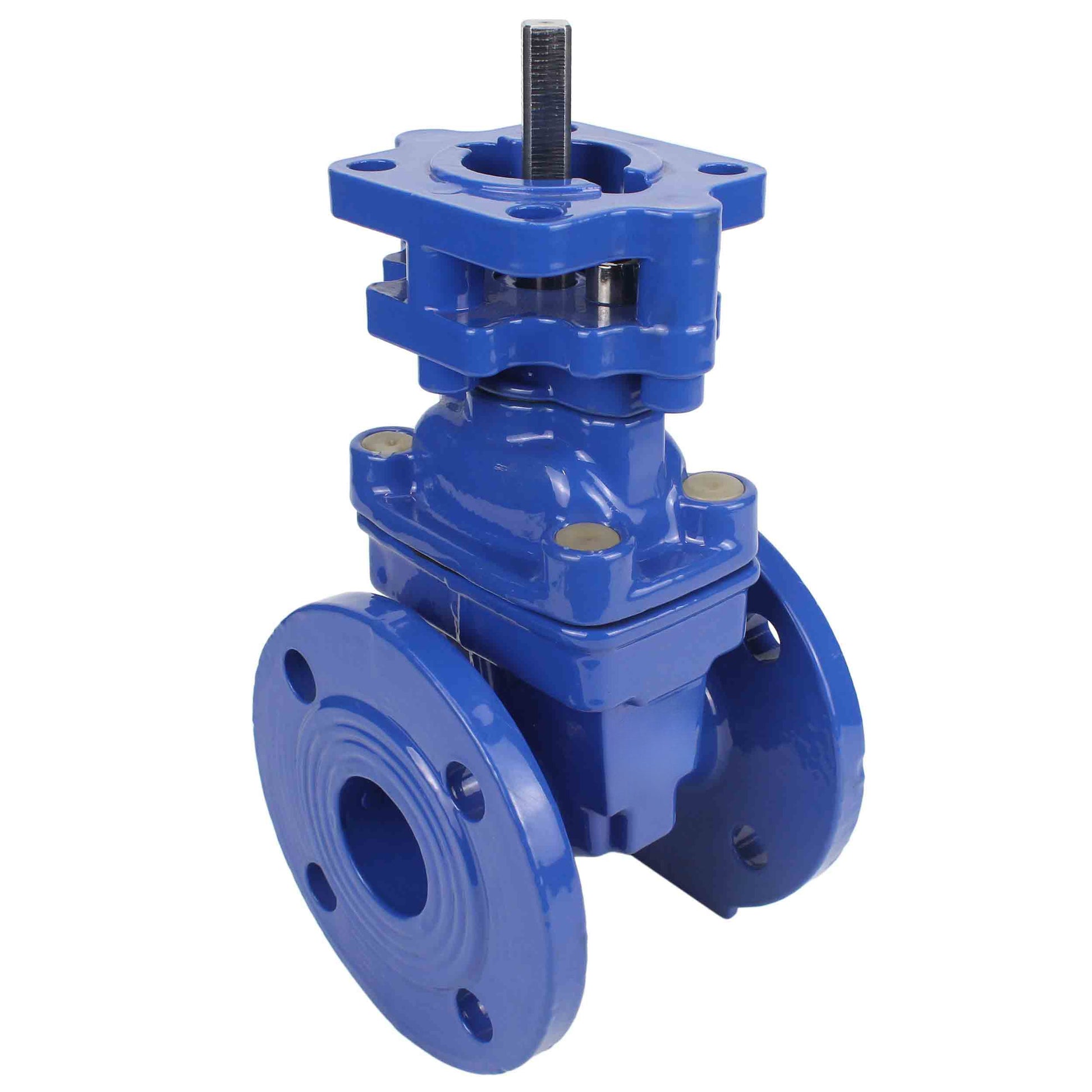

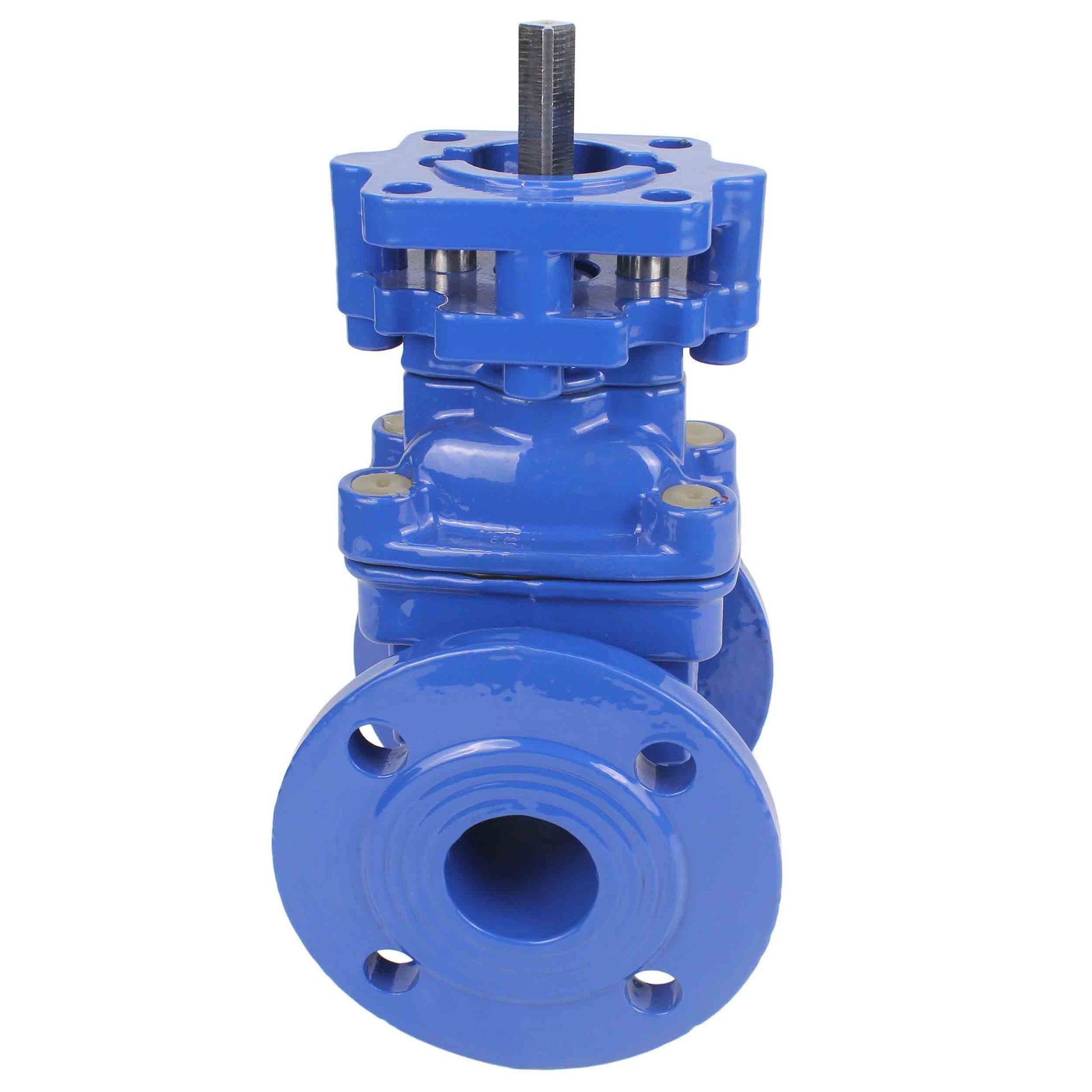

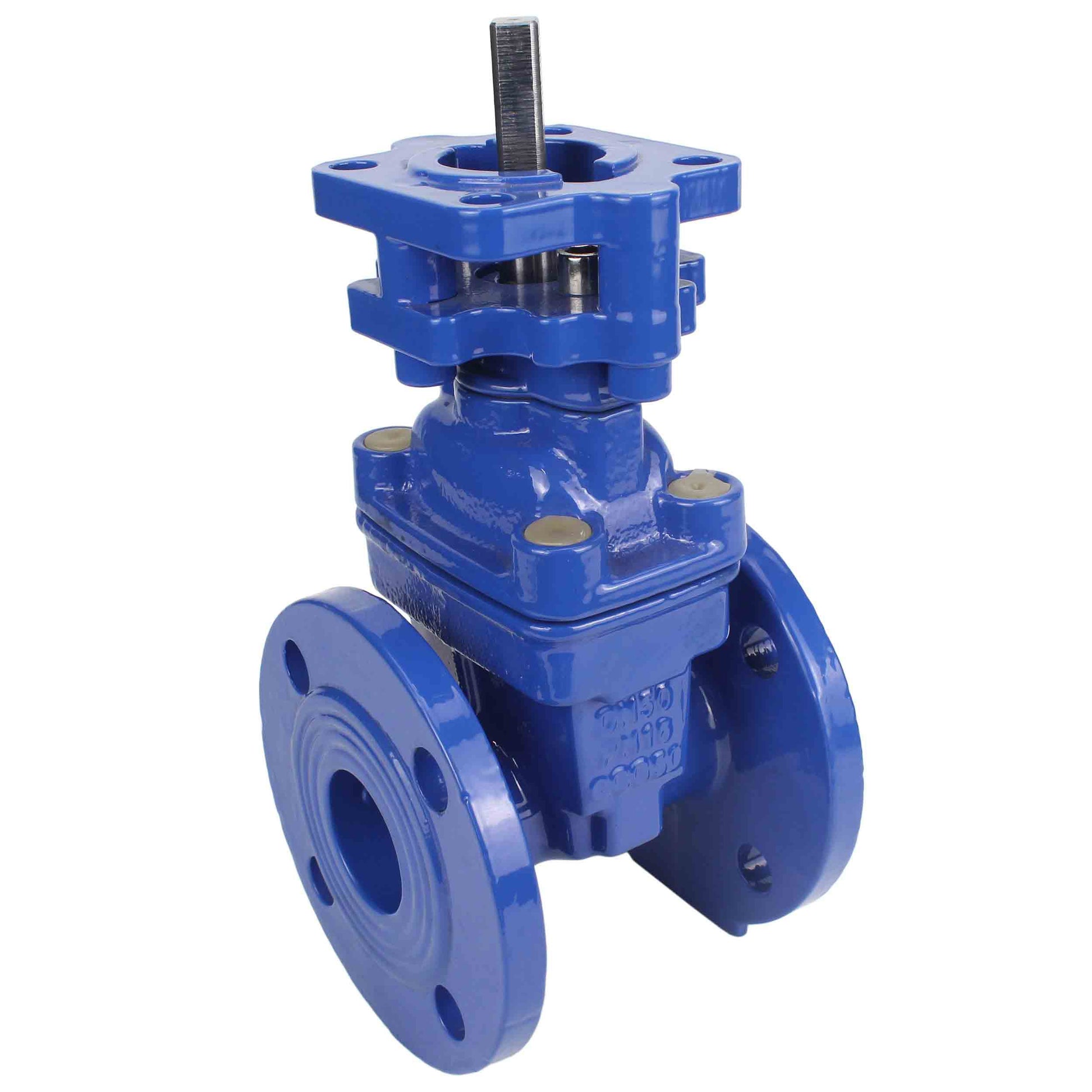

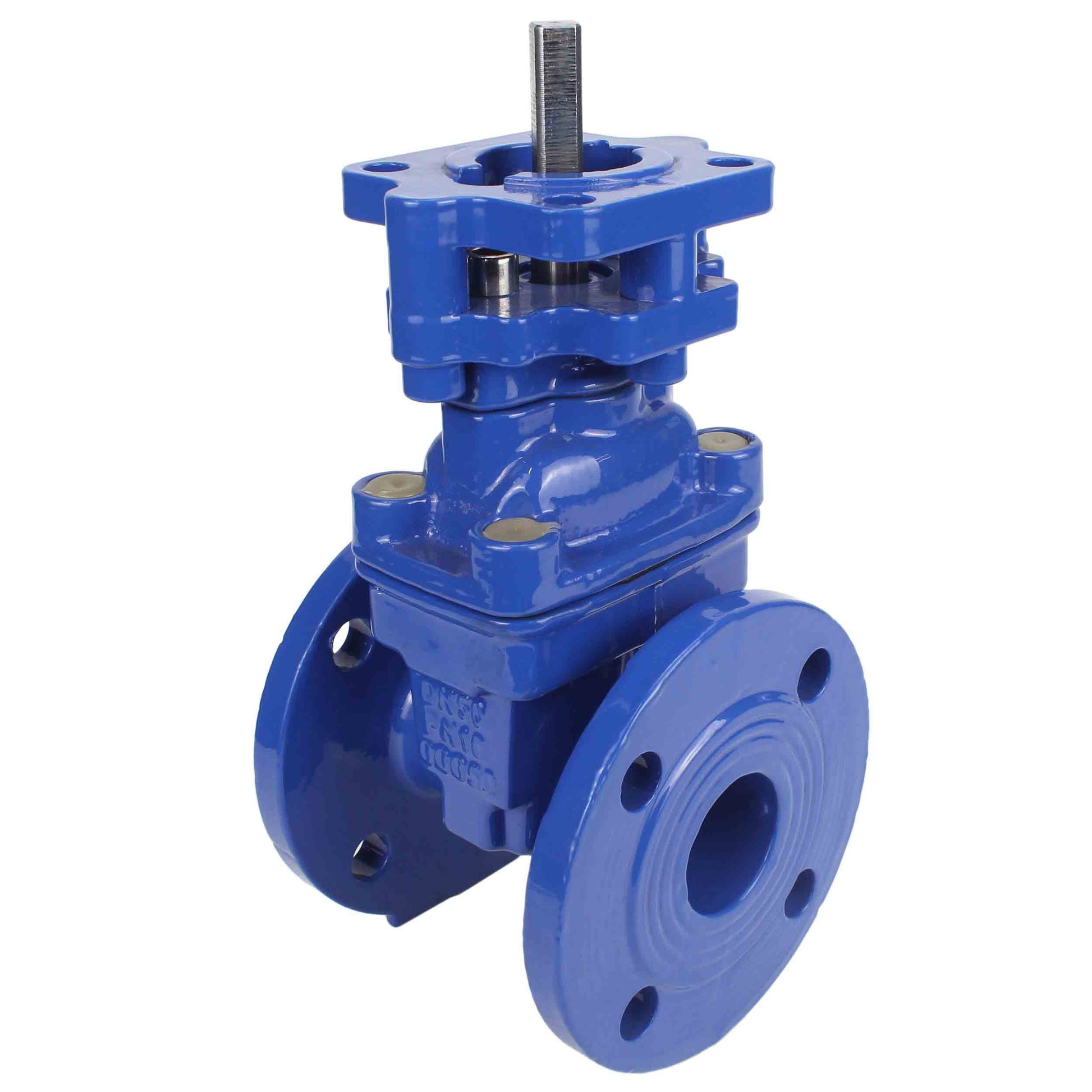

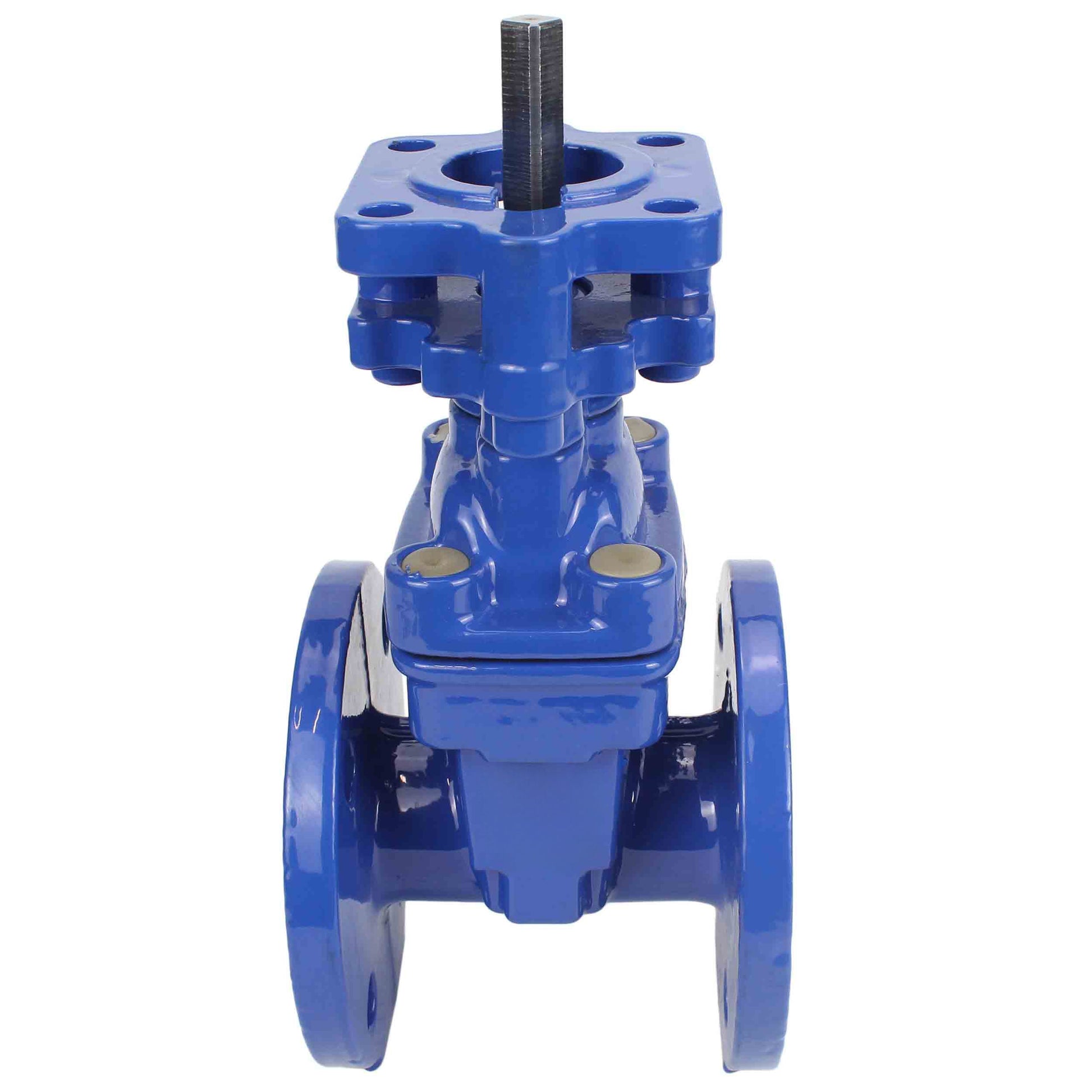

Wedge gate valve DNOVA GVWN1414E-2W-F with OST flange, body material - cast iron GGG50, wedge material - cast iron + EPDM, seal - EPDM, stem only, color - blue

From $65.30 USD
From $65.30 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The cast iron wedge gate valve GVWN1414E-2W-F Ru10/16 blue is designed for installation on the pipeline as a shut-off device in water supply systems and chemical industry.

Principle of operation: Wedge, connected with the spindle, is lowered or raised depending on the direction of rotation of the handwheel or shaft of the electric actuator, gearbox, closing or opening the passage section of the gate valve body.

Weight and dimensional parameters of wedge gate valves DNOVA GVWN1414E-2W-F with OST flange

DN L D D1 b nxØd Weight
16 bar 16 bar 16 bar 16 bar 16 bar 16 bar
50 150 165 125 19 4-19 7.8
65 170 185 145 19 4-19 10
80 180 200 160 19 8-19 12.45
100 190 220 180 19 8-19 15.85
125 200 250 210 19 8-19 21.95
150 210 285 240 19 8-23 28.85
200 230 340 295 20 12-23 47.8
250 250 405 355 22 12-28 74

Sketch of weight and dimensional parameters of wedge gate valves DNOVA GVWN1414E-2W-F with OST flange

DN Size
D d1 d2 d3 d4 d5 d6 d7 h f MxM
50 18 100 70 104 14 49 46 32 40 3 14x14
65 18 100 70 104 14 49 46 32 40 3 14x14
80 20 100 70 104 14 49 46 32 40 3 14x14
100 20 100 70 104 14 49 46 32 40 3 14x14
125 24 100 70 104 14 49 46 32 40 3 17x17
150 24 100 70 104 14 49 46 32 40 3 17x17
200 26 122 108 135 14 62 59 45 50 3 19x19
250 30 122 108 135 14 62 59 45 50 3 22x22

Sketch of installation dimensions of wedge gate valves DNOVA GVWN1414E-2W-F with OST flange

Materials of parts of wedge gate valves DNOVA GVWN1414E-2W-F with OST flange

№ Name Material
1 Case cast iron GGG50
2 Wedge cast iron GGG50 + EPDM
3 Stem nut brass
4 Stem SS420 stainless steel
5 Cover cast iron GGG50
6 Ring brass

Material sketch of wedge gate valves DNOVA GVWN1414E-2W-F with OST flange

Specifications

Country of origin
China
Body material
cast iron GGG50
Stopper Material
cast iron + EPDM
Maximum allowable temperature
80 °C
Connection type
flanged
Control type
stem only
Gate valve type
Wedge Gate Valve
Nominal pressure
16 bar
Type of seal
EPDM

Delivery
