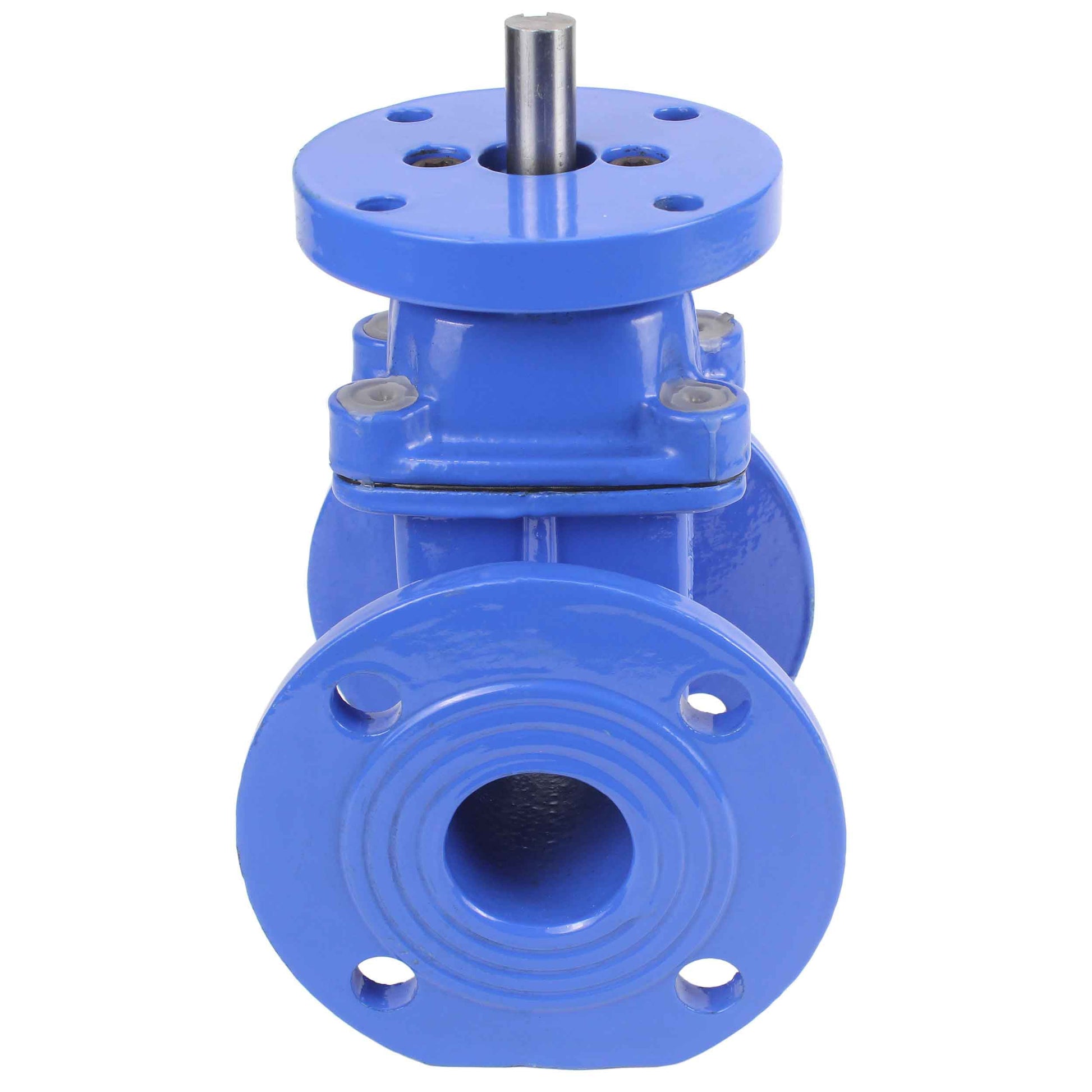

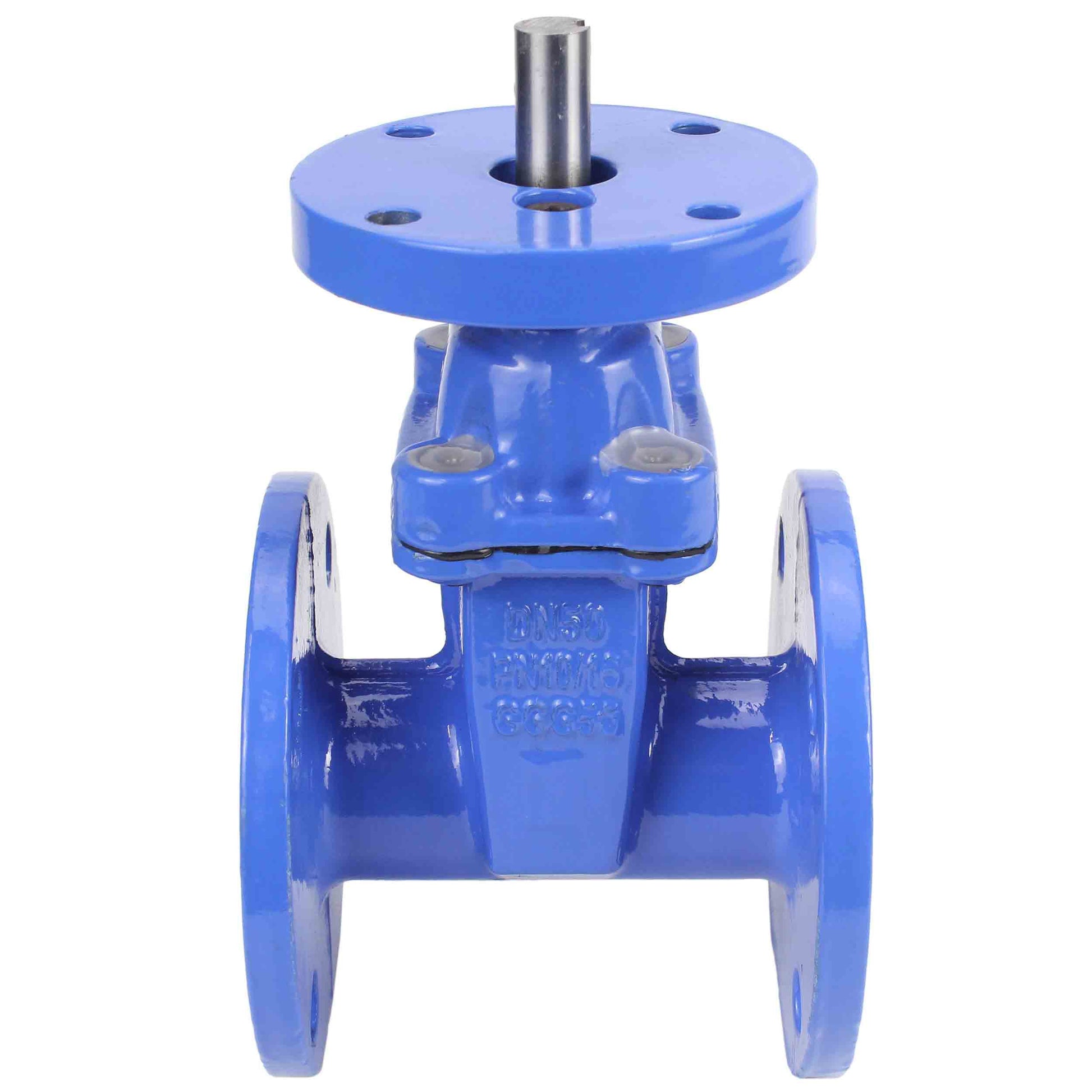

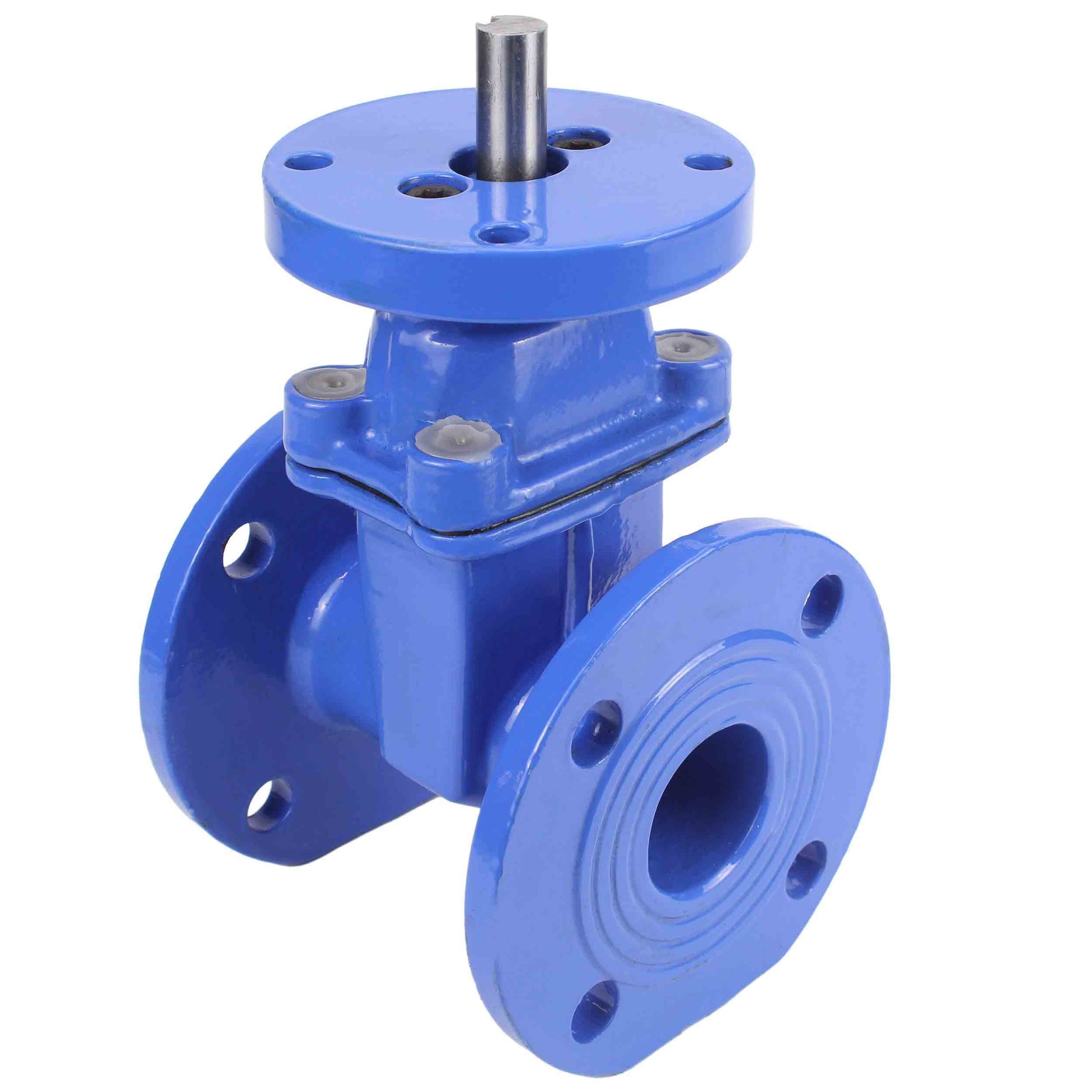

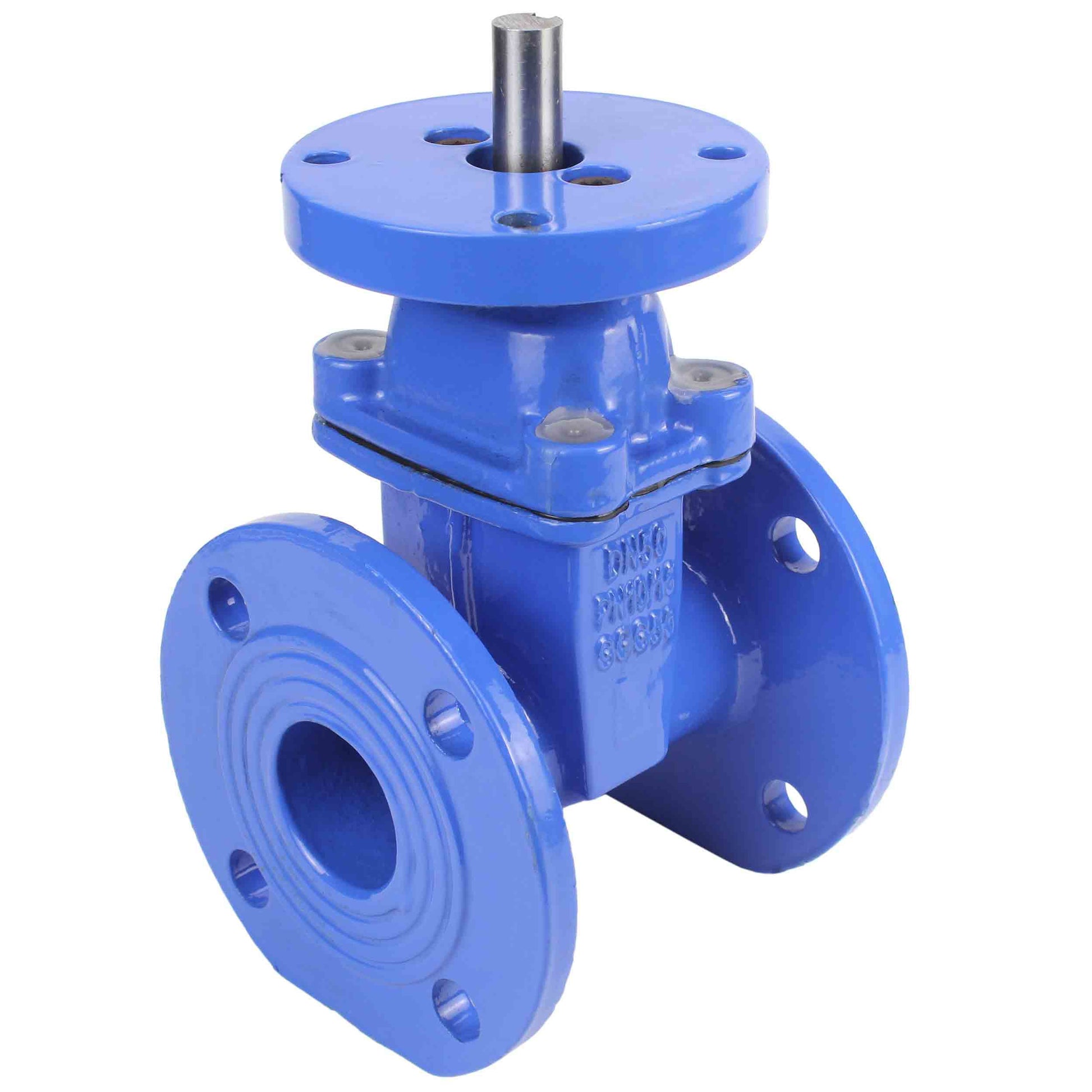

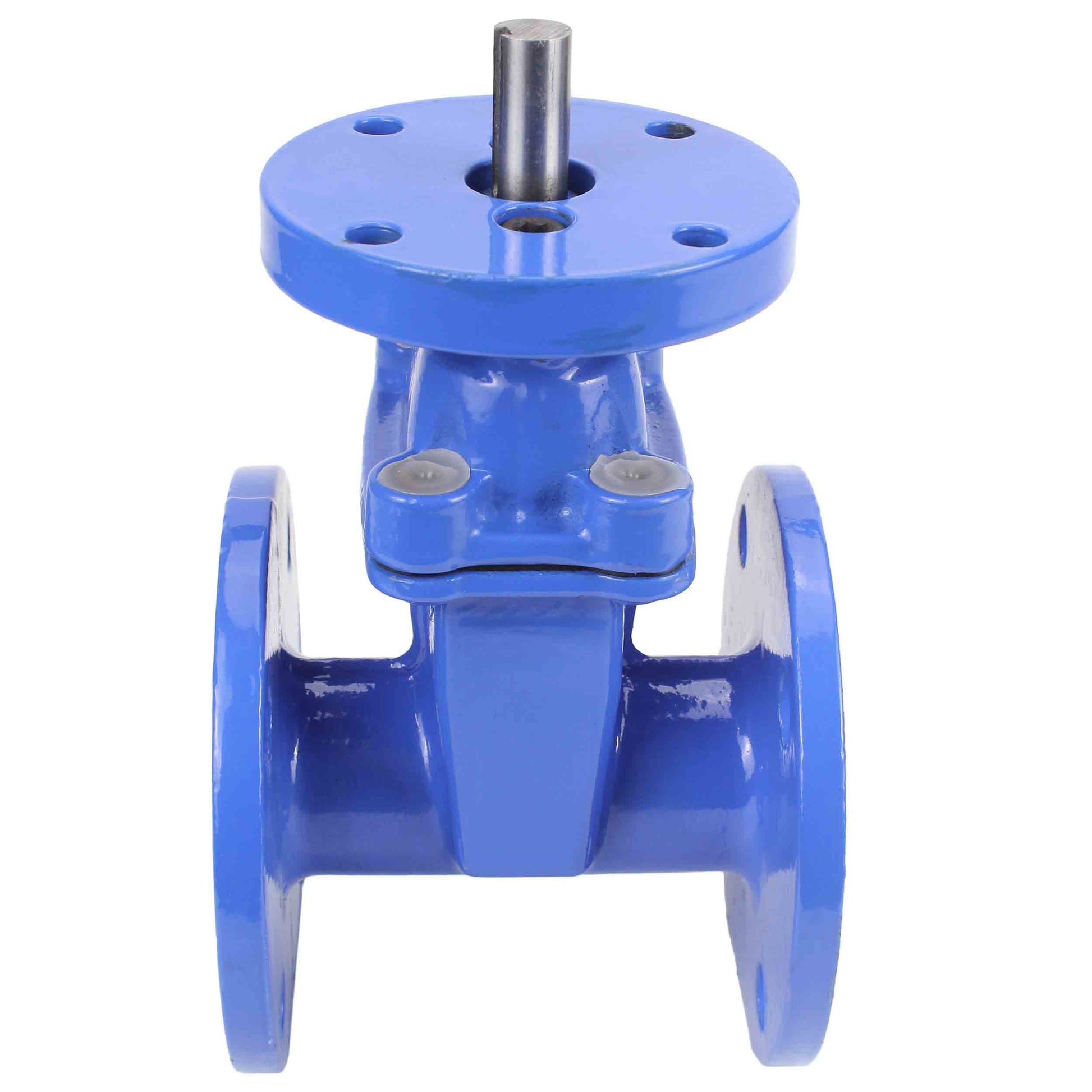

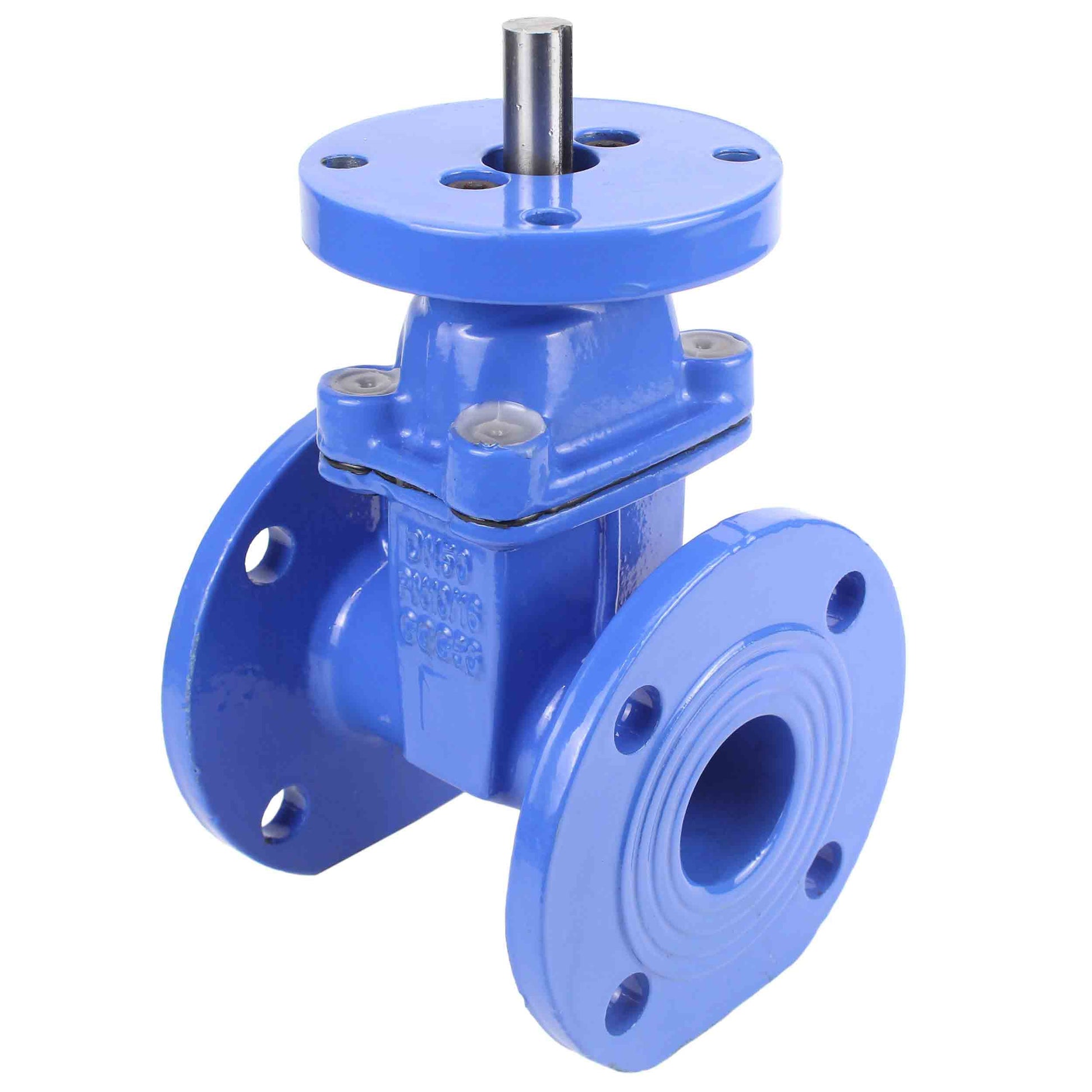

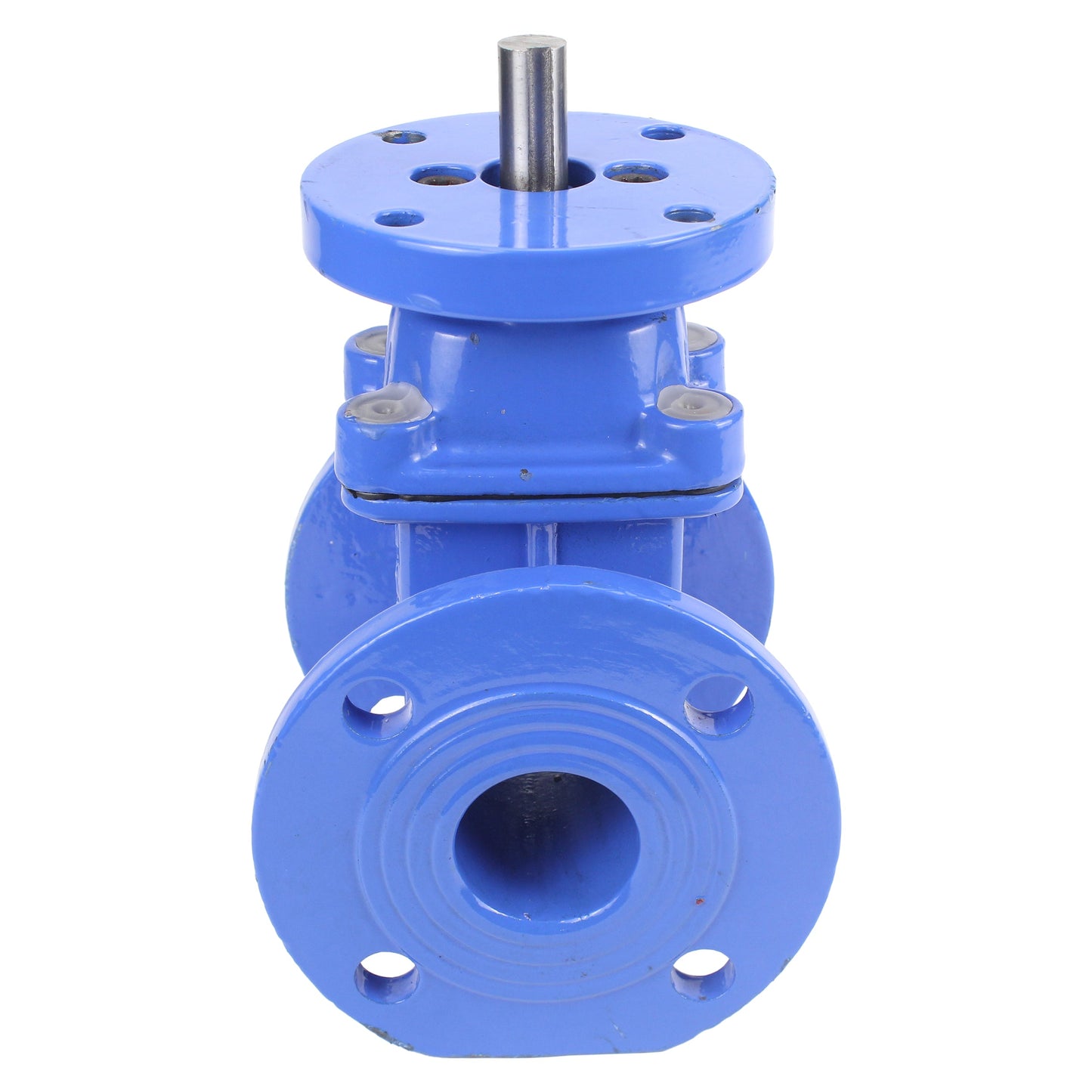

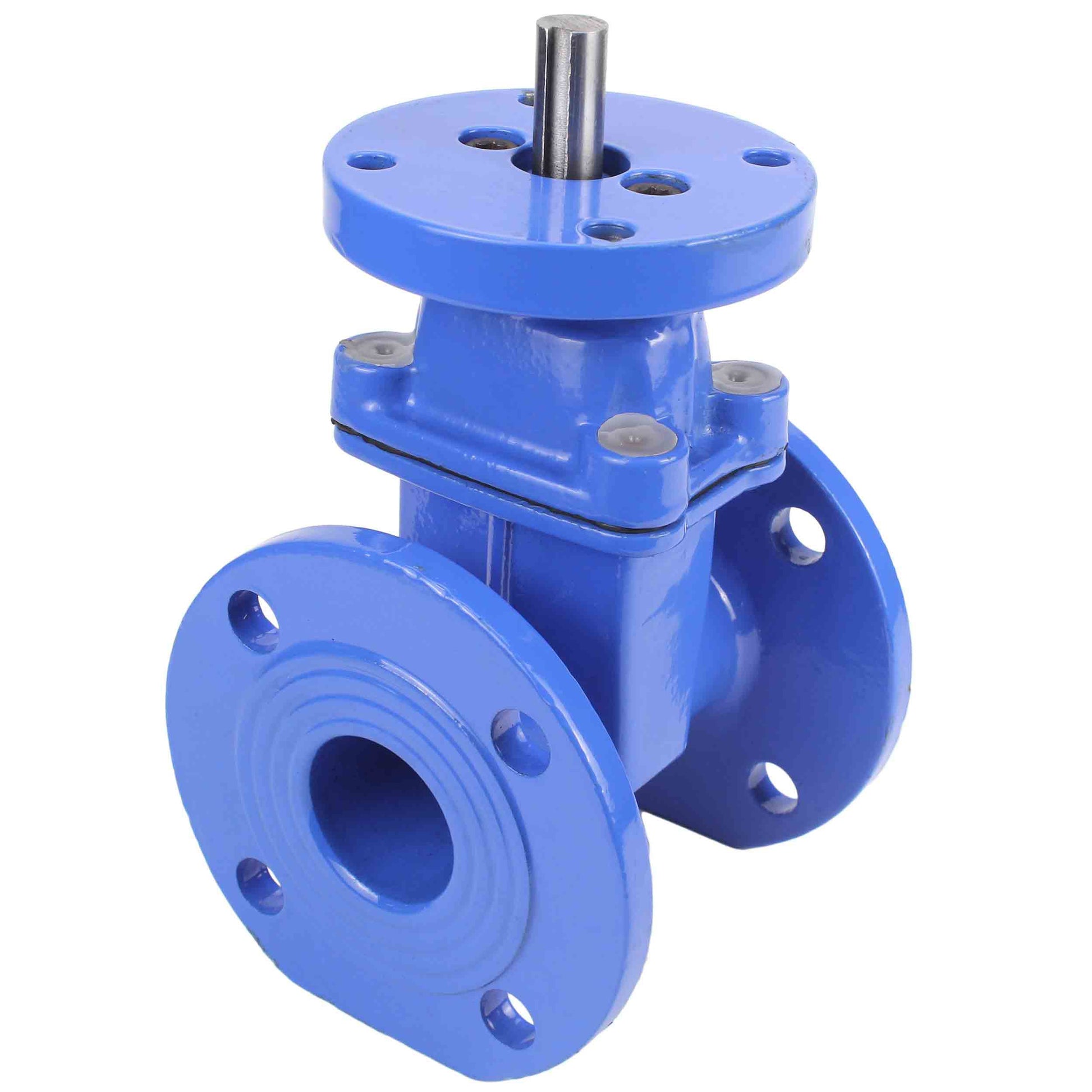

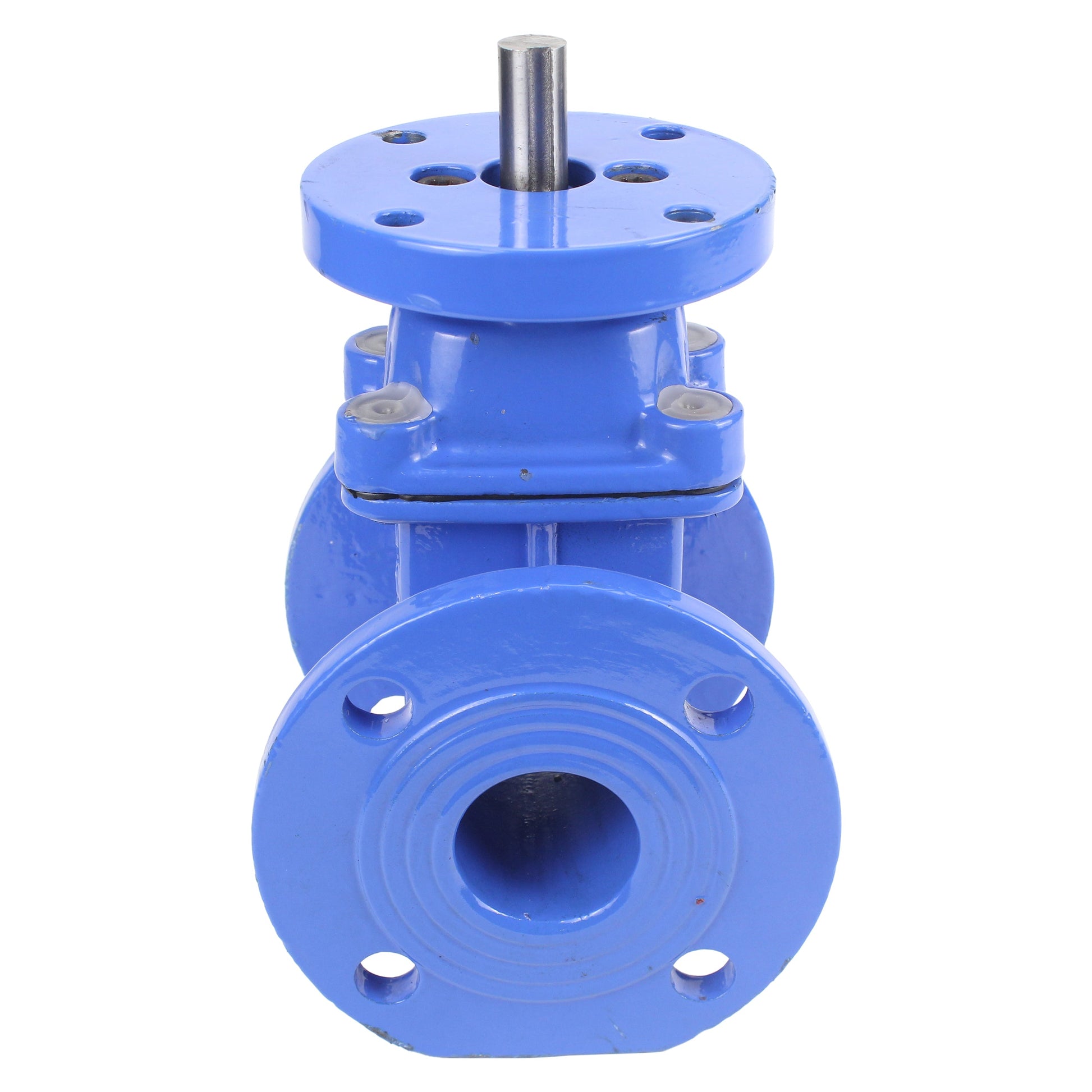

Wedge gate valve DNOVA GVWN1414E-2W-F with ISO flange, body material - cast iron GGG50, wedge material - cast iron + EPDM, seal - EPDM, stem only, color - blue

From $65.30 USD
From $65.30 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The cast iron wedge gate valve GVWN1414E-2W-F Ru10/16 blue is designed for installation on the pipeline as a shut-off device in water supply systems and chemical industry.

Principle of operation: Wedge, connected with the spindle, is lowered or raised depending on the direction of rotation of the handwheel or shaft of the electric actuator, gearbox, closing or opening the passage section of the gate valve body.

Weight and dimensional parameters of wedge gate valves DNOVA GVWN1414E-2W-F with ISO flange

DN L D D1 b nxØd Weight
16 bar 16 bar 16 bar 16 bar 16 bar 16 bar
50 150 165 125 19 4-19 7.8
65 170 185 145 19 4-19 10
80 180 200 160 19 8-19 12.45
100 190 220 180 19 8-19 15.85
125 200 250 210 19 8-19 21.95
150 210 285 240 19 8-23 28.85
200 230 340 295 20 12-23 47.8
250 250 405 355 22 12-28 74

Sketch of weight and dimensional parameters of wedge gate valves DNOVA GVWN1414E-2W-F with ISO flange

Installation dimensions of wedge gate valves DNOVA GVWN1414E-2W-F with ISO flange

DN ØD Ød1 Ød2 Ød3 Ød4 Ød5 Ød6 Ød7 h f MxM ISO
mm
50 18 125 70 102 12 49 45 39 40 3 14х14 F10
65 18 125 70 102 12 49 45 39 40 3 14х14 F10
80 20 125 70 102 12 49 45 39 40 3 14х14 F10
100 20 125 70 102 12 49 45 39 40 3 14х14 F10
125 24 125 70 102 12 49 45 39 40 3 17х17 F10
150 24 125 70 102 12 49 45 39 40 3 17х17 F10
200 26 150 85 125 14 62 58 45 50 3 19х19 F12
250 30 150 85 125 14 62 58 45 50 3 22х22 F12

Sketch of installation dimensions of wedge gate valves DNOVA GVWN1414E-2W-F with ISO flange

Materials of parts of wedge gate valves DNOVA GVWN1414E-2W-F with ISO flange

№ Name Material
1 Case cast iron GGG50
2 Wedge cast iron GGG50 + EPDM
3 Stem nut brass
4 Stem SS420 stainless steel
5 Cover cast iron GGG50
6 Ring brass

Material sketch of wedge gate valves DNOVA GVWN1414E-2W-F with ISO flange

Specifications

Country of origin
China
Body material
cast iron GGG50
Stopper Material
cast iron + EPDM
Maximum allowable temperature
80 °C
Connection type
flanged
Control type
stem only
Gate valve type
Wedge Gate Valve
Nominal pressure
16 bar
Type of seal
EPDM

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.
