Description

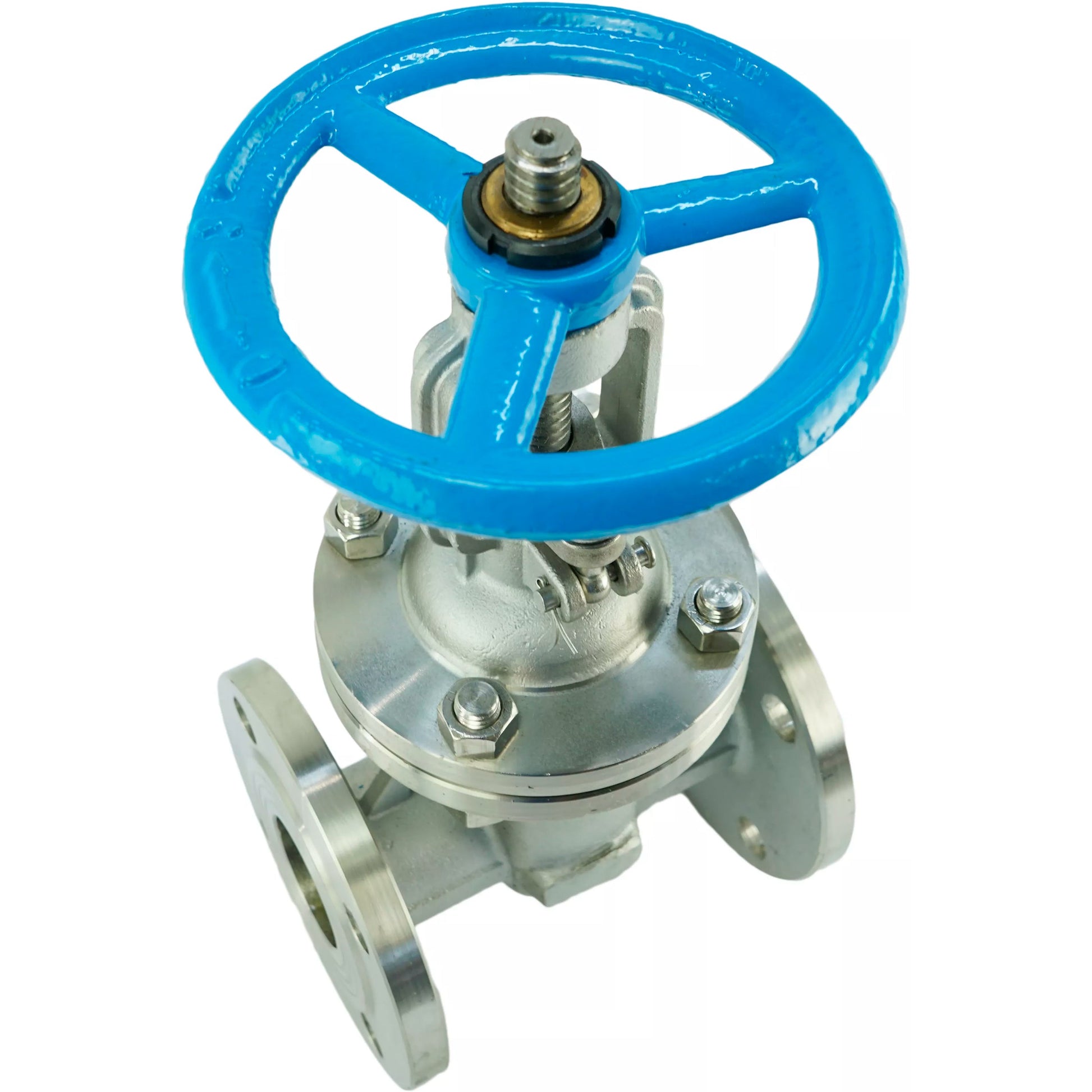

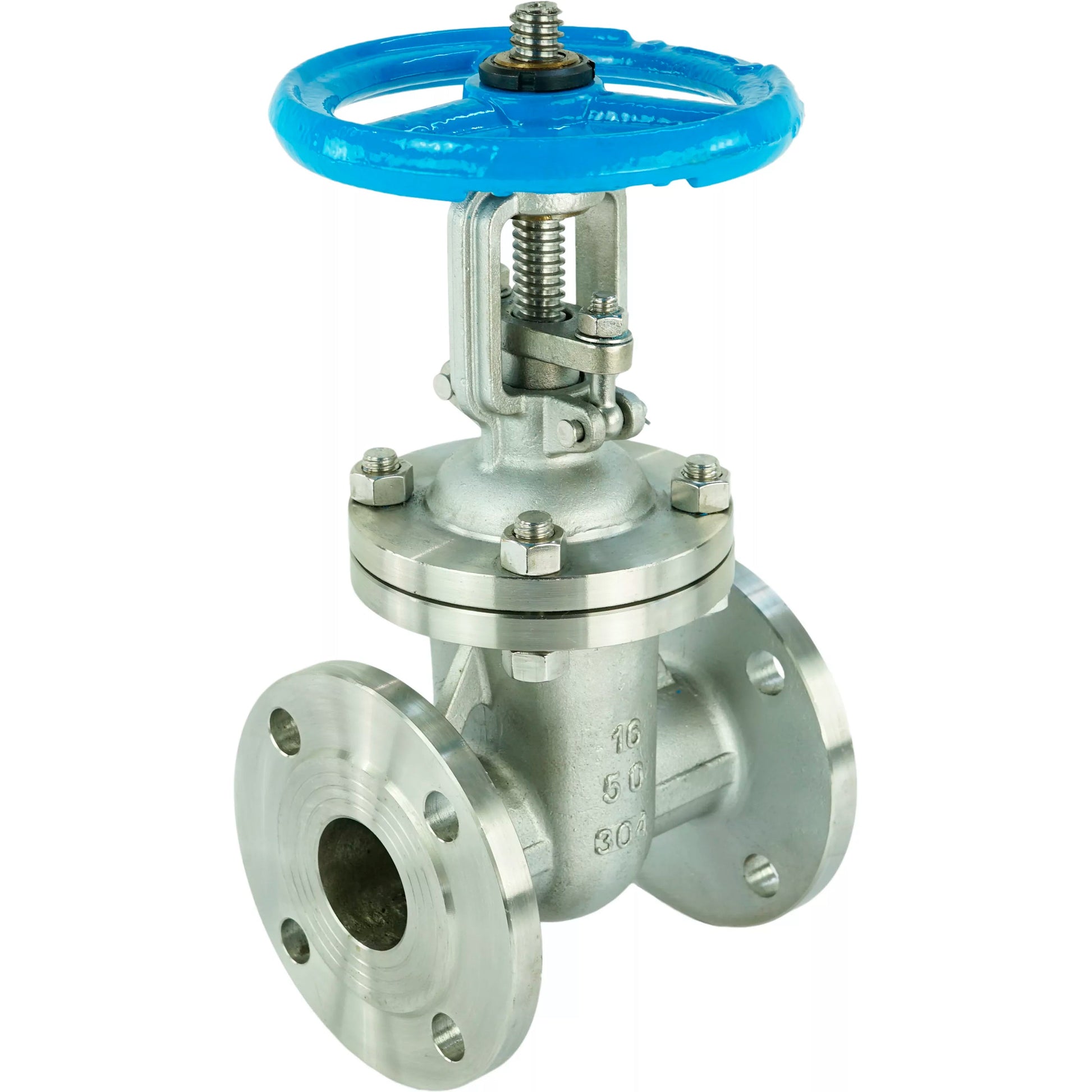

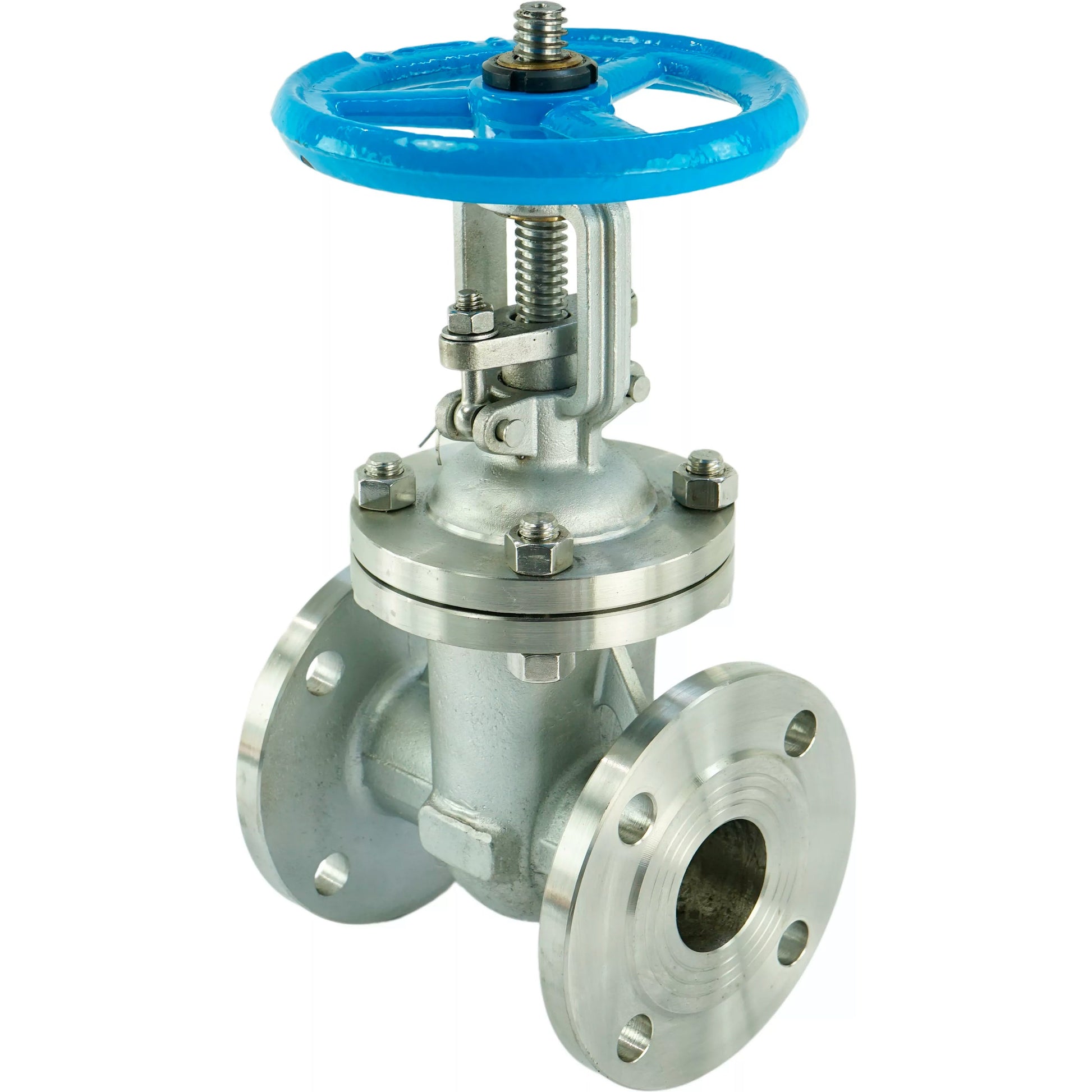

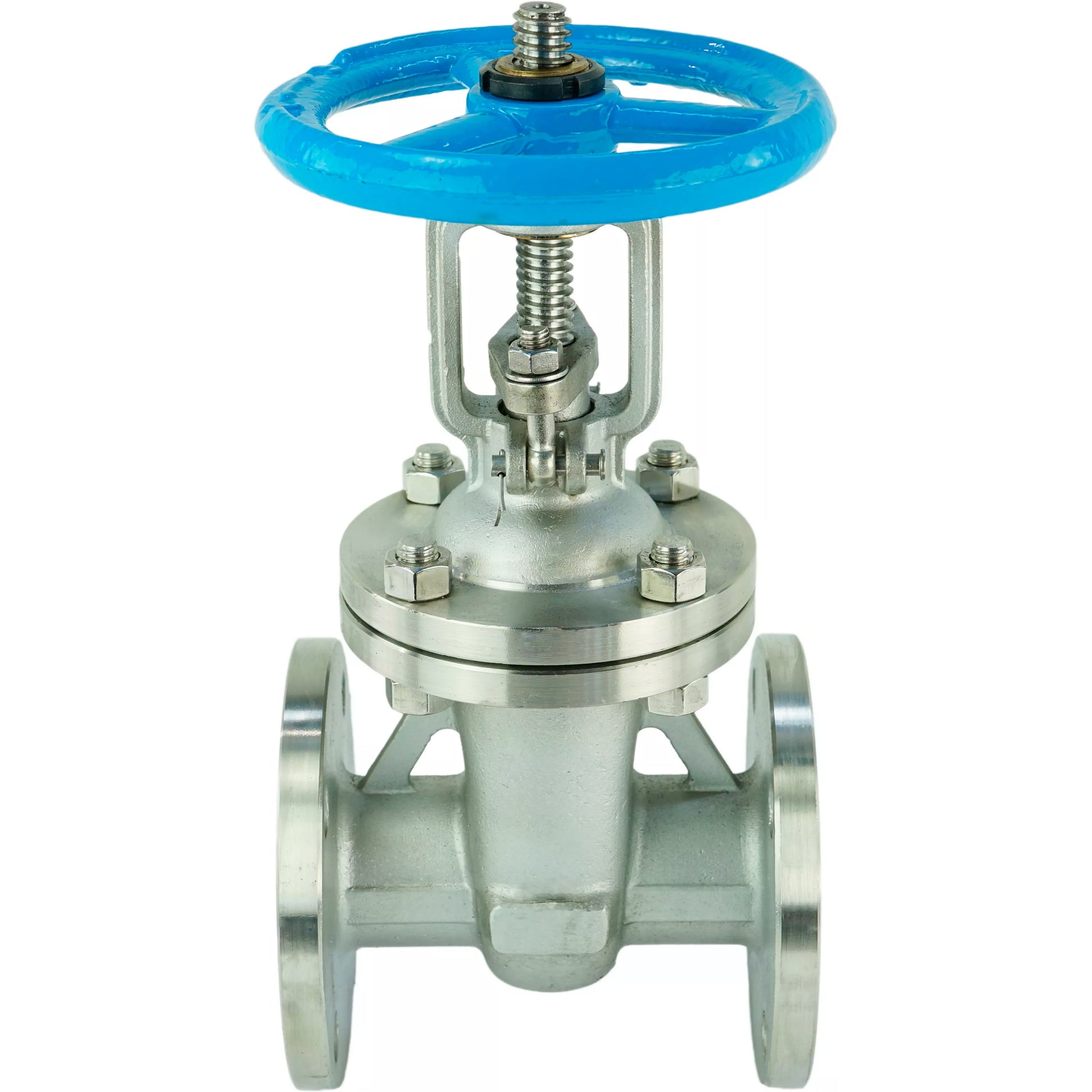

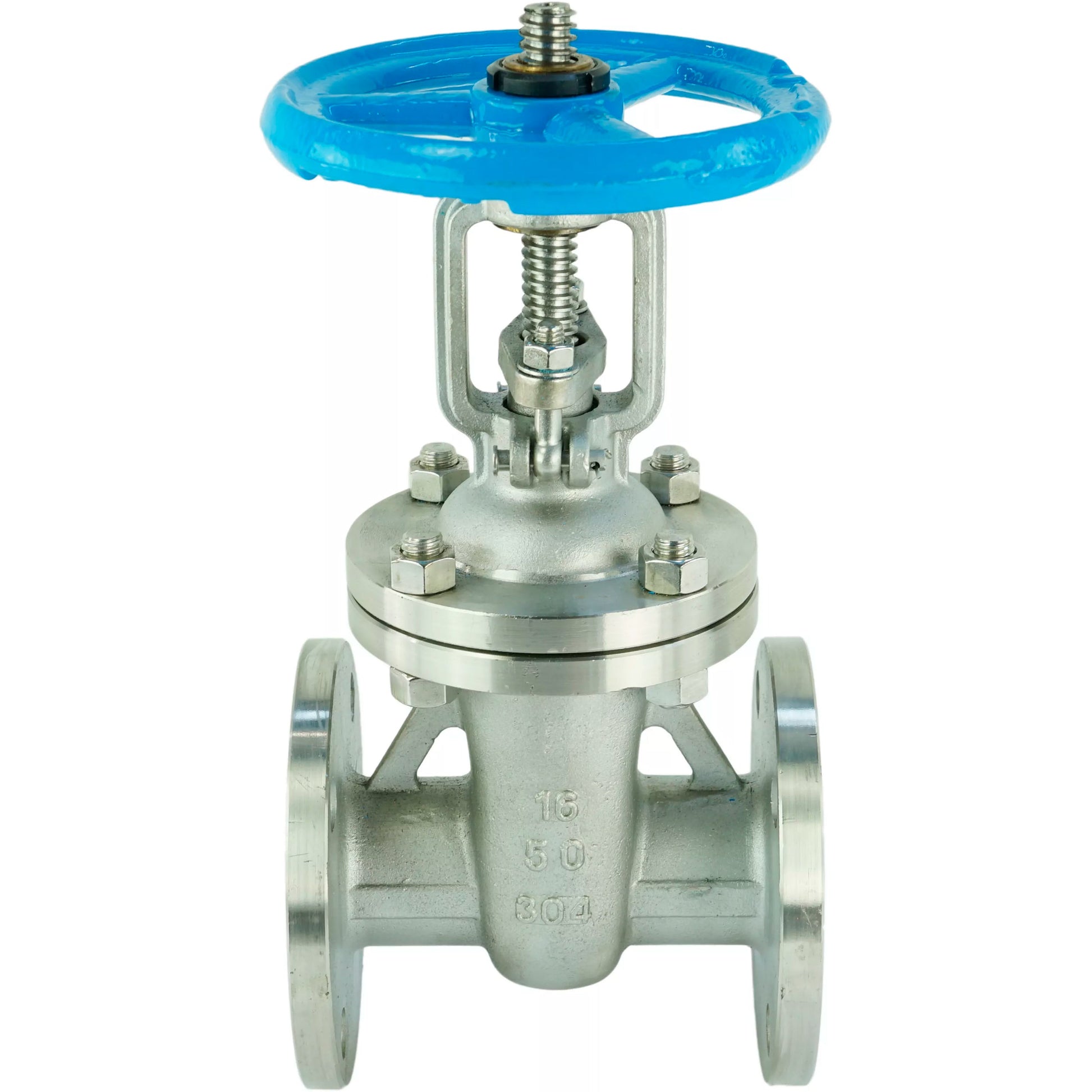

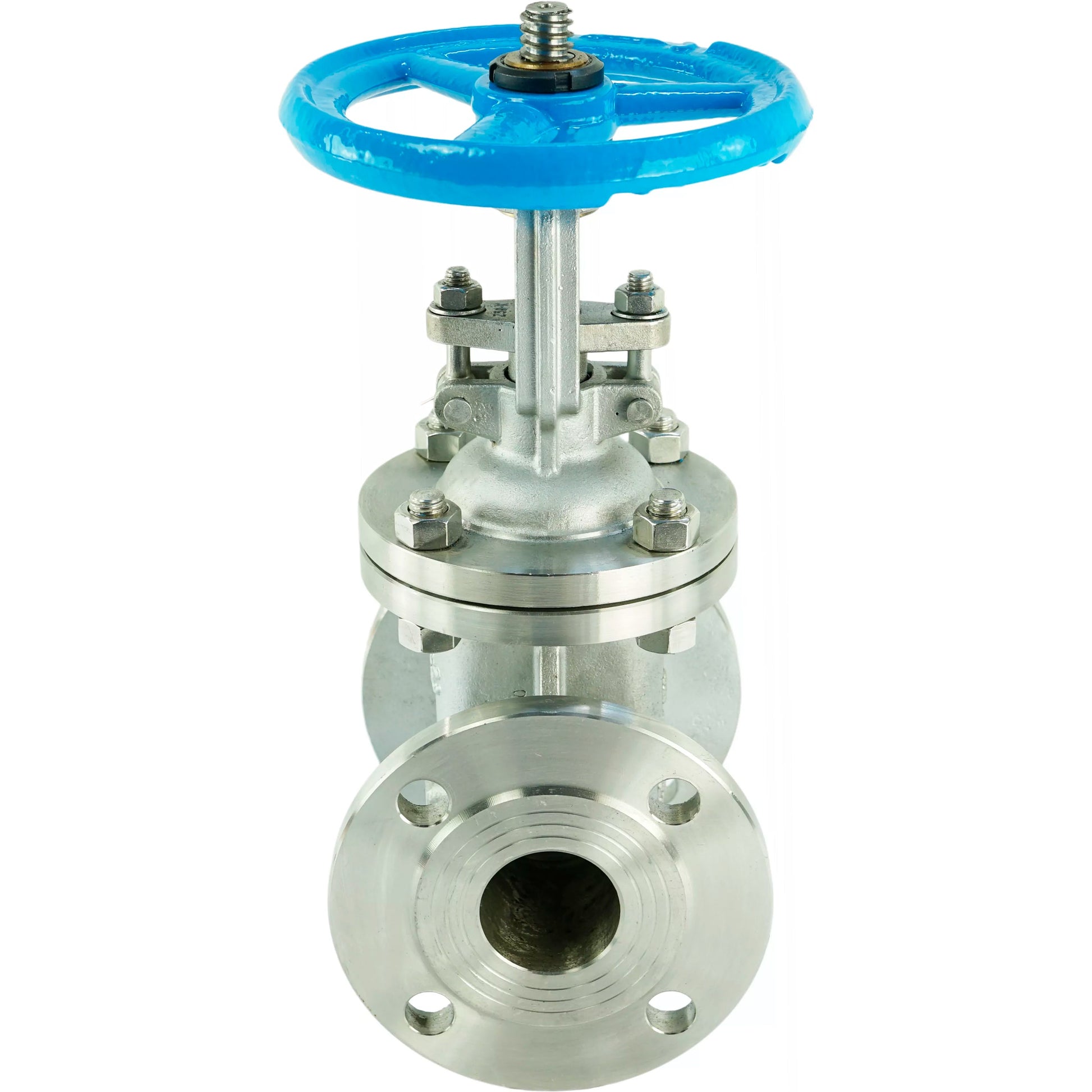

The wedge gate valve is designed to be installed on the pipeline as a shut-off device in water supply systems and chemical industry.
The wedge connected to the spindle is lowered or raised depending on the direction of rotation of the hand wheel, closing or opening the passage section of the gate valve body.
The wedge is designed to be installed on the pipeline as a shut-off device in water supply systems and chemical industry.
Overall and installation dimensions of wedge gate valves DNOVA GAIR GVWR3131M-2W-F-S, with handwheel and sliding stem
|
DN |
L |
D |
D1 |
D2 |
b |
f |
z–d |
Weight |
|
50 |
180 |
160 |
125 |
100 |
16 |
3 |
4-18 |
11 |
Sketch of dimensions of wedge gate valves DNOVA GAIR GVWR3131M-2W-F-S, with handwheel and sliding stem
Materials of wedge gate valves DNOVA GAIR GVWR3131M-2W-F-S, with handwheel and sliding stem
|
№ |
Part name |
Material |
|
1 |
Case |
stainless steel 304 |
|
2 |
Seat seal |
stainless steel 304 |
|
3 |
Wedge |
stainless steel 304 |
|
4 |
Spindle |
stainless steel 304 |
|
5 |
Gasket |
stainless steel 304 + |
|
6 |
Cover |
stainless steel 304 |
|
7 |
Hairpin |
stainless steel 304 |
|
8 |
Nut |
stainless steel 304 |
|
9 |
Spindle seal |
expanded graphite (TRG) |
|
10 |
Gland |
stainless steel 304 |
|
11 |
bushing |
stainless steel 304 |
|
12 |
Washer |
alloy ZCuAl10Fe3 |
|
13 |
Helm |
cast iron KTH300 |
