Description

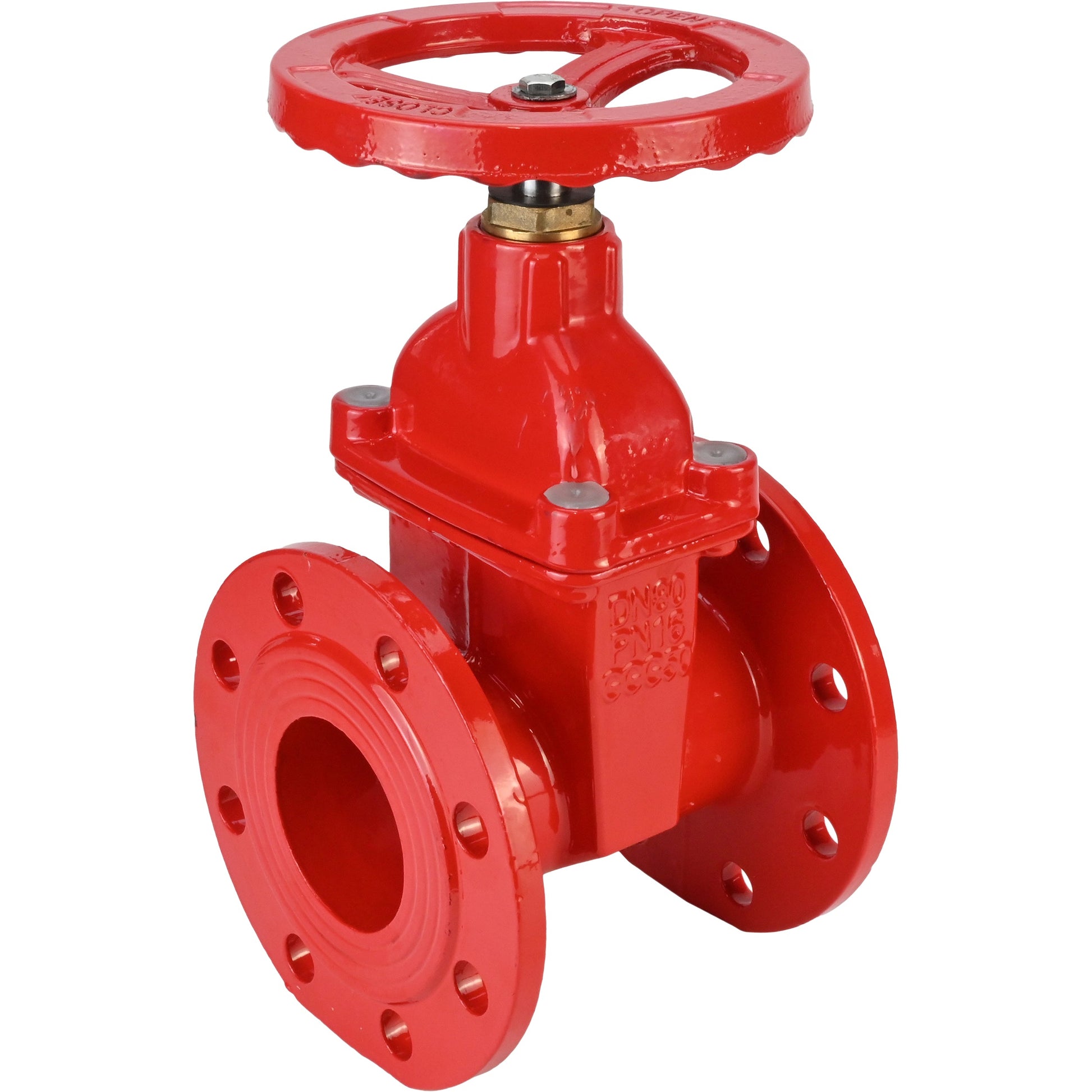

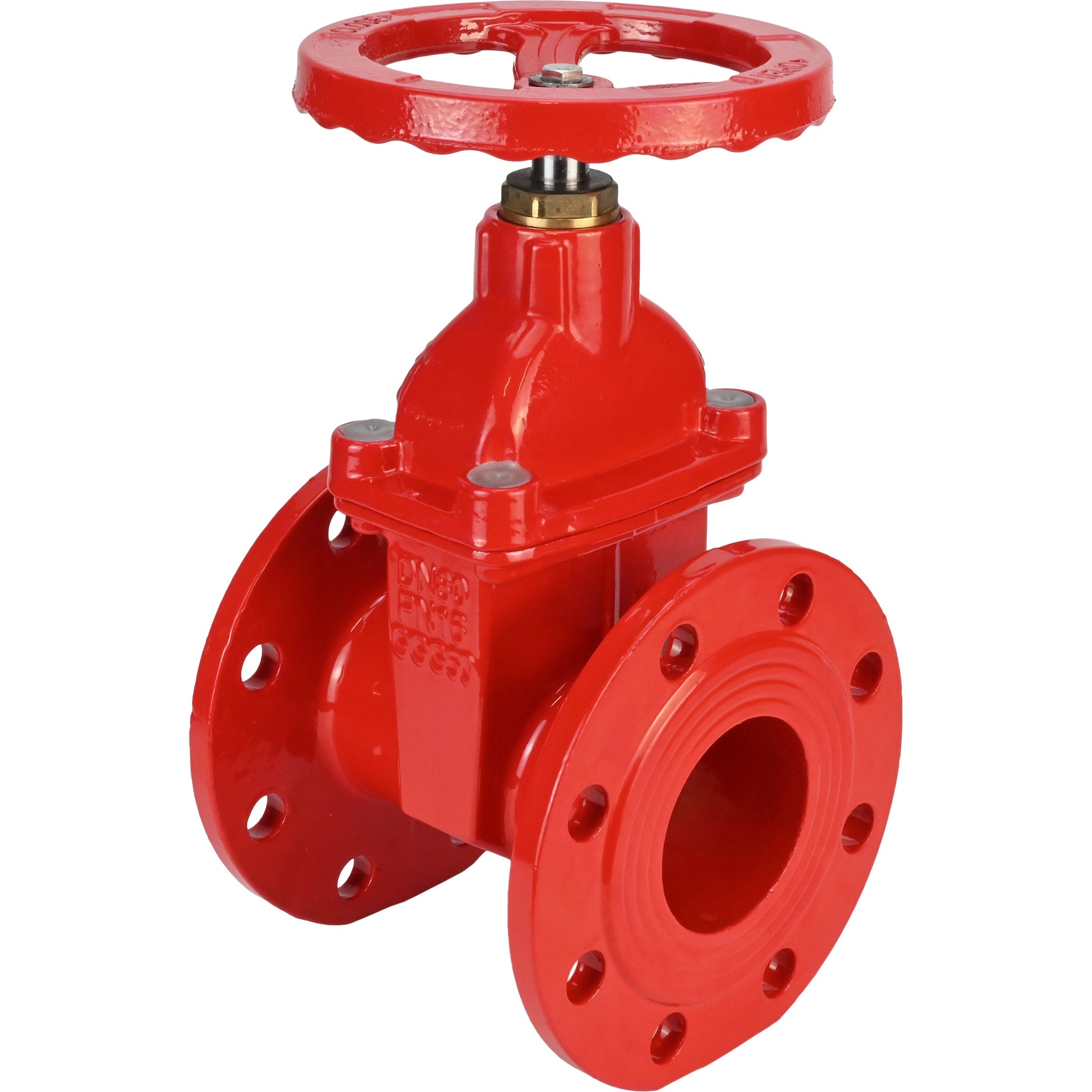

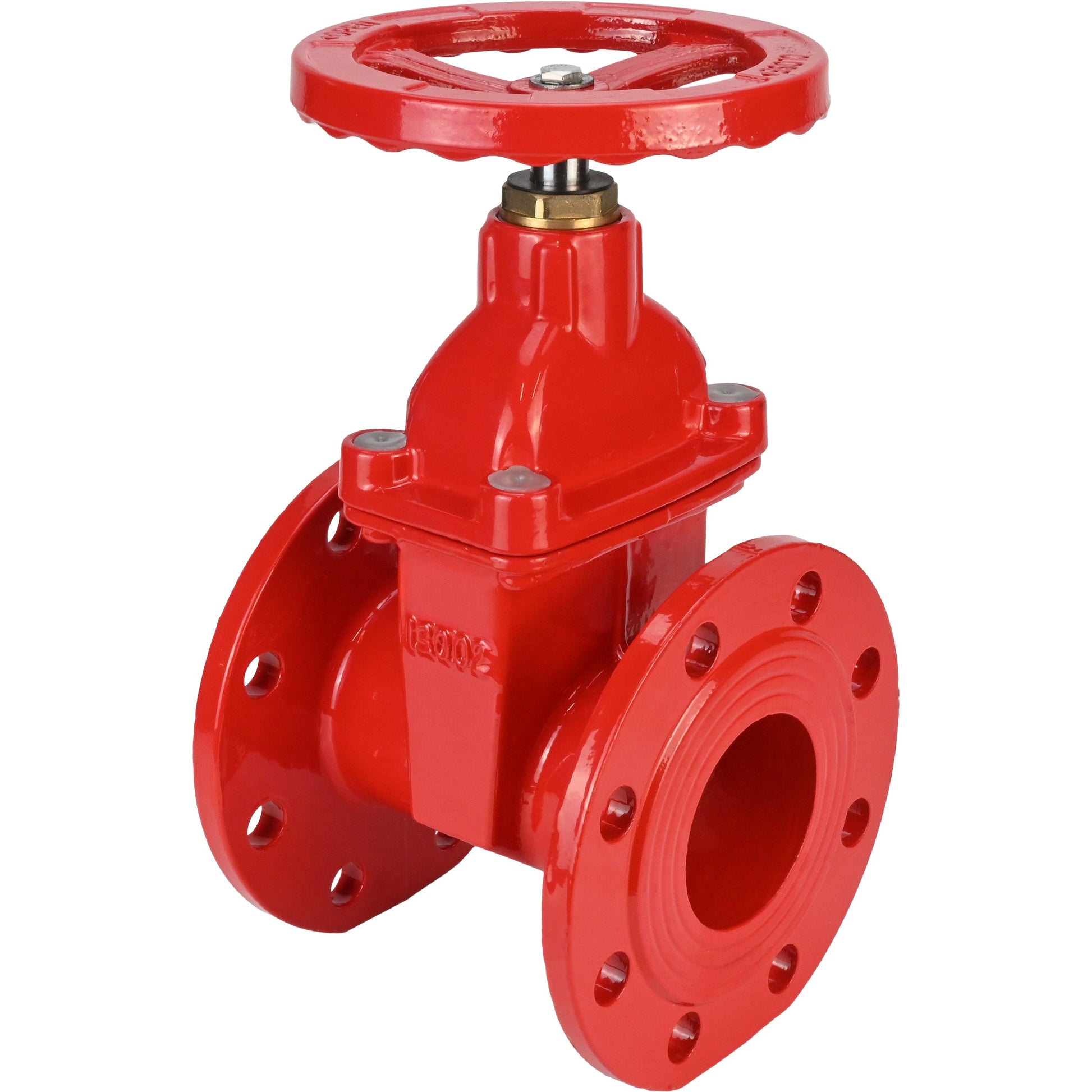

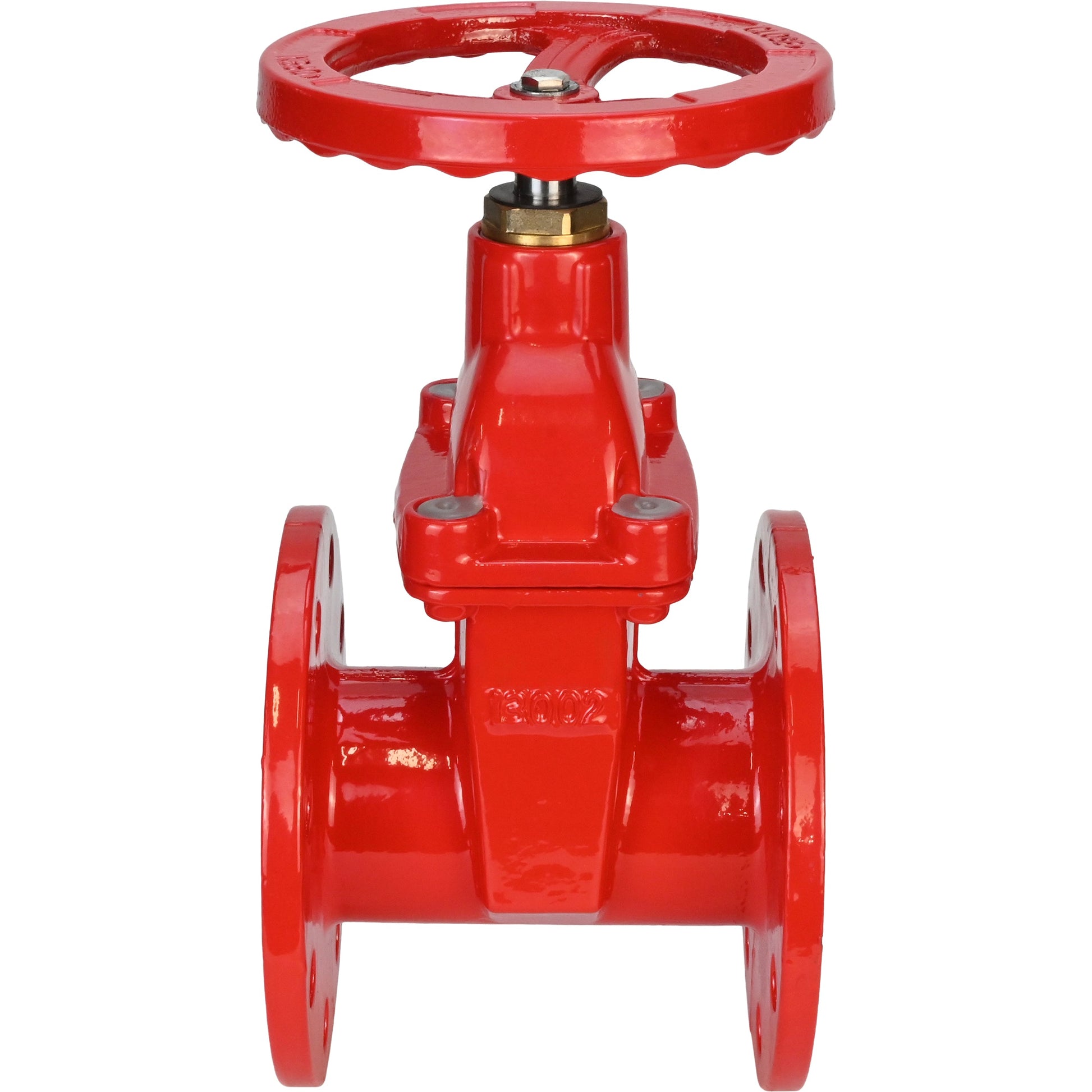

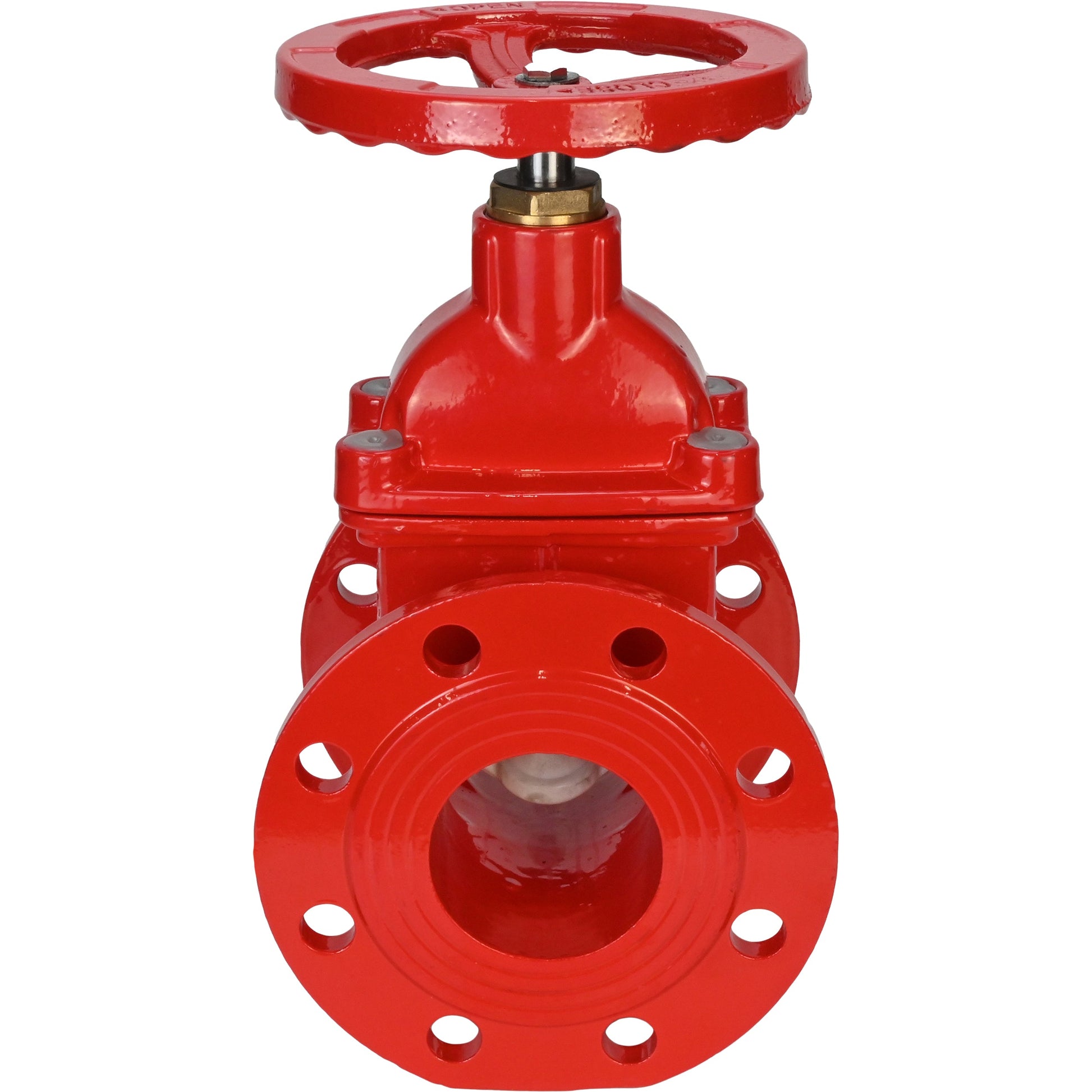

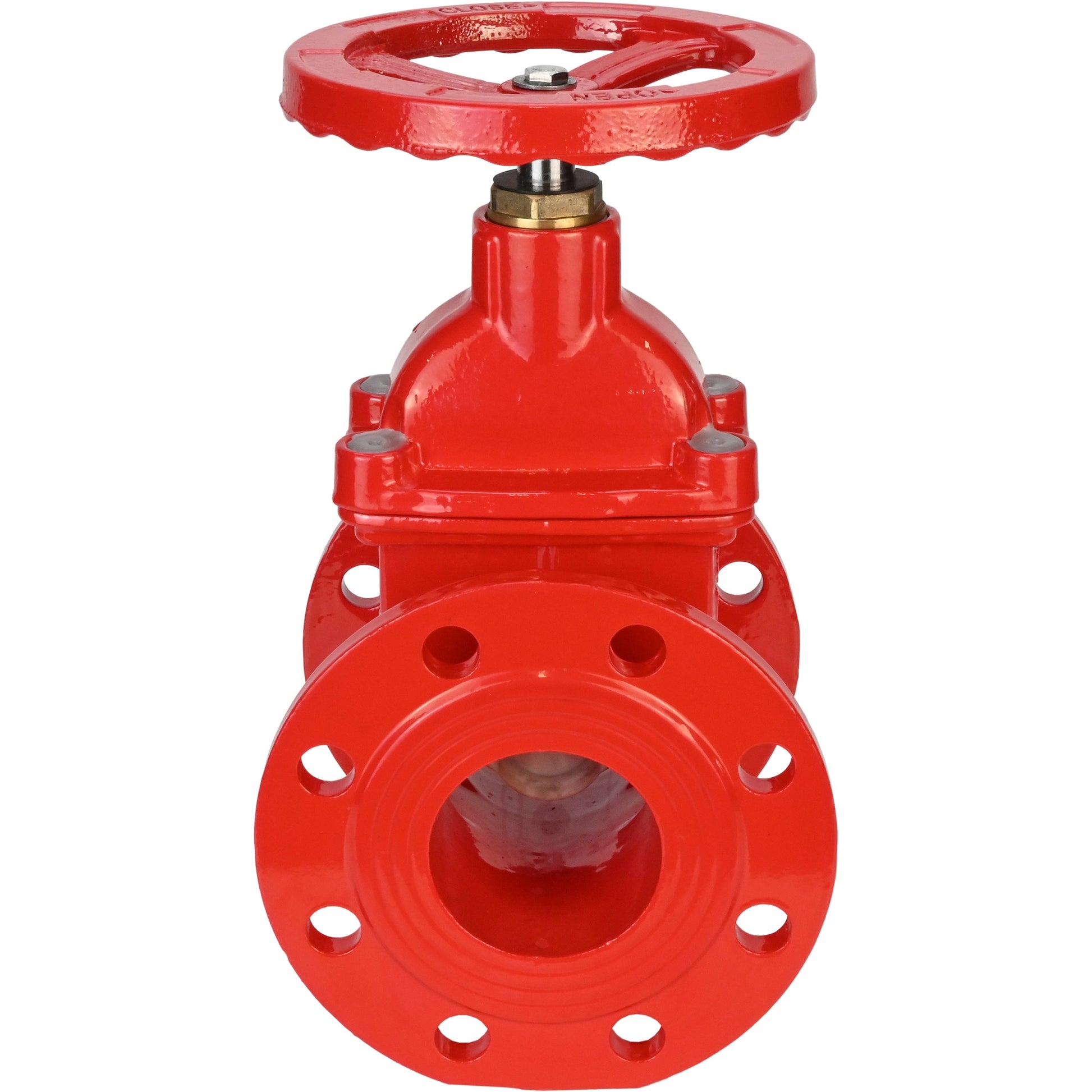

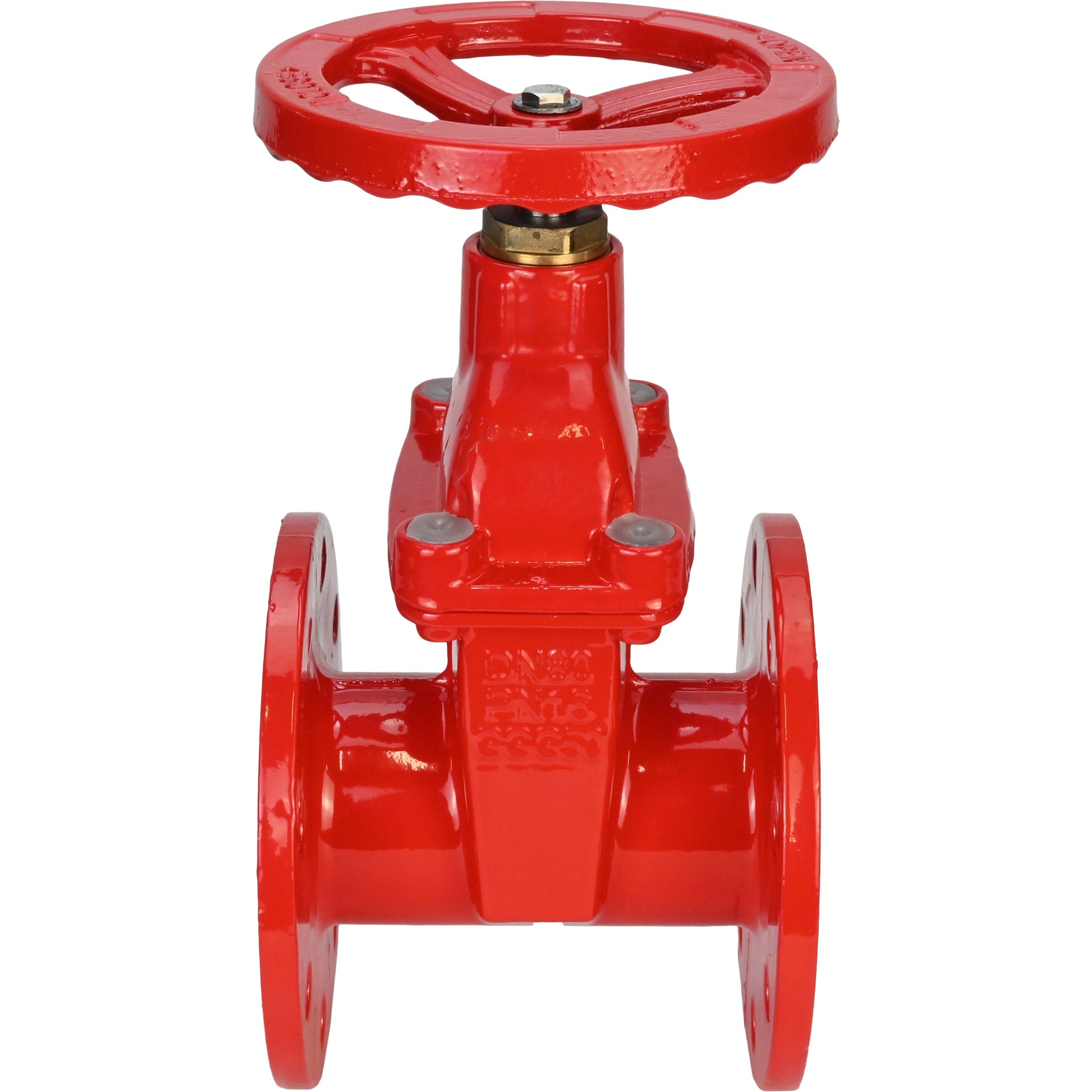

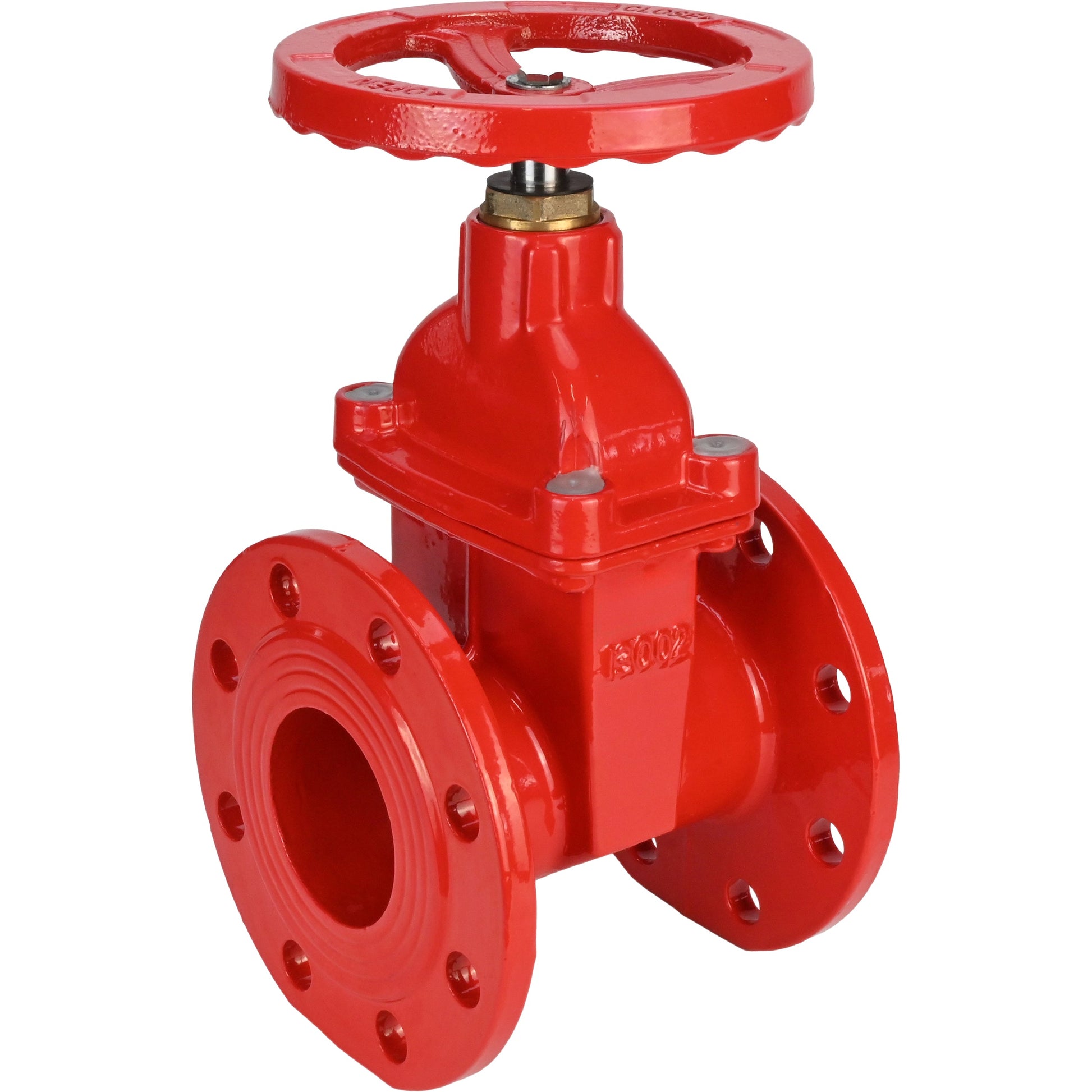

The wedge gate valve is designed for installation on pipelines as a shut-off device in water supply systems and chemical industry.
The wedge connected to the spindle is lowered or raised depending on the direction of rotation of the hand wheel, closing or opening the passage cross-section of the gate valve body.
Special features: two rows of holes, which allows the gate valve to be installed using appropriate fasteners on pipelines with a working medium pressure of 10 or 16 bar; 250 µm thick epoxy powder coating on the inside and outside of the body.
Supports the gate valve by means of an epoxy powder coating.
Overall and installation dimensions of wedge gate valves DNOVA 30X39H GVWN1414S-2W-F-S, with hand wheel and non-retractable stem
|
DN |
L |
D |
B |
C |
b |
f |
W |
H |
n-Ød |
Weight |
|
|
10 bar |
16 bar |
||||||||||
|
50 |
150 |
165 |
99 |
125 |
15.5 |
2.5 |
160 |
280 |
4-19 |
7 |
|
|
80 |
180 |
200 |
133 |
160 |
16.5 |
2.5 |
180 |
350 |
4-19 |
8-19 |
11.5 |
|
100 |
190 |
220 |
154 |
180 |
16.5 |
2.5 |
200 |
390 |
8-19 |
14 |
|
|
150 |
210 |
285 |
210 |
240 |
16.5 |
2.5 |
250 |
525 |
8-23 |
24 |
|
Sketch of dimensions of DNOVA 30X39H GVWN1414S-2W-F-S, with handwheel and non-retractable stem
Materials of wedge gate valves DNOVA 30X39H GVWN1414S-2W-F-S, with handwheel and non-retractable stem
|
№ |
Part name |
Material |
|
1 |
Case |
cast iron GGG50 |
|
2 |
Wedge |
cast iron GGG50 + SILICON |
|
3 |
Stem nut |
brass |
|
4 |
Stem |
stainless steel SS420 |
|
5 |
Gasket |
EPDM |
|
6 |
Cover |
cast iron GGG50 |
|
7 |
Locking ring |
brass |
|
8 |
O-ring seal |
NBR |
|
9 |
Bolt |
carbon steel |
|
10 |
Helm |
cast iron GGG50 |
|
11 |
Gland |
cast iron GGG50 |
|
12 |
O-ring seal |
PTFE |
|
13 |
Stem nut |
brass |
|
14 |
Washer |
carbon steel |
|
15 |
Bolt |
carbon steel |
Material sketch of wedge gate valves DNOVA 30X39H GVWN1414S-2W-F-S, with handwheel and non-retractable stem
