Description

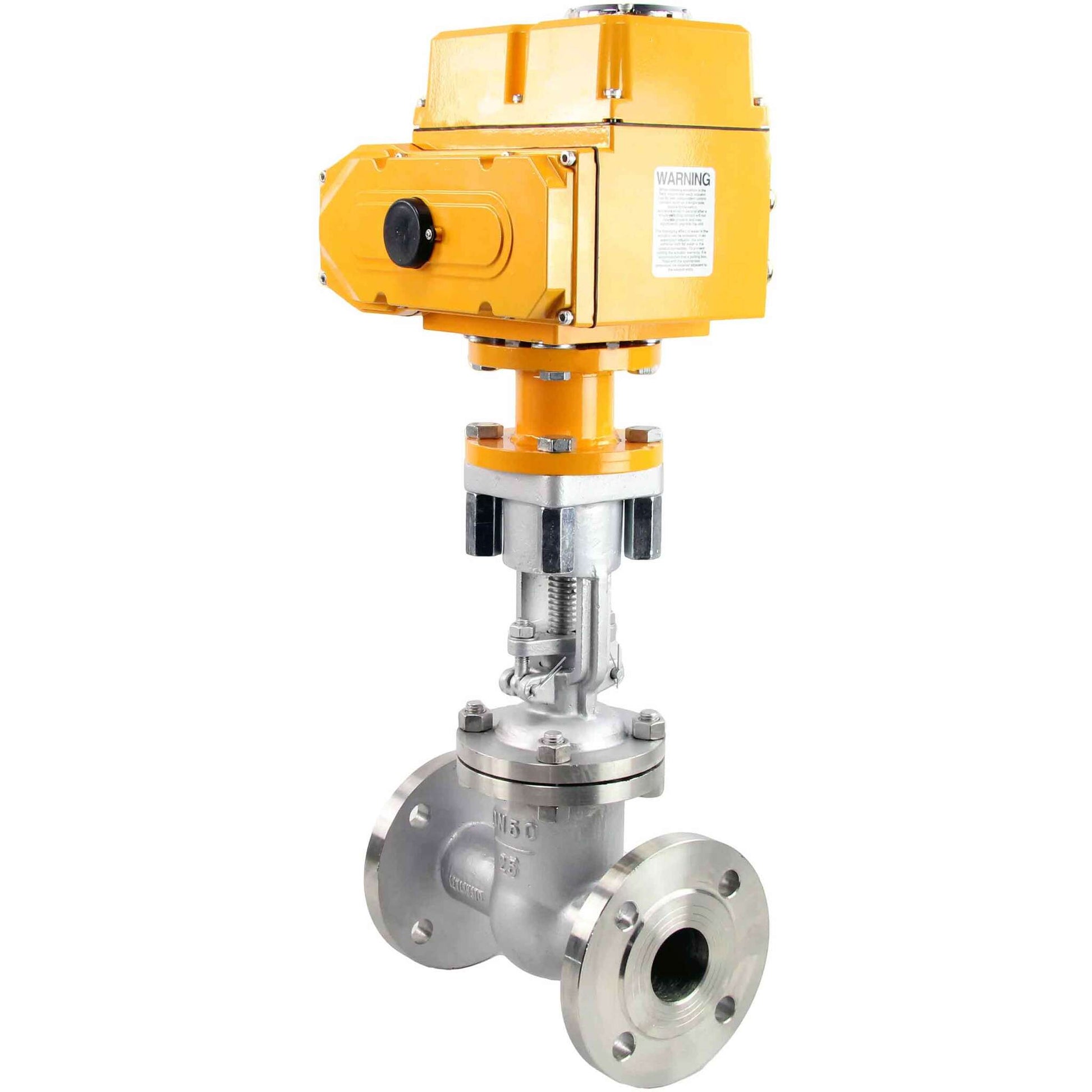

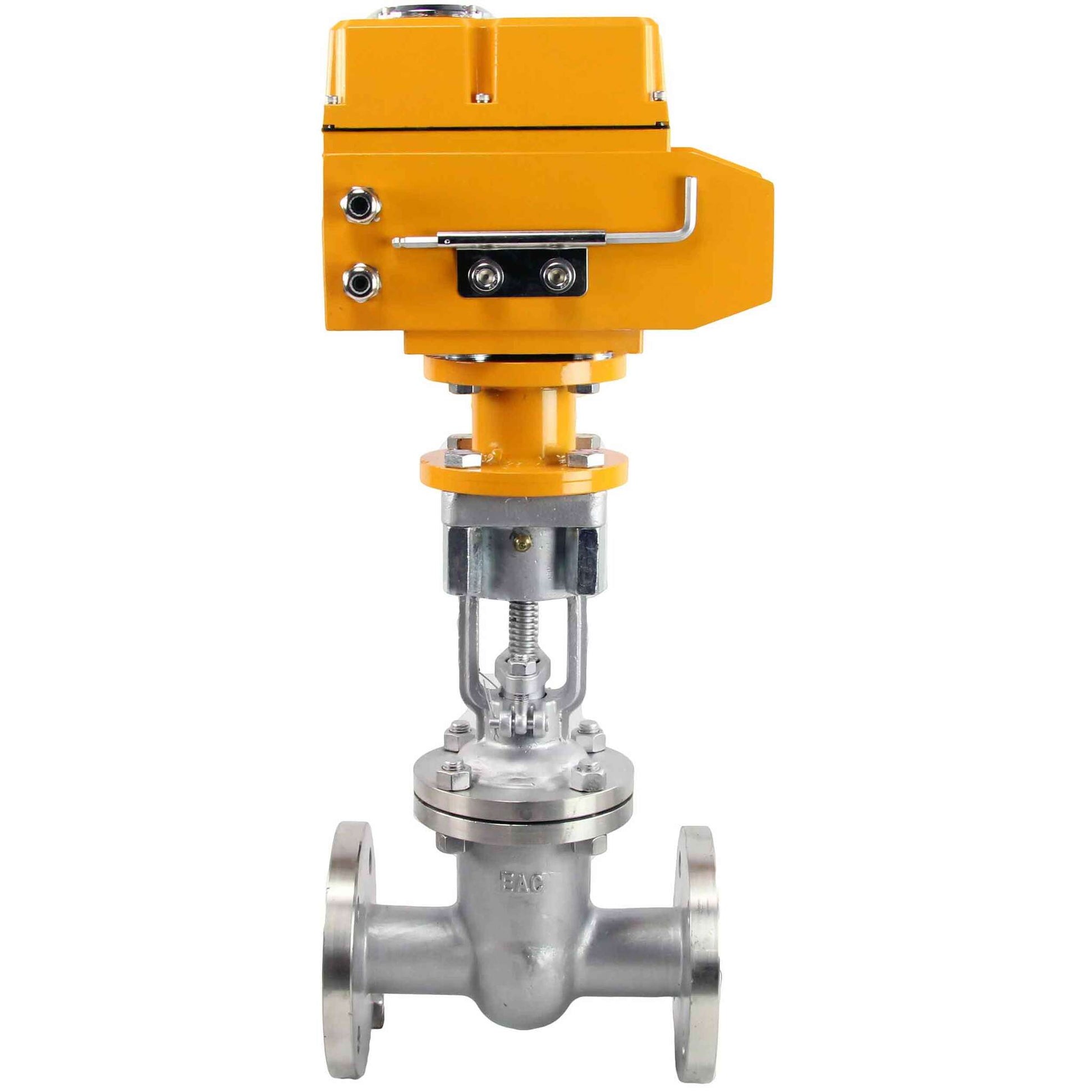

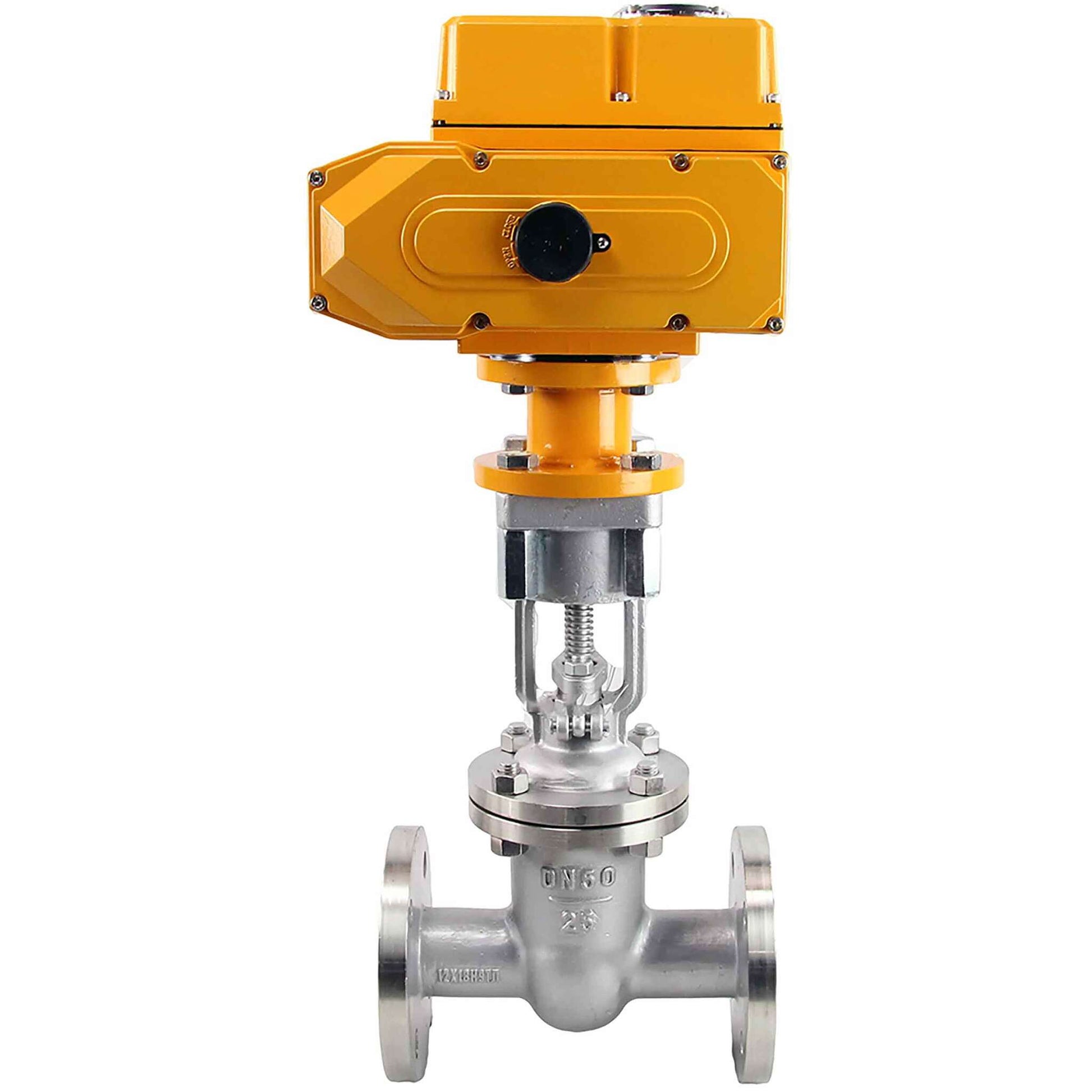

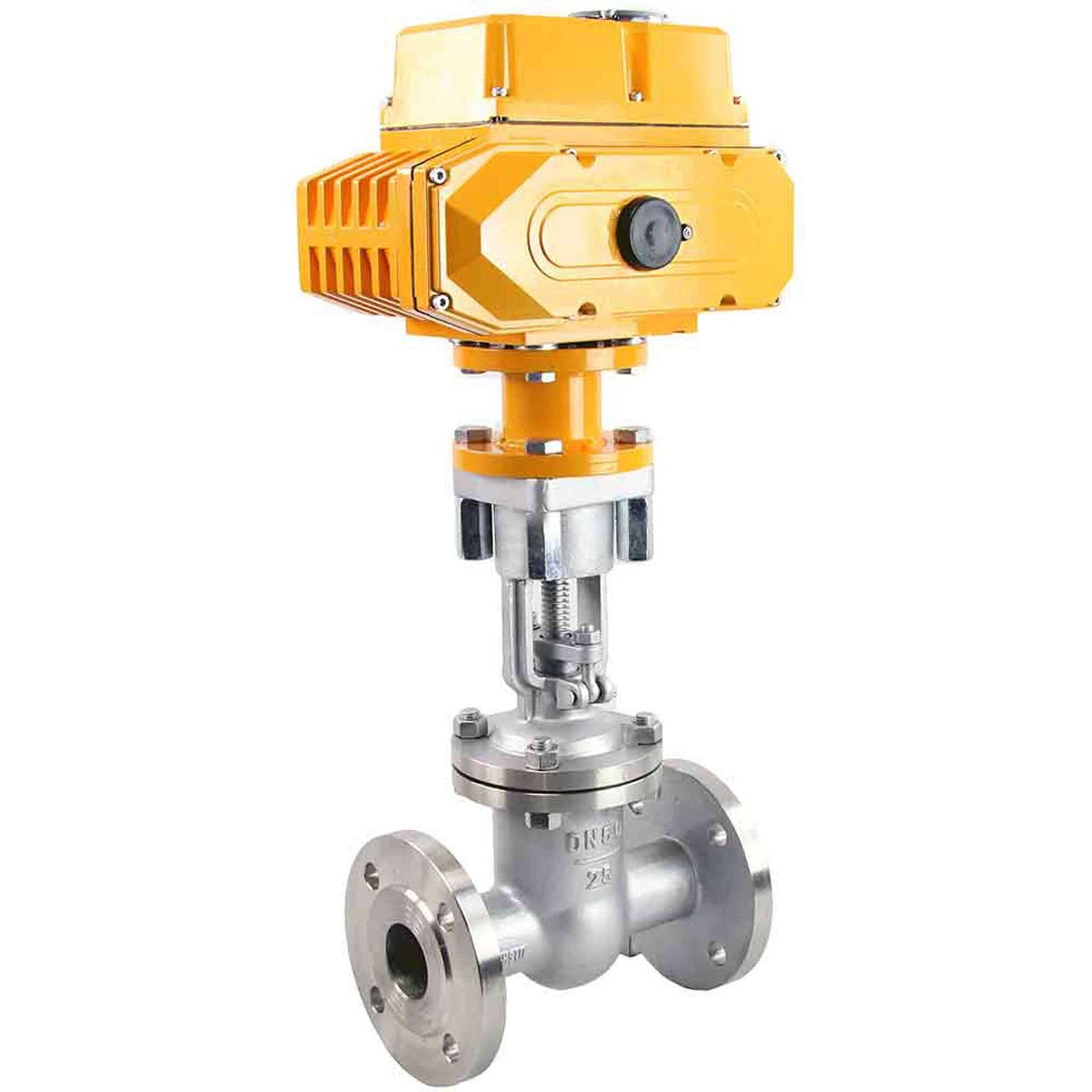

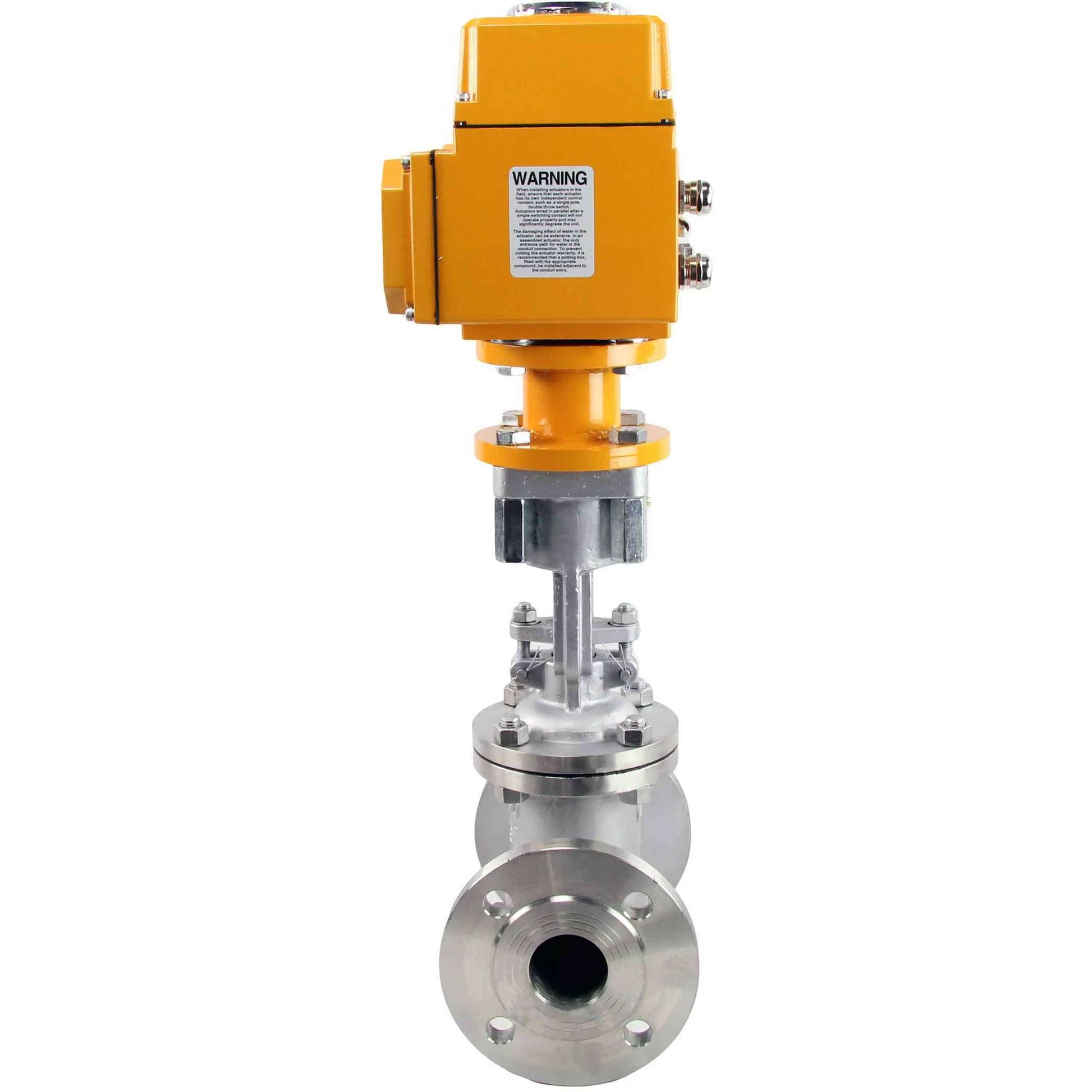

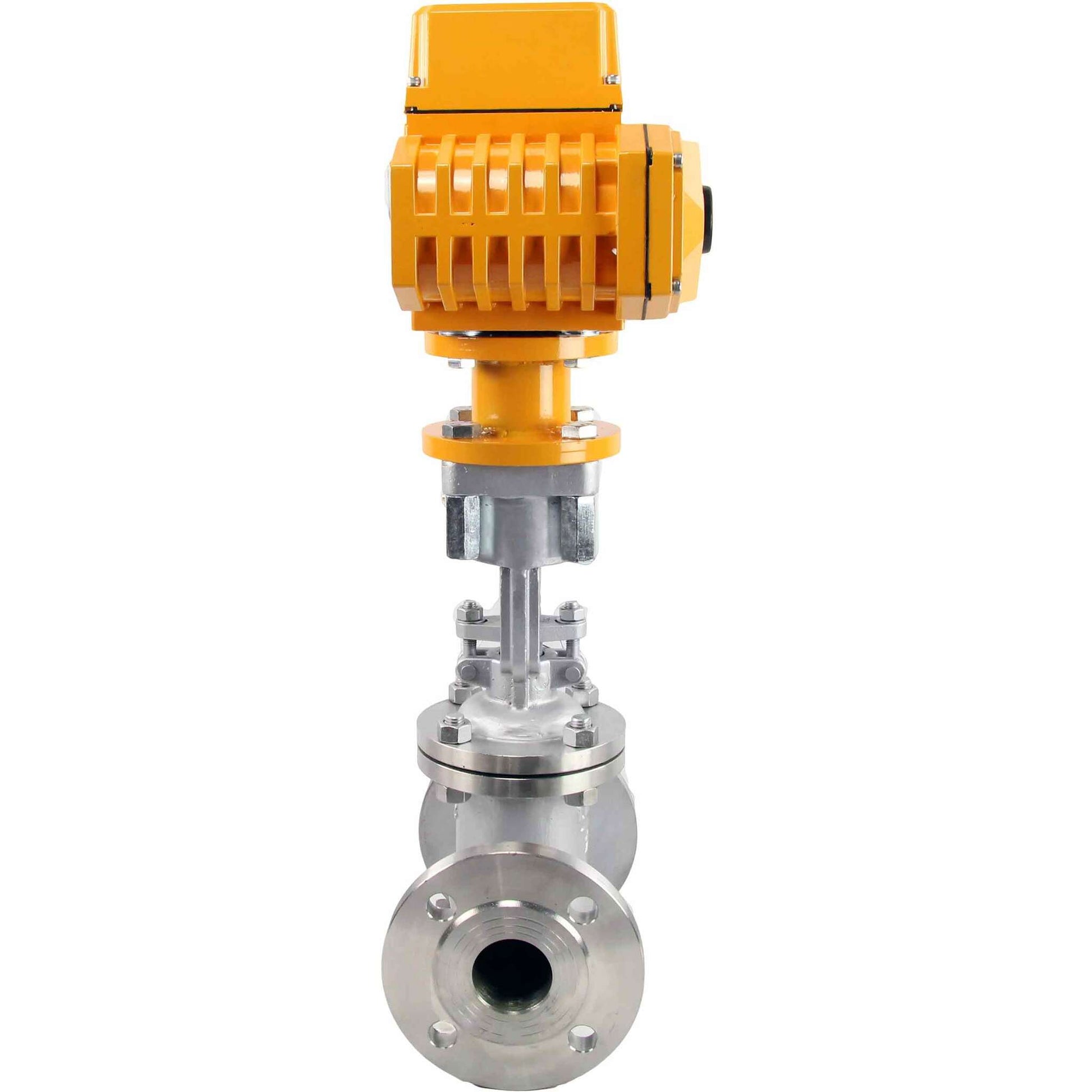

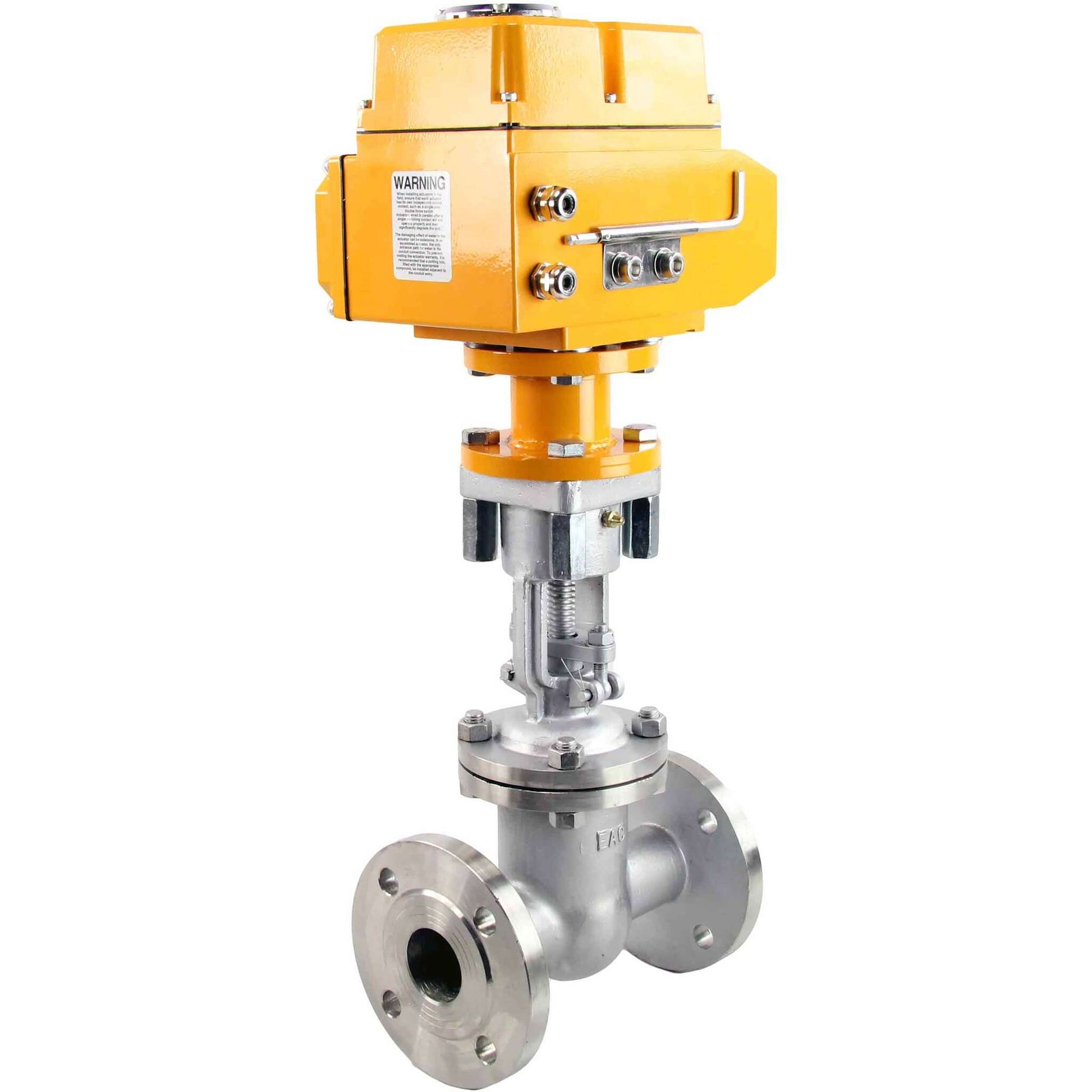

Wedge gate valve DNOVA PSI363 flange connection, body material – steel 25L, seal material – metal/metal, electric actuator DNOVA MT-380, 380V is intended for installation as a shut-off device on pipelines transporting water, steam, and oils, in relation to which the materials used in the valve are corrosion-resaistant.
Technical parameters of flanged wedge gate valves DNOVA 30964nz GVWR2434M-2W-F PN25 c MT-NZ(EM)-O1-380VAC-U1:
| Characteristic | Meaning |
| Gate valve type | wedge |
| Nominal diameter | 50-300 mm |
| Nominal pressure | 25 bar |
| Working environment temperature | From -30 to +425 °C |
| Working environment | water, steam, oil |
| Direction of flow | bilateral |
| Connection to the pipeline | flanged |
| Country of origin | China |
Sketch of wedge gate valves flanged DNOVA 30nz964nz GVWR2434M-2W-F PN25 with MT-NZ(EM)-O1-380VAC-U1
Overall and installation dimensions of flanged wedge gate valves DNOVA 30nz964nz GVWR2434M-2W-F PN25 with MT-NZ(EM)-O1-380VAC-U1:
| D.N. | L, mm | D, mm | D1, mm | D2, mm | b, mm | Zx0d, mm | A, mm | H, mm | C, mm | Torque, Nm |
| 50 | 250 | 160 | 125 | 100 | 18 | 4-18 | 235 | 174 | 180 | 90 |
| 80 | 280 | 195 | 160 | 135 | 20 | 8-18 | 316 | 170 | 208 | 135 |
| 100 | 300 | 230 | 190 | 160 | 22 | 8-23 | 316 | 170 | 208 | 180 |
| 150 | 350 | 300 | 250 | 218 | 30 | 8-25 | 316 | 170 | 208 | 270 |
| 200 | 400 | 260 | 310 | 278 | 34 | 12-25 | 316 | 170 | 208 | 270 |
| 250 | 450 | 425 | 370 | 332 | 36 | 12-30 | 316 | 170 | 208 | 270 |
| 300 | 500 | 485 | 430 | 390 | 40 | 16-30 | 640 | 325 | 410 | 545 |
Sketch of materials of wedge gate valves flanged DNOVA 30nz964nz GVWR2434M-2W-F PN25 c MT-NZ(EM)-O1-380VAC-U1
Main materials of the parts of the flanged wedge gate valves DNOVA 30nz964nz GVWR2434M-2W-F PN25 c MT-NZ(EM)-O1-380VAC-U1:
| Item No. | Part name | Material |
| 1 | Spindle nut | brass |
| 2 | Sealing | graphite |
| 3 | Bolt/Nut | St35 |
| 4 | Stock | steel 2cr13 |
| 5 | Saddle | WCB+D507 |
| 6 | Wedge | WCB+D507MO |
| 7 | Frame | steel 25L |
Main technical data and characteristics of DNOVA MT series electric drives:
| Electric drive brand | MT-N-005Z-O1-380VAC-U1 | MT-N-010Z-O1-380VAC-U1 | MT-N-020Z-O1-380VAC-U1 | MT-N-030Z-O1-380VAC-U1 |
| Supply voltage, V | 380 | |||
| Electric motor power, W | 100 | 100 | 120 | 150 |
| Torque, Nm | 50 | 100 | 200 | 300 |
| Speed, rpm | 5 | |||
| Maximum drive speed | 50 | |||
|
Maximum diameter of the reinforcement rod, mm |
16 | 18 | 22 | 25 |
| Weight, kg | 10 | |||
| Degree of protection of the case | IP67 | |||
| Ambient temperature, °C | from -28 to +60 | |||
|
Temperature of internal thermal protection response, °C |
110 | |||
| Availability of a backup | hexagon | |||
| Installation angle | arbitrary | |||
| Body material | aluminum alloy | |||
| ISO Flange Type | F10/F12 | |||
Sketch of electric drives DNOVA series MT
Overall and installation dimensions of DNOVA MT series electric drives:
| O, mm | 40 |
| A, mm | 149 |
| B, mm | 119 |
| C, mm | 114 |
| D, mm | 200 |
| E, mm | 151 |
| F, mm | 105 |
| G, mm | 117 |
