A water butterfly valve is a type of valve used to control the flow of water or other fluids through a pipeline. It gets its name from the butterfly-shaped disc inside the valve that rotates to open or close the flow. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing unobstructed passage of water. When the valve is closed, the disc is turned perpendicular to the flow, effectively blocking the flow of water. Water butterfly valves are commonly used in various industries and applications, including water treatment plants, sewage systems, irrigation systems, and industrial processes. They are known for their compact design, lightweight construction, and ease of installation. These valves are often preferred for their quick operation, as the disc can be opened or closed with a simple quarter-turn motion. Butterfly valves can be operated manually with a handle or lever, or they can be automated using electric, pneumatic, or hydraulic actuators to control the valve remotely. They are known for their low-pressure drop and relatively low cost compared to other types of valves. It's worth noting that water butterfly valves are specifically designed for use with water and compatible fluids. Different materials and designs may be required for valves intended for use with corrosive or high-pressure fluids. It's important to select the appropriate type of butterfly valve based on the specific application and fluid requirements.

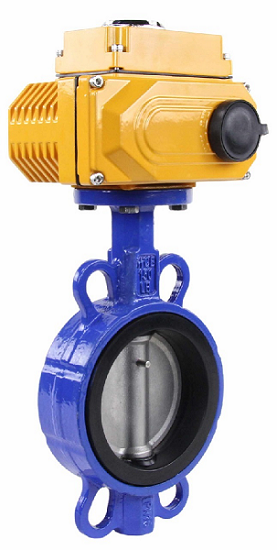

Butterfly valves DNOVA WBVV3432V-2W-Fb DN50-300 Ru16, body - carbon steel WCB, disc - stainless steel 316L, seal - Viton, with 1/4-turn electric actuator QT-N-EM-O1-24VDC-U1 24V
General parameters of disc gates DNOVA WBV3432V-2W-Fb QT-N-EM-O1-24VDC-U1 DN50-300:
| Nominal diameter DN, mm | 50 – 300 |
| Nominal pressure PN, MPa (kg/cm2) | 1.6 (16) |
| Direction of flow | bilateral |
| Ambient temperature t, ⁰C | From -20 to +200: for VITON |
| Working environment | VITON: mineral and vegetable oils, animal fats, plastic lubricants and fuel, hot air, steam |
| Connection to the pipeline | interflange |
Sketch of dimensions of disc gate valves DNOVA WBV3432V-2W-Fb QT-N-EM-O1-24VDC-U1 DN50-300
Dimensions of disc gate valves DNOVA WBV3432V-2W-Fb QT-N-EM-O1-24VDC-U1 Du50-300:
| DN, mm | H1, mm | H2, mm | H3, mm | L, mm | S, mm | ØK, mm | C, mm | n-Ø mm | ISO 5211 | Weight, kg |
| 50 | 76 | 162 | 32 | 45 | 9 | 50 | 125 | 4x18 | F05 | 2 |
| 65 | 89 | 175 | 32 | 48 | 9 | 50 | 145 | 4x18 | F05 | 2.3 |
| 80 | 95 | 181 | 32 | 49 | 9 | 50 | 160 | 4x18 | F05 | 2.6 |
| 100 | 114 | 200 | 32 | 55 | 11 | 50 | 180 | 4x18 | F07 | 4.1 |
| 125 | 127 | 213 | 32 | 58 | 14 | 70 | 210 | 4x18 | F07 | 5.2 |
| 150 | 140 | 225 | 32 | 59 | 14 | 70 | 240 | 8x23 | F07 | 6.6 |
| 200 | 177 | 260 | 36 | 64 | 17 | 102 | 295 | 12x23 | F10 | 11.5 |
| 250 | 203 | 292 | 36 | 70 | 22 | 102 | 355 | 12x27 | F10 | 17.3 |
| 300 | 242 | 337 | 36 | 80 | 22 | 125 | 410 | 12x27 | F10 | 27.8 |
Material specification of disc gate valves DNOVA WBV3432V-2W-Fb QT-N-EM-O1-24VDC-U1 Du50-300:
| Name | Material |
| Frame | carbon steel |
| Cuff | VITON |
| Disk | Steel AISI316L (03X17H14M3) |
| Stock | Steel AISI316L (03X17H14M3) |
| Hairpin | Steel AISI316L (03X17H14M3) |
| Sleeve | PTFE |
| Sealing ring | Nitrile NBR |
| Plate, Handle | Carbon steel |
Maximum torques of disc gate valves DNOVA WBV3432V-2W-Fb QT-N-EM-O1-24VDC-U1 DN50-300:
| D.N. | Torque at 16 bar, Nm |
| 50 | 50 |
| 65 | 50 |
| 80 | 50 |
| 100 | 50 |
| 125 | 80 |
| 150 | 100 |
| 200 | 300 |
| 250 | 400 |
| 300 | 400 |
Description of actuators DNOVA 24V:
DNOVA electric quarter-turn actuators are designed for remote and local control of shut-off valves. Widely used in gas, oil, metallurgical and food industries, housing and utilities, etc. with ambient temperature from -20°...+70°C.
The enclosure is equipped with a heater (7-10W 220V) and has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. The installation dimensions comply with the international standard ISO05211 / DIN3337. The actuator is equipped with an asynchronous motor with squirrel cage rotor, auto-locking of the actuator position, mechanical handle, thermal protection, protection against vibration X Y Z 10g (0,2-34 Hz, 30 minutes) and is designed for operation in repeated-short-time mode S2. The actuator stroke is 90° with an adjustment range of ±10°. The actuator travel is limited by limit switches. Cable connection 2 x M18. Power supply is 24 V DC voltage.
Parameters of actuators DNOVA 24V:
| Electric drive model | Maximum torque, Nm | Working time, sec | Power, W | Current, A | Weight, kg | Rod size square, mm |
| DNOVA-008 | 80 | 30 | 10 | 0.25 | 3.6 | 11 or 14 |
| DNOVA-015 | 150 | 30 | 15 | 0.37 | 4.6 | 14 or 17 |
| DNOVA-060 | 600 | 30 | 90 | 0.33 | 14 | 27 |
