Description

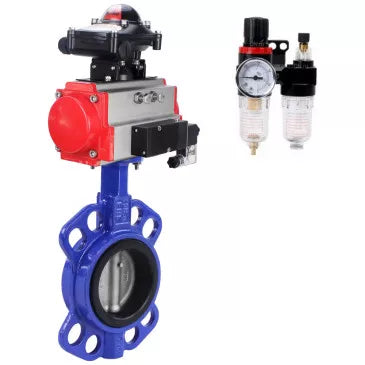

Butterfly valves DNOVA WBV3432P-2W-Fb-H are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve DNOVA 4V320-08 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.
The DNOVA APL-410N EX limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. By using the AFC2000, it becomes possible to transmit information on the position of the pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
The AFC2000 air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a wide range of throughput from 500 liters/minute to 10 000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
Technical parameters of Butterfly valves DNOVA WBV3432P-2W-Fb-H, body - carbon steel WCB, disk - stainless steel 316L, seal - NBR
| Name | Value |
|---|---|
| Nominal pressure PN, bar | 16 |
| Operating medium temperature, °C | from -29 to 180 |
| Pipeline connection | Flanged |
| Type of valve | Rotating disc valve |
| Control type | Pneumatic actuator |
| Country of manufacture | China |
Table of parts and materials for butterfly valves DNOVA WBV3432P-2W-Fb-H Du40-125 Ru16, body - carbon steel WCB
| № | Name | Material |
| 1 | Housing | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | EPDM, PTFE, NBR |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Rod | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | carbon steel |
Sketch of parts and materials of rotary disc gate valves DNOVA WBV3432P-2W-Fb-H Du40-125 Ru16, body - carbon steel WCB
Technical parameters of pneumatic valve DNOVA 4V320-08 220V
| Name | Value |
|---|---|
| Type of pneumatic distributor | Spool-type |
| Model of pneumatic distributor | 4V320-08 220V |
| Operating pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220V |
| Actuation frequency, cycles/sec | 5 |
Technical parameters of limit switch unit DNOVA APL-410N EX
| Name | Value |
|---|---|
| Limit switch box model | APL-410N EX |
| Service life, years | 10 |
Parts and materials table for DNOVA APL-410N EX limit switch unit
| № | Part | Material |
|---|---|---|
| 1 | Visual indicator | ABS plastic / polycarbonate |
| 2 | Visual indicator cover | Polycarbonate |
| 3 | Label | |
| 4 | Cover screws | Stainless steel |
| 5 | Limit switch box cover | Die-cast aluminum |
| 6 | Shaft | Stainless steel |
| 7 | Limit switches | |
| 8 | Cams (eccentrics) | Polycarbonate |
| 9 | Limit switch box housing | Die-cast aluminum |
| 10 | Terminal block | |
| 11 | Ground terminal | Stainless steel |
| 12 | Cable entry (thread) | |
| 13 | Bracket | Stainless steel |
Main parameters of air treatment unit DNOVA AFC2000
| Parameter | Value |
|---|---|
| Operating pressure, bar | 8 |
| Maximum pressure, bar | 10 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Burst pressure, bar | 15 |
| Air connection | 1/4" |
| Operating temperature, °C | -5 to +60 |
| Filtered particle size, µm | 40 |
| Oil viscosity | ISO VG 32 |
| Weight, kg | 0.395 |
| Set contents | Filter-water separator, pressure regulator, lubricator, bracket |
Sketch of BPV DNOVA AFC2000
